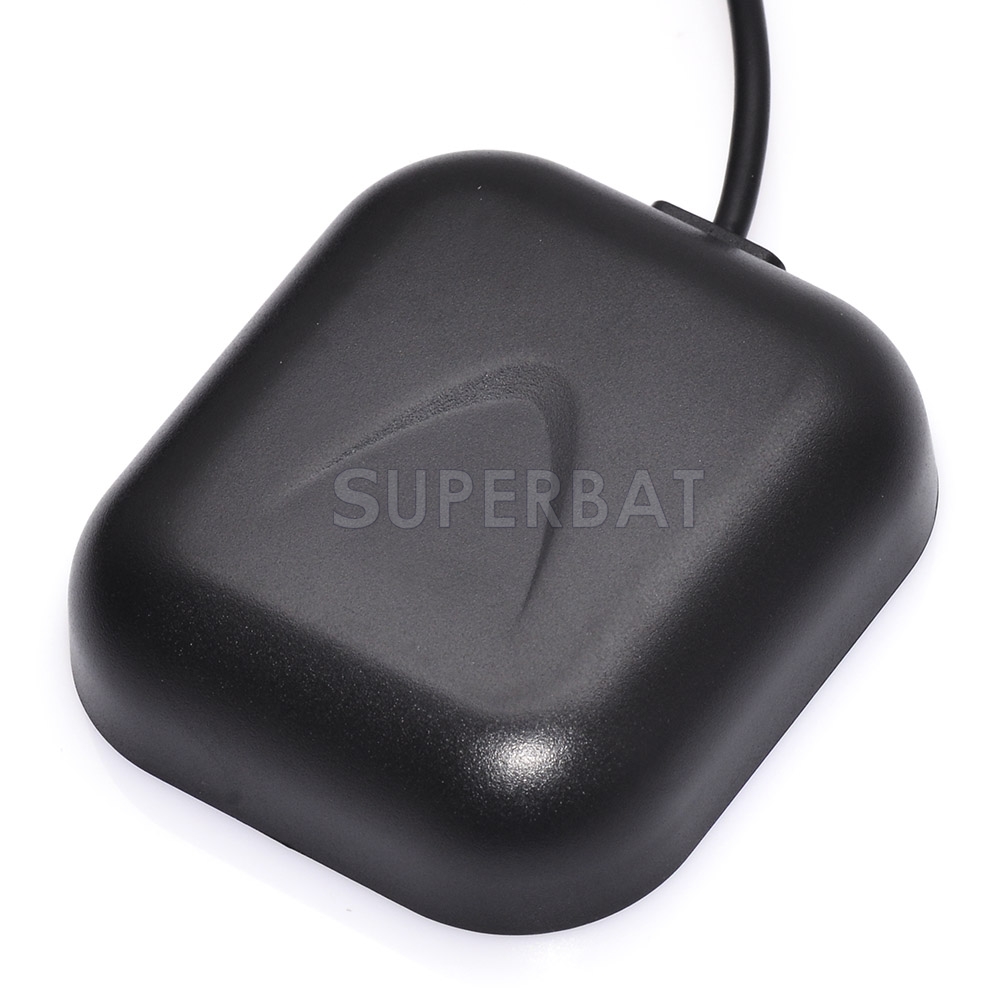

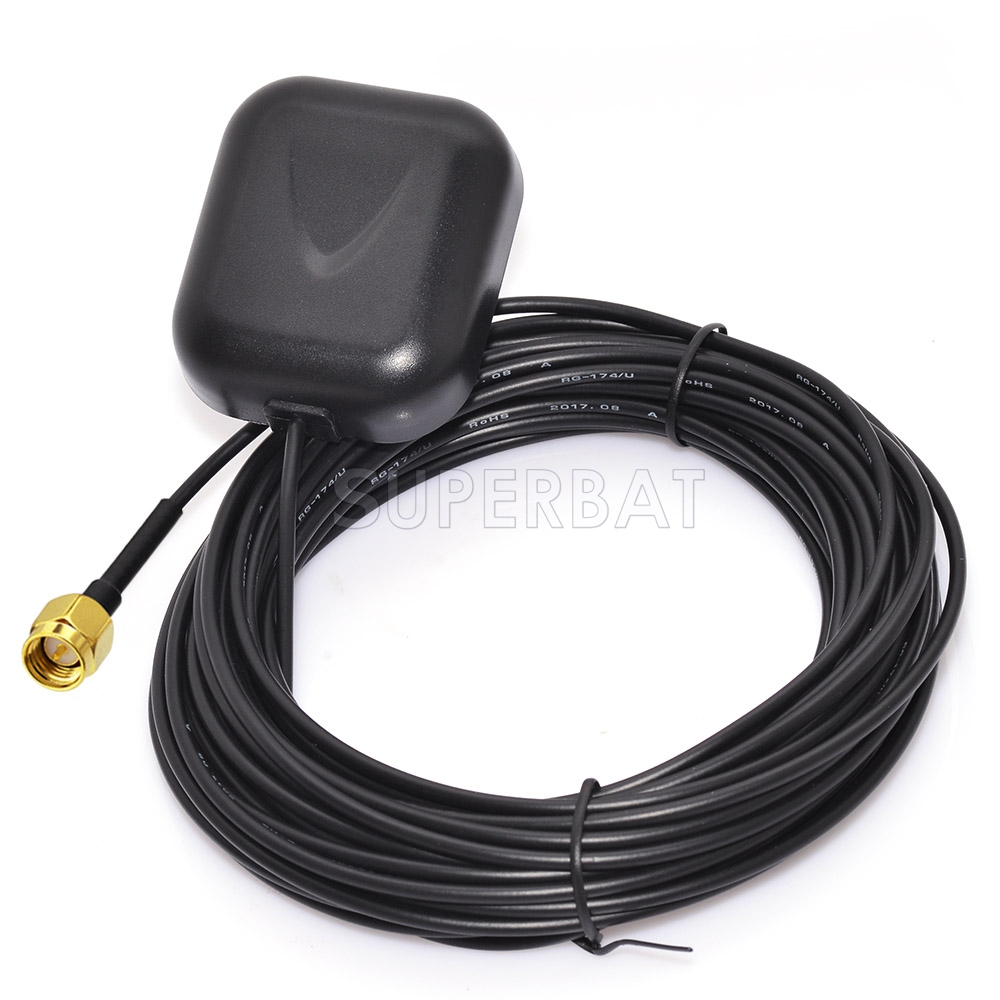

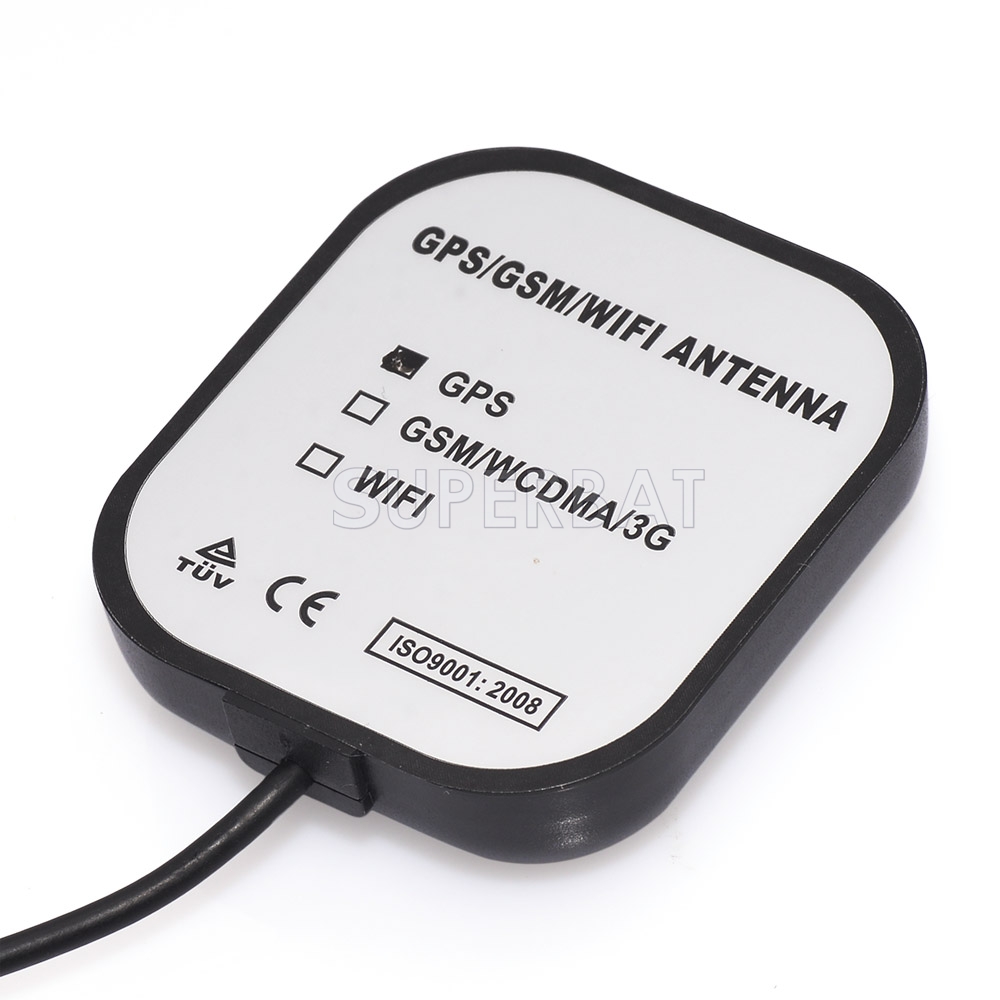

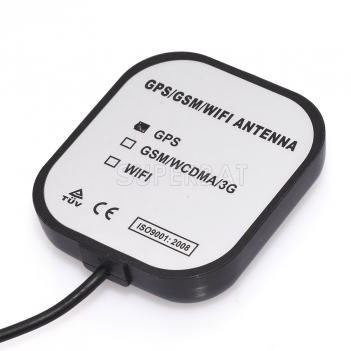

GPS Active Antenna for GPS receivers/systems and Mobile with RG174 cable
Unit Price: $13.90
sku:GA38-300-S01SP
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $13.90 $13.21 $11.81 $10.98 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 9968
Quantity: Units

Characteristic:
1 Dieletric Antenna
Center Frequency 1575.42MHz±1 MHz
V.S.W.R <1.5
Band Width CF±5 MHz
Impendence 50 ohm
Gain(Zenith) 2dB
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP



2 LNA/Filter
LNA Gain (Without cable) 48 ±2dB
Noise Figure <1.0dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
12dB Min f0+50MHZ ;
16dB Min f0-50MHZ;
V.S.W.R <2.0
DC Voltage 2.2~5.0V
DC Current 20~40mA



3 Mechanical
Weight :0.122kg
Size 25*25*4mm
Cable :RG174 3 meter / contact us for other length
Connector :SMA male straight default, if you need SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black



4 Reliability
Condition:Temperature: -40~+85℃
Load: DC=2.2~5.0 V
Sustained Time: 48h
