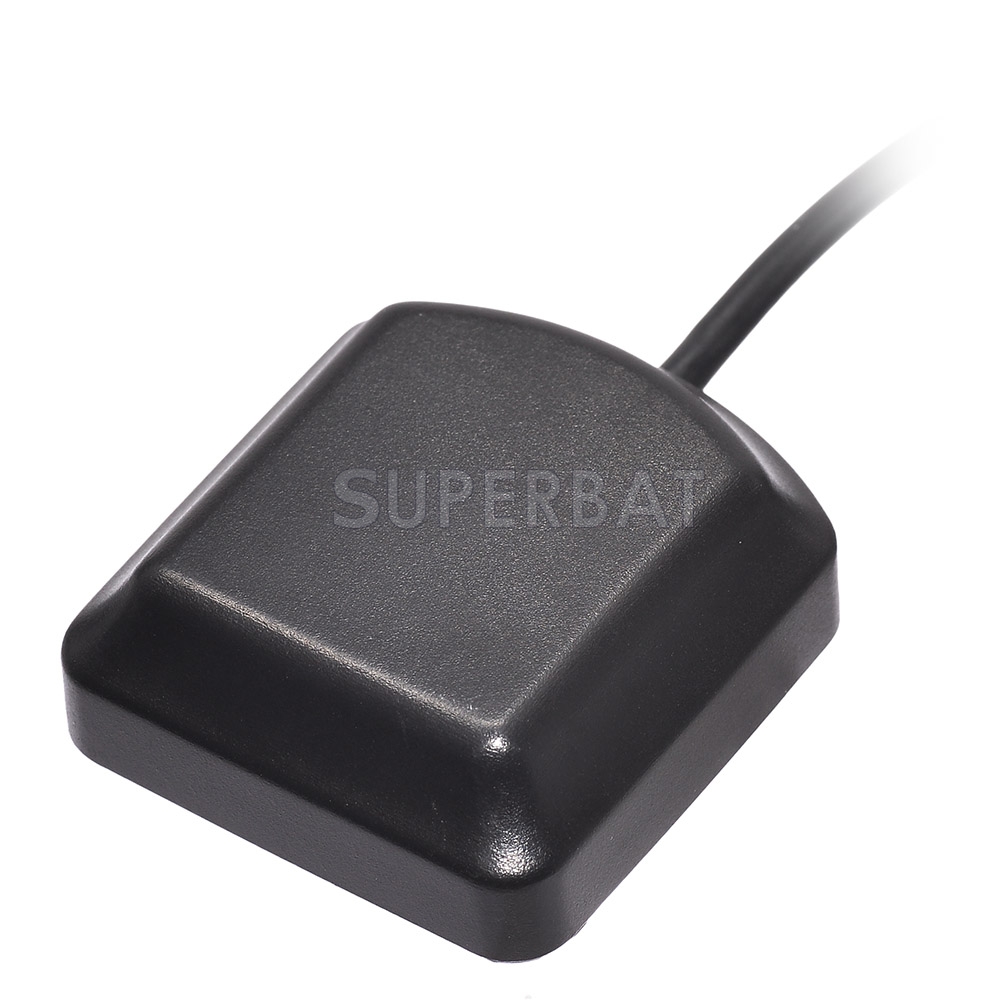

GPS Active Antenna for GPS receivers/systems and Mobile Applications
Unit Price: $8.73
sku:GA26-300-S01SP
cable length
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $8.73 $8.29 $7.51 $6.72 ASK
saving% 0% 5% 14% 23% -
Real Time Availability
Stock: 10000
Quantity: Units

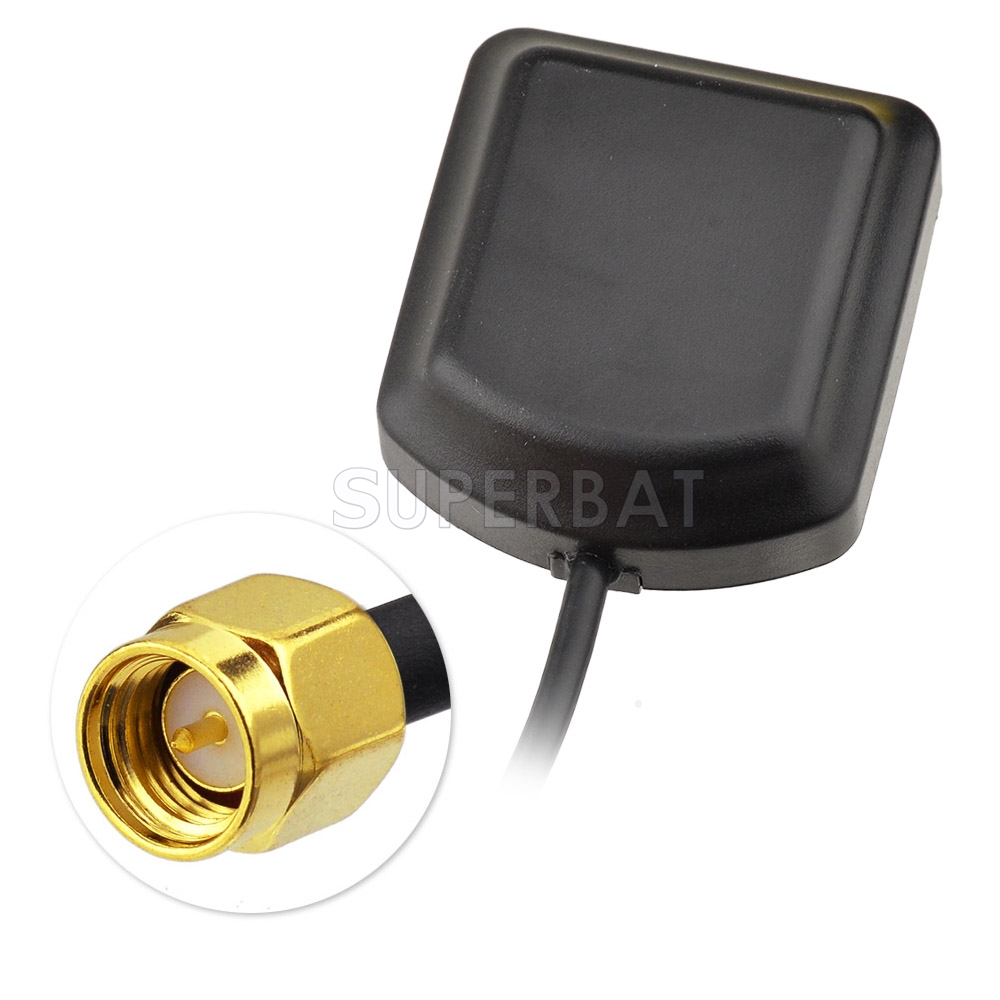

GPS type: other End connector: SMA Connector Polarity: Standard Connector Gender: Male , Plug

Characteristic:
(i) Dieletric Antenna
Center Frequency 1575.42MHz±1 MHz
V.S.W.R <1.5
Band Width CF±5 MHz
Impendence 50 ohm
Dimension 20*20*4mm
Axial Ratio 3dB(max)
Polarization RHCP



(ii) LNA/Filter
LNA Gain (Without cable) 26±2dB
Noise Figure 1.3dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
12dB CF+50MHZ ;
16dB CF-50MHZ;
Filter Insertion Loss <3dB
V.S.W.R <2.0
DC Voltage 2.2~5.0V
DC Current 10~26mA



(iii)Mechanical
Weight 64G

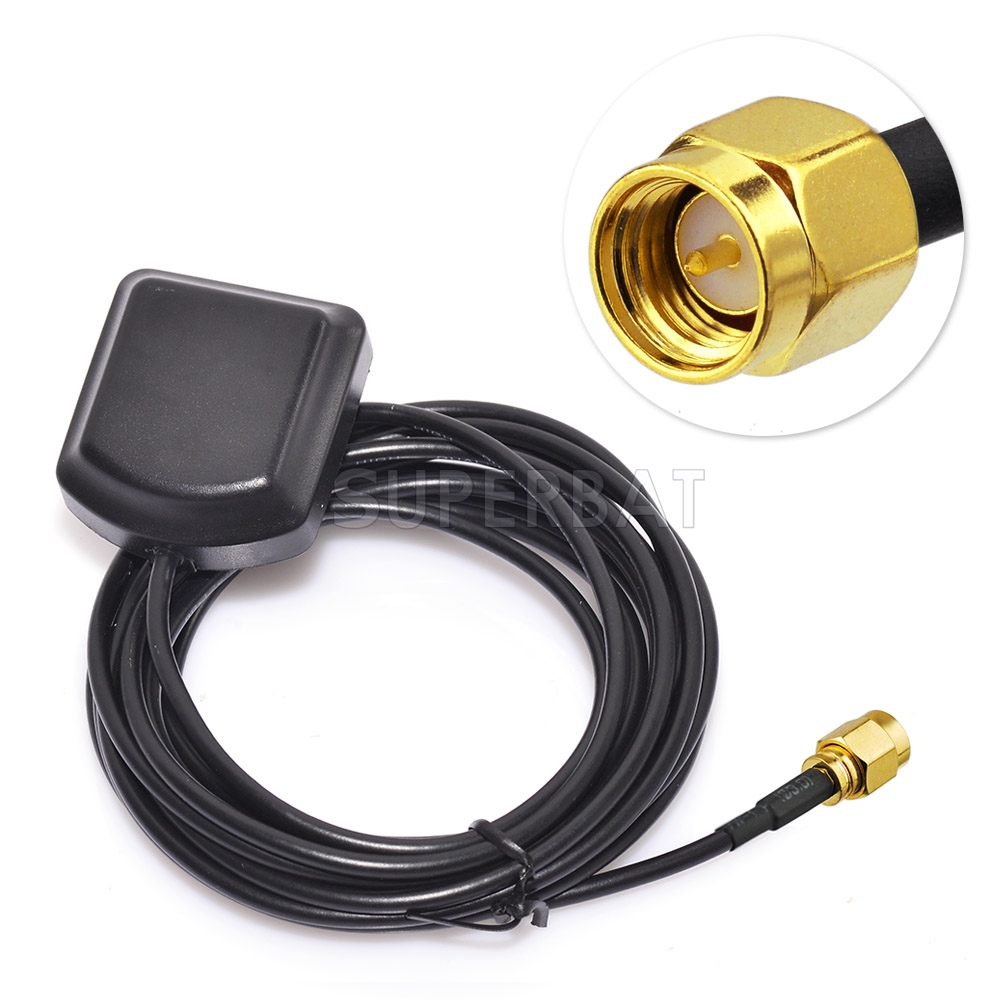

Cable :RG174 3 meter / contact us for other length
Connector :SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks!

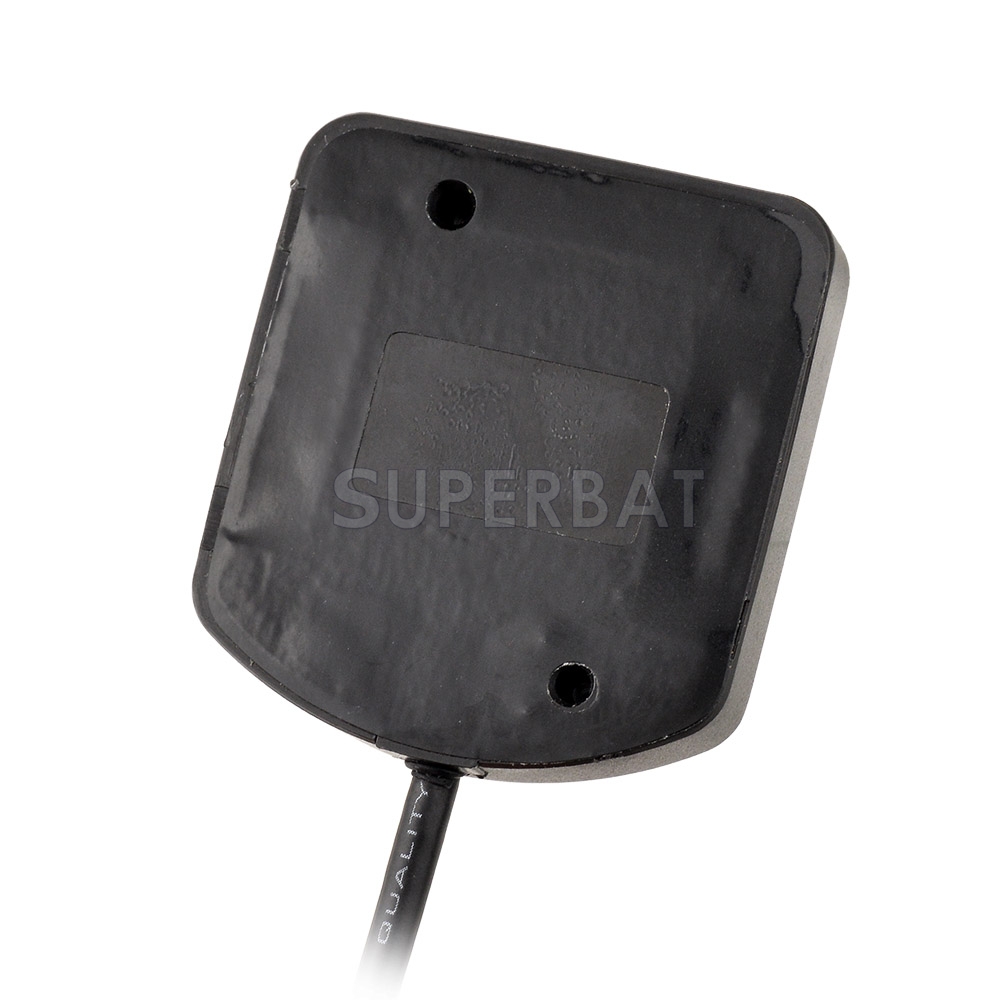

Mounting Magnetic base
Housing Black



(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof



(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity



(VI) APPLICATIONS:
Automobile GPS
Bluetooth Receiver
Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator
