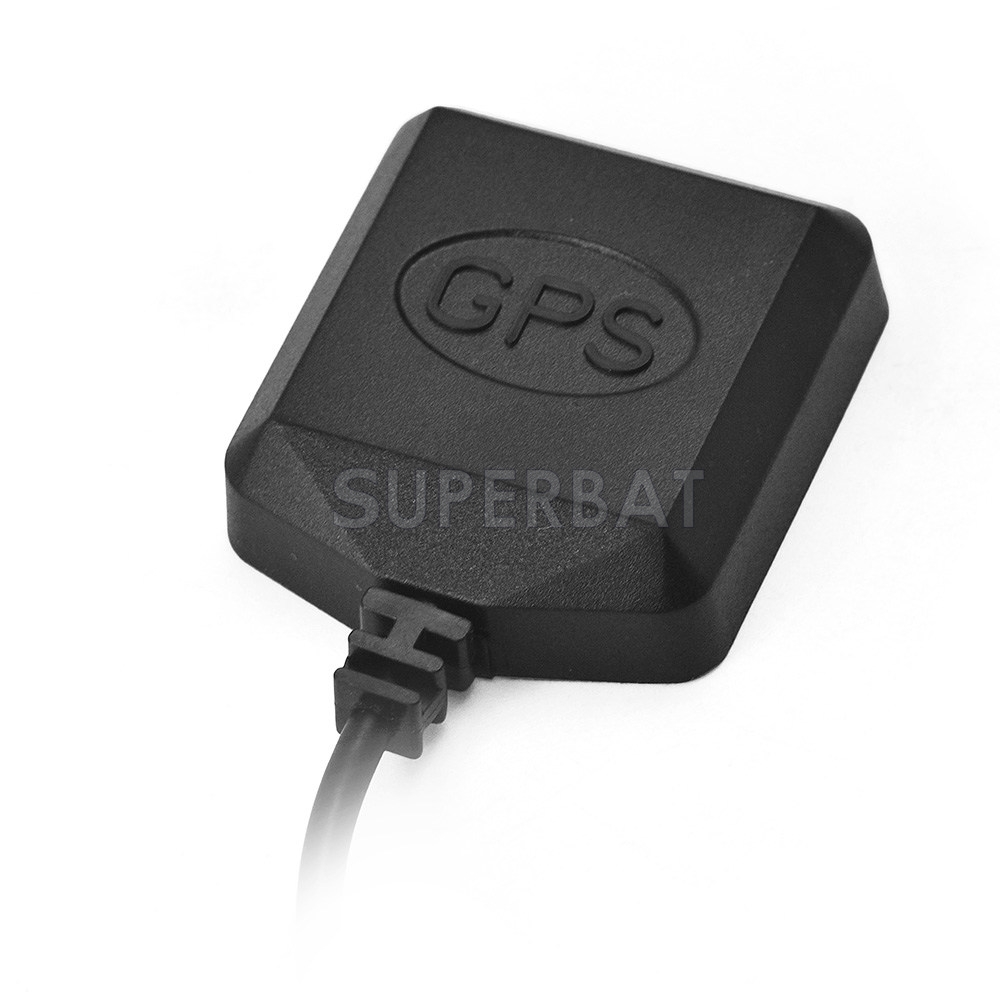

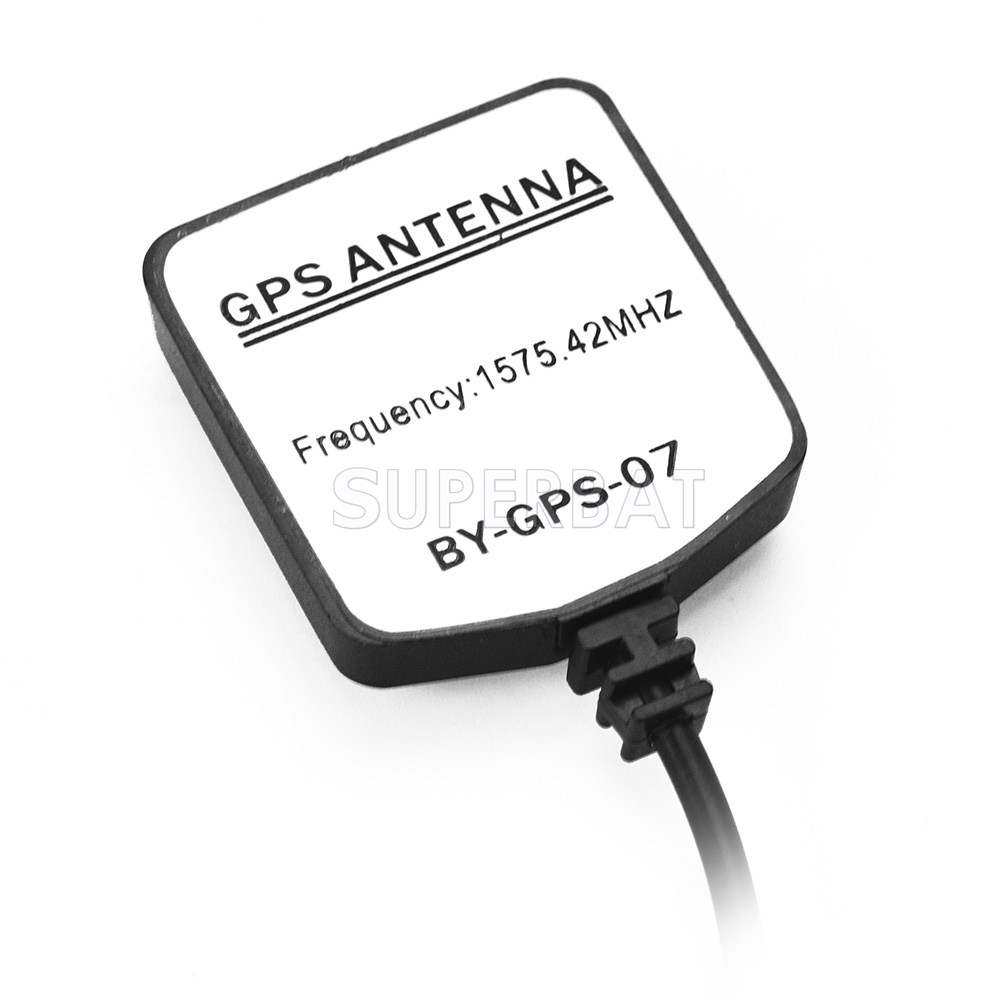

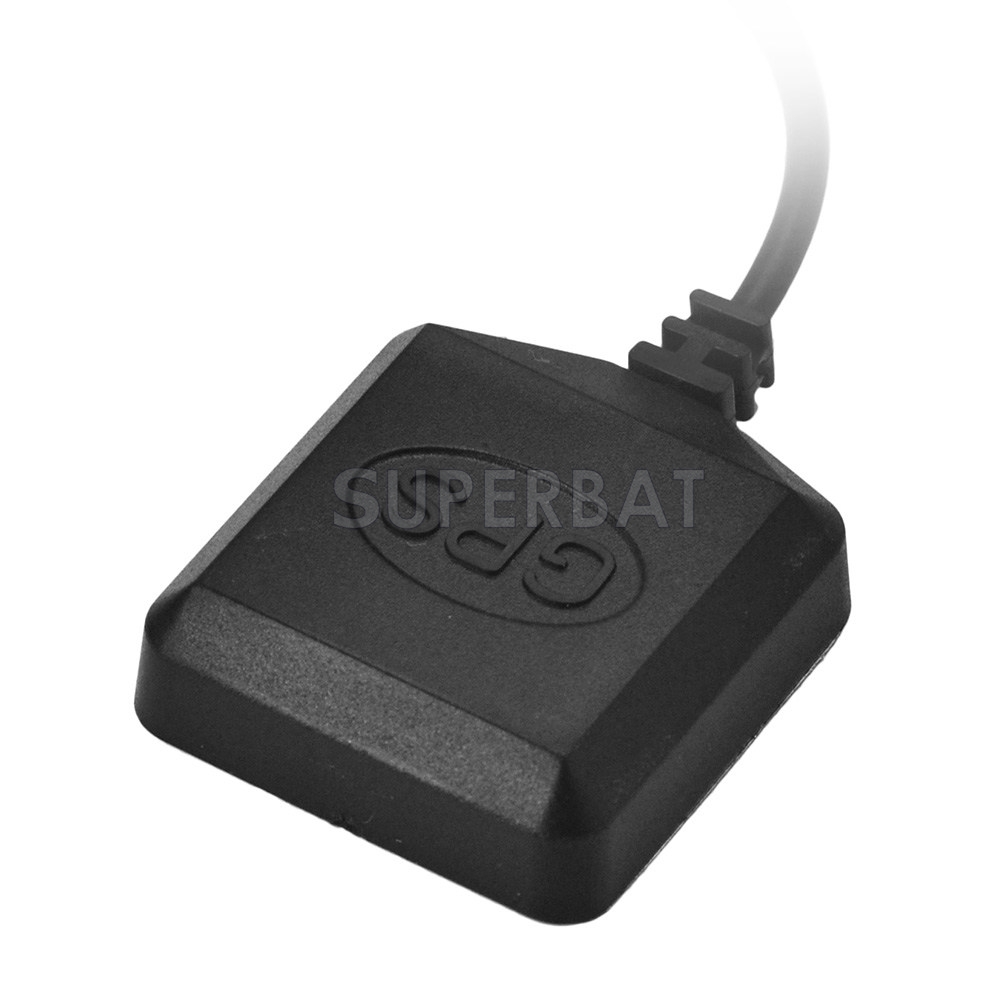

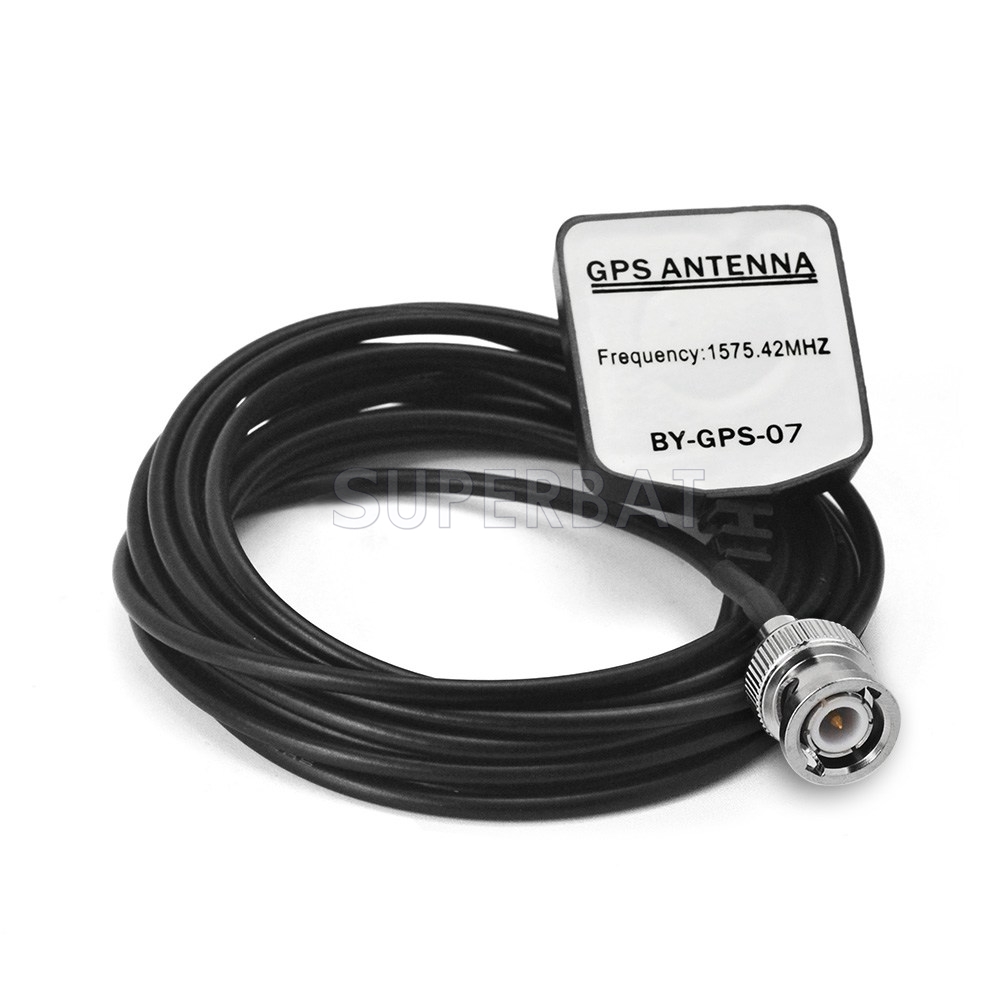

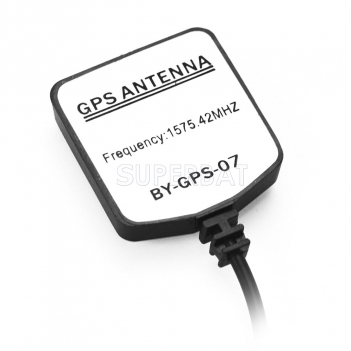

GPS Active Antenna 1575.42MHz BNC plug with 2m/3m/5m cable
Unit Price: $9.50
sku:GA07-500-B01SP
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $9.50 $8.46 $8.07 $7.60 ASK
saving% 0% 11% 15% 20% -
Real Time Availability
Stock: 9200
Quantity: Units

(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size 38x34x11mm
Cable :RG174 5 meter / contact us for other length

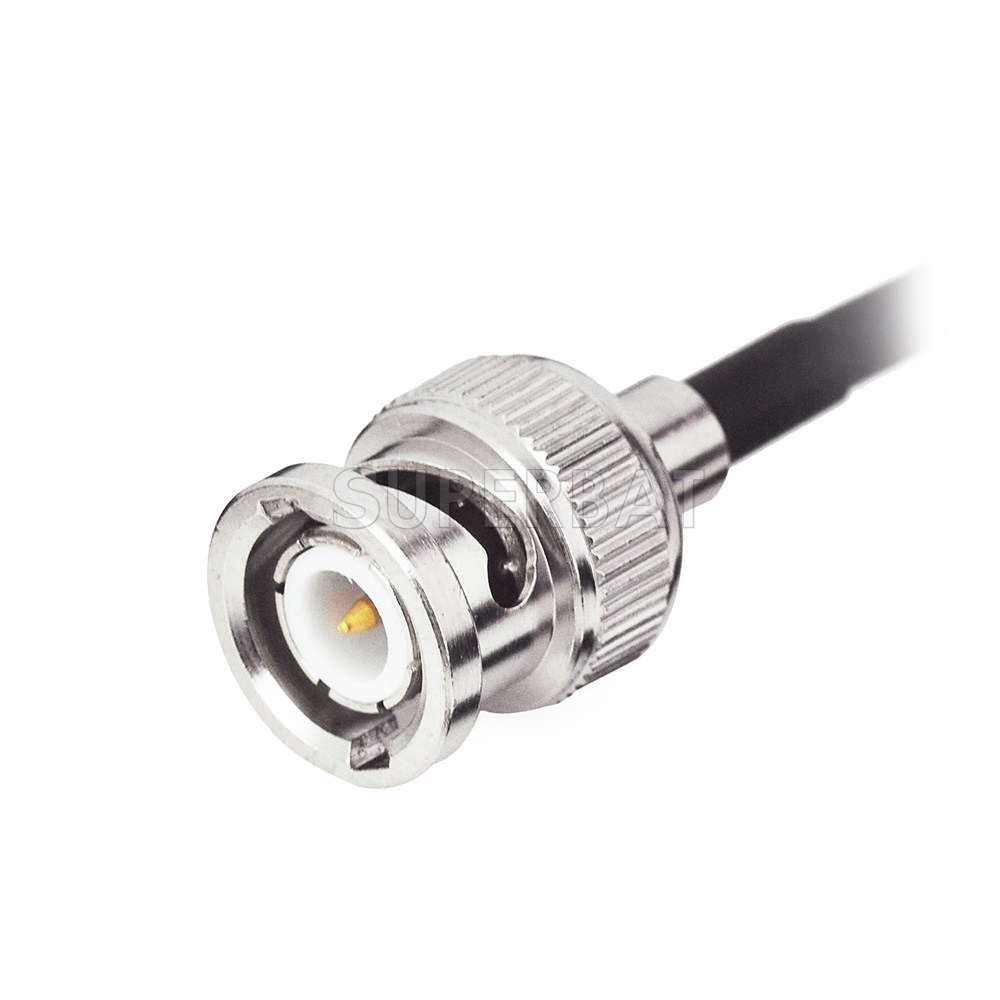

Connector :BNC male straight default/ SMA/SMB/SMC/FME/TNC/MCX /MMCX /Fakra/AVIC/ in straight or right angle please give us some notes if the antenna connector is chosen.Tks!
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40℃~+85℃
Storage Temp. -45℃~+100℃
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Mounting: Magnetic base

Excellent Temperature Stability
Low Noise Figure
High Sensitivity
