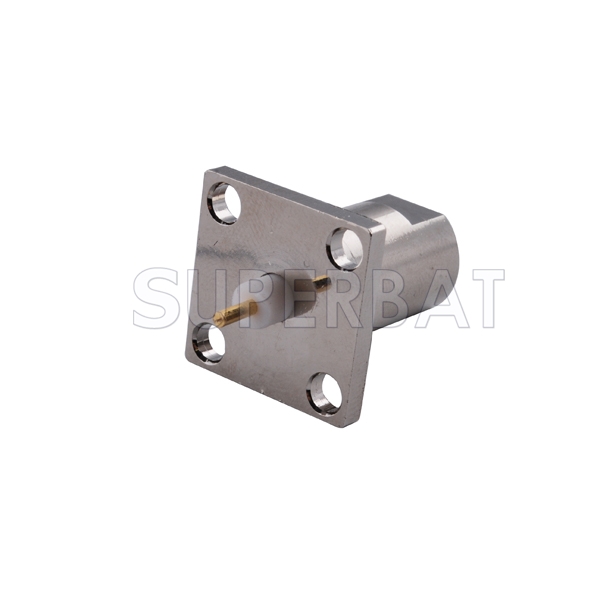

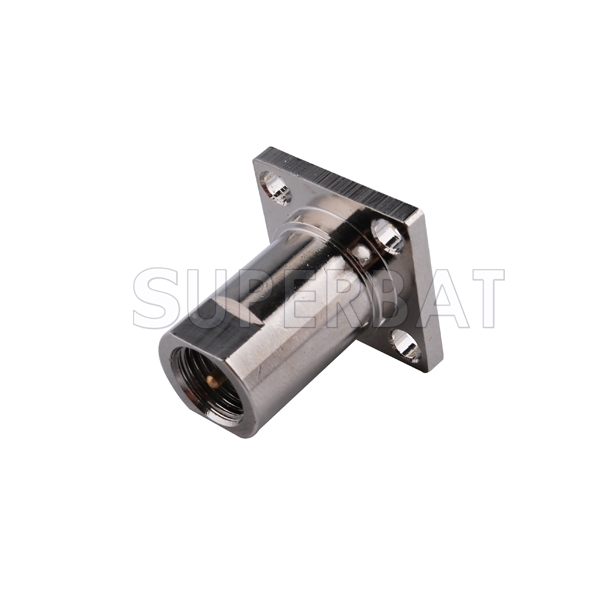

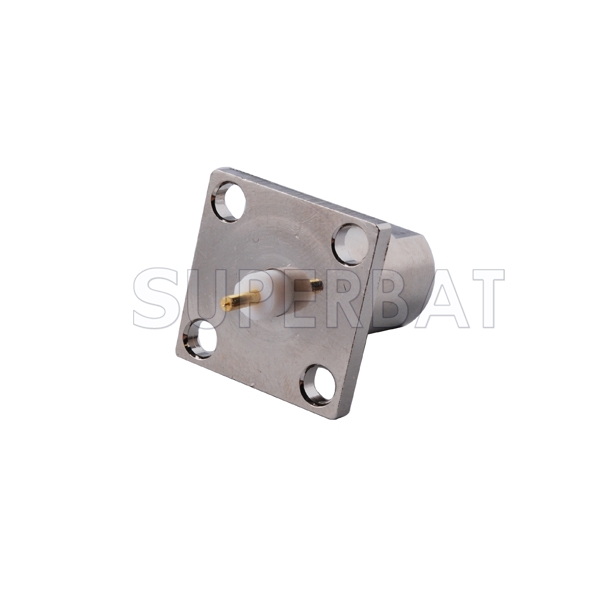

FME Plug Male Connector Straight 4 Hole Flange Solder
Unit Price: $3.35
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.35 $3.02 $2.85 $2.71 ASK
saving% 0% 10% 15% 19% -
Real Time Availability
Stock: 1978
Quantity: Units

Series: FME Termination Type: Terminal Gender: Plug , Male Polarity: Standard Body Style: Straight Mount Method: 4 Hole Flange Impedance: 50 Attachment Method: Solder Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Frequency Range: 3GHz

FME connectors are a miniature 50 Ω series offering performance from DC to 200 MHz.
This connector series is used for mobile antenna applications adapted for UHF, Mini UHF, TNC, BNC and N-Type connector interfaces using between-series adapters. It is primarily used with RG-58 coaxial cables.

Features and Benefits
Low cost
Between series adapters available
Crimp assembly providing easy installation
