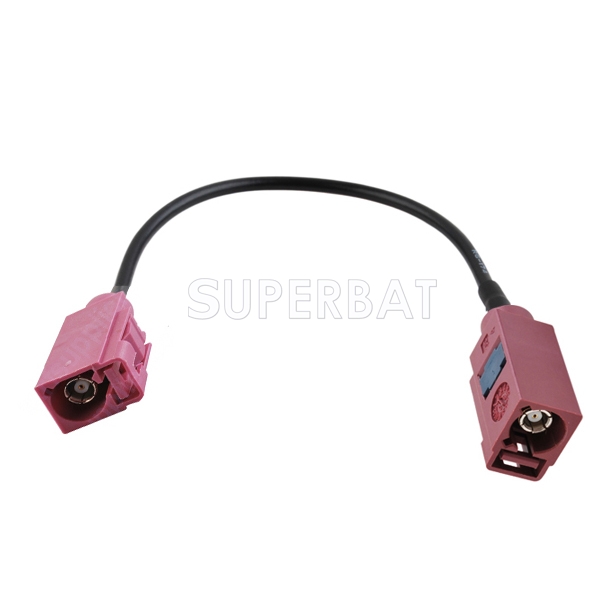

Fakra Jack female "D" to Fakra Jack "H"straight pigtail RG174 for GPS GSM Wirele
Unit Price: $5.95
sku:AC-F03DSJ-F03HSJ-174-15
Length(cm)
quantity 1 - 9 10 - 99 100 - 999 1000+
Price Each $5.95 $5.41 $4.82 ASK
saving% 0% 9% 19% -
Real Time Availability
Stock: 10000
Quantity: Units

Cable Type: RG174 Connector 1 Series: FAKRA Connector 2 Series: FAKRA Connector 1 Gender: Female , Jack Connector 2 Gender: Female , Jack Connector 1 Coding: D Connector 2 Coding: H Connector 1 Polarity: Standard Connector 2 Polarity: Standard Body Style 1: Straight Body Style 2: Straight Cable Impedance: 50

FAKRA Connectors and Cable Assemblies support applications that require a high-performing, reliable, and cost-effective RF connector. FAKRA connectors are standard SMB Connectors embedded within a special inter-locking plastic housing that uses multiple color-codes for easy identification and mating and are designed to perform up to 4GHz at 50 Ω.

Impedance: 50 Ω

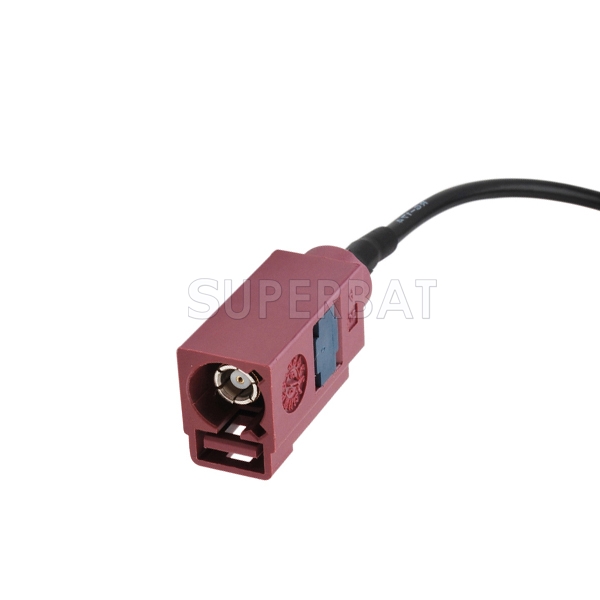

connectors: One end: Fakra "D" female straight

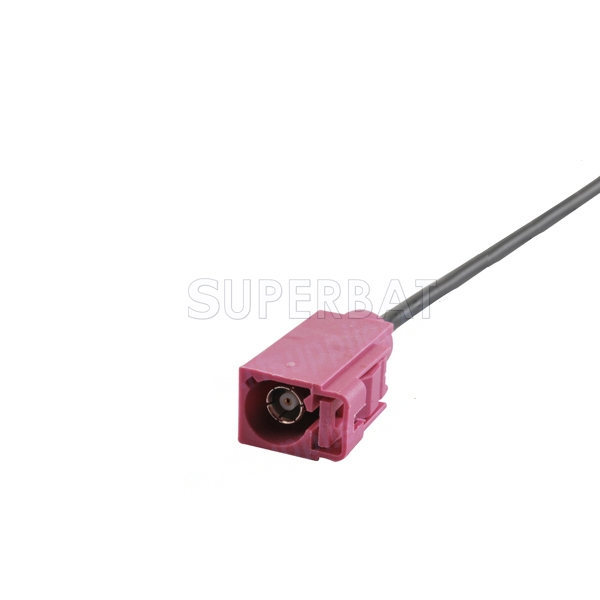

                      Another end: Fakra jack "H" straight

cable: RG174 default

 Optional, RG316, RG178

Length (optional): 4" (10cm)

                                6" (15cm)

                                8" (20cm)

                               12" (30cm)


Applications:


GPS antenna

car audio

GSM antenna

wireless equipment

Wireless Infrastructure

FAKRA connectors are utilized for automotive RF solutions and provide multiple colors and key codes for ease of final assembly

FAKRA connectors coaxial connections are used on devices with external antennas; such applications include SDARS, Cellular, GPS Navigation, key-less entry, and satellite radio. The FAKRA connector provides a mechanical key feature along with a visual color code to differentiate between applications.FAKRA connectors with a high-temperature plastic shroud that is fully compatible with lead-free reflow processes are offered

The antenna with this Fakra Connector is compatible with:

VW RNS510 (MFD3);

VW MFD2 (RNS2);

SKODA COLUMBUS;

MERCEDES COMMAND SYSTEMS W211 (E-CLASS);

MERCEDES APS 50;

AUDI RNS-E (DVD NAVIGATION);

AUDI MMI (A6 4F, A8 4E);



Custom Service: if you require the different length with the same both ends of connectors or another type of RF cable assemblies, welcome to build the cable through our RF custom cable wizard:

https://www.rfsupplier.com/customcable.html
