Dual-System High-Precision Positioning

Supports BeiDou (1561.098±2.046MHz) and GPS (1575.42±1.023MHz); RHCP polarization ensures stable signal acquisition in urban or obstructed environments.28dB gain with <1.5dB noise coefficient; ≤2.0 VSWR and SAW filtering minimize interference

4G LTE

Covers 824-960MHz and 1710-2690MHz bands;Gain: 2.5dB;Includes 3M RG174 cable with SMA connector

Industrial-Grade Resilience

IP65-rated ABS housing; Operates in extreme temperatures (-40°C to +85°C); The antenna complies with RoHS standards, has an IP65 waterproof rating, and is vibration resistant (sine sweep frequency 10-50Hz).

Plug-and-Play Integration

Low power consumption (≤30mA @3.3V); Horizontal mounting optimization; RoHS compliant for global deployments.

Applications

Automotive fleet management

IoT asset tracking devices

Industrial equipment monitoring

Marine navigation systems

GNSS Module:

Frequency:

BeiDou: 1561.098±2.046MHz

GPS: 1575.42±1.023MHz

Bandwidth: >5MHz

Gain: 4.5dBic (zenith-mounted)

VSWR: ≤2.0

Polarization: Right-Hand Circular (RHCP)

LNA Specifications:

Gain: 28dB

Noise Figure: <1.5dB

Operating Voltage: 3.0-3.6V DC

Current Consumption: ≤30mA @3.3V

4G LTE Module:

Frequency Bands: 824-960MHz & 1710-2690MHz

VSWR: ≤3.0 (Typical: 1.32-1.86)

Efficiency: 43.89-57.52%

Gain: 2.5dBi

Mechanical & Environmental:

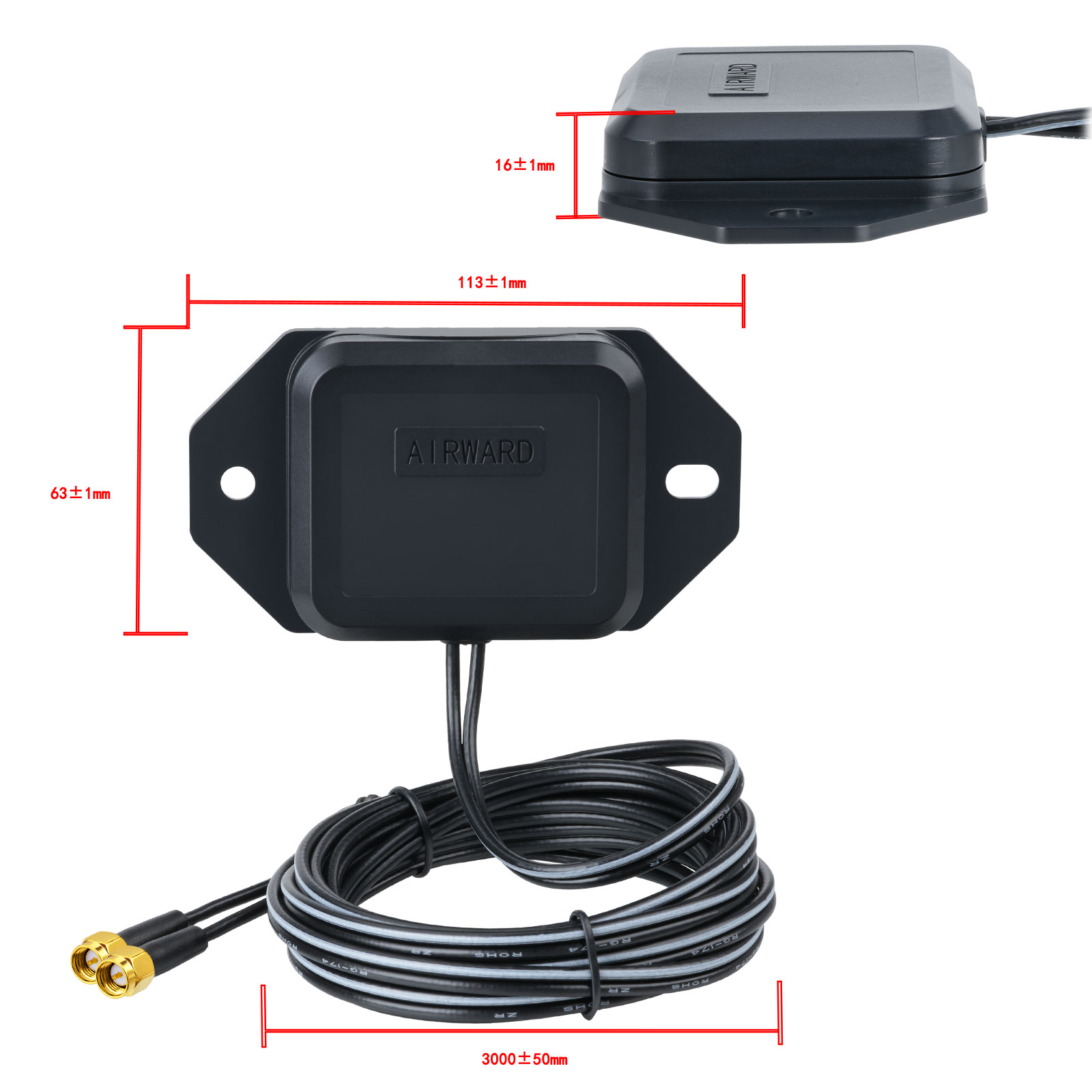

Dimensions: 113x63x16mm (optimized for horizontal mounting)

Cable: RG174, 3Meter

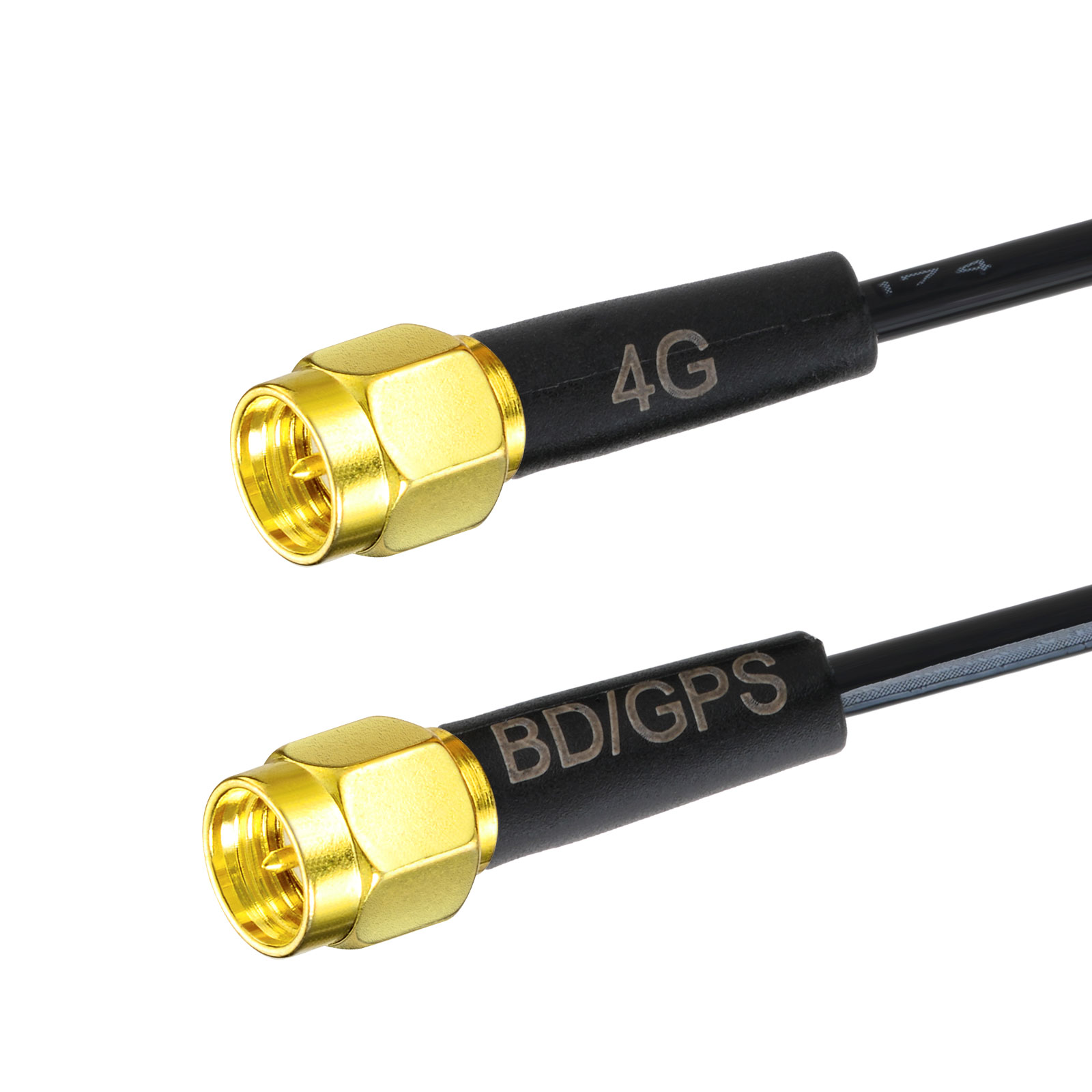

Connectors: Dual SMA male

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Certifications & Compliance:

RoHS compliant

IP65 waterproof rating

Vibration resistant (sine sweep 10-50Hz)

Applications:

Automotive fleet management

IoT asset tracking devices

Industrial equipment monitoring

Marine navigation systems

List:1 x Combination Antenna
