Specifications:

DAB

Frequency:174MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)

Impedence :50 Ω

Amplification：20dB

VSWR:≤2.0:1

Connector :Fakra“G” Male

power supply:+12v

Cable:30cm RG174

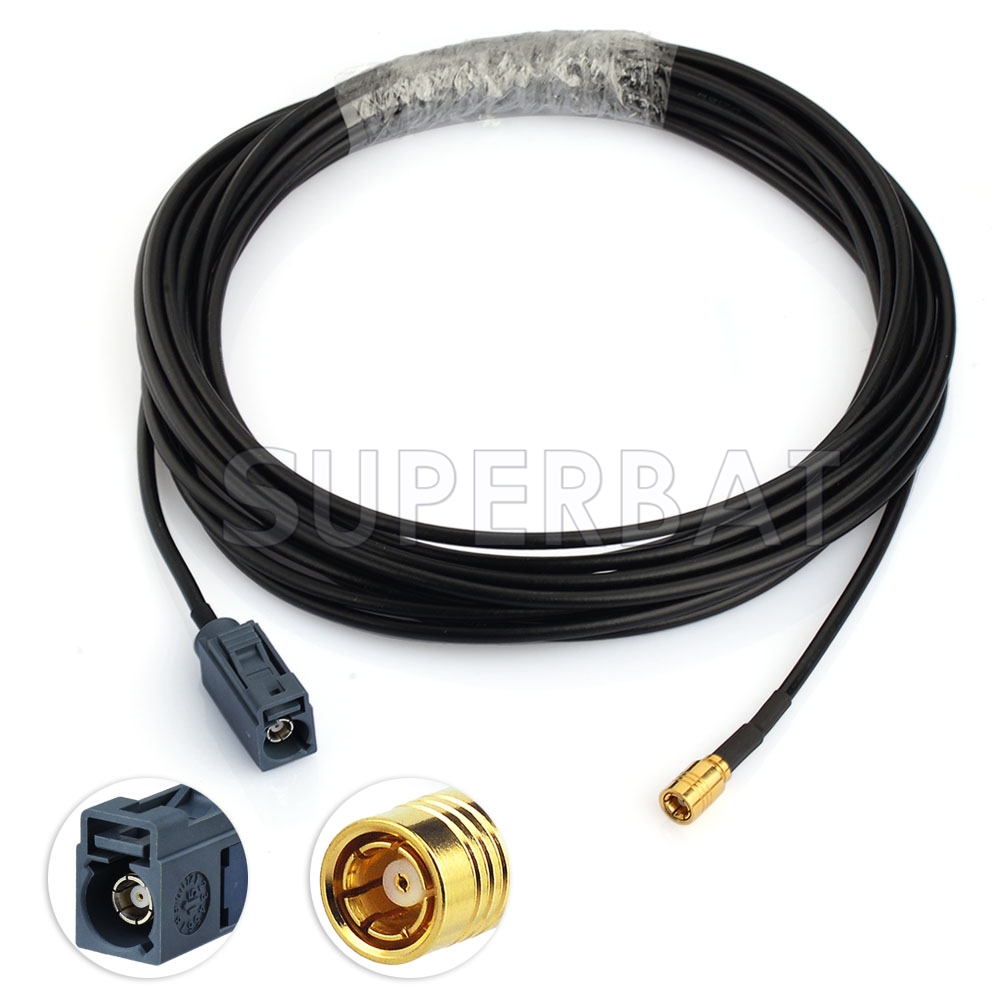

Aerial Replacement Cable :Fakra-SMB RG174 5m

GPS

Frequency:1575.42MHz

Impedence :50 Ω

Amplification:28±3db

VSWR:≤1.5:1

Gain:32dbi

Connector: FAKRA“C” Male

Cable:30cm RG174

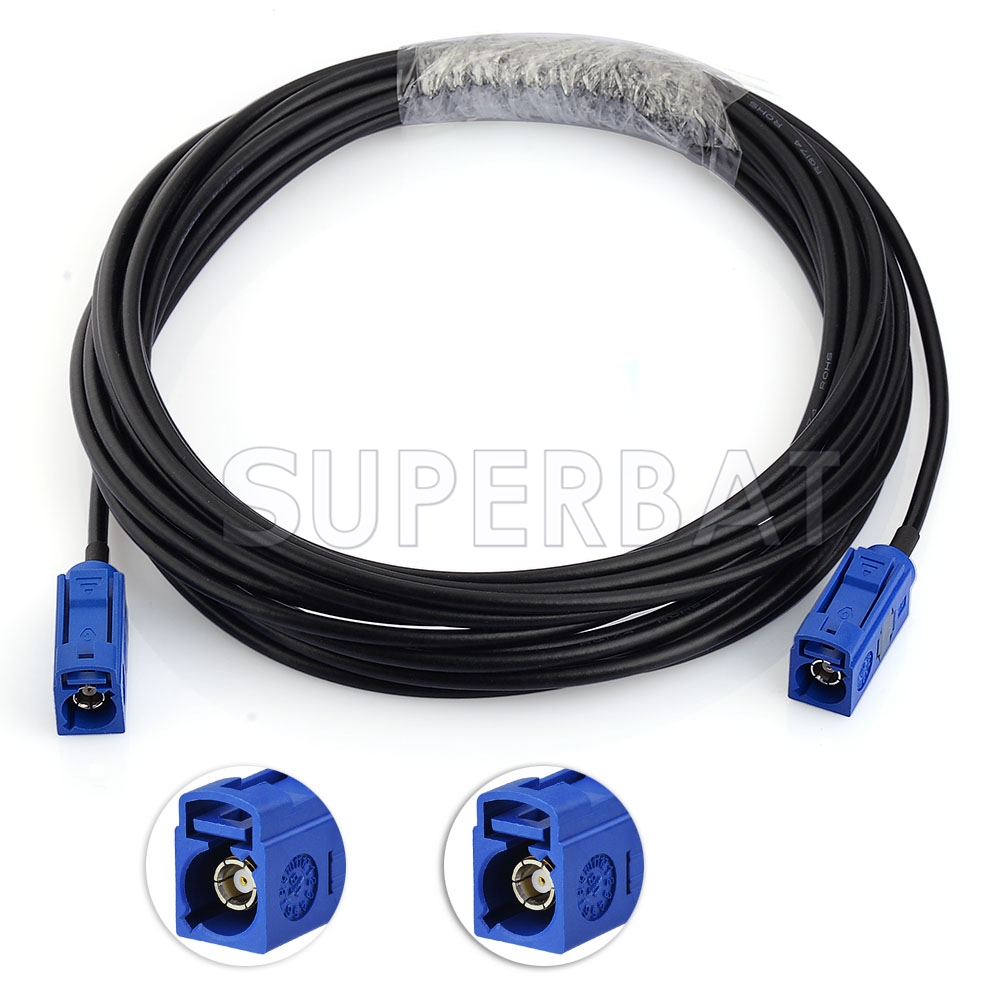

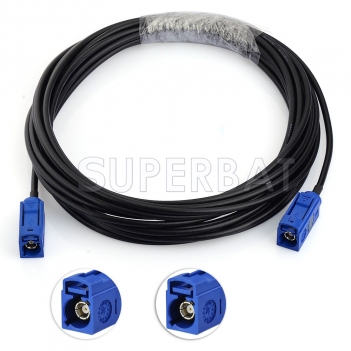

Aerial Extension Cable :Fakra-Fakra RG174 5m

FM

Frequency: 87.5-108 MHz

Impedence : 50 Ω

Amplification:20dB

VSWR:≤2.5:1

Connector:FAKRA“B” Male

power supply:+12v

Cable:30cm RG174

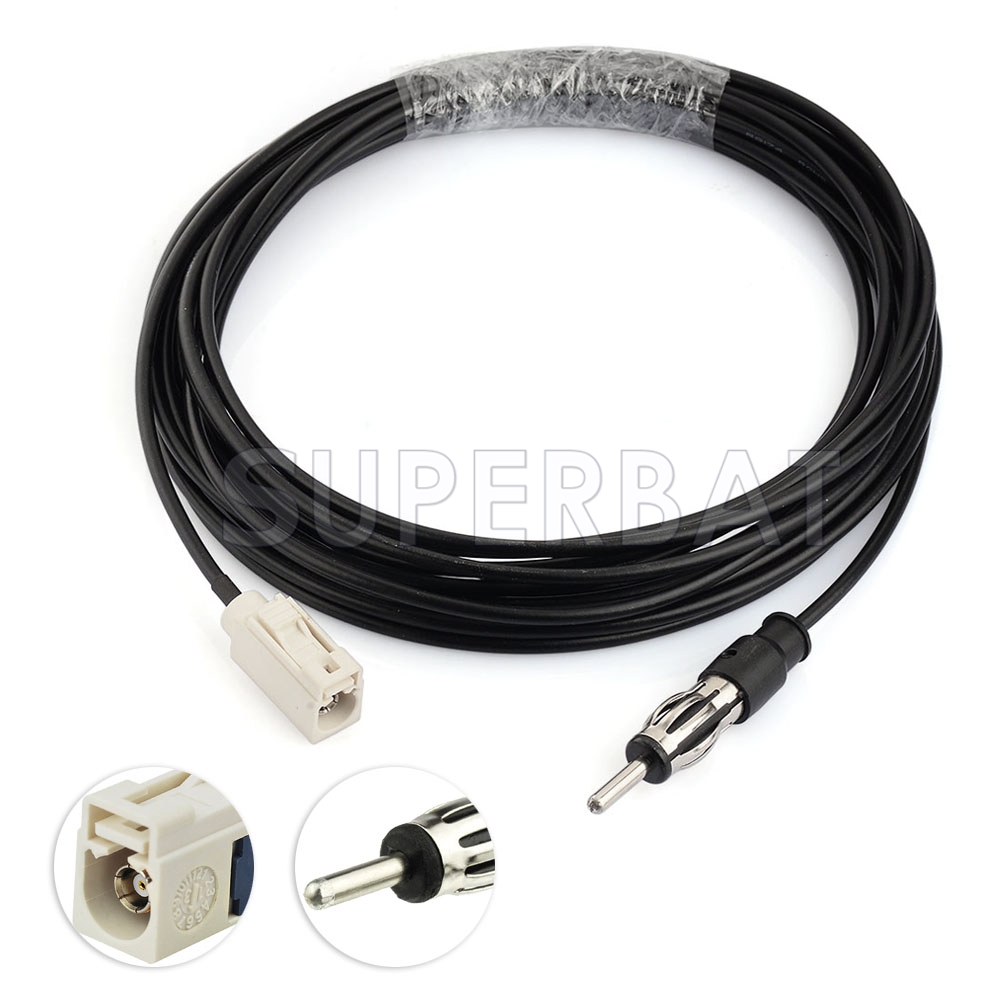

Aerial Replacement Cable :FARKA-DIN  RG174 5m

Voltage : 12v direct feed for both DAB an FM

Current Consumption : 50mA

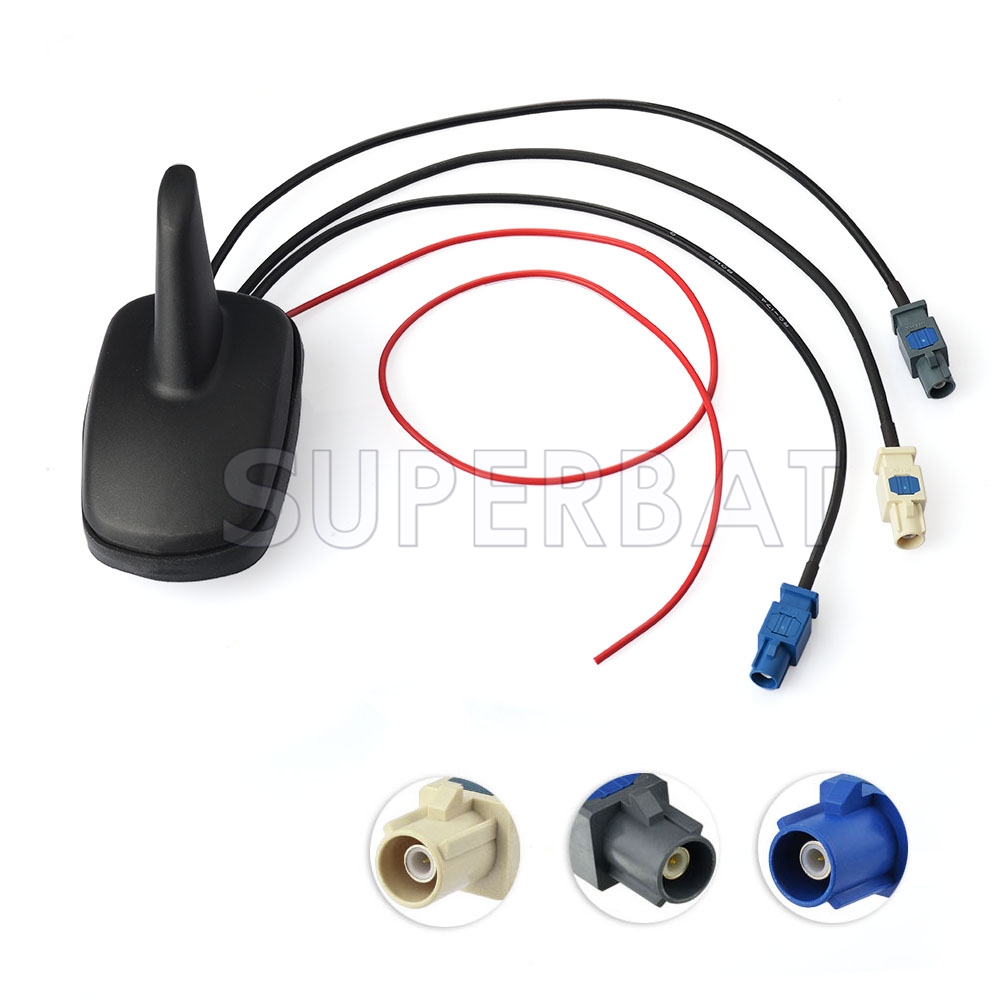

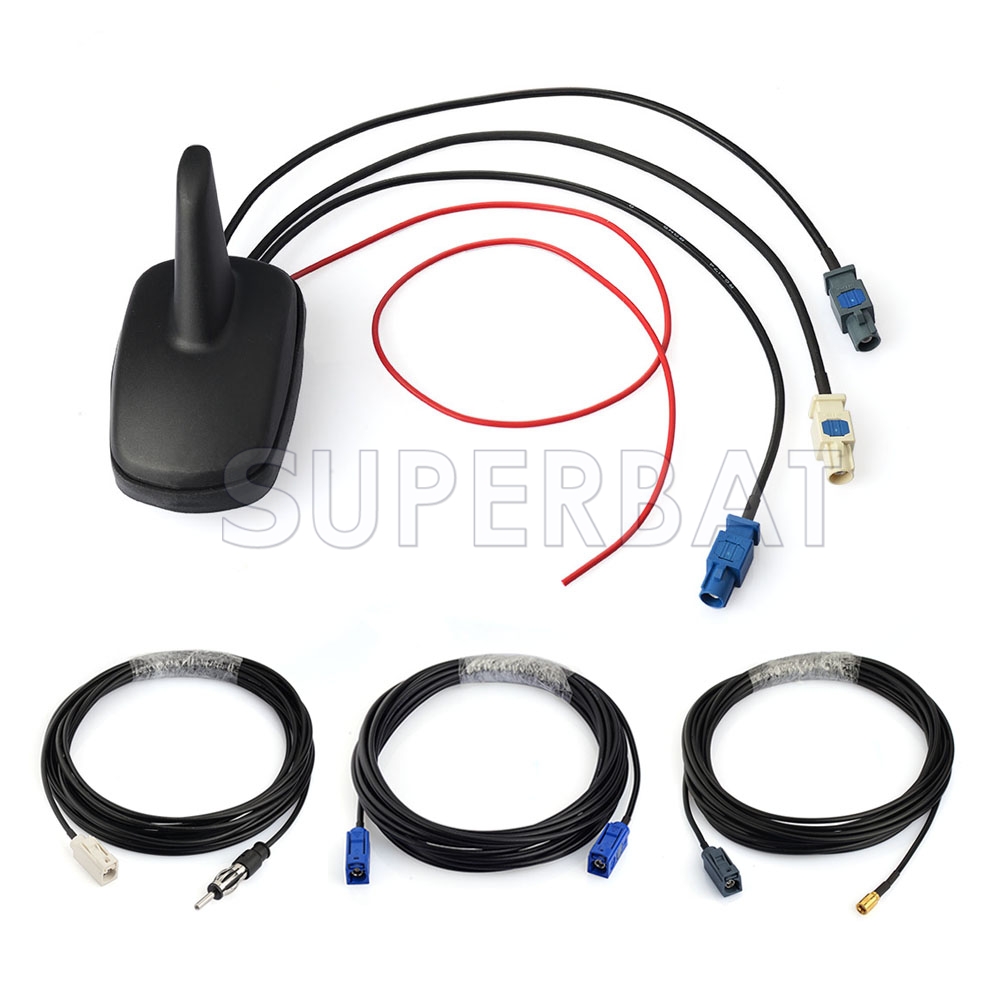

Package included:1pca DAB/FM/GPS Amplified aerial

                     1pcs Fakra to SMB 5m Aerial Replacement Cable

                     1pcs Fakra to DIN 5m Aerial Replacement Cable

                     1pcs Fakra to Fakra 5m Aerial Extension Cable

Advantages:

Very neat and stylish.

Roof mount DAB car radio aerial.

No need to unscrew mast for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance)

Vandal resistant.

Amplified

Listing Suitable for the following DAB radios：

Alpine Ezi-DAB

pure Highway 300Di

Alpine All in-car DAB except Ezi-DAB

Beat ALL in-car DAB except 400 & 485

Blaupunkt All in-car DAB

Caliber Caliber ALL in-car DAB except PMT-700D

C-KO All in-car DAB

Clarion Clarion ALL in-car DAB except DAB302E

Clarity CCE203-DAB

Grundig All in-car DAB

JVC All in- car DAB

Kenwood All in- car DAB

Kinetic All in-Car DAB

pioneer All in-car DAB except GEX-P900DAB

philips CEM.....series

pure Highway H240Di H260D

Sonichi SB50-DAB

Sony All in-car DAB

Cautions:

DAB / FM / GPS only.

FM reception good, but not up to a top quality, full rod aerial.

Not designed for AM reception; will nevertheless receive strong MW signals.

Mounting surface must be flat to within 1.5mm.

Must not be mounted on a panel whose underside is exposed to the elements.

Max panel thickness: 2.5mm
