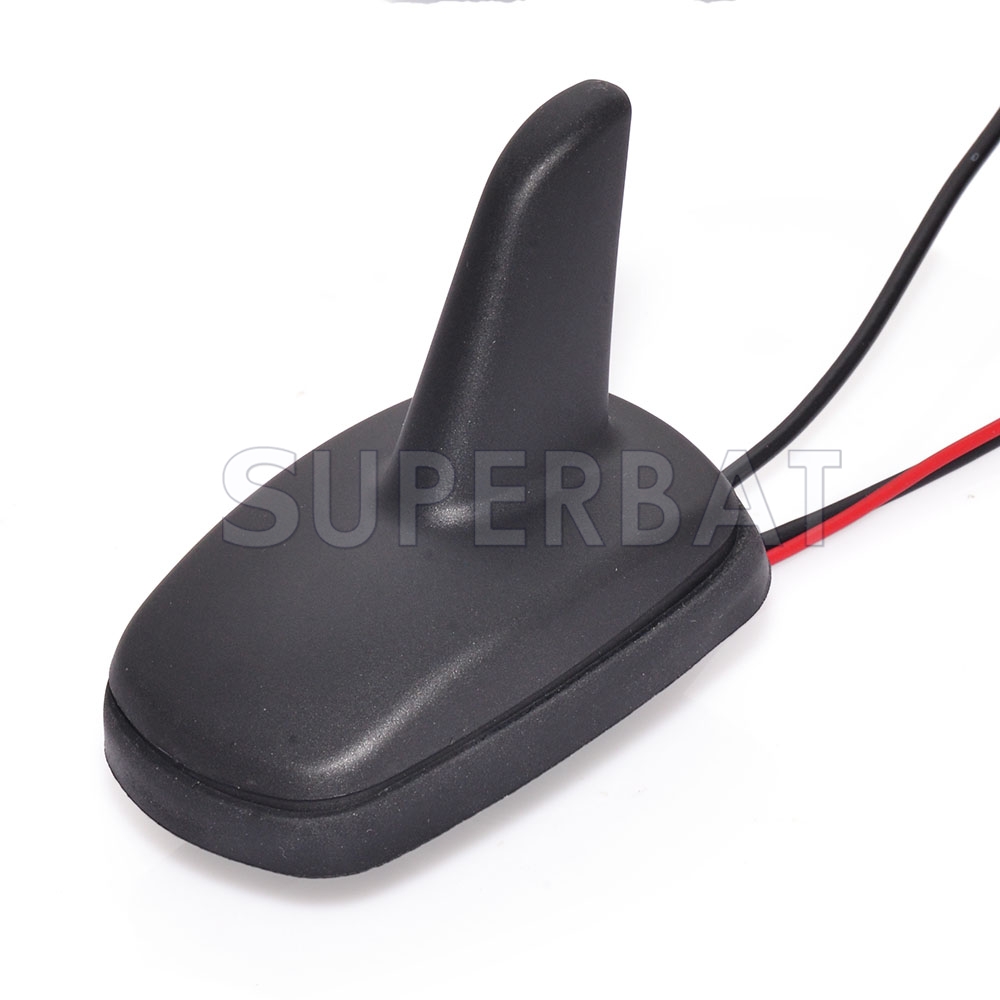

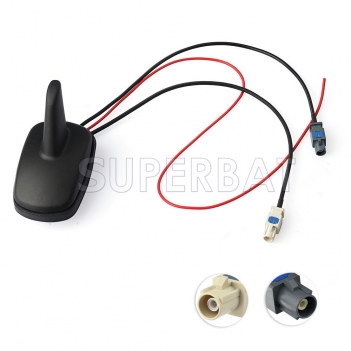

DAB/DAB+/FM car digital radio/Stereo Amplified Aerial Roof mount Aerial FAKRA Connector for Alpine Ezi-DAB
DAB/DAB+/FM car digital radio/Stereo Amplified antenna Roof mount Aerial FAKRA Connection for Alpine Ezi-DAB
Unit Price: $20.68
sku:DB1-0112-F03B1SP-F03G1SP-30
Real Time Availability
Stock: 610
Quantity: Units

Specifications:

DAB

Frequency:174MHz~240MHz (Band III) 1452MHz~1492MHz (L-Band)

Impedence :50 Ω

VSWR:≤2.0:1

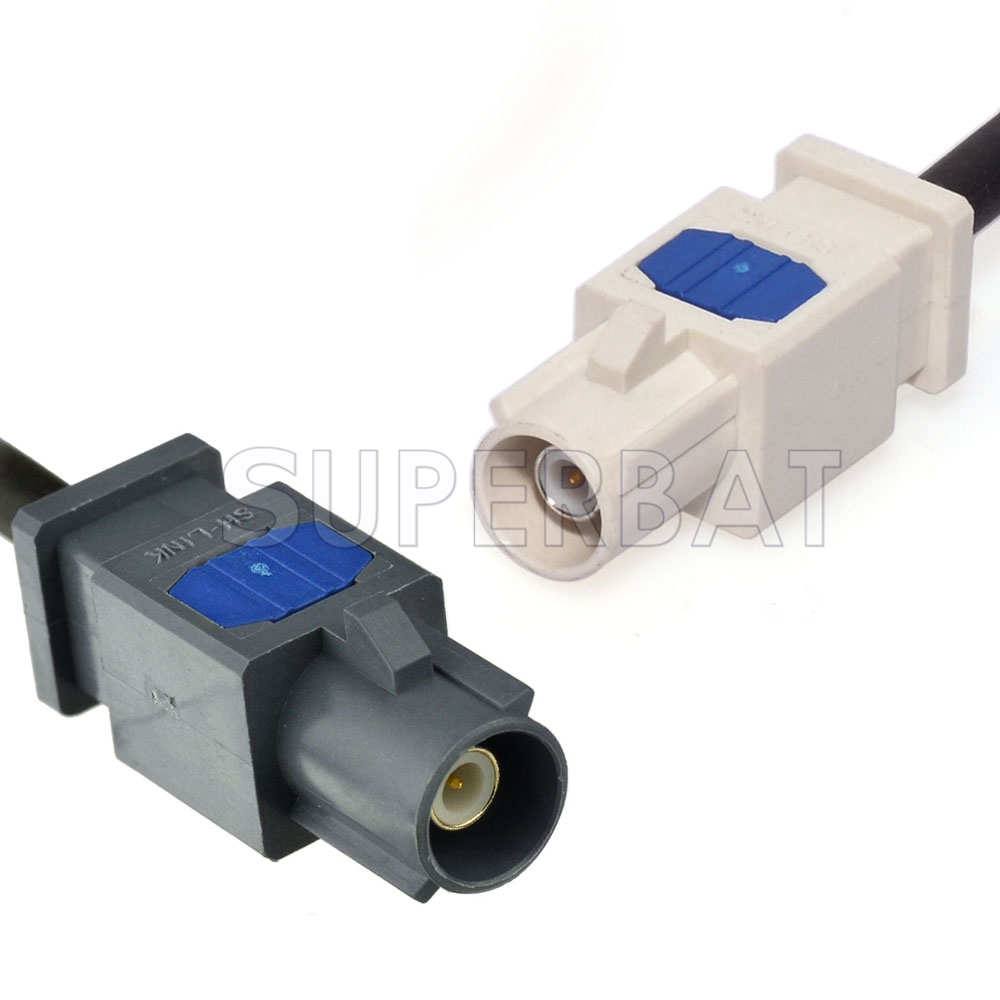

Connector :FARKA“G” Male

power supply extema:+12v

Cable:30cm RG174


FM

Frequency: 87.5-108 MHz

Impedence : 50 Ω

VSWR:≤2.5:1

Connector:FAKRA“B” Male

power supply extemal:+12v

Cable: 30cm  RG174


Voltage : 12v direct feed for both DAB an AM/FM

Current Consumption : 50mA

Package included:30cm DAB/FM Car Aerial


Advantages:

Very neat and stylish.

Roof mount DAB car radio aerial.

No need to unscrew mast for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance)

Vandal resistant.

Amplified.


Listing Suitable for the following DAB radios:

Alpine Ezi-DAB

pure Highway 300Di


Cautions:

DAB / FM only.

FM reception good, but not up to a top quality, full rod aerial.

Not designed for AM reception; will nevertheless receive strong MW signals.

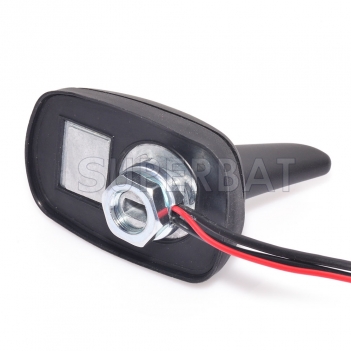

Mounting surface must be flat to within 1.5mm.

Must not be mounted on a panel whose underside is exposed to the elements.

Max panel thickness: 2.5mm
