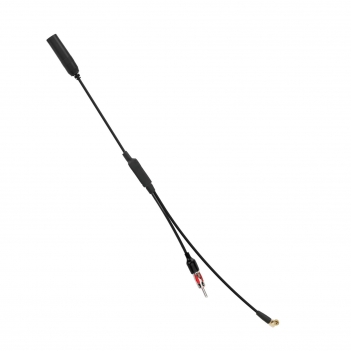

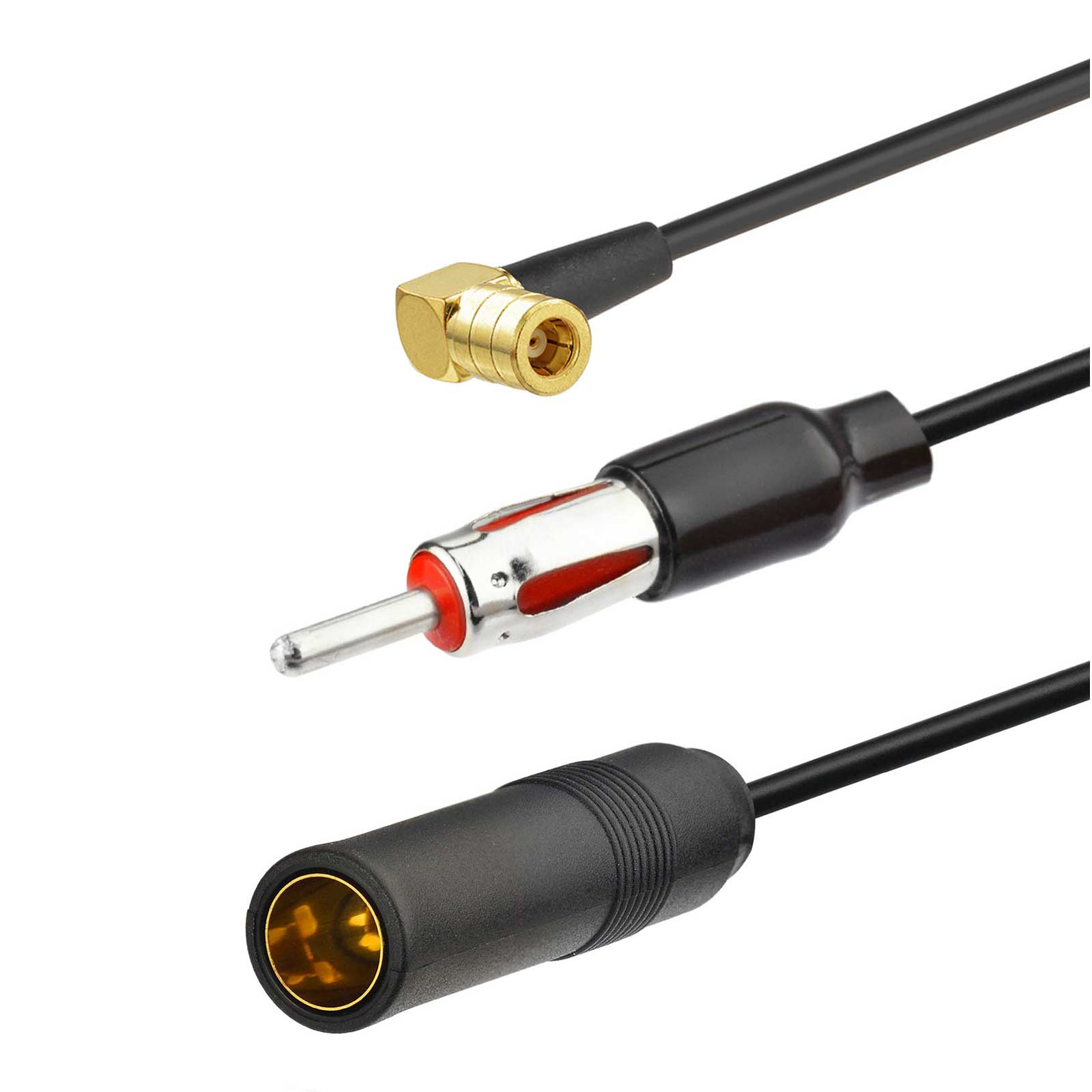

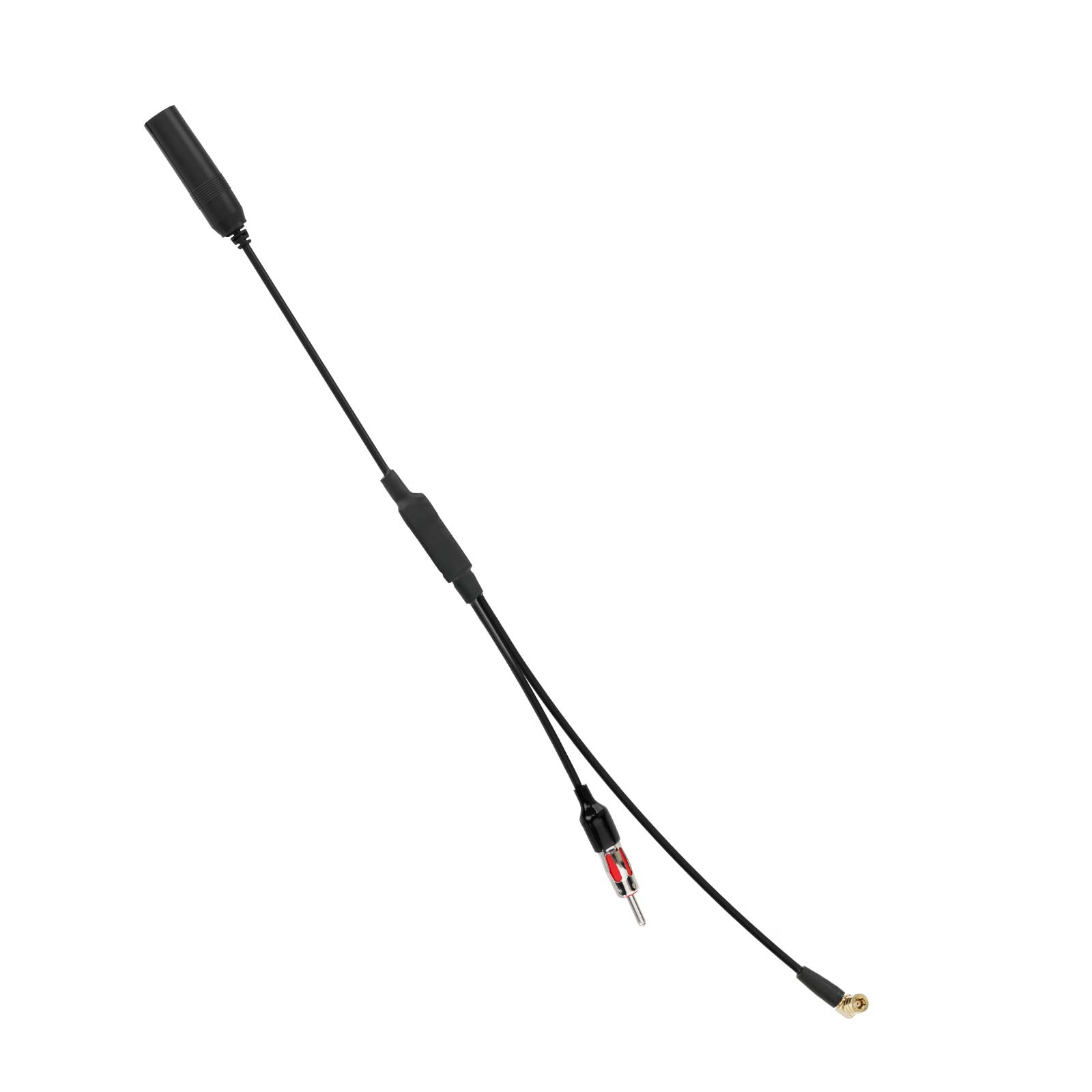

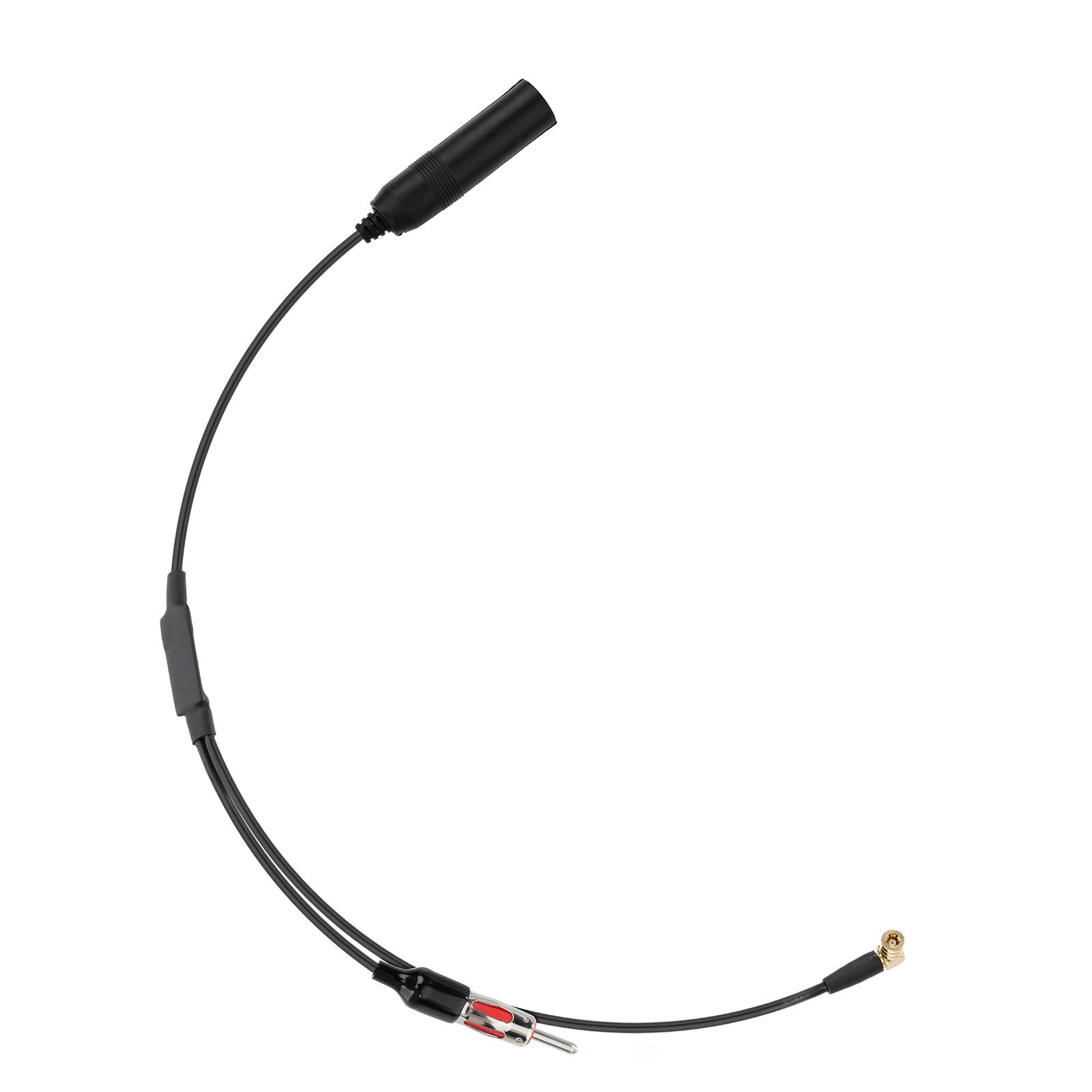

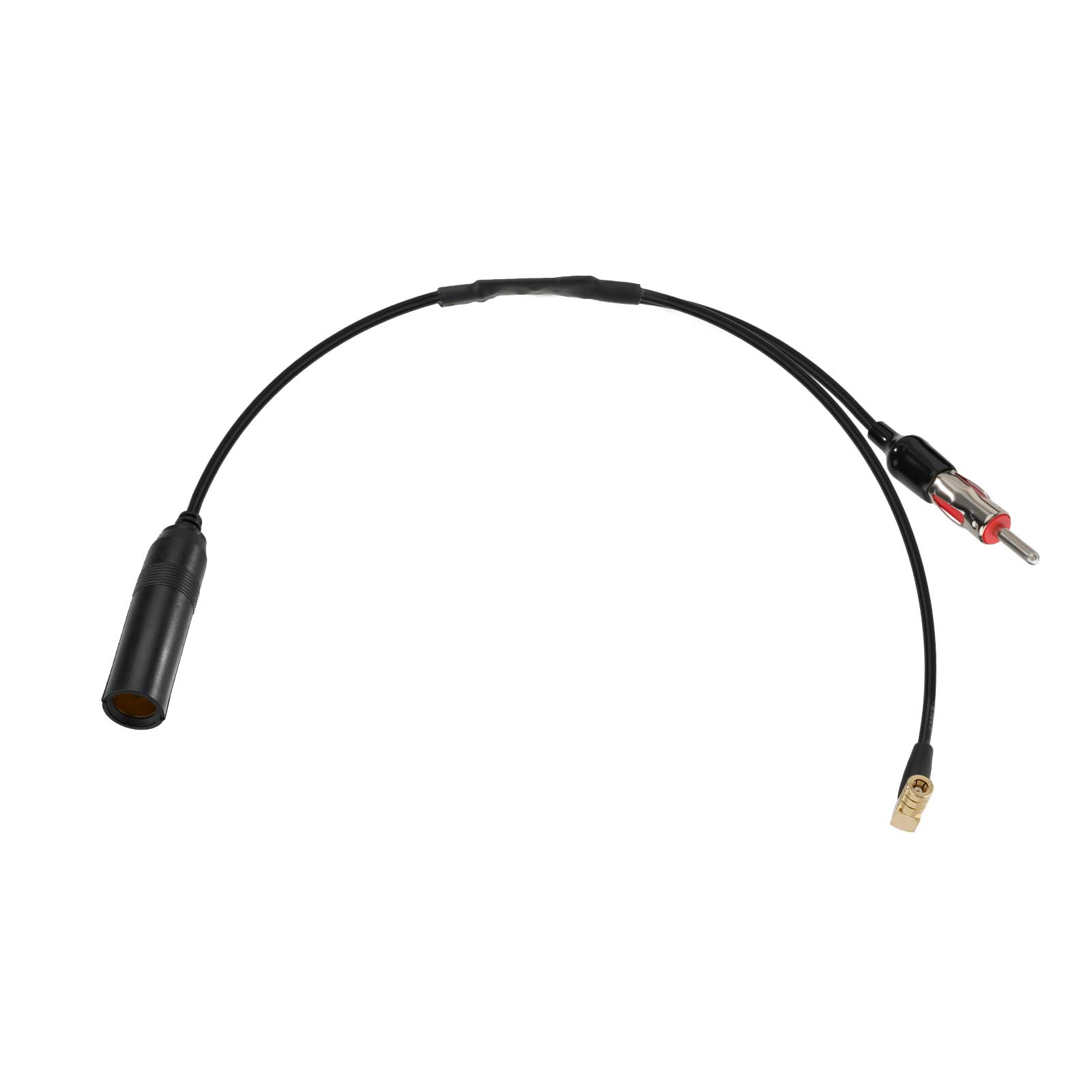

DAB/FM Splitter for Vehicle Radio Antenna Cable, Extension Length: 30cm, Connector: DIN Female To DIN Male + SMB Connector;

High-quality materials：gold-plated contacts improve transmission quality | Printed Circuit Board: FR4 | Plastic housing: ABS

This DAB/FM adapter/splitter enables reception of DAB digital broadcast signals via standard non-amplified AM/FM vehicle antennas. Retain your existing antenna and retrofit a DAB-compatible radio without installing an additional DAB antenna.

Quick and simple installation saves time and cost when retrofitting a DAB stereo system. Achieves a hard upgrade effect compared to windscreen-mounted antennas, eliminating the need for a second antenna.enthusiasts

Compatible with most of DAB+ radios, such as: TechniSat Pioneer Panasonic AiliTech Clarion Kenwood Alpine Pure Revo Sony JVC Blaupunkt PP16DAB PP15DAB RXD10 RXD34 RXD35 RXD50 RXD120 IRD30 BD400 CLRD30

Antenna Signal Adapter

Advantages:

The splitter connect Aerials from FM/AM to DAB/DAB+/DMB-A radio

Esay to install

Small, neat and hidden.

Operating Voltage range: DC5-12 V

Operating current: 25-60mA

Frequency Range(MHz) FM:88-108MHz;DAB:170-240MHZ

Gain(dBi) FM:10±2DB;DAB:18±3DB

Input Impedance(Ω):50

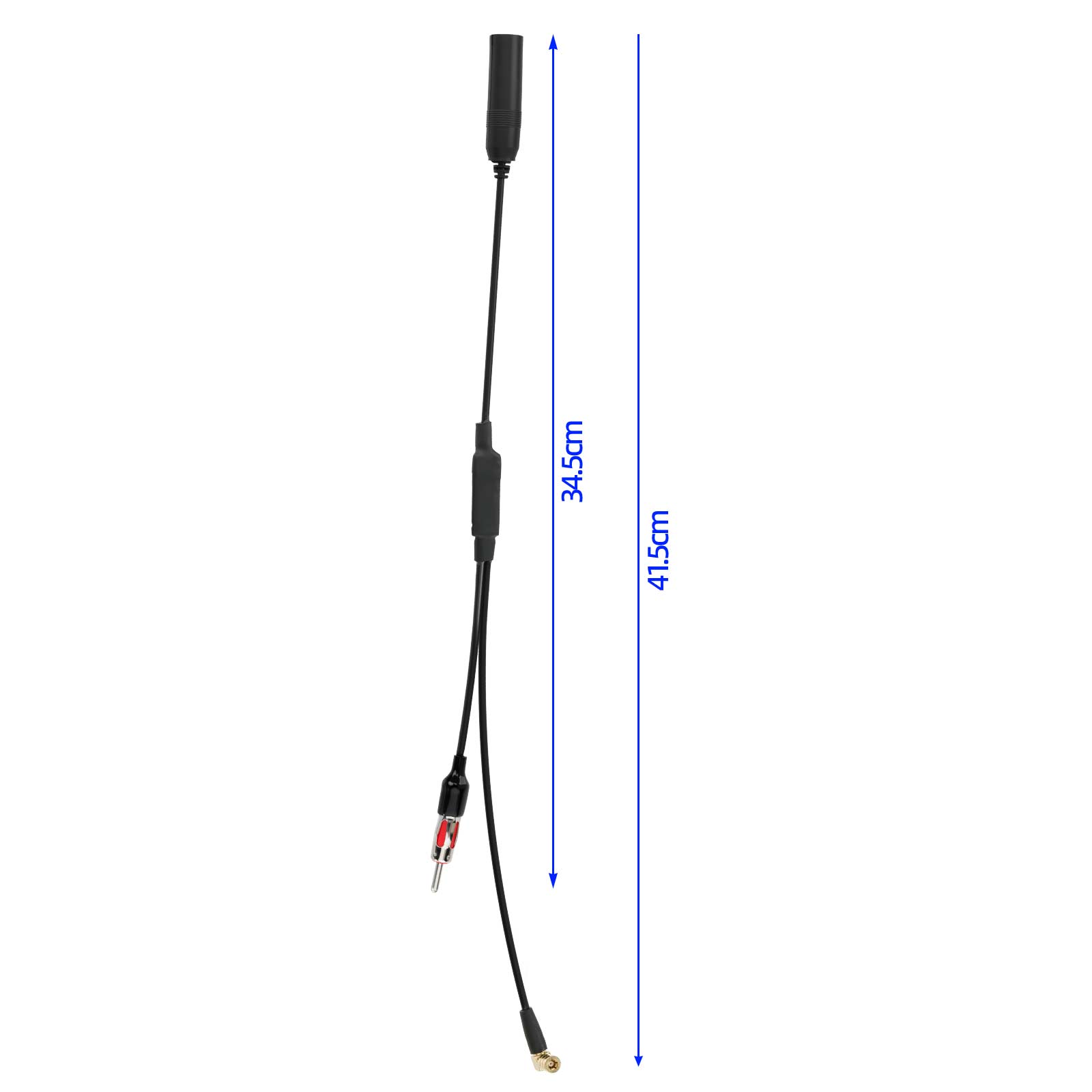

Line Length (mm):300

Operating temperature:-20℃-85℃

It can be used for most of european cars

Compatible for the following DAB radios：

Alpine DAB except Ezi-DAB/Beat DAB except 400 & 485/Blaupunkt DAB/Caliber Caliber DAB except PMT-700D

C-KO DAB/Clarion Clarion DAB except DAB302E/Clarity CCE203- DAB/Grundig DAB/JVC DAB/Kenwood DAB/Kinetic All in-Car DAB

Pioneer All in-car DAB except GEX-P900DAB , Philips CEM series/pure Highway H240Di H260D, Sonichi SB50-DAB/Sony DAB
