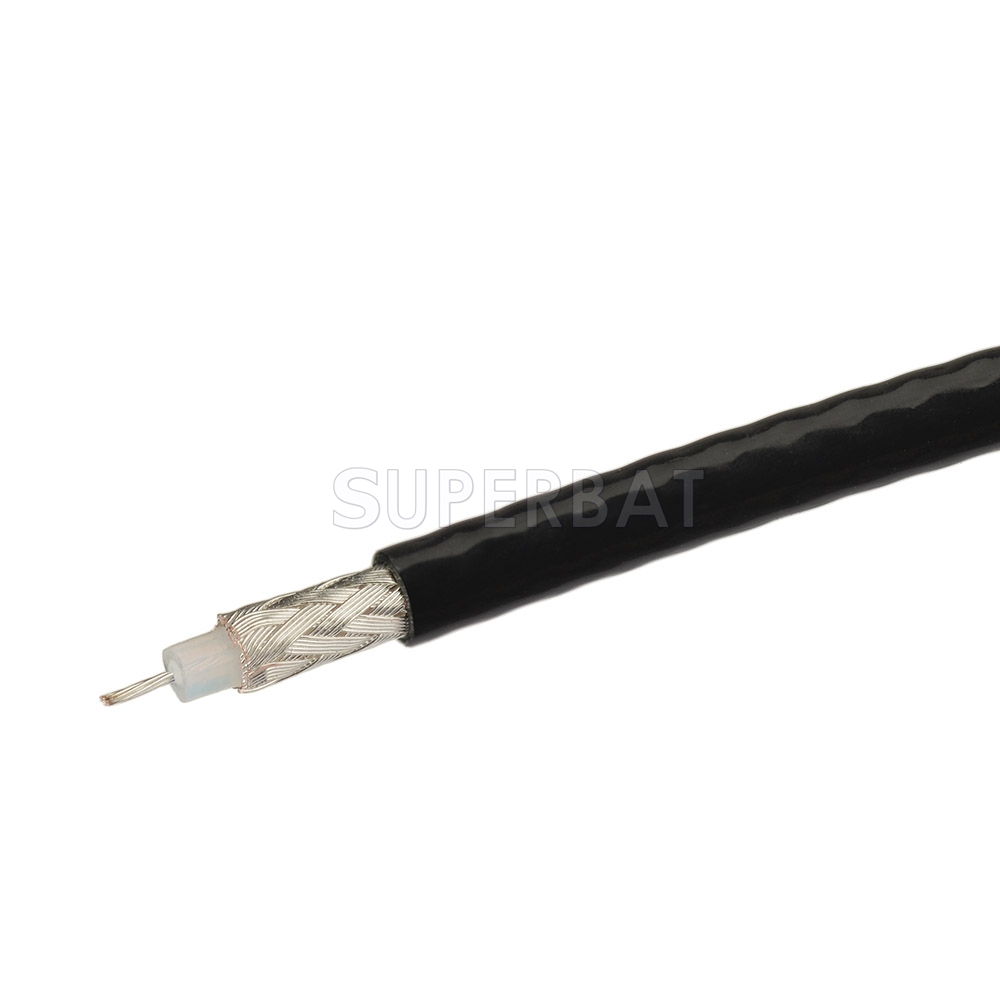

Coaxial Cable 75Ω BLACK RG179 Single Copper Braid Shielded Flexible RF Coax Cable 1 Meter
Unit Price: $1.35
sku:CA-179H
Real Time Availability
Stock: 980
Quantity: Units

Type: RG Series Cable Diameter(mm): 2.54 Inner conductor(mm): 7X0.102 Impedance: 75ohm

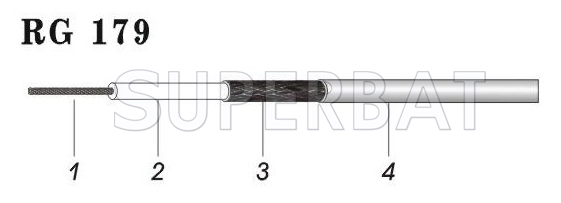

PHYSICAL PROPERTIES


MaterialDiameter(mm)
1.Inner conductorSCCS7*0.102
2.InsulationPTFE1.60
3.Outer conductor1 : SC2.04
4.JacketFEP2.54


ELECTRICAL PROPERTIES

Nom. Capacitance Conductor to Shield(pF/m)64
Nom. Characteristic Impedance(ohm)75
Nom. Velocity of Propagation(%)70
Min. Bend Radius(Install)(mm)10
Voltage Rating(VMS)900
Max. Operating Frequency(MHz)3000
Operating Temperature Rating(℃)-55~+200


Nom. Attenuation

Frequency(MHz)Nom. Attenuation(≯dB/m)
1000.268
4000.549
10000.883
