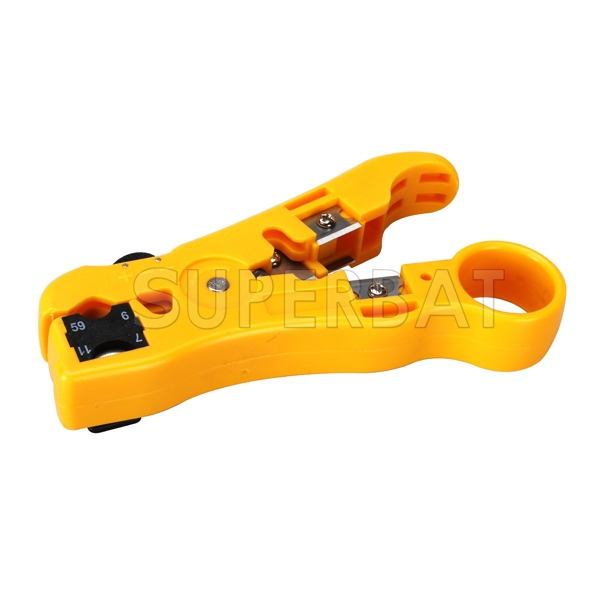

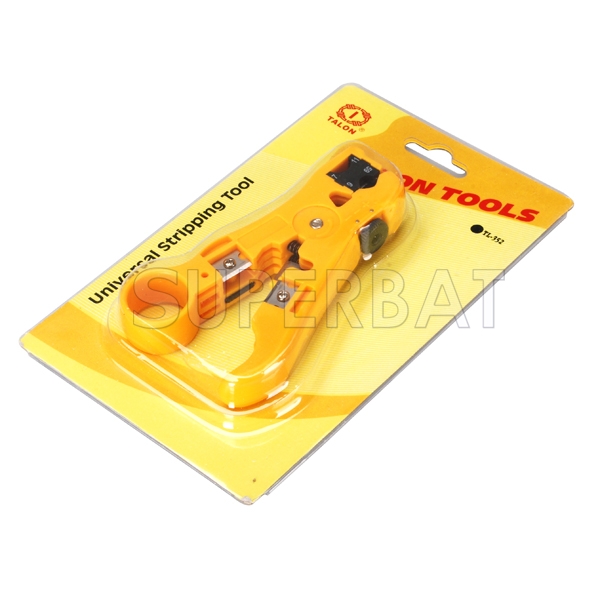

coax coaxial universal stripping tool for RG 59/ RG 6/ RG 7/ RG 11
Unit Price: $20.70
sku:TOOL-2163
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $20.70 $19.66 $17.59 $16.56 ASK
saving% 0% 5% 15% 20% -
Real Time Availability
Stock: 9999
Quantity: Units

For stripping coaxial cable:
a.Insert the cable unite it aligns with the cable guide.
b.Insert your index finger into the stripper's finger ring,rotate the stripper
by counter clockwise 3-5times.The cable insulation is cut while you are
turning the stripper.
c.Open the jaws and remove the cable.Pull away the outer jacket and dielectric
to expose the inner conductor.
d.Stripping distance is disigned for 6mm,for each dieletric and inner conduct.



For stripping round networking cable:
a.Insert the cable into the second stripping hole,rotate 1-3 times at counter
clockwise,and then open the jaw and remove the outer jacket.
b.The black color adjusting knob is for adjusting the blade's depth,Turn clockwise
for increasing the blade's depth and counter clockwise for reducing the depth.



For cutting coaxial cable,round networking cable for flat telephone cable,place the cable in position and then squeeze the handles.



For stripping flat cable,insert the cable between the stripper blades,Squeeze handles cable must be kept perpendicular and then pull from the tool.
