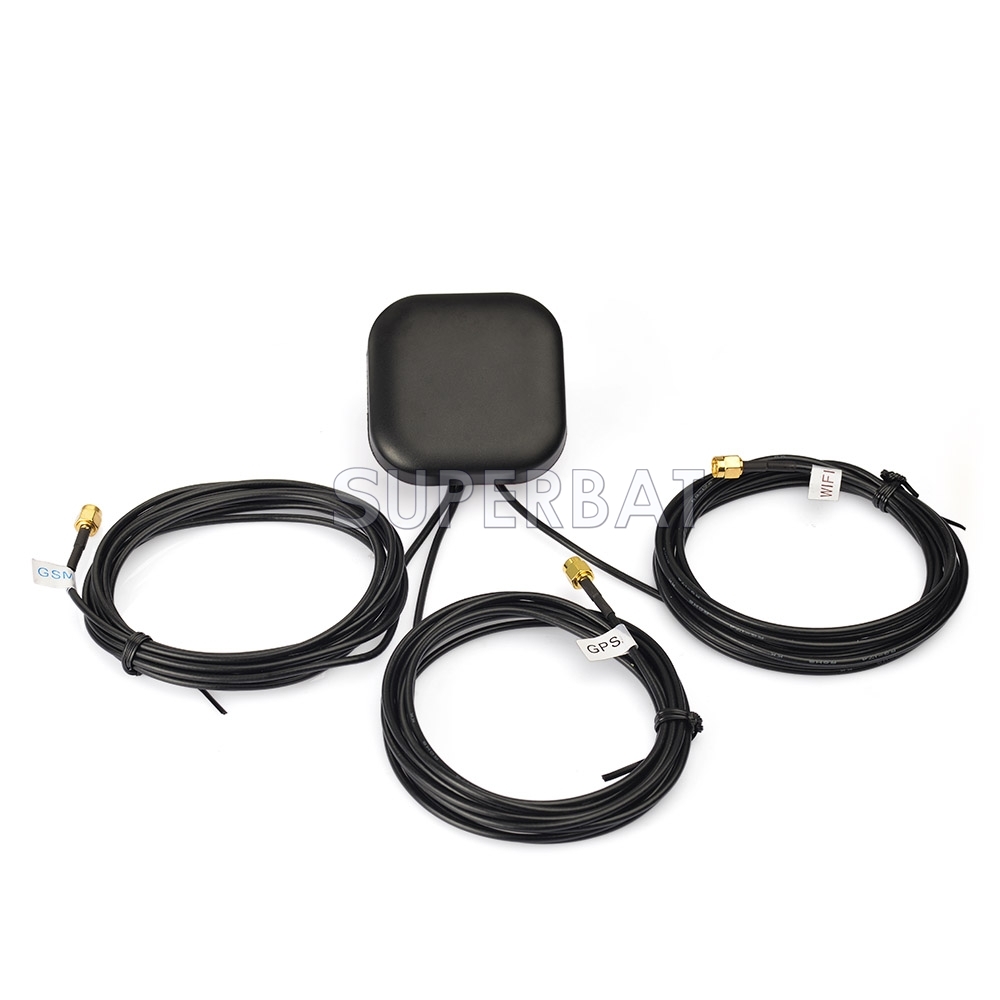

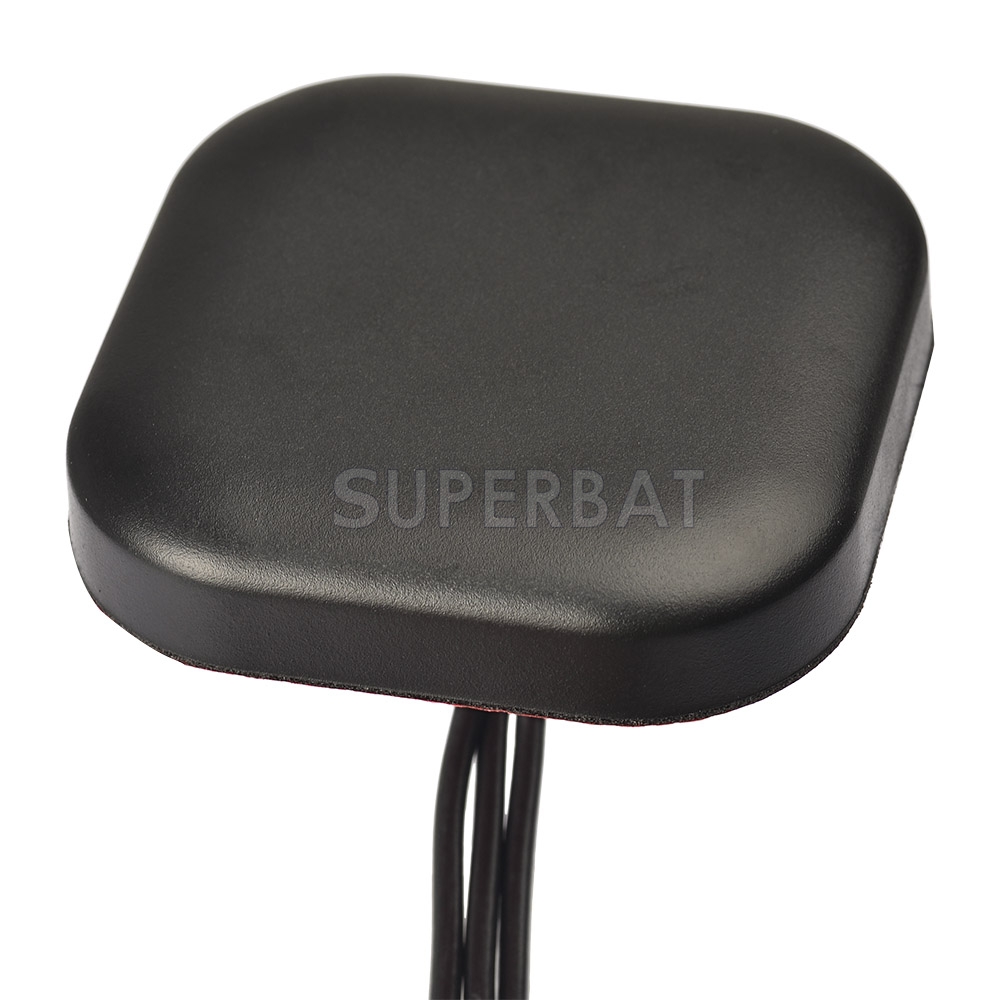

Car Top Roof Multi-Band Antenna GPS+GSM+WiFi Combined Antenna SMA Plug Male Connector with 3M Extension Cable
Unit Price: $32.00
sku:GA12-300-S01SP-S01SP-S01SP
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $32.00 $29.12 $26.56 $23.68 ASK
saving% 0% 9% 17% 26% -
Real Time Availability
Stock: 499
Quantity: Units

Antenna Type: Combined Network: 4G/LTE Antenna Frequency: 824MHz~894MHz;880MHz~960MHz;1710MHz~1990MHz + 1575.42MHz + 2400-2500 MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Radiation: Omnidirectional Cable Type: RG174 Cable Length: 3M Weight: 220g

Car Top Roof Multi-Band Antenna GPS+GSM+WiFi Combined Antenna SMA Plug Male Connector with 3M Extension Cable


Description

GPS,GSM,WIFI funtions 3 in 1.

    (i)Dieletric Antenna
    Center Frequency 1575.42MHz±3 MHz
    V.S.W.R 1.5:1
    Band Width ±5 MHz
    Impendence 50 ohm
    Peak Gain >3dBic Based on 7×7cm ground plane
    Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
    Polarization RHCP



    (ii)GSM Antenna
    Frequency 824MHz~894MHz;880MHz~960MHz;1710MHz~1990MHz
    V.S.W.R 2.0:1
    Impendence 50 ohm
    Typical Gain
2dBi+/-1dB@850MHZ;

2dBi+/-1dB@900MHZ;

1dBi+/-1dB@1800MHZ1dBi+/-1dB@1900MHZ



    (iii)WiFi Antenna
    Frequency Range 2400-2500 MHz
    VSWR ≤1.5
    Gain 2.15dBi
    Impedance 50 ohm
    Polarization Type Vertical



    (iv)LNA/Filter
    LNA Gain(Without cable) 28dB Typical
    Noise Figure 1.5dB
    Filter Out Band Attenuation (f0=1575.42 MHZ)
    7dB Min f0+/-20MHZ ;
    20dB Min f0+/-50MHZ;
    30dB Min f0+/-100MHZ
    V.S.W.R <2.0
    DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
    DC Current 11mA Max

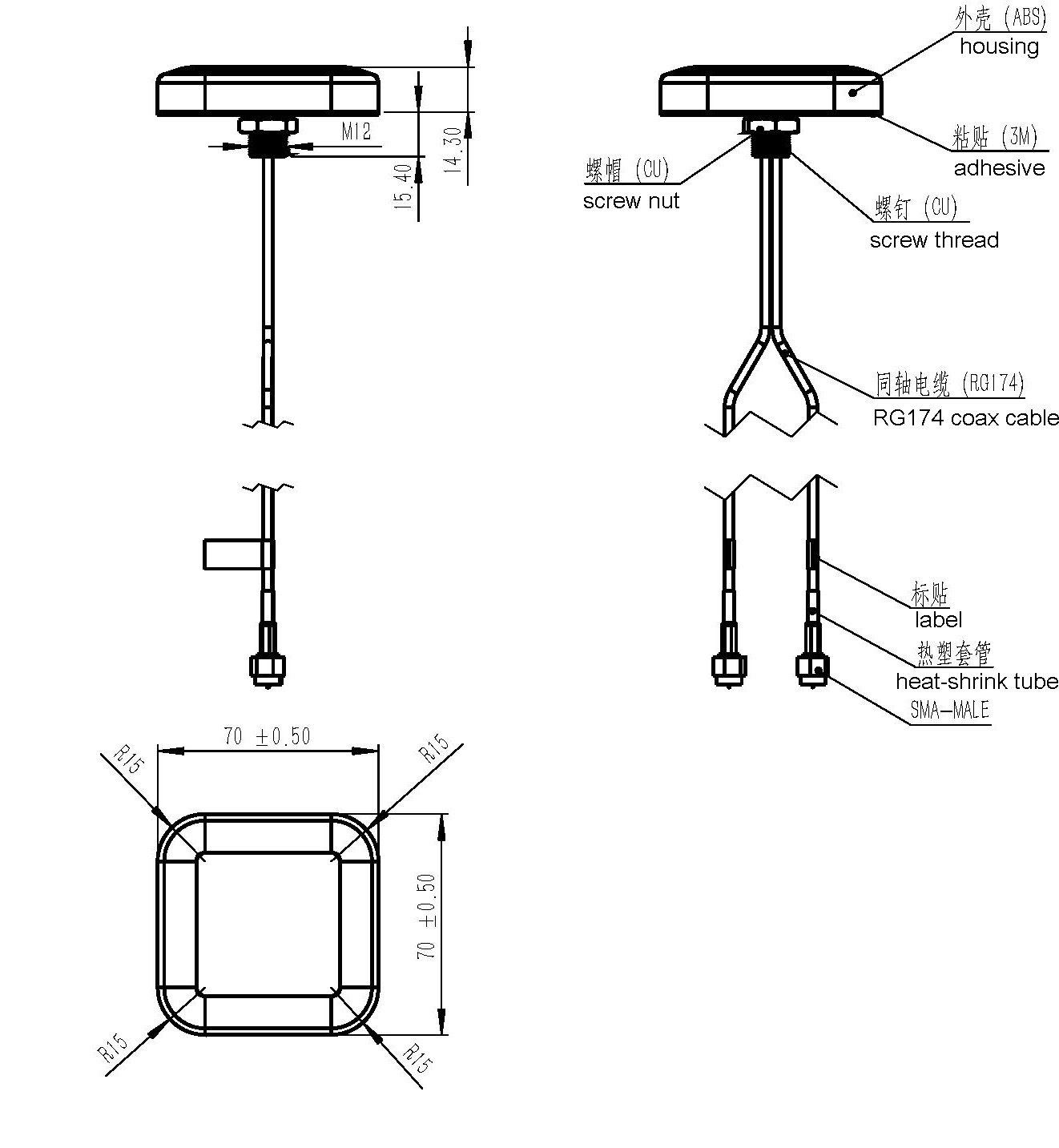

    (v)Mechanical
    Weight <240gram
    Size 70mmx70mmx14mm

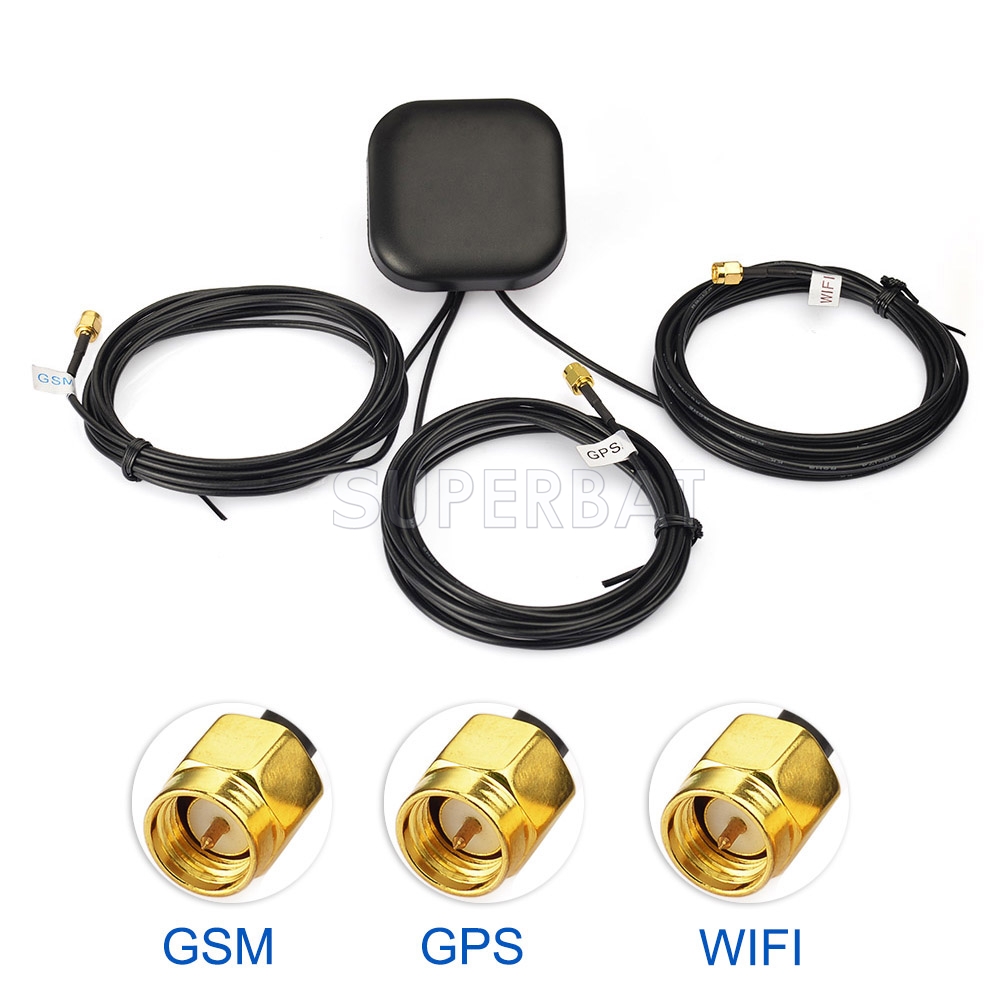

    Cable
    GPS-----RG174 300CM
    GSM-----RG174 300CM
    WiFi-----RG174 300CM

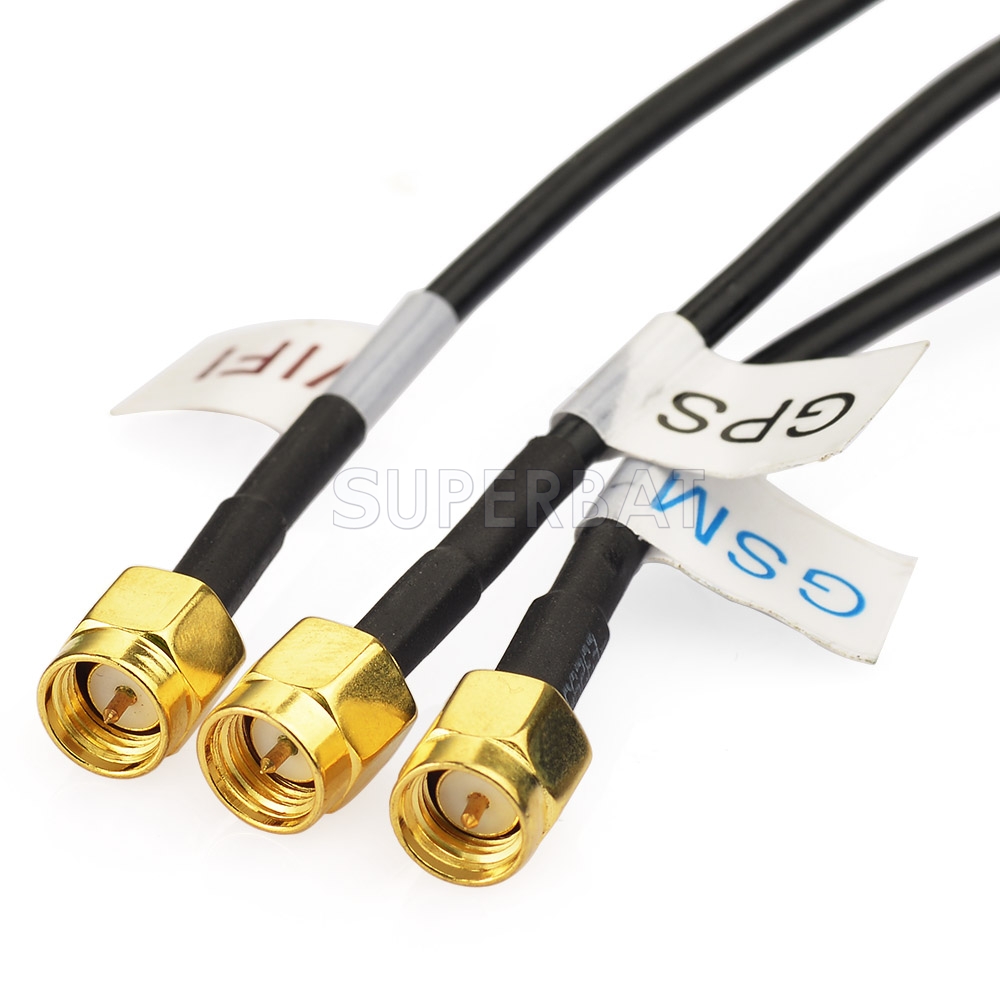

    Connector
    GPS-----SMA Male default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle, can be customized
    GSM-----SMA Male default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle, can be customized
    WiFi-----SMA Male default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle, can be customized

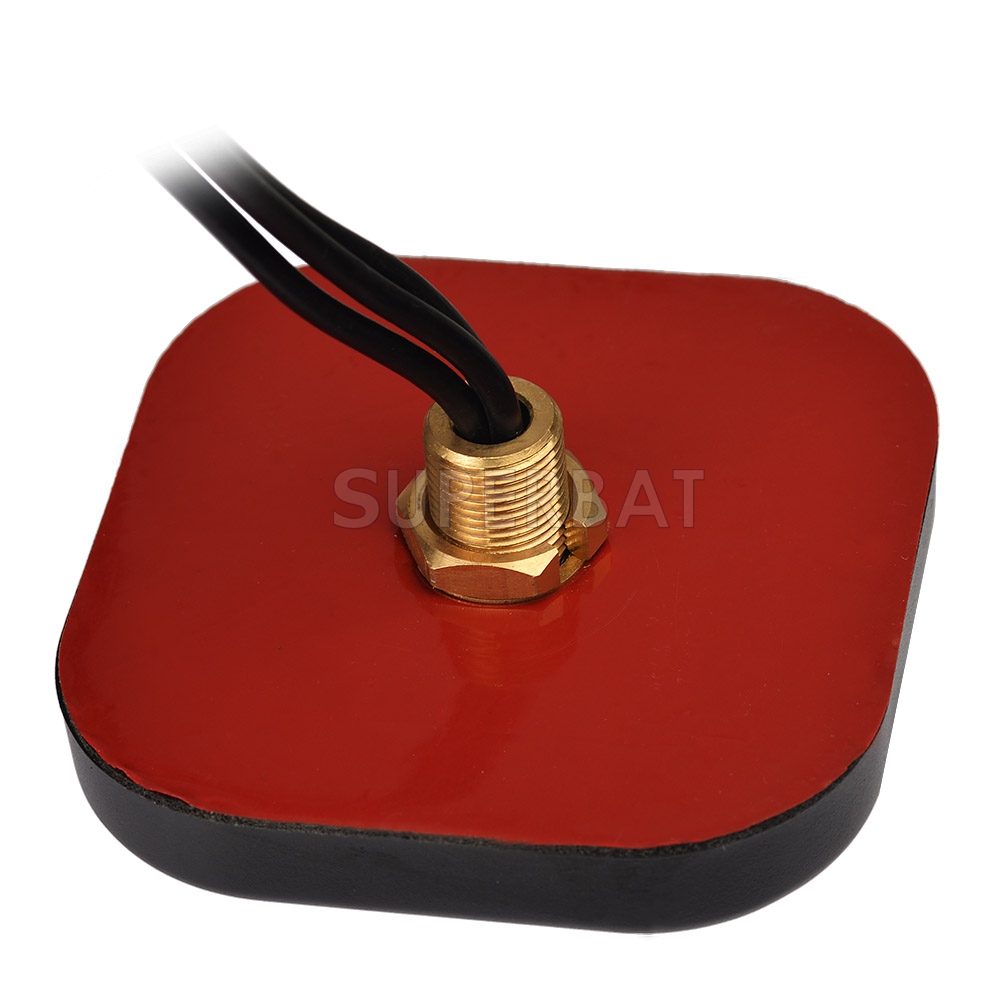

    Mounting Screw Mounting
    Housing Black



    (vi) Environmental
    Working Temp. -40℃~+85℃
    Storage Temp. -45℃~+100℃
    Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
    Humidity Humidity95%~100%RH
    Weatherproof 100%Waterproof
