Feature:

1)Combine GPS, DAB and FM/AM Antenna Application.

2)Car Top Roof Thru Hole Mount.

3)5 Meters of Antenna Adapter Cable and Signal Amplifier Power Supply Cable.

4)Apply to Genuine Navigation System and In-Dash DAB Digital Radio Tuner.

FM/AM/DAB Radio Antenna Specification:

Working Voltage: DC 9V-16V

Working current: ≤60mA

DAB Frequency: 170MHz～240MHz (Band III), 1452MHz～1492MHz (L-Band)

FM/AM Frequency: 522～1710KHz(AM), 87.5～108MHz(FM)

Output Gain: 18dB±3dB (Band III), 8dB ±3dB (L-Band) , 13±3dB(AM), 16±3dB(FM)

Output impedance:  50Ω

V.S.W.R: ≤2.5:1 (FM/DAB)

Noise: ≤3dB(FM/DAB)

Cable length: 5 meters

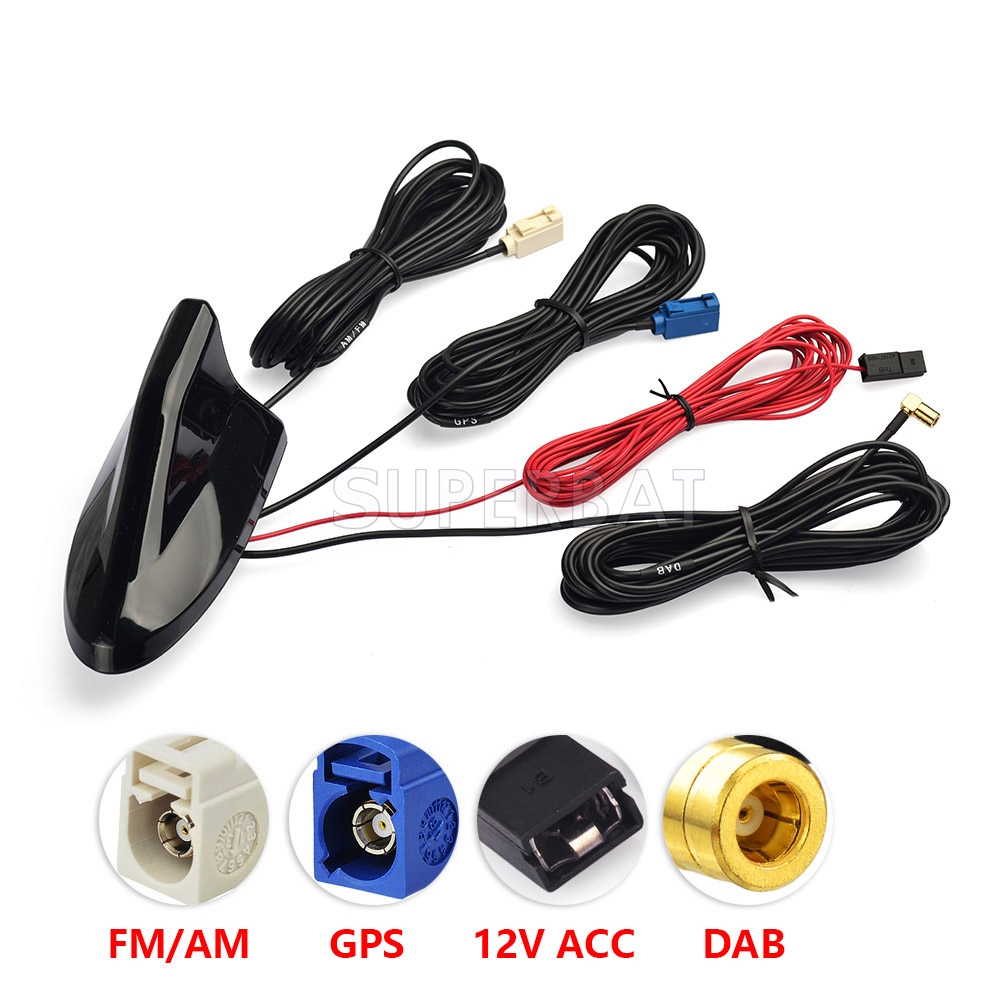

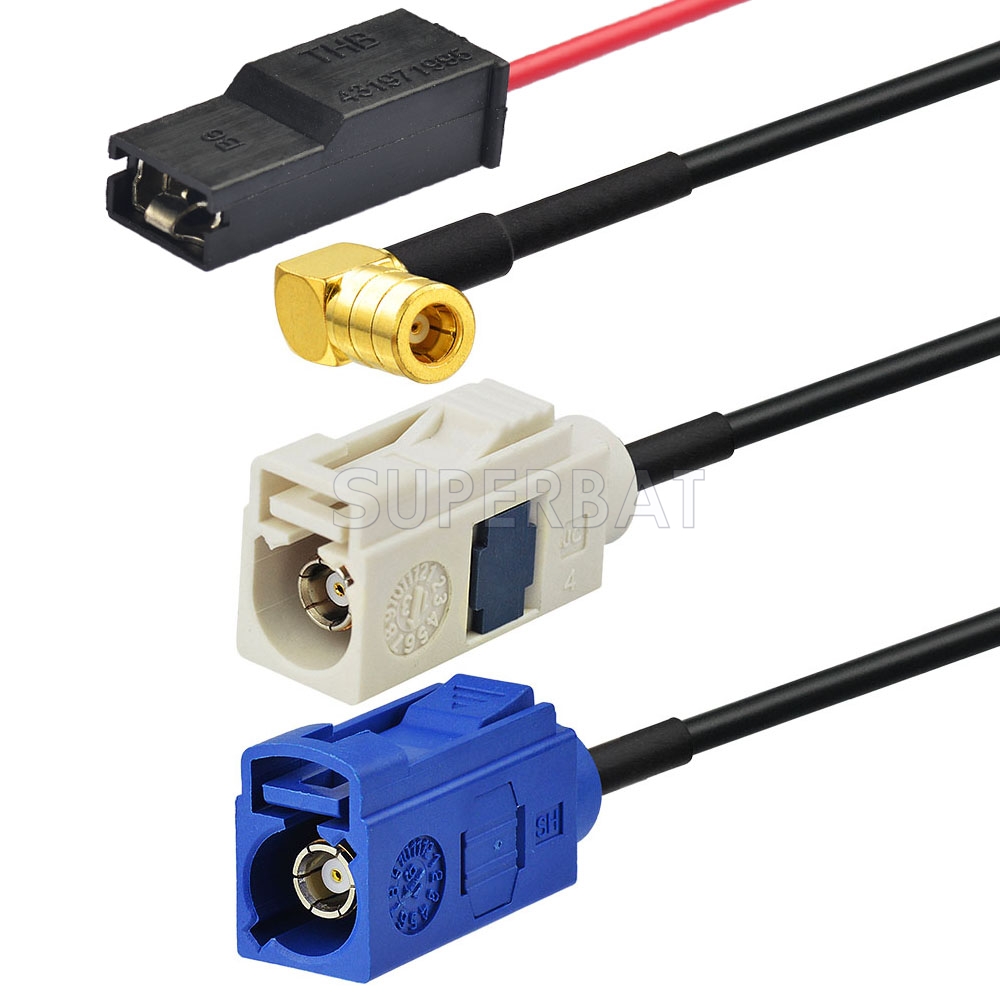

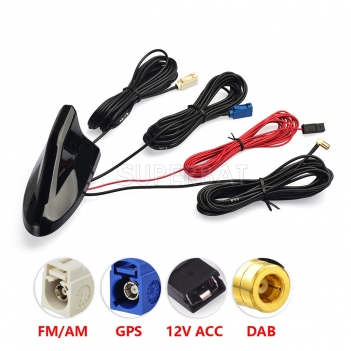

Cable Connector: Fakra B White Female(FM/AM Radio)

                               SMB Plug Right Angle(DAB Digital Radio)

GPS Navigation Antenna Specification:

Working Voltage: DC 3V-5V

Working current: 10mA≤I≤30mA

Frequency：1575.42 ±1.023MHz

Output Gain: 28dB±3dB

Output impedance: 50Ω

V.S.W.R: ≤2.0:1

Noise: ≤1.5dB

Cable length: 5 meters

Cable Connector: Fakra C Blue Female(GPS)

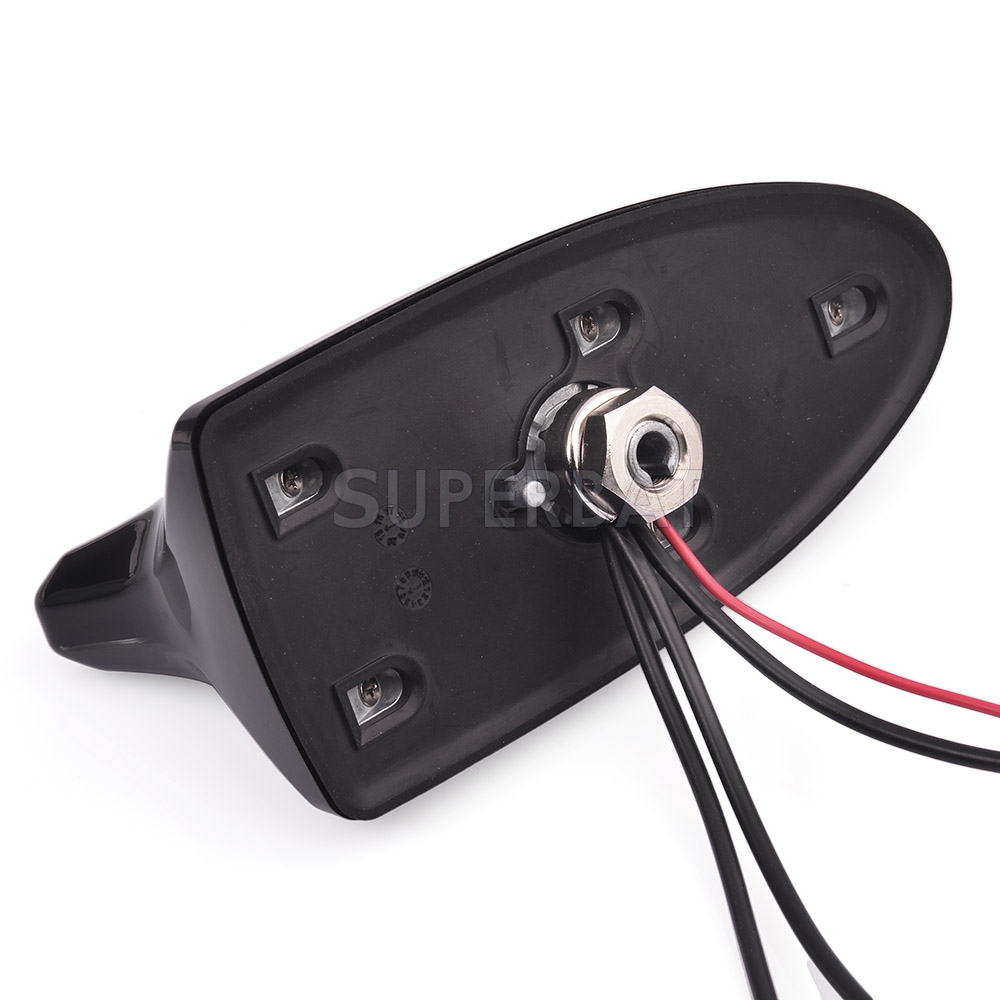

Roof Mounting: Drilling Hole Diameter 10.5mm

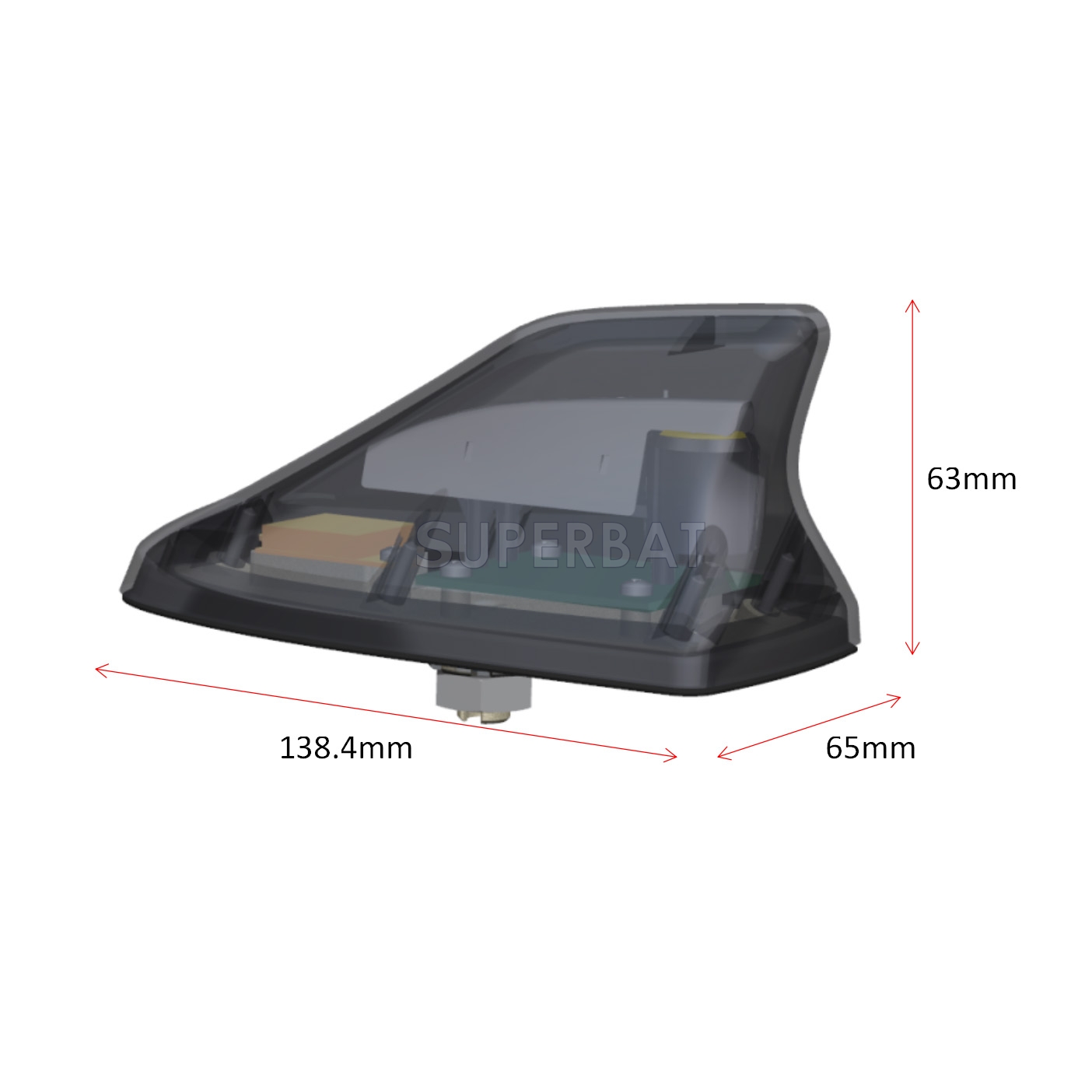

Dimensions (Length*Width*Height) :138.4mm * 65mm * 63mm

Net Weight: 505g

Fitment:

Pioneer - GEX-P700DAB

Pioneer - DEH-P90DAB

JVC - KT-DB1000

Clarion - DAH913

Alpine - TUA-T00DAB

Blaupunkt - Woodstock DAB52

Grundig - CL530

Grundig - Allixx DAB

Kenwood - KTC-909DAB

Panasonic - CY-DAB2000

and etc.

Packaging list:

1 x Antenna (Including Mounting Nut)
