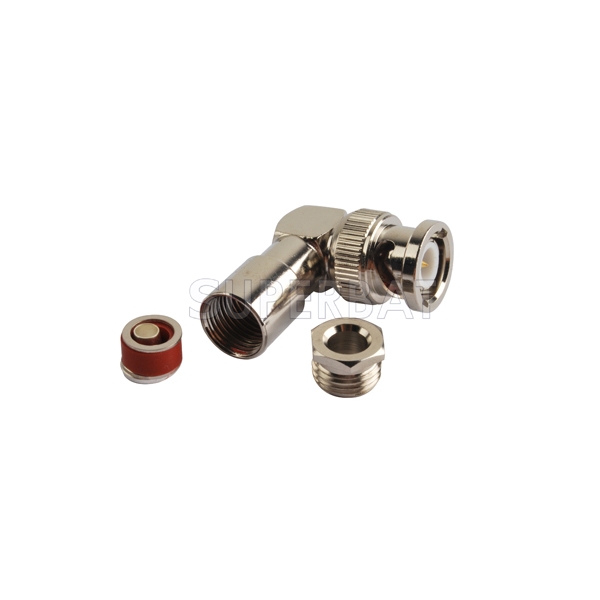

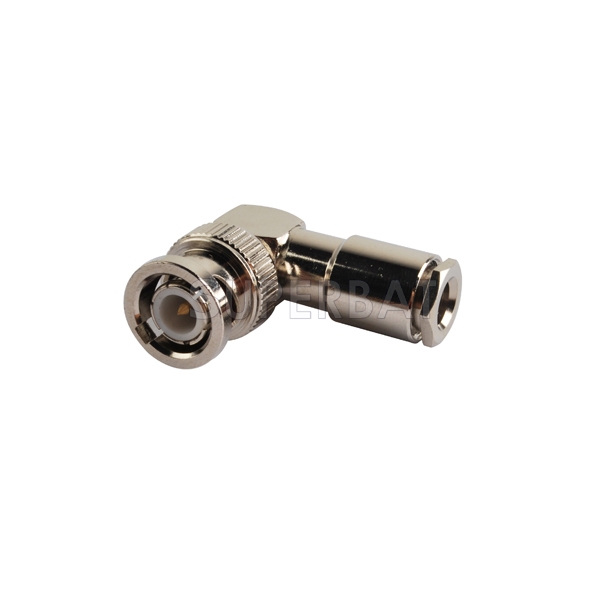

BNC Plug Male Connector Right Angle Clamp LMR-195
BNC Plug Male Connector Right Angle Clamp LMR-195
Unit Price: $3.66
sku:B01-RAL19-41BS01
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.66 $3.29 $2.96 $2.67 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: BNC Termination Type: Coaxial Cable Gender: Plug , Male Polarity: Standard Interface Type: LMR-195 , RG142 , RG400 , RG58 Body Style: Right Angle Impedance: 50 Attachment Method: Clamp Body Material: Brass Body Plating: Nickel Dielectric Type: PTFE Frequency Range: 3GHz

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.

Superbat offers a full line of BNCs in a multitude of options. From 50 Ω to 75 Ω Impedance, Commercial to Military grade, BNC connectors are miniature, lightweight and reliable. A full line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering.

Features and Benefits

Bayonet coupling mechanism provides positive, quick mating and un-mating
50 Ohm and 75 Ohm impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications

Applications

Antennas
Broadcast (98 Ohm)
Telecom
Automotive
Computers/LANs
Medical Equipment
Satcom
Base Stations
Cable Modems
Instrumentation
Mil-Aero
