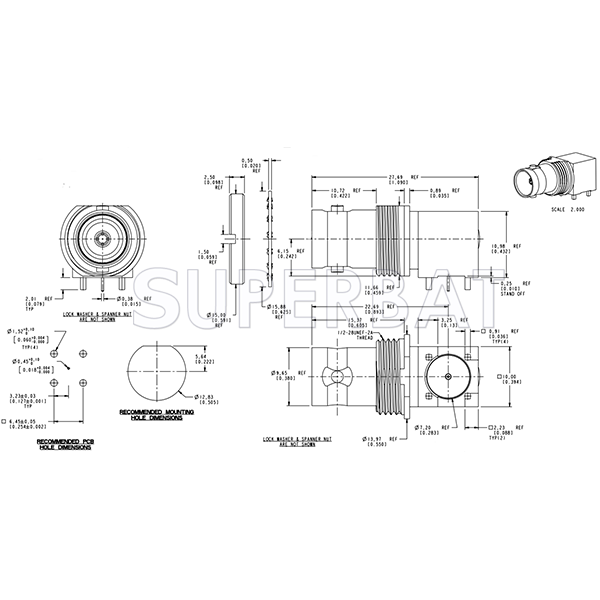

BNC Jack Female Right-angle Bulkhead PCB - Through 4 Hole 75 Ohm Connector
Unit Price: $1.48
quantity 500 - 9 10 - 99 100 - -1 0+
Price Each $1.48 $1.33 $1.20 ASK
saving% 0% 10% 19% -
Real Time Availability
Quantity: Units

Series: BNC Termination Type: PCB Gender: Jack , Female Polarity: Standard Body Style: Right Angle Mount Method: Bulkhead Impedance: 75 Body Material: Brass Body Plating: Nickel Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 500 pcs.

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.


Impedance: 75 Ohm

Frequency Range: Up to 3 GHz

Gender: Jack Female

Mounting Type: PCB Mount

Termination Method: Through Hole

Body Orientation: Straight

Operating Temperature -55 to +155 Deg C

Applications :broadcast, including Ultra High Definition (4K), telecom, instrumentation, security, mil/aero and many others.
