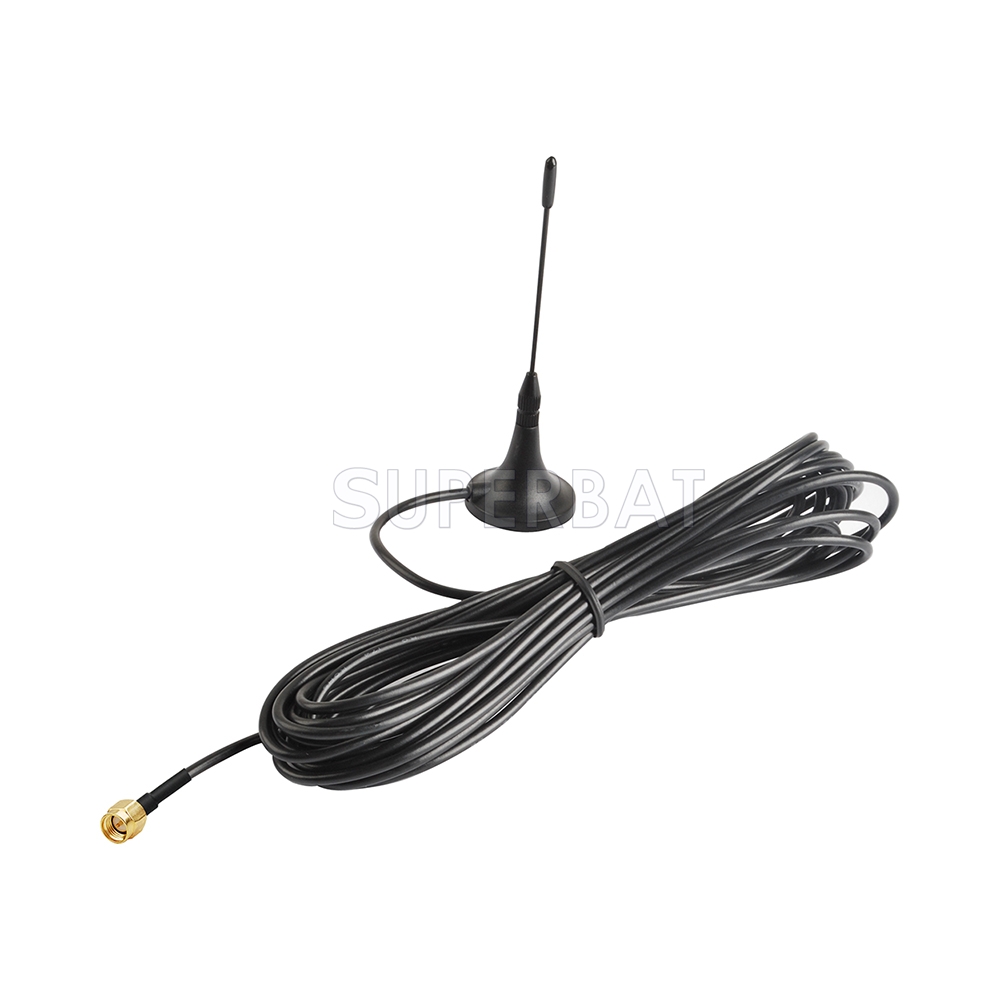

Antenna 868Mhz,3dbi SMA Plug male straight 5M with Magnetic base for Ham radio
Antenna 868Mhz,3dbi SMA Plug male straight 5M with Magnetic base for Ham radio
Unit Price: $7.60
sku:EA1-1829-S01SP-030-500
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $7.60 $7.22 $6.46 $6.23 ASK
saving% 0% 5% 15% 18% -
Real Time Availability
Stock: 10000
Quantity: Units

Type: 868Mhz Antenna Center Frequency: 868Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Straight Impedance: 50 Ohm Nominal Gain: 3 dBi V.S.W.R: ≤1.5 Cable Length: 5m or others

Features:
Frequency Range(MHz): 868
Bandwidth(MHz) 30
VSWR ≤1.5
Gain(dBi) 3
Max Input power(W) 60
Input Impedance(Ω) 50
Polarization Type Vertical
Antenna High(mm) 70
Total antenna height :95mm
Cable Length﹙mm﹚: 5000
Cable Type RG174
Connector Type SMA Male connector (Default )/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Weight: 0.080KG
Mounting Magnetic
