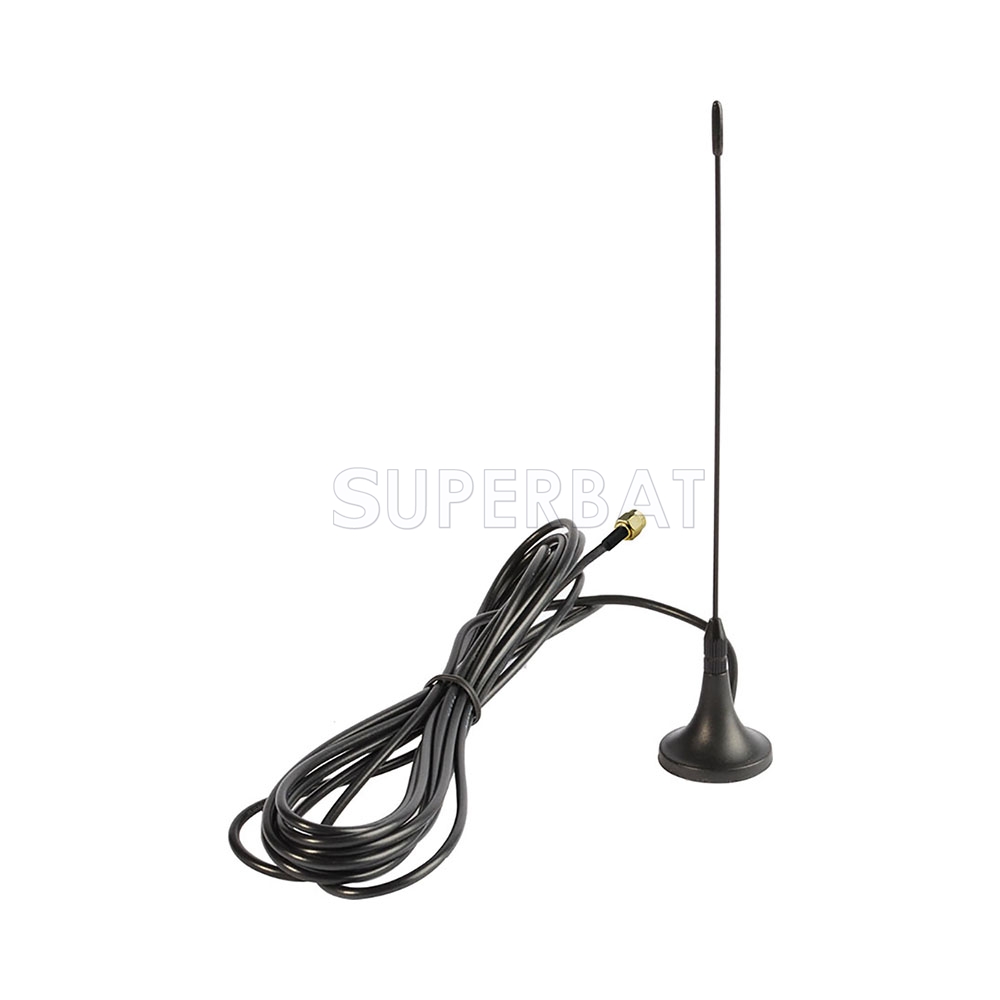

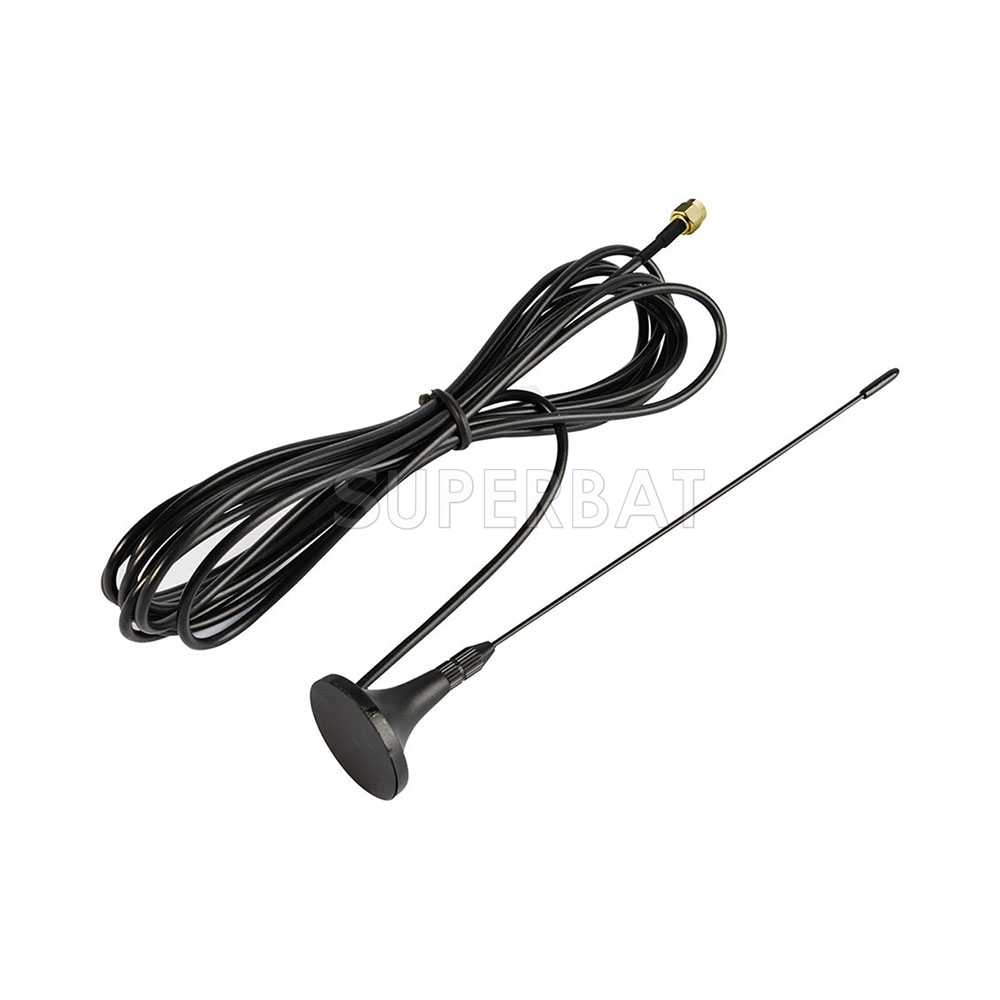

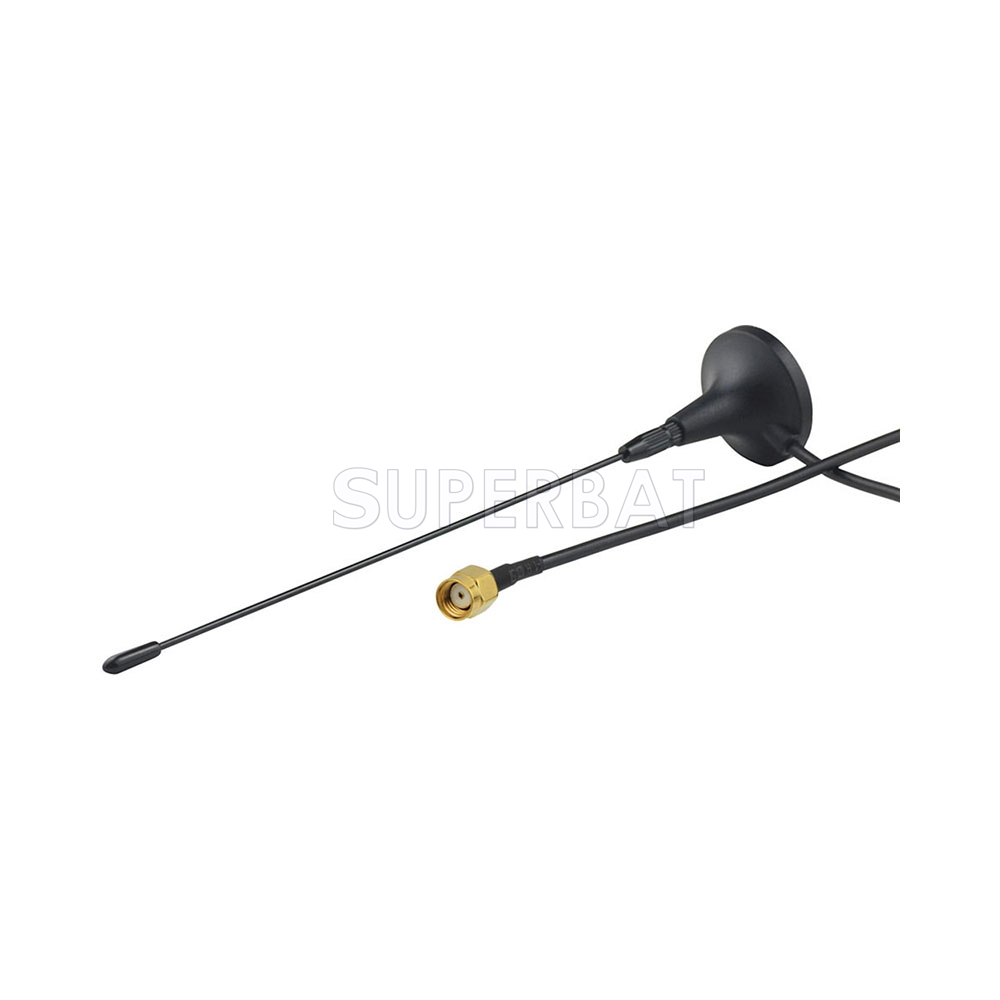

Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
Antenna 433Mhz,3dbi RP-SMA Plug Straight with Magnetic base for Ham
Unit Price: $4.10
sku:EA1-1626-S02SP-030-300
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $4.10 $3.69 $3.32 $2.99 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Type: 433Mhz Antenna Center Frequency: 433Mhz Connector Series: SMA Connector Polarity: Reverse Polarity Connector Gender: Plug Straight Impedance: 50 Ohm Nominal Gain: 3 dBi V.S.W.R: ≤1.5 Cable Length: 3m or others

Frequency Range(MHz) 433+/-15
Bandwidth(MHz) 30
VSWR ≤1.5
Gain(dBi) 3
Max Input power(W)50
Input Impedance(Ω) 50
Polarization Type :Vertical
Antenna High(mm) 170
Cable Length﹙mm﹚ 2000,3000,5000 or other
Cable Type RG174
Connector Type RP-SMA Plug connector (Default )/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting Magnetic
Radiation :Omni-direction
Max Diameter :30mm
Min Diameter :1.5mm
Max wind speed :200km/h
