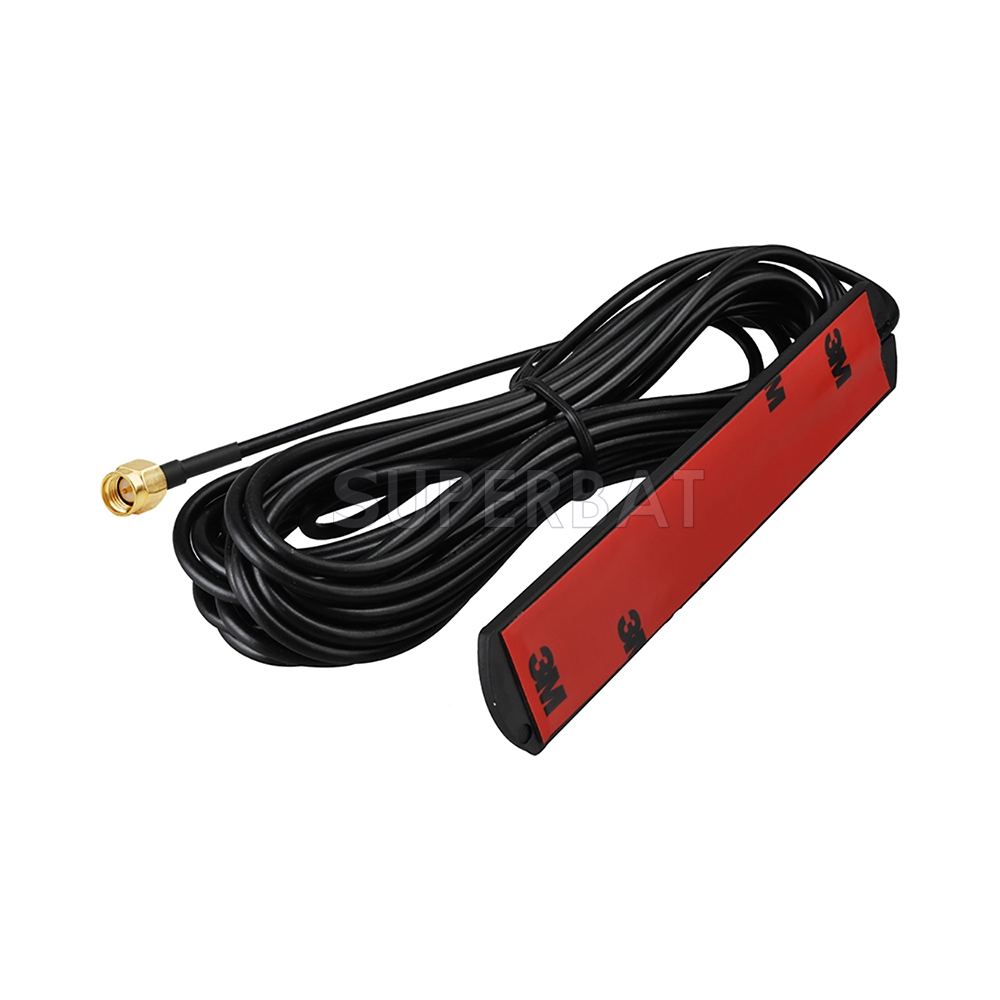

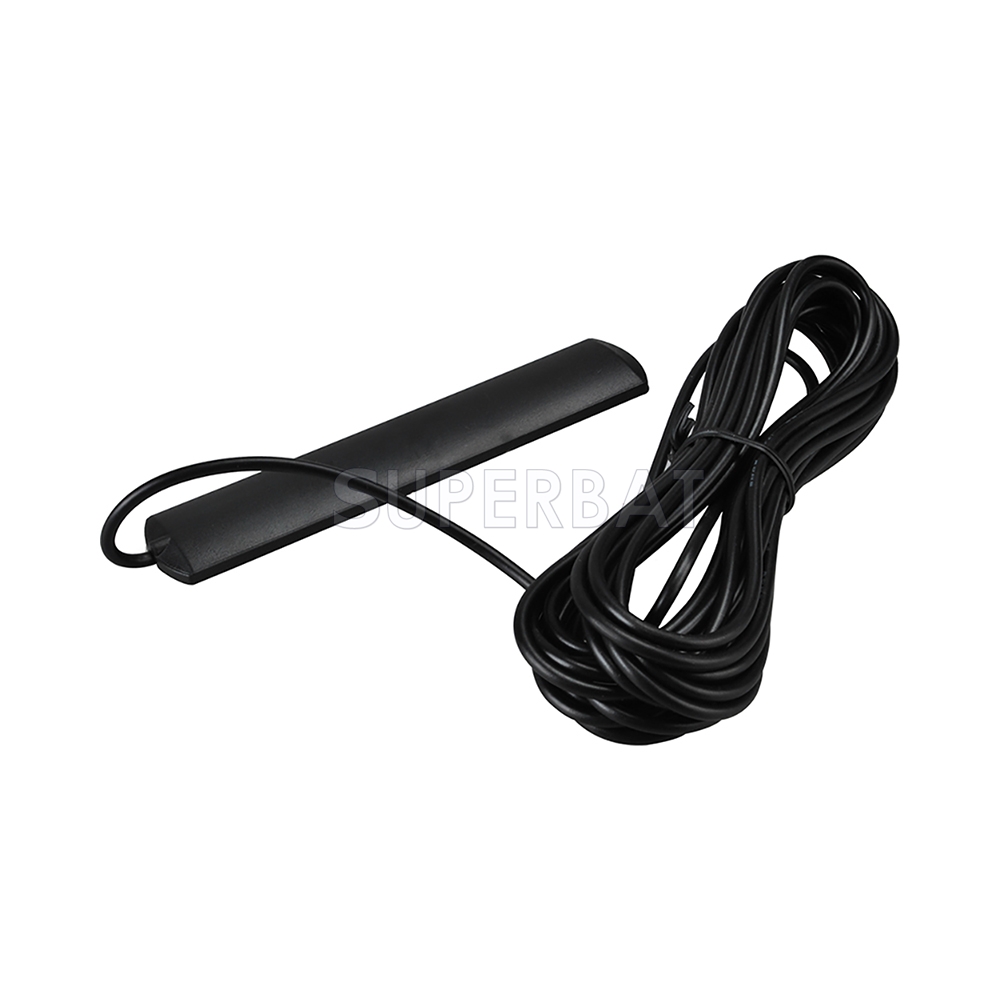

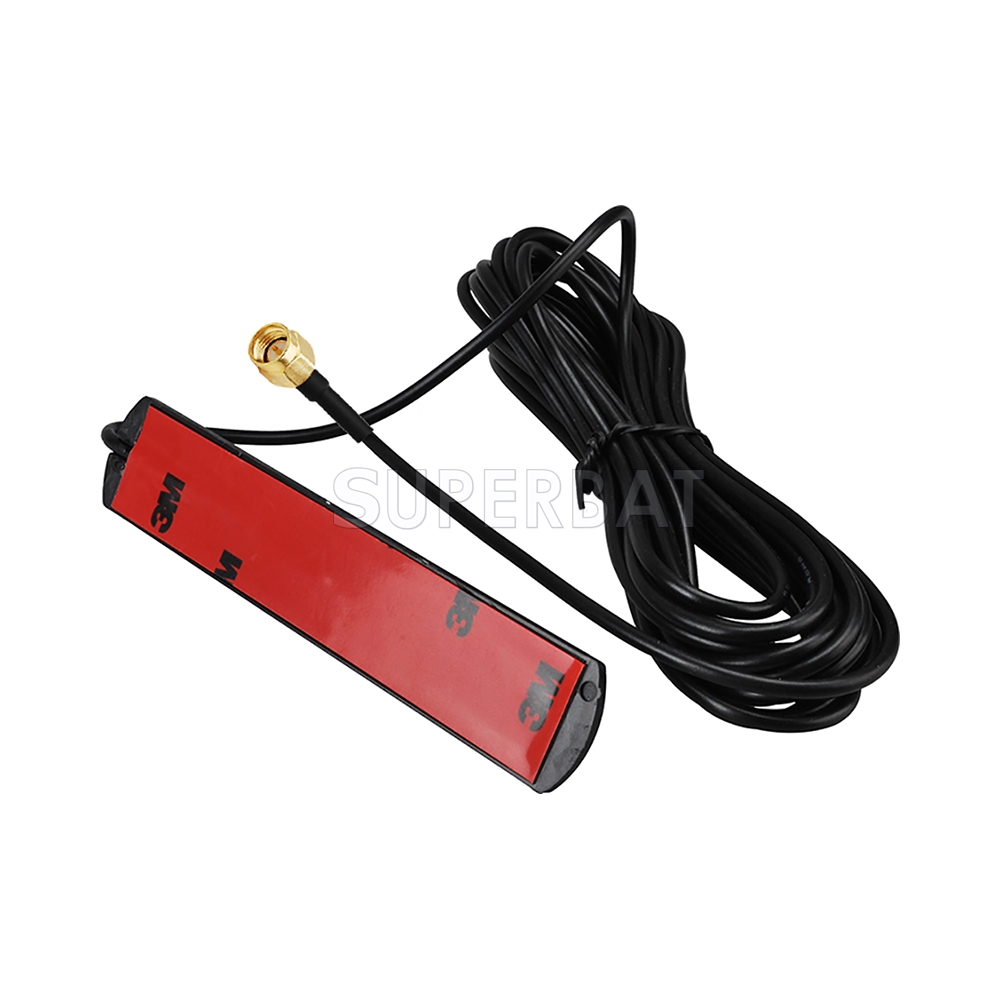

Antenna 433Mhz 2.5dbi SMA Plug male Connector Mounting Adhesive for Ham Radio 3m
Unit Price: $4.54
sku:EA3-2072-S01SP-025-300
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $4.54 $4.31 $4.09 $3.86 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 9990
Quantity: Units

Type: 433Mhz Antenna Center Frequency: 433Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Straight Impedance: 50 Ohm Nominal Gain: 2.5dbi V.S.W.R: ≤1.5 Cable Length: 3M

Features:
Frequency Range(MHz) 433+/-15
Bandwidth(MHz) 30
VSWR ≤1.5
Gain(dBi) 2.5dbi
Max Input power(W) 60
Input Impedance(Ω) 50
Polarization Type Vertical
Antenna Length(mm) 115 x 22 x 4
Cable Length﹙mm﹚ 3000mm ,if you need 5000mm ,please contact us at first ,thanks !
Cable Type RG174
Connector Type SMA Male straight Default /SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting Adhesive
