Amplified DAB/DAB+car radios aerial roof mount antenna and DAB antenna Adapter for pioneer
Amplified DAB/DAB+/FM/AM car radios aerial roof mount antenna and DAB antenna Adapter for pioneer
Unit Price: $27.99
sku:DB1-KIT-2415-F05
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $27.99 $26.59 $25.19 $23.79 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Specifications:

Bar Length: Approx. 23 cm

Base: 58 x 45x 270 mm

Antenna Angle: Approximately 75 °

Supply Voltage:12V DC

Current Consumption:40mA

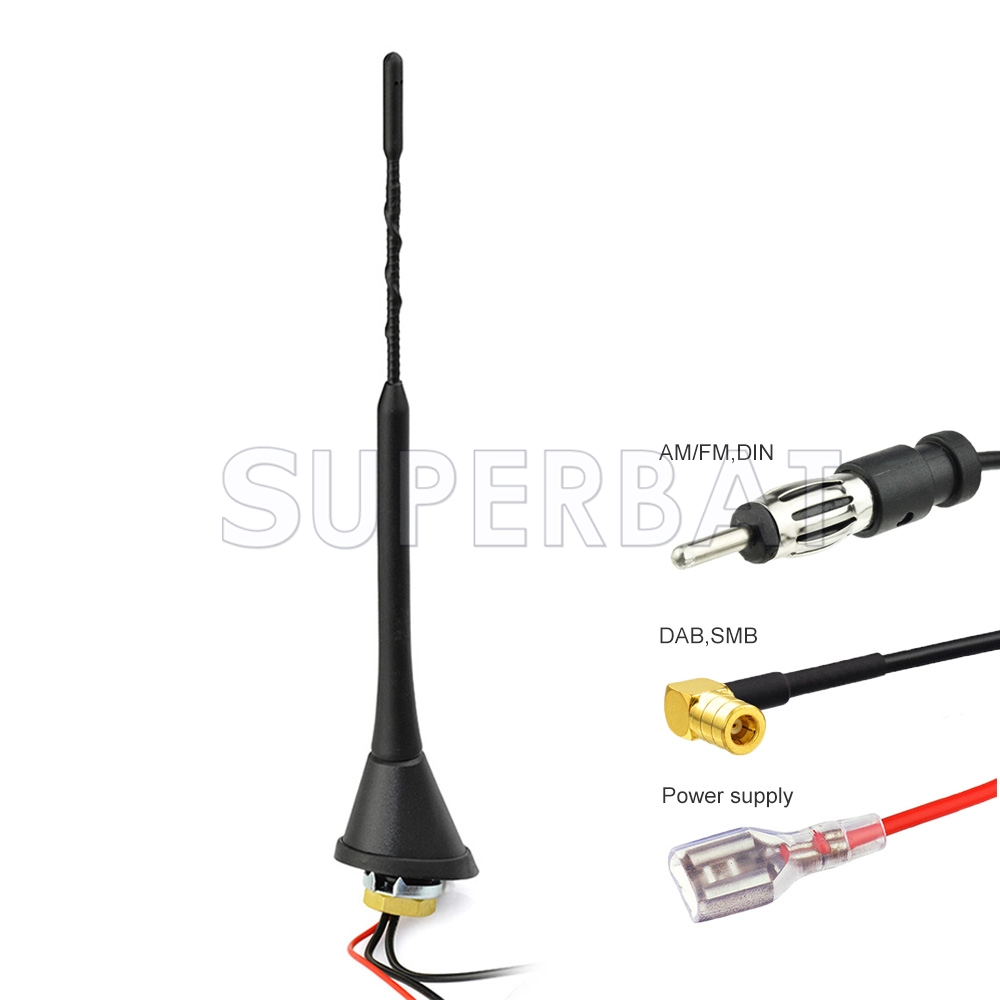

Aerial connector: SMB

FM /AM connector:DIN

Adapter connector:RAST II to FM/AM & SMA to SMB

Mechanical Cable: RG174

Cable Length:5M

Mounting Method:Screw

Impedance: 50 ohm

Working Frequency: 170MHz~240MHz (Band III)

                   1452MHz~1492MHz (L-Band)

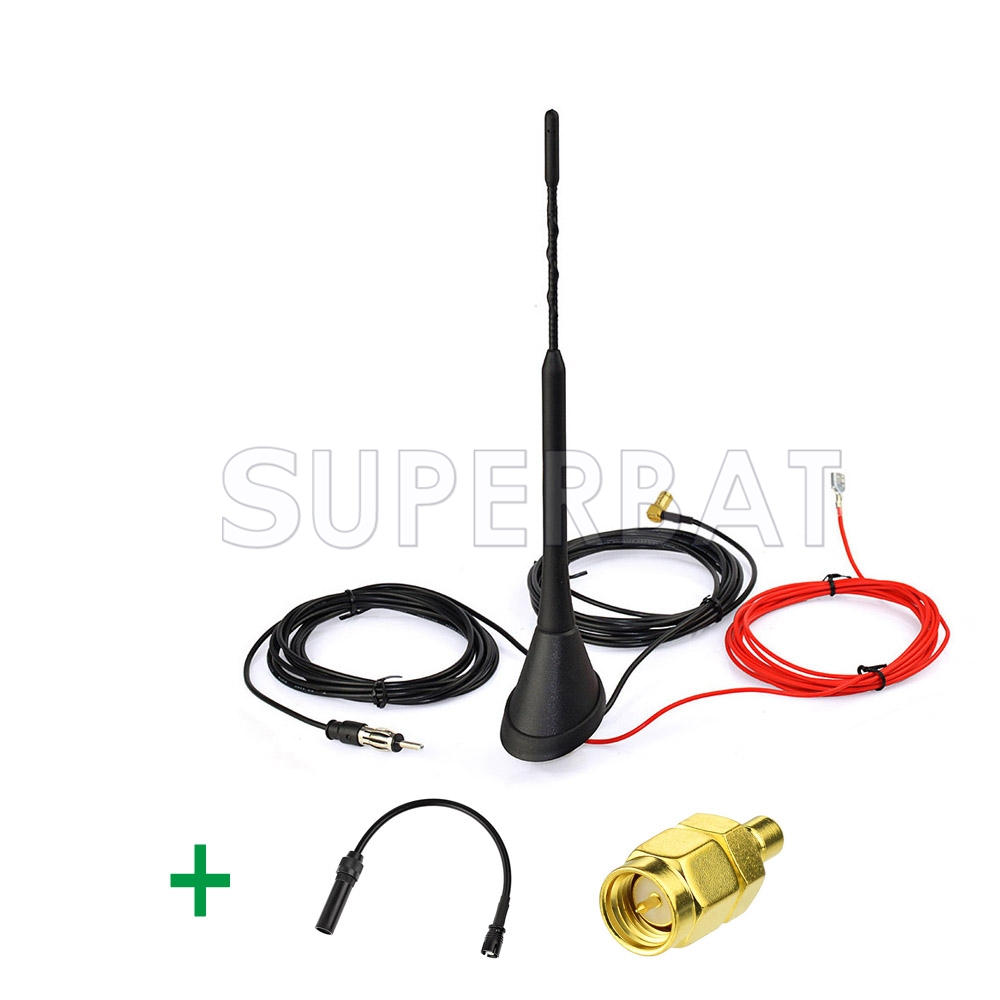

Package included:1pcs DAB car Aerial ( DB1-2415-D02SP-S05RA-500 )

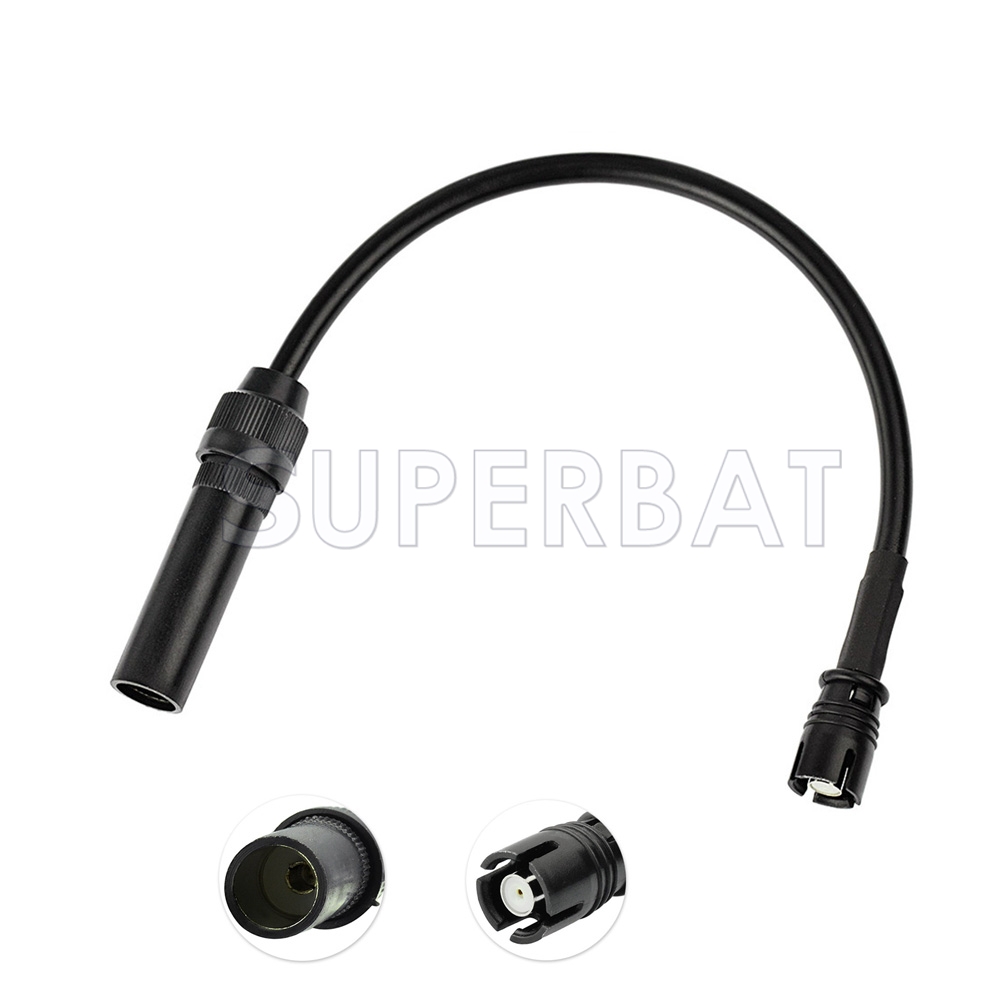

   1pcs RAST II to FM/AM Adapter ( AC-F05SJ-D02SJ-058-20 )

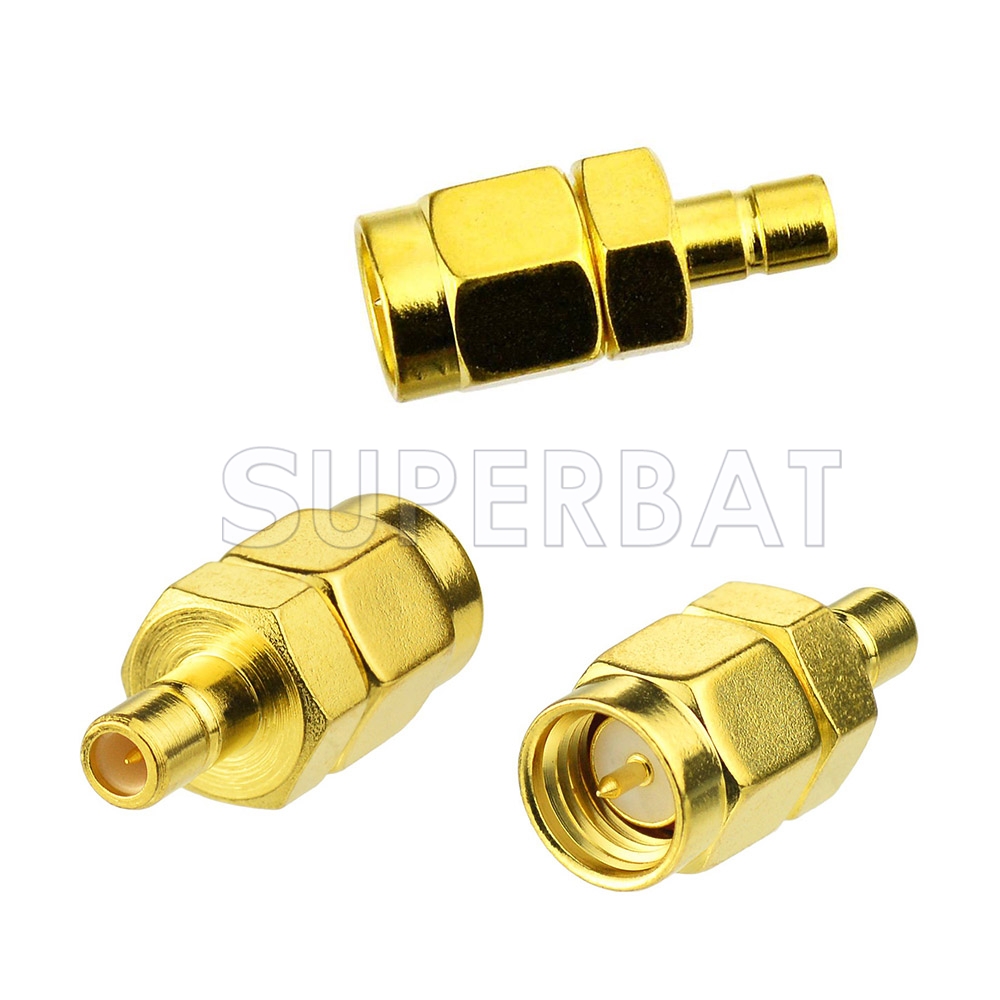

    1pcs SMA to SMB Adapter ( AD-S01SP-S05SJ-11BS00 )



Advantages:

High quality, top performance, roof mount, amplified DAB/FM/AM car aerial.

Mast easily unscrews for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance).

If your vehicle currently has a built-in-the glass or similar FM/AM aerial, installing the 'DAB/FM/AM bundle will probably improve your FM/AM reception as well.



Listing Suitable for the following DAB radios:

Alpine All in-car DAB except Ezi-DAB

Beat ALL in-car DAB

Blaupunkt All in-car DAB

Caliber Caliber ALL in-car DAB except PMT-700D

C-KO All in-car DAB

Clarion Clarion ALL in-car DAB

Clarity CCE203-DAB

Grundig All in-car DAB

JVC All in- car DAB

Kenwood All in- car DAB

Kinetic All in-Car DAB

pioneer All in-car DAB except GEX-P900DAB

philips CEM.....series

pure Highway H240Di H260D

Sonichi SB50-DAB

Sony All in-car DAB

AutoDAB All models

Connects 2 CTDAB-2

Dual DAB CAR1

Goodmans GFMTDBA10

In-Phase All in- car DAB except ProDAB


Cautions:

UNSUITABLE for replacement of bee-sting aerials incorporating GSM, GPS or rear-screen washer jet (some Vauxhalls etc).

Must not be mounted on a panel whose underside is exposed to the elements.

5m DAB cable is captive, i.e. permanently attached.

Max panel thickness: 2.5mm.
