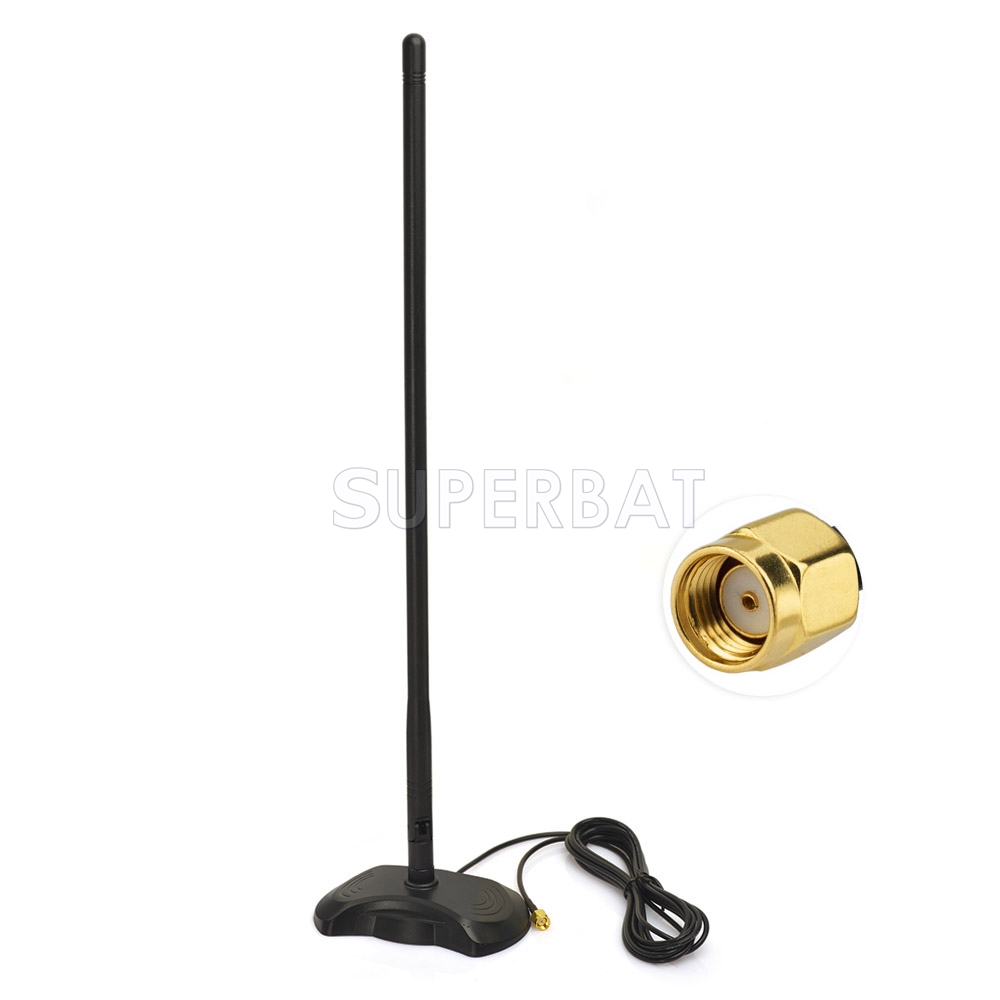

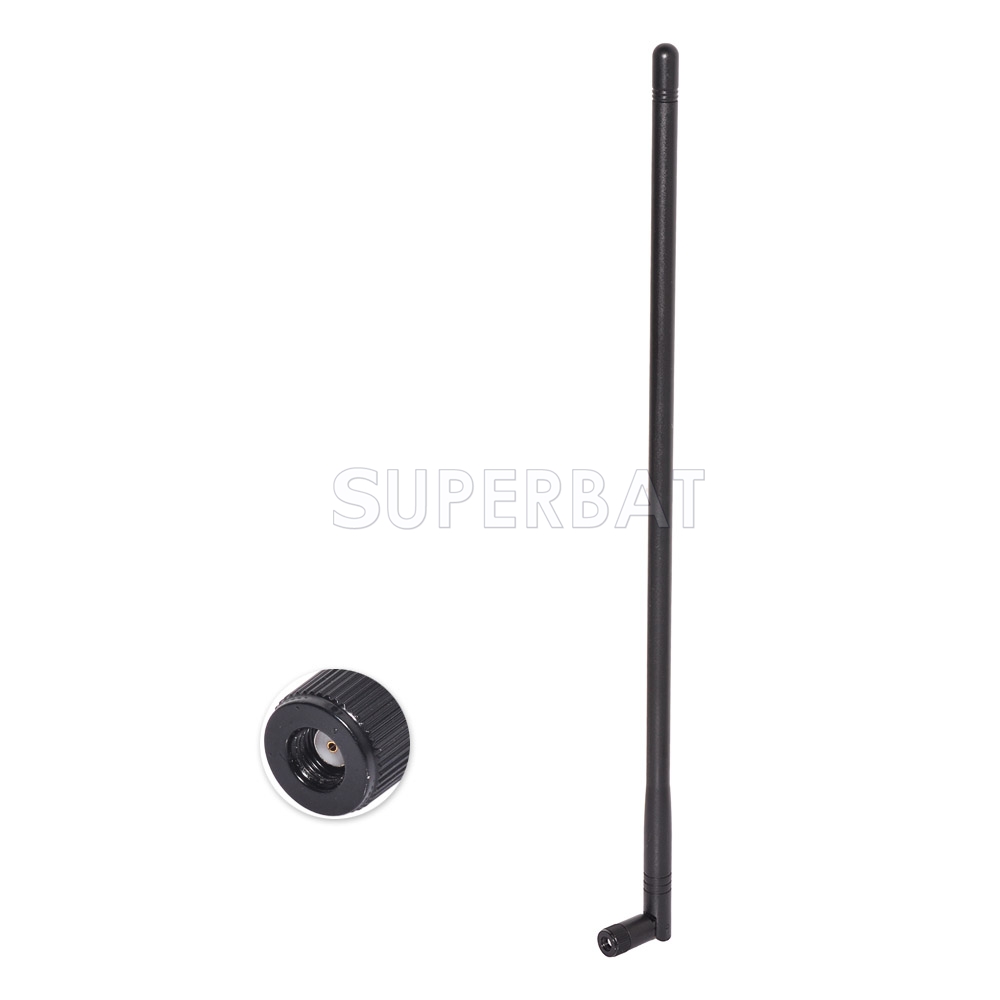

9dbi 3G/GSM/UMTS/HSUPA/HSDPA antenna RP SMA male plug strong Magnetic Mount Base for Wireless& Devices
Unit Price: $21.00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $21.00 $19.95 $18.90 $17.85 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170MHz Connector Series: SMA Connector Polarity: Reverse Polarity Connector Gender: Plug Gain: 15dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 2.5M Weight: 177g


High Quality 3G 9dB Booster Antenna can be taken  apart.

Install by simply unscrewing your current antenna, and  attach this High Gain antenna in its place.

There are no drivers to install, and no modifications to your setup are necessary.

Please check if the connector does fit your Device before bid!


Frequency Range(MHz) 850-960/1710-2170

GSM/GPRS/EDGE 850/900/1800/1900MHz

CDMA 1900 MHz

VSWR ≤1.5

Gain: 15dbi

Max Input power(W): 60

Input Impedance(Ω): 50

Polarization Type: Vertical

Antenna Length(mm): 430

Cable Length(m): 2.5M

Cable Type: RG174 default

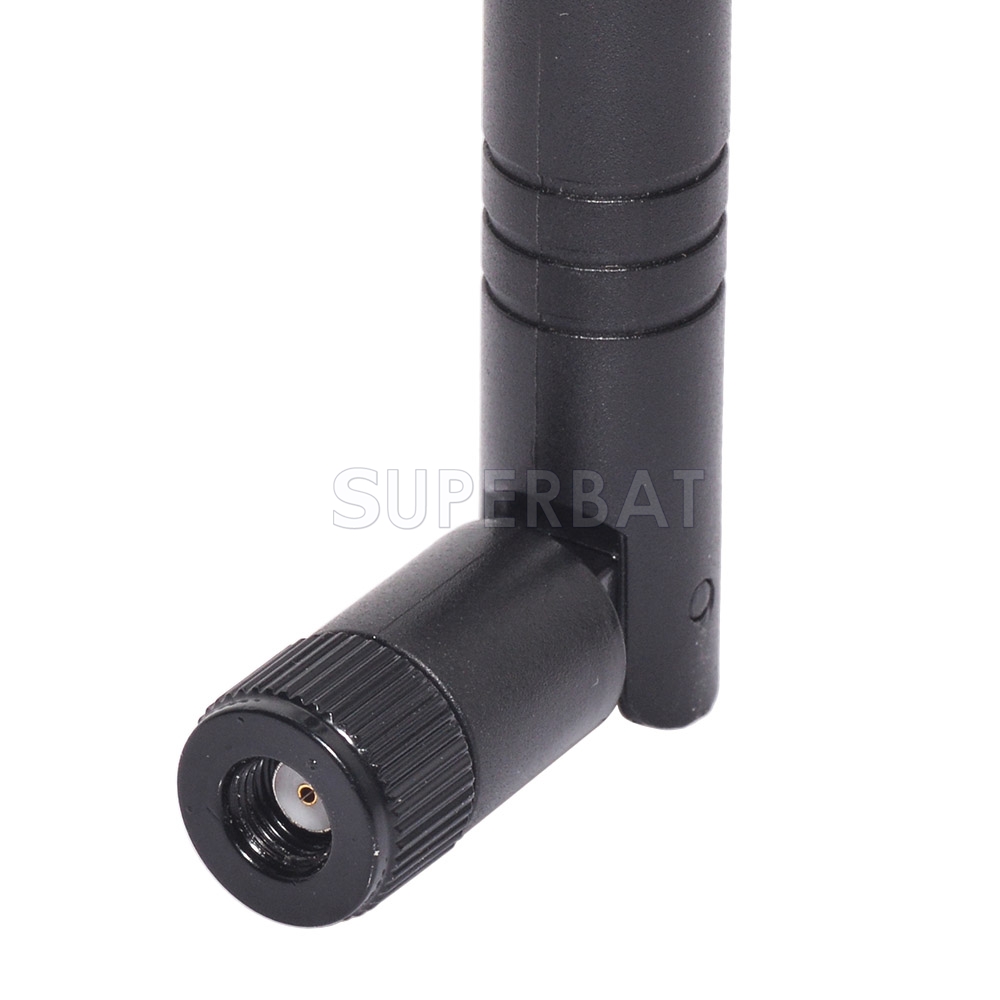

Connector Type: RP SMA male straight   as default, optional conector:   SSMB/TS9/MS147/MCX/MMCX/CRC9/BNC/TNC/SMB/MC-Card..and so on.,please give  us notes if the connector is chosen Housing: Black

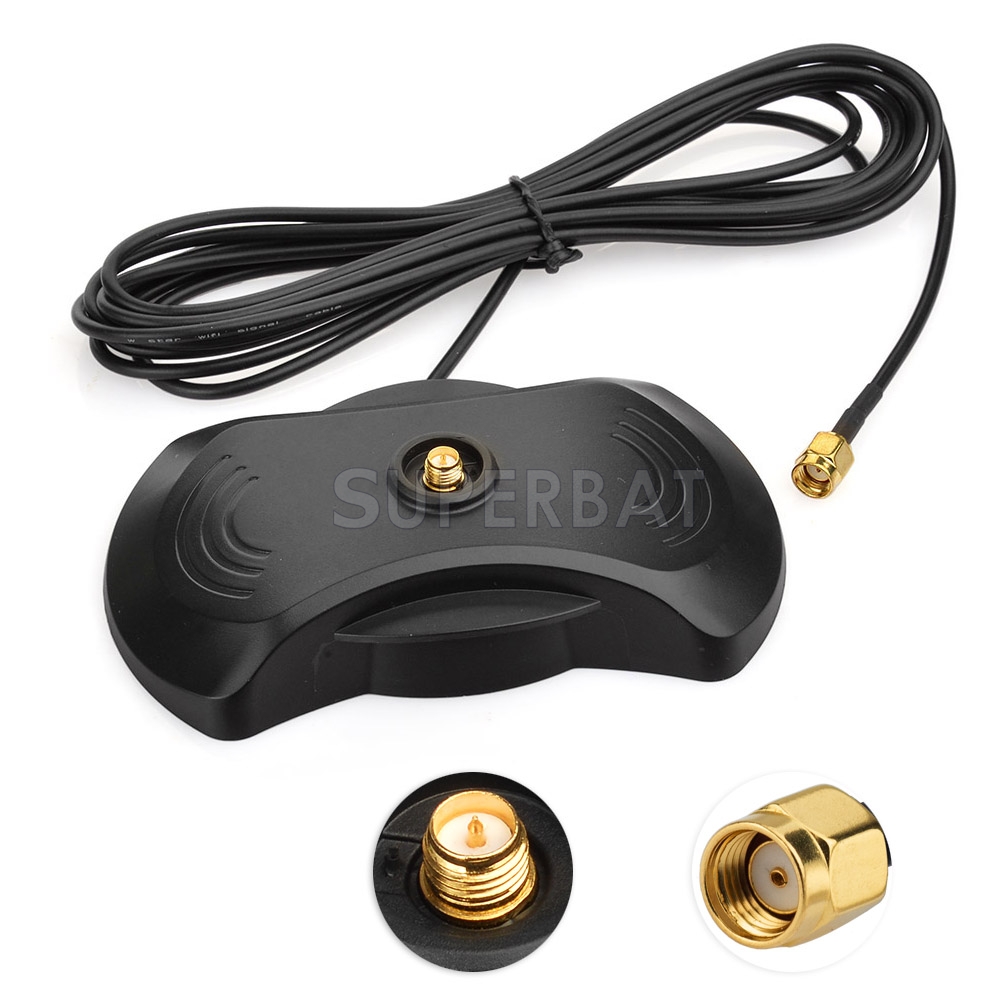

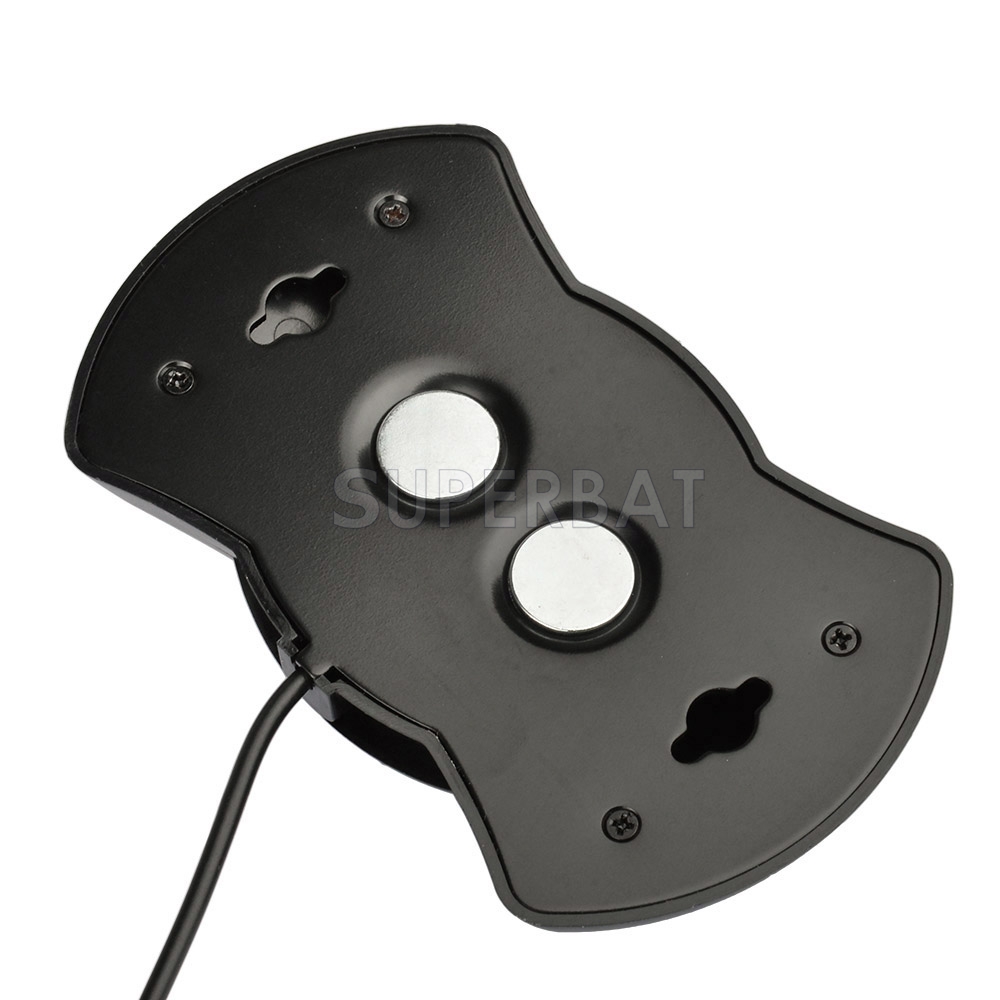

Magnetic Mount Base


Storage Temperature: -45'c to +75'c

Operating Temperature: -45'c to+75'c


Power off wireless device
Plug connector into antenna port on wireless device
Power on wireless device
For best performance place antenna as close to exterior window as possible

Installation Tips:

   Antenna should be mounted vertically to maximize performance
   Antenna should not be mounted against metal
