9dBi 3G Antenna with Magnetic base for 3G USB Models /Router /Devices
Unit Price: $22.99
sku:3A1-2160-S01SP-090-300
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $22.99 $21.84 $19.77 $16.78 ASK
saving% 0% 5% 14% 27% -
Real Time Availability
Stock: 1000
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 9dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG58 Cable Length: 3m Weight: 294g

GSM/GPRS/EDGE 800/900/1800/1900/2100
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz

Gain:9 dBi
VSWR:≤1.5
Storage Temperature:-20~40℃
Operating Temperature:-40~60℃
bandwidth:50MHz
Nominal Impedance:50 Ω

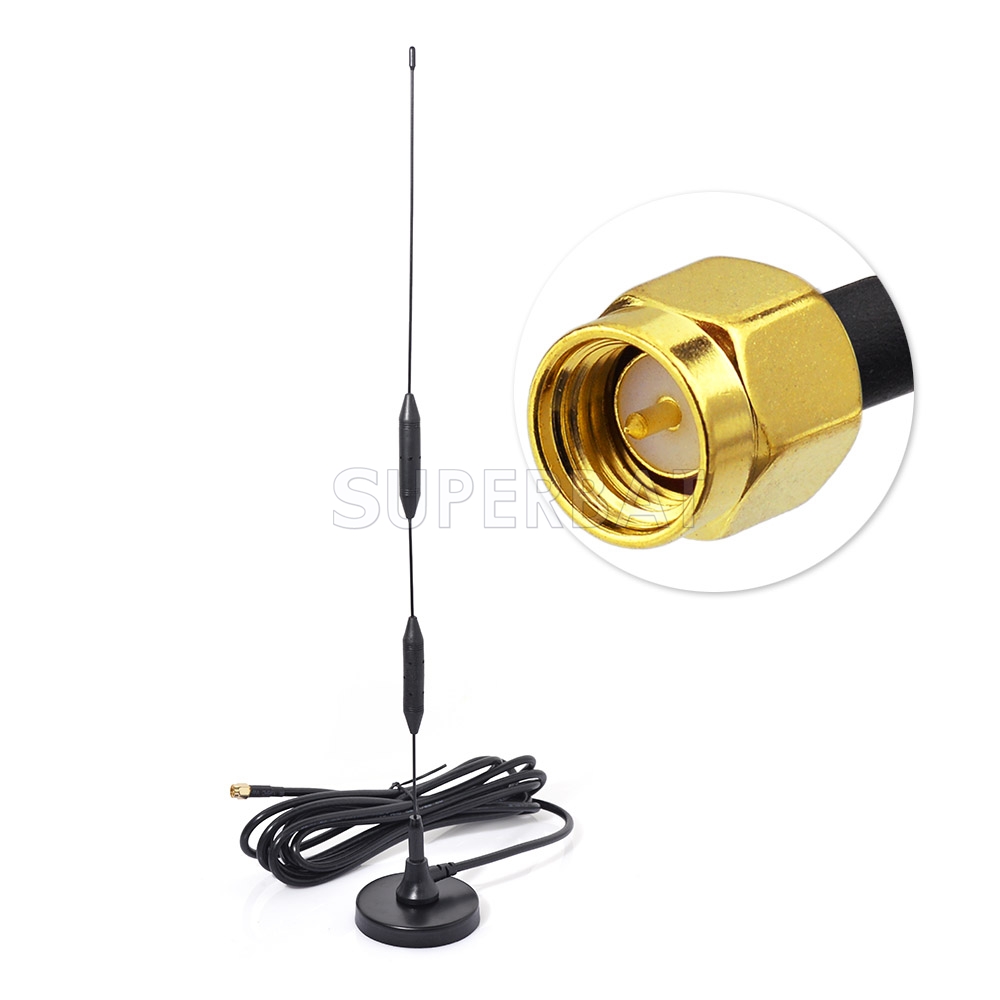

Connector :SMA or customized

SMA/MCX/FME/BNC/TNC/and so on.,please give us notes if the connector is chosen !
Extended Cable :RG58 Cable
Cable length: 3 M
Net weight:0.294 KG
Polarization :Vertical
Radiation :Omni -directional
Size:

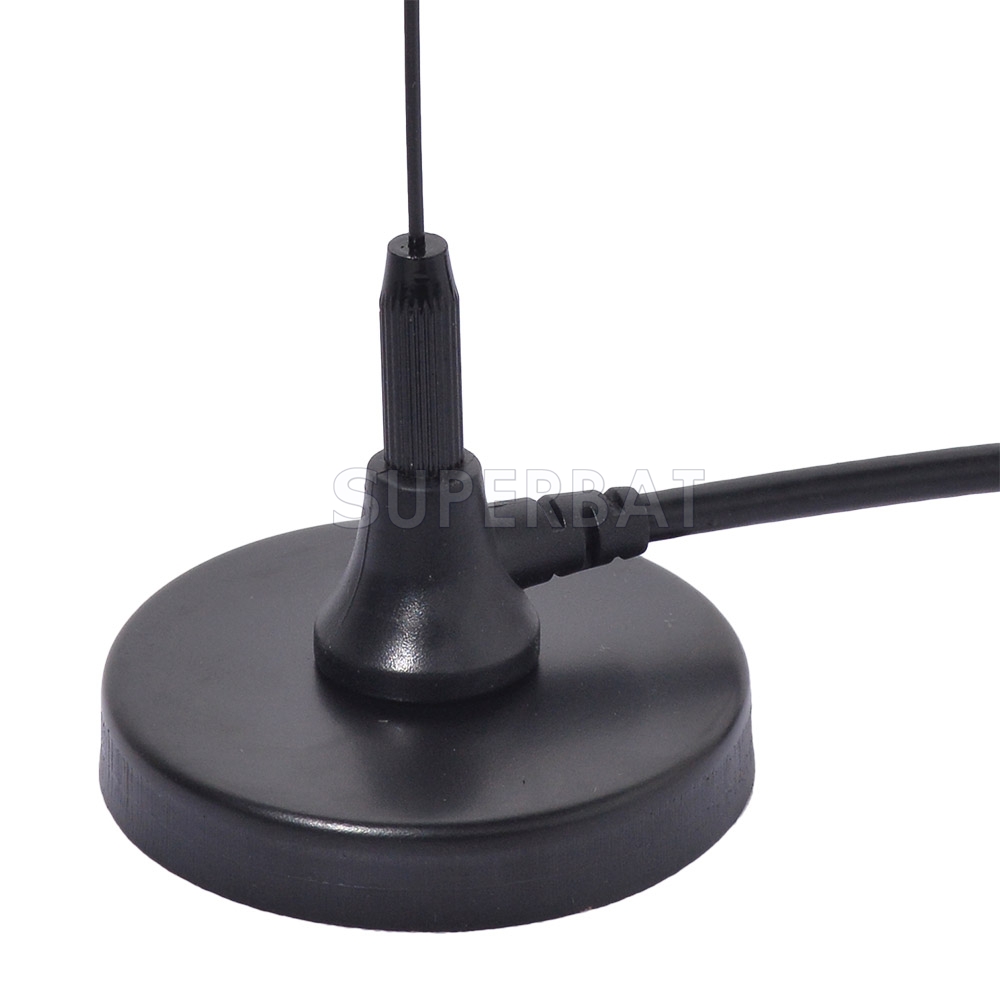

Magnetic Mount diameter 65mm

Antenna height 420mm


This antenna is with strong magnetism, can be put on the Metal place, and can be used indoor and outdoor.
