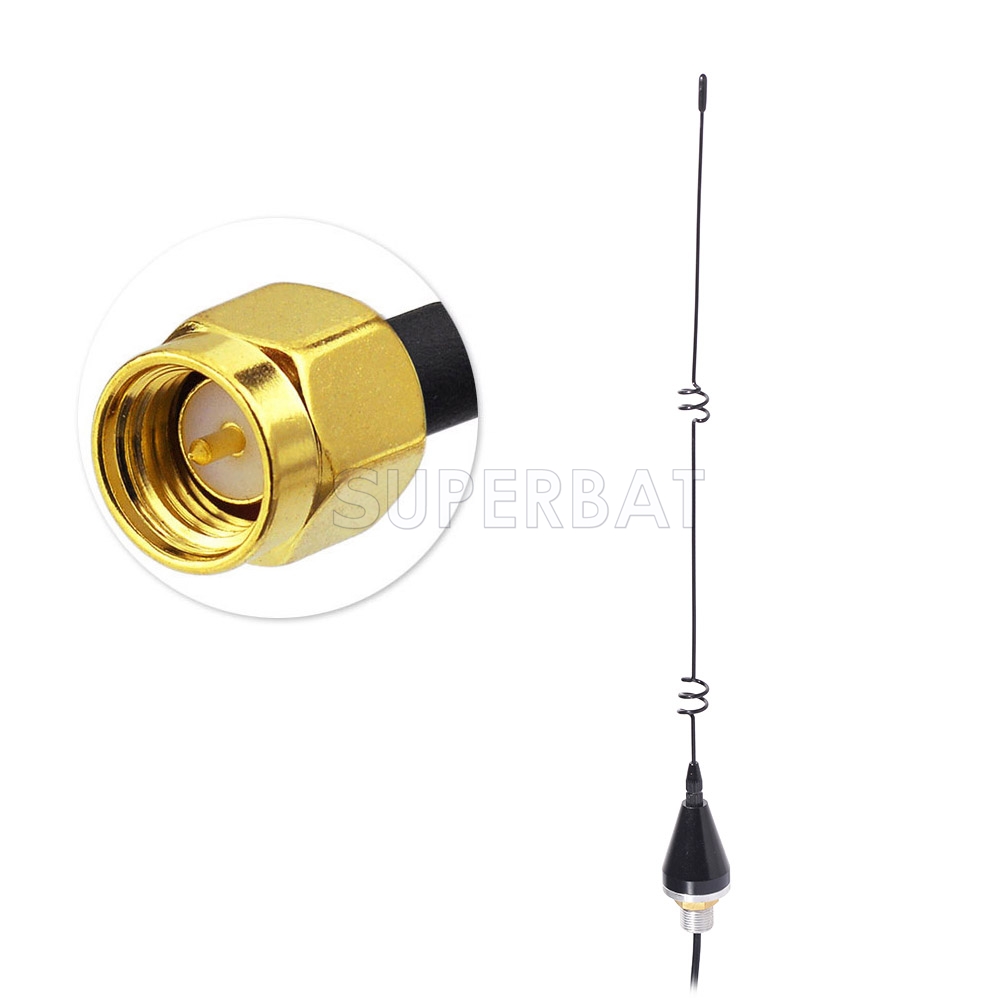

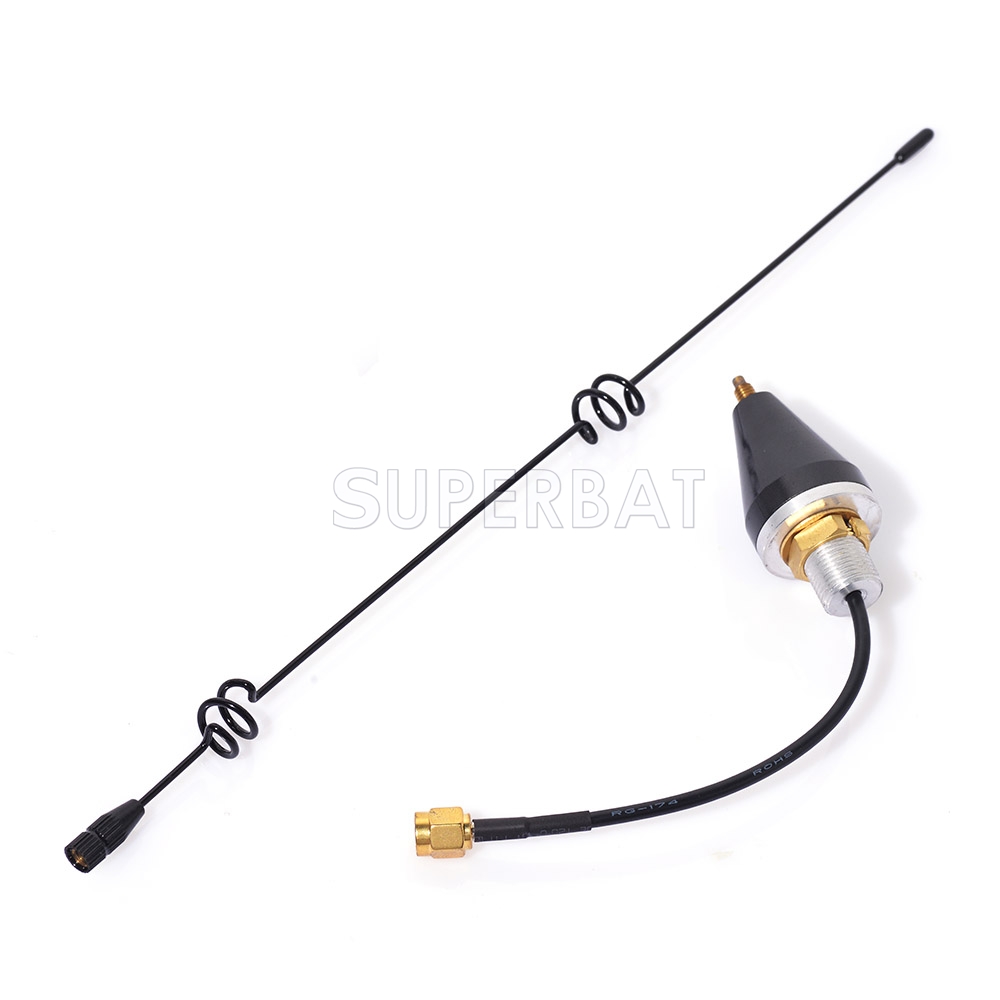

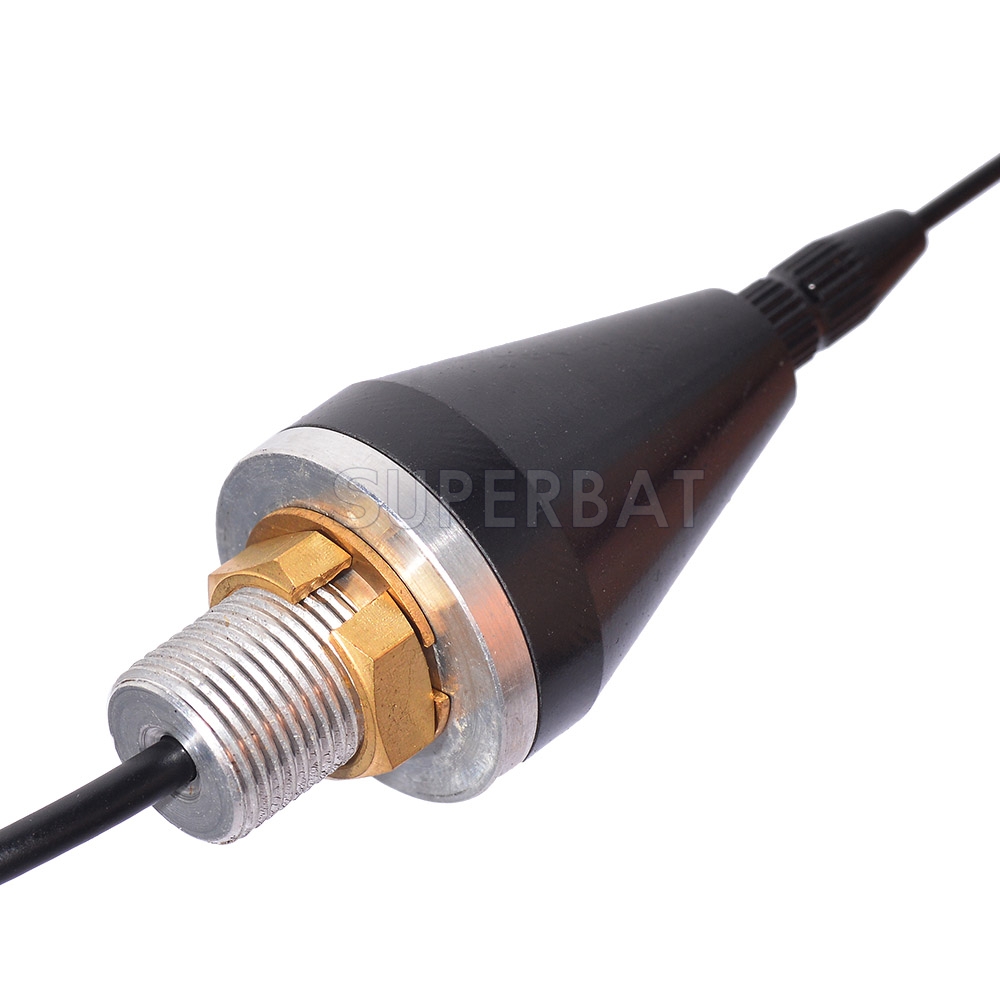

850/900/1800/1900/2100Mhz GSM/UMTS/3G Car antenna
Unit Price: $9.50
sku:3A1-1909-S01SP-050-10
End connector
quantity 1 - 9 10 - 49 50 - 99 100 - 999 1000+
Price Each $9.50 $9.03 $8.55 $8.07 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850/900/1800/1900/2100MHZ Connector Series: SMA Gain: 5dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 10cm Weight: 104g

Frequency(MHz):850/900/1800/1900/2100
EDGE / GPRS / GSM - 850/900/1800/1900 MHz
HSUPA/HSDPA/WCDMA 2100M/900MHz
Bandwidth(MHz):90/280

VSWR ≤1.5
Gain(dBi):5
Max Input power(W):60
Input Impedance(Ω):50
Polarization:Vertic
Size(mm):24(Base)×290(Height)
Cable Length(cm):10cm (other length please email me firstly,fox example 200,300,500 etc.)
Cable Type:RG174
Antenna Connector: SMA
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if the connector is chosen!

Mounting:Screw
Housing:Black
Storage Temperature:-45℃ to+75℃
Operating Temperature:-45℃ to+75℃
