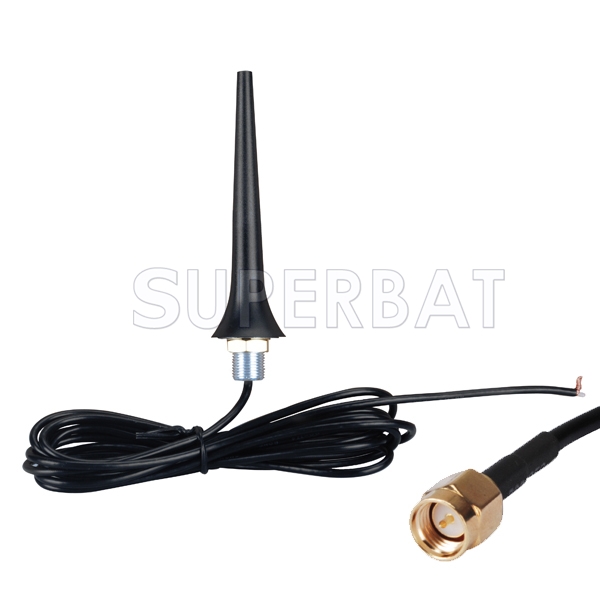

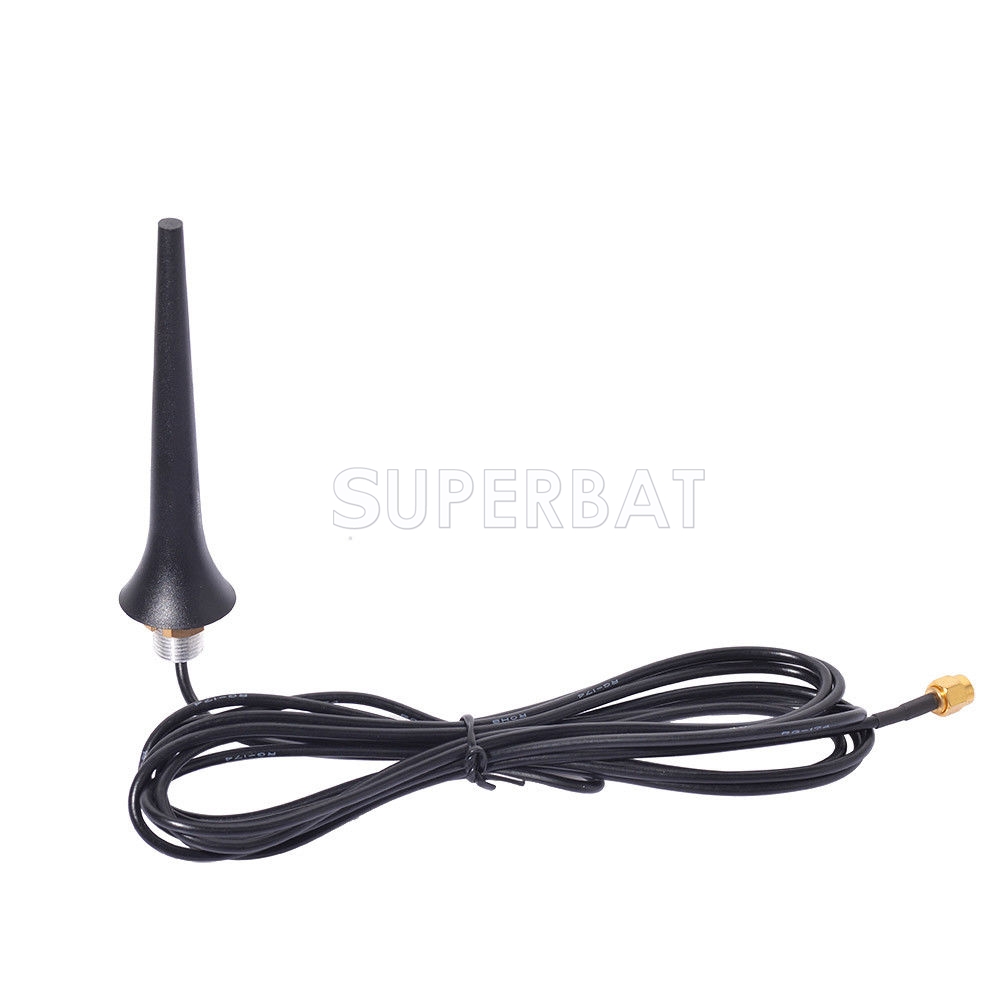

850-2170MHz 2.5DBi 3G/GSM/UMTS/HSUPA antenna SMA screw(Hole/Roof) mount RG174 3M
Unit Price: $6.50
sku:3A1-2207-S01SP-025-300
End connector
quantity 1 - 9 10 - 49 50 - 99 100 - 999 1000+
Price Each $6.50 $5.85 $5.27 $4.75 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-2170MHz Gain: 2.5dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 49g

 Description :

        GSM/GPRS/EDGE 850/900/1800/1900MHz/2170MHz
        HSUPA/HSDPA/UMTS 2100MHz/900MHz
        CDMA 1900 MHz
        VSWR ≤1.5
        Gain: 2.5 dbi
        Max Input power(W): 60
        Input Impedance(Ω): 50
        Polarization Type: Vertical
        Radiation: omnidirectional
        Antenna Length(mm):95±1
        Cable Length(mm): 3M default or others
        Cable Type RG 174 default
        Antenna Connector: SMA
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if the connector is chosen!

        Mounting:Screw(Hole/Roof)
        Housing: Black
        Weight:49g
        Storage Temperature: -45'c to +75'c
        Operating Temperature: -45'c to+75'c
