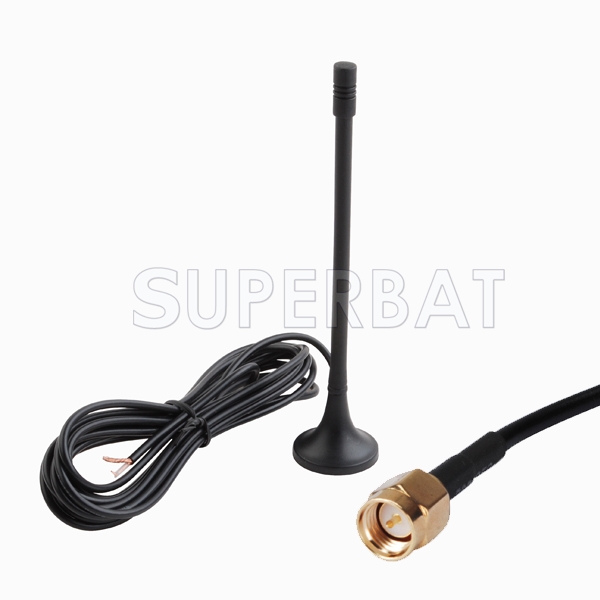

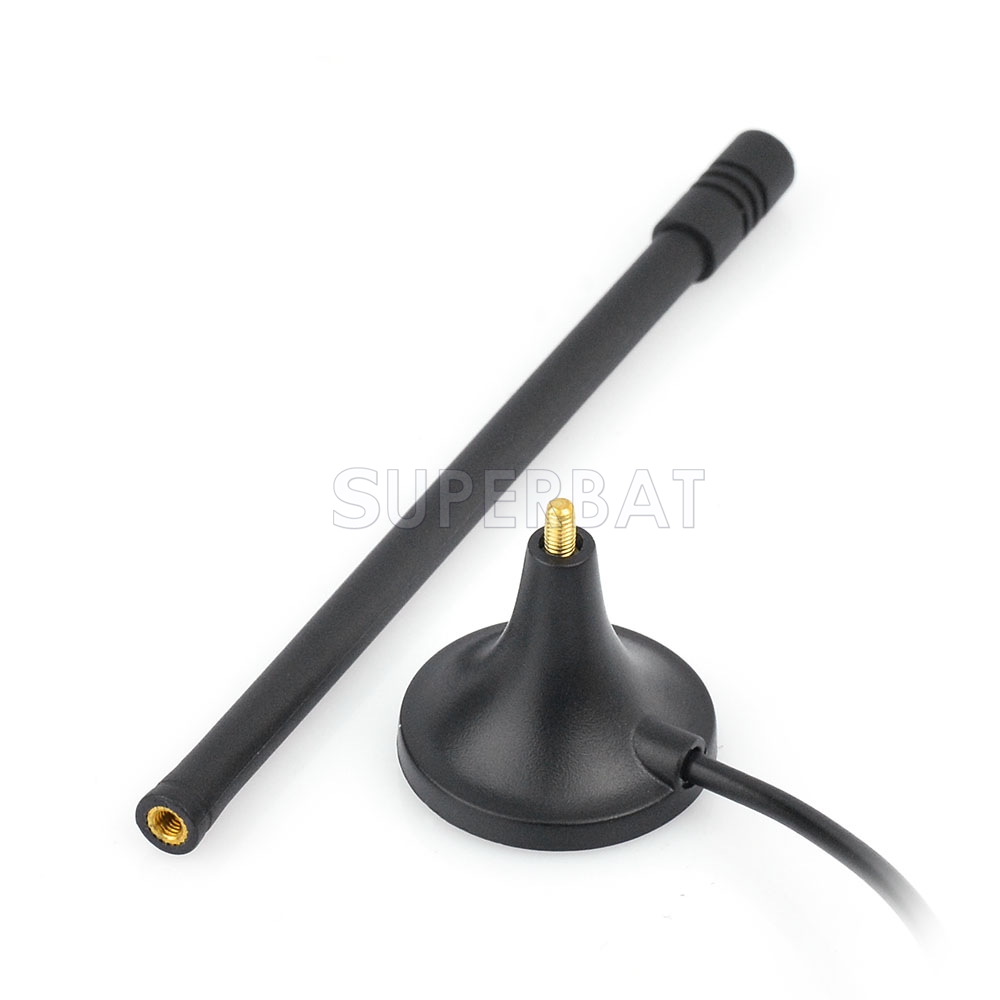

850/1900/900/1800/2100Mhz GSM/UMTS/HSPA/CDMA/3G Antenna 3.5dbi SMA male for HUAWEI
SMA connector 850/1900/900/1800/2100Mhz GSM/UMTS/HSPA/CDMA/3G Antenna 3.5
Unit Price: $5.50
End connector
quantity 1 - 9 10 - 49 50 - 99 100 - 999 1000+
Price Each $5.50 $5.22 $4.95 $4.67 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 9973
Quantity: Units

Antenna Type: Magnetic Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170 MHz Gain: 3.5dBi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 3m Weight: 45g

Frequency Range(MHz):850-960/1710-2170
   GSM/GPRS/EDGE 850/900/1800/1900MHz
   CDMA 1900 MHz

    VSWR ≤1.5
    Gain: 3.5dbi
    Max Input power(W): 60

    Input Impedance(Ω): 50
    Polarization Type: Vertical
    Radiation: omnidirectional
    Cable Length(m): 2.5M
    Cable Type RG 174 default
    Connector Type : SMA or customized
    SMA/SSMB/CRC9/TS9/MS147/FME//MC-Card..and so on.,
    please give us notes if the connector is chosen !

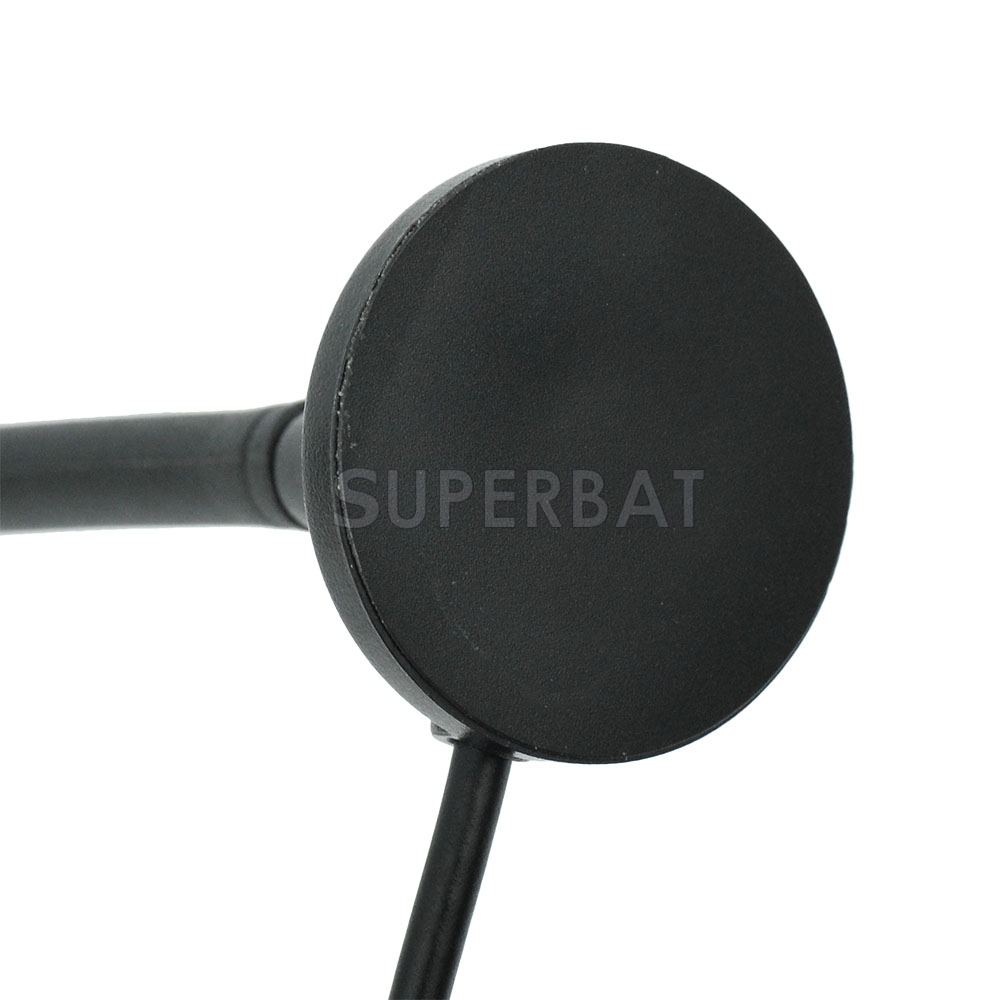

    Mounting: Magnetic
    Housing: Black
    Storage Temperature: -45'c to +75'c
    Operating Temperature: -45'c to+75'c

    Weight: 45g
