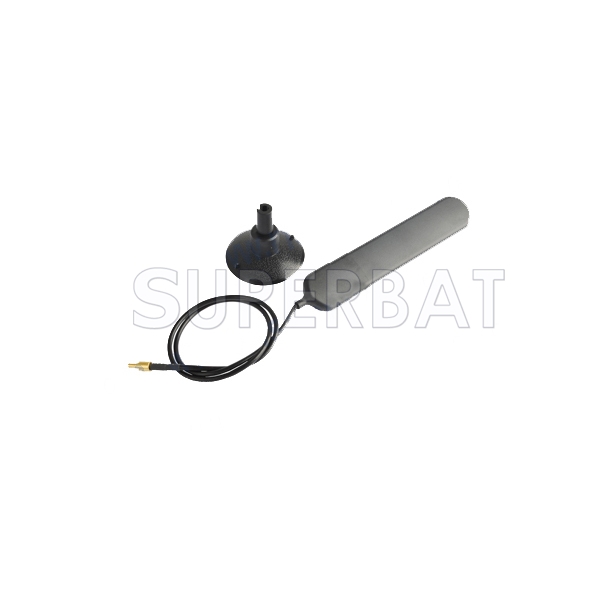

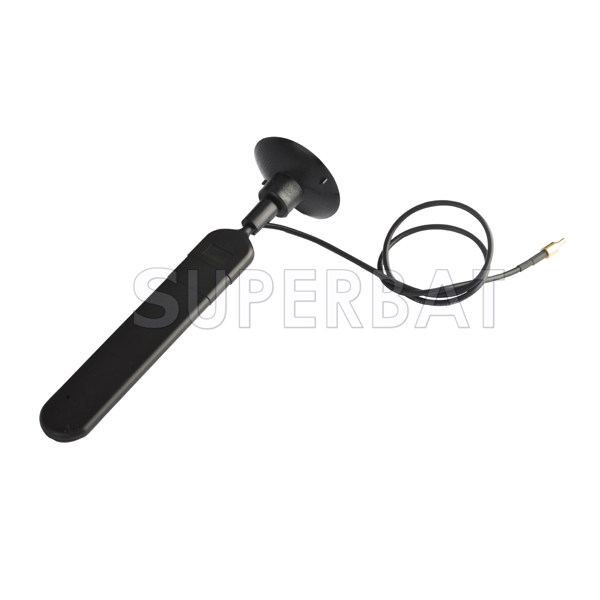

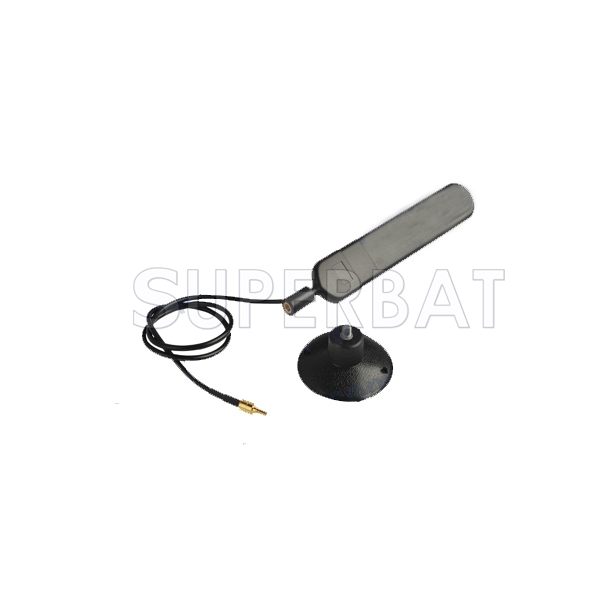

850/1900/900/1800/2100Mhz GSM/UMTS/HSPA/3G Antenna 13db CRC9 for Modems and Cards
Unit Price: $16.00
sku:3A1-1778-C01SP-130-46
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $16.00 $15.20 $13.12 $12.00 ASK
saving% 0% 5% 18% 25% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Desktop Network: 3G/UMTS/CDMA2000 Antenna Frequency: 850-960/1710-2170MHz Connector Series: CRC9 Connector Polarity: Standard Connector Gender: Plug Gain: 13dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG174 Cable Length: 46cm Weight: 48g

Boosts antenna strenght up to 13 dB
Frequency Range(MHz)850-960/1710-2170
GSM/GPRS/EDGE 850/900/1800/1900MHz
HSUPA/HSDPA/UMTS 2100MHz/900MHz
CDMA 1900 MHz
VSWR ≤1.5
Enhance and maintain excellent signal quality
Usable indoor or outdoors
Quick, simple installation, no software required
Mount:Maganic base
Antenna Connector: CRC9 male straight default
Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if the connector is chosen!

Antenna length:17cm
Cable length:46cm, RG174
Antenna Weight:48g
CRC9 connector/ adapter for HUAWEI USB Modems
SSMB connector for huawei E800 E870
MC-LUCENT connector for Option Wireless
MCX male for Ericcson W30/W35 data router
MMCX male for Ericsson MC95/MC99/RLMC352
SMA male for Ericsson W21
