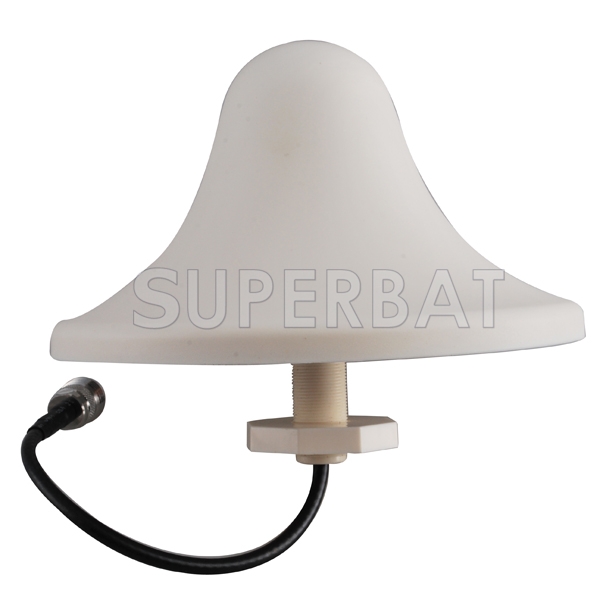

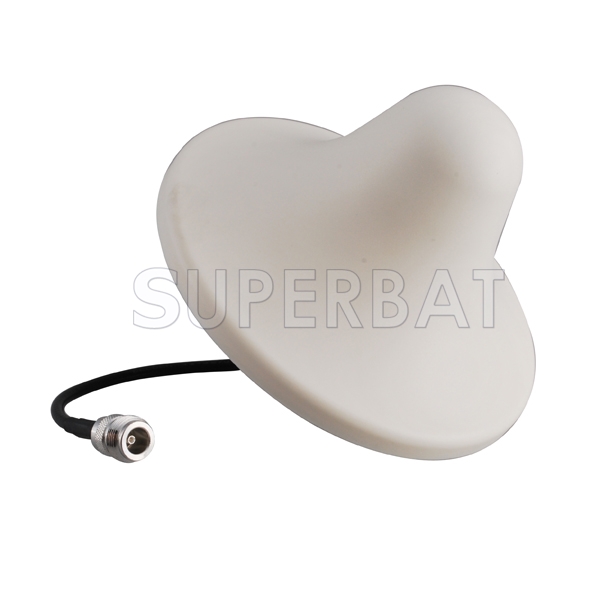

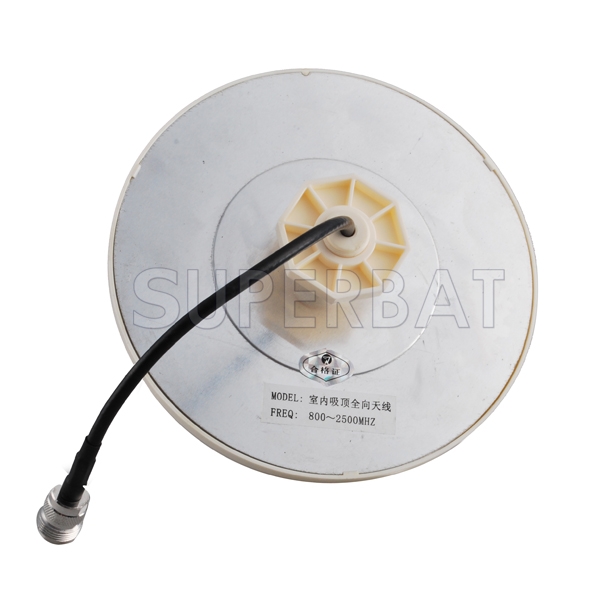

800-2500MHz GSM/GPRS/EDGE/UMTS/HSPA/CDMA/3G Ceiling Antenna 3dBi
Unit Price: $13.50
sku:3A3-880-N01SJ-030-16
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $13.50 $12.15 $10.94 $9.86 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 3G/UMTS/CDMA2000 Antenna Frequency: 806-960MHz/1710-2500MHz Connector Series: N Connector Polarity: Standard Connector Gender: Jack Gain: 3dBi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG58 Cable Length: 16cm Weight: 256g

Model:3A3-880-N01SJ-030-16
Frequency Range(MHz): 806-960MHz/1710-2500MHz
Bandwidth:100 MHz
Gain: 3 dBi
F/B ratio:15 dB
VSWR:≤1.5
Max power:100 W
Nominal Impedance:50Ω
Connector: N Jack default

SMA/SSMB/CRC9/TS9/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card/MS-147..and so on.,please give us notes if the other connector is chosen !

Dimension:Φ180×90 mm
800MHz+900MHz+1800MHz+1900MHz+3G+2400MHz WLAN
GSM 850/900: 824 - 960Mhz
GSM 1800/1900:1710 - 2500Mhz
UMTS: 1900 - 2170 MHz
CDMA 800/1900
800MHz+900MHz+1800MHz+1900MHz+3G+2400MHz WLAN Ceiling
