800-2500MHz 4-way Power Divider N female connector
Unit Price: $36.50
sku:PD-1538
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $36.50 $32.85 $29.57 $26.64 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

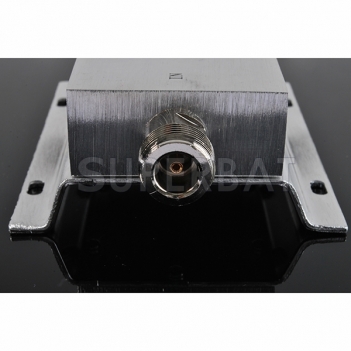

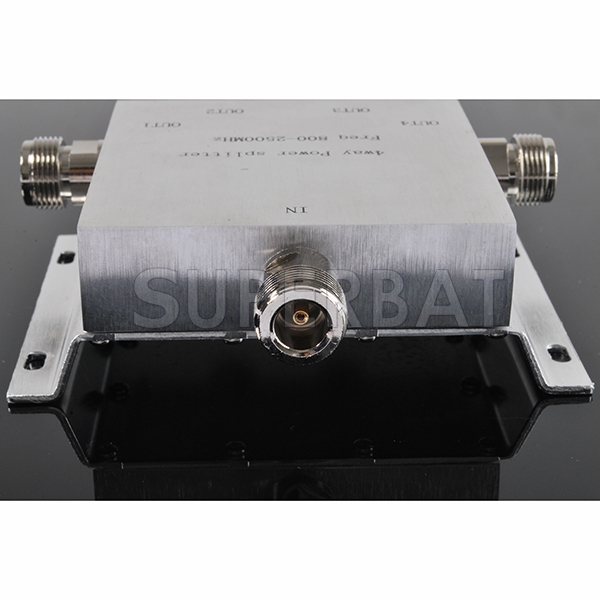

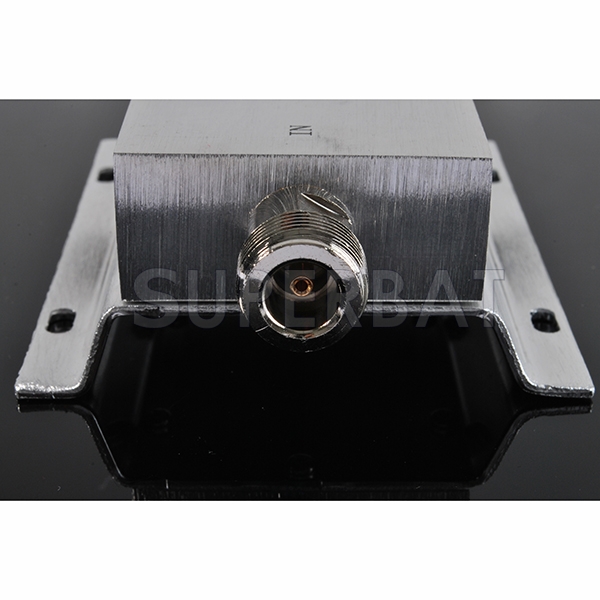

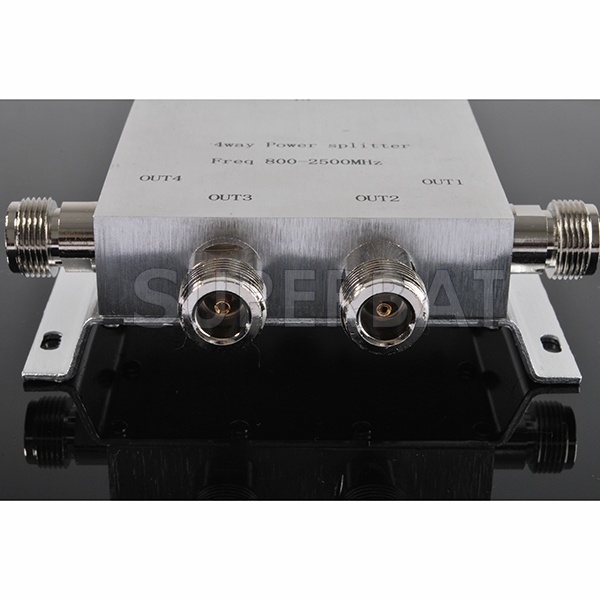

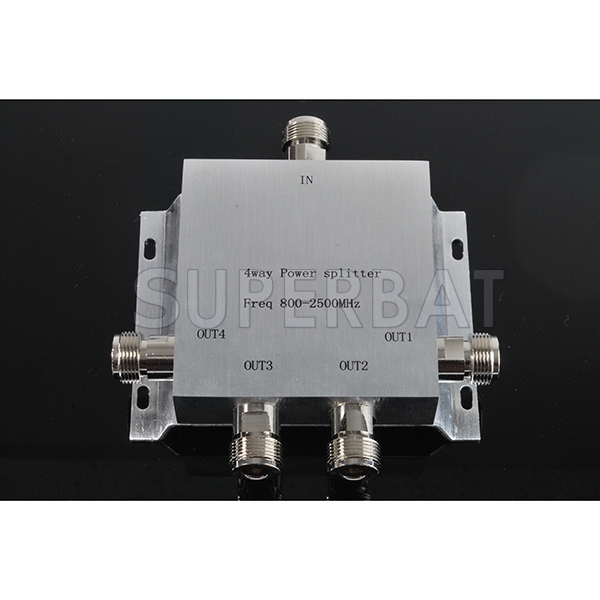

800-2500MHz 4-way Power Divider N female connector

Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.



ELECTRICAL SPECIFICATIONS:


type: 4-way Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=6.1DB
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :1:1.3
Max. Power(MAX)(W) :50
connector :N female



Mechanical Characteristics:


Environment temperature -℃ :-30+60
Relative humidity -% :5~95
Size -mm :117.4mmX113.5mmx22mm
Weight:342g
PS. Power splitter box body surface polishing
