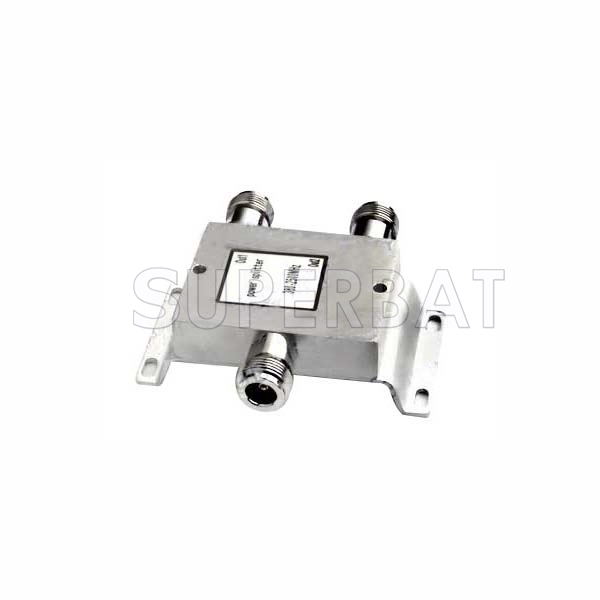

800-2500MHz 2-way Power Divider N female connector
800-2500MHz 2-way Power Divider N female connector
Unit Price: $28.00
sku:PD-1171
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $28.00 $25.20 $22.68 $20.44 ASK
saving% 0% 10% 19% 27% -
Real Time Availability
Stock: 9980
Quantity: Units

800-2500MHz 2-way Power Divider N female connector

Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.



ELECTRICAL SPECIFICATIONS:



type: 2-way Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db: ≤3.3
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :≤1.3
Max. Power(MAX)(W) :50
connector :N female



Mechanical Characteristics:



Environment temperature -℃ :-30+60
Relative humidity -% :5~95
Size -mm :95—65—20
Weight:150g
PS. Power splitter box body surface polishing
