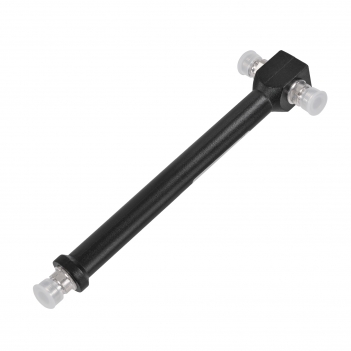

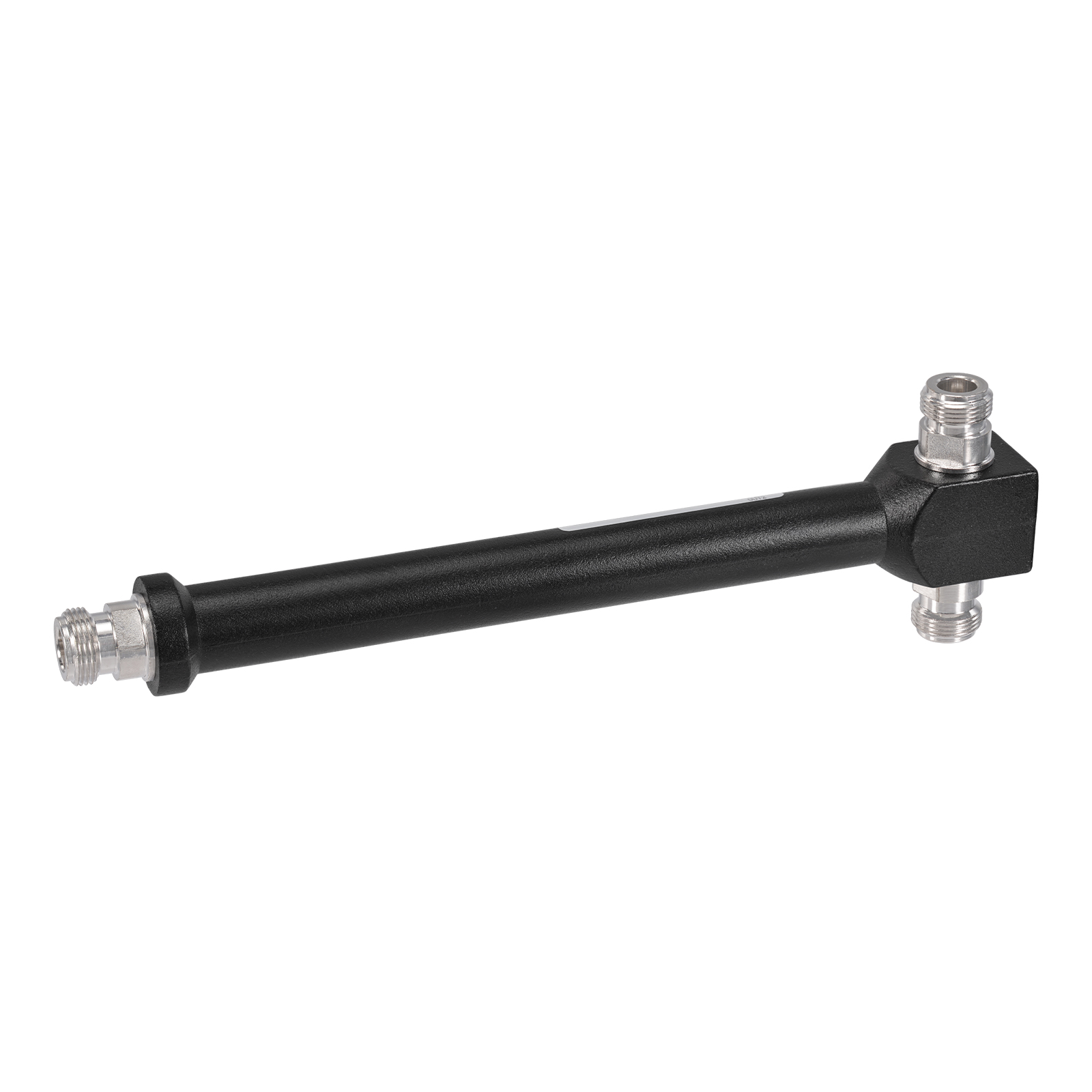

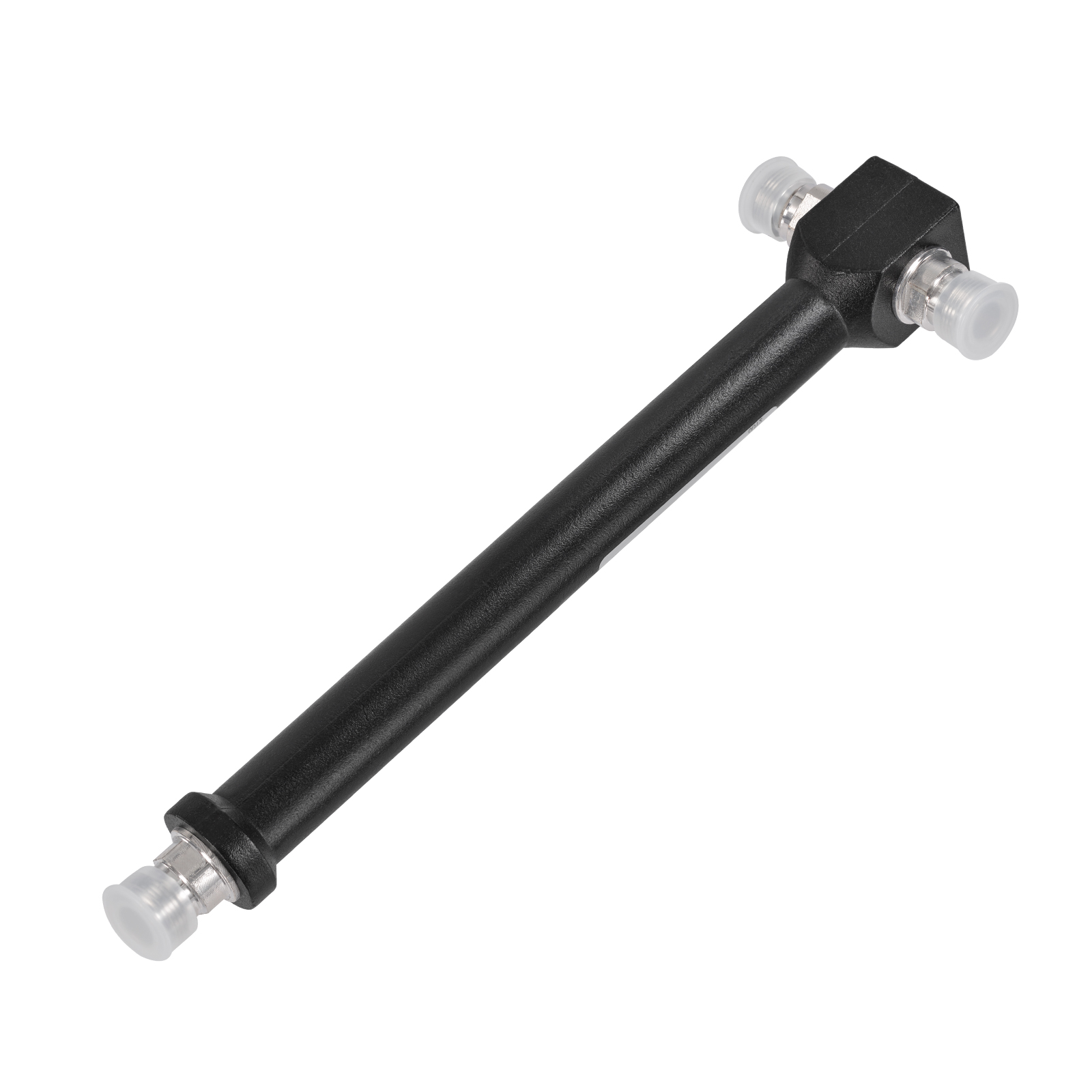

800-2500MHz 2-way Cavity RF Power Splitter/Power Divider
Unit Price: $18.00
sku:PD-1547
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $18.00 $16.56 $14.58 $13.14 ASK
saving% 0% 8% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

800-2500MHz 2-way Cavity RF Power Splitter/Power Divider

Using microstrip structures, in-band flatness is good, high isolation, insertion loss is small, standing wave good performance, easy installation, for cellular mobile communications and spread spectrum communications in indoor distribution system.



ELECTRICAL SPECIFICATIONS:

type:2-way Cavity Power Divider
Frequency: 800 ~ 2500MHz
Insertion loss(distribution ratio)-db:<=3.1DB
Isolation(dB): ≤27
Nominal Impedance(Ω): 50
VSWR :1:1.2
Max. Power(MAX)(W) :100
connector : N female



Mechanical Characteristics:

Environment temperature -℃ :-25~+55
Relative humidity -% :5~95
Size -mm :210mmX58mmx22mm
Weight:179g
PS. Power splitter box body surface polishing
