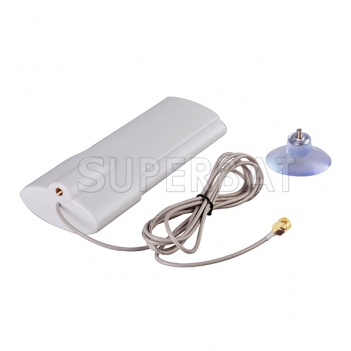

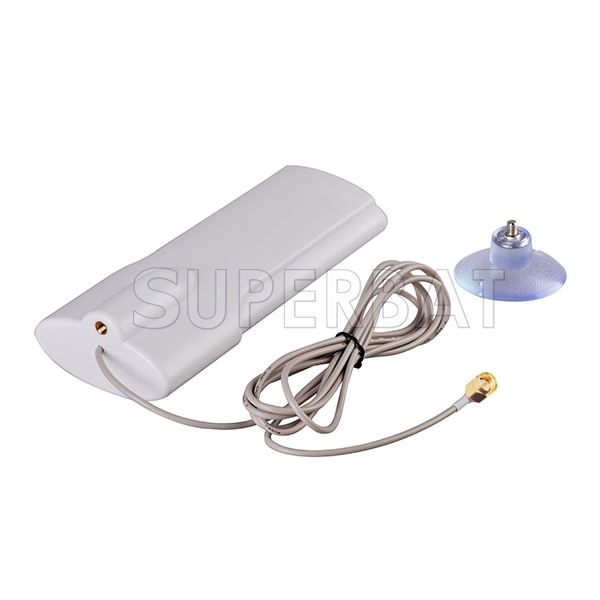

791-821Mhz/832-862Mhz/1710-1785Mhz/1805-1880Mhz/2500-2570Mhz/2620-2690Mhz 4G 25dBi SMA Antenna for HUAWEI equipmen or usb modem
Unit Price: $23.88
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $23.88 $22.69 $20.30 $18.87 ASK
saving% 0% 5% 15% 21% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Desktop Network: 4G/LTE Antenna Frequency: 700-2600Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 25dbi Radiation: Omnidirectional V.S.W.R: ≤2.5 Cable Type: RG174 Cable Length: 2M Weight: 177g
  1. Frequency: 791-821Mhz/832-862Mhz/1710-1785Mhz/1805-1880Mhz/2500-2570Mhz/2620-2690Mhz
    2.VSWR: ≤2.5
    3.Gain: 25dbi
    4.Polarization Type: Vertical
    5.Maximum Imput Power: 10W
    6.Input Impedance: 50 Ohms nominal
    7.Antenna Connector: SMA or customized
    Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

    8.Sucker: ø5cm
    9.Cable length: 2 m
    10.Install the Way:Adsorption
    11.Dimensions: 207mm * 70mm * 30mm
    12.Weight: 177g
