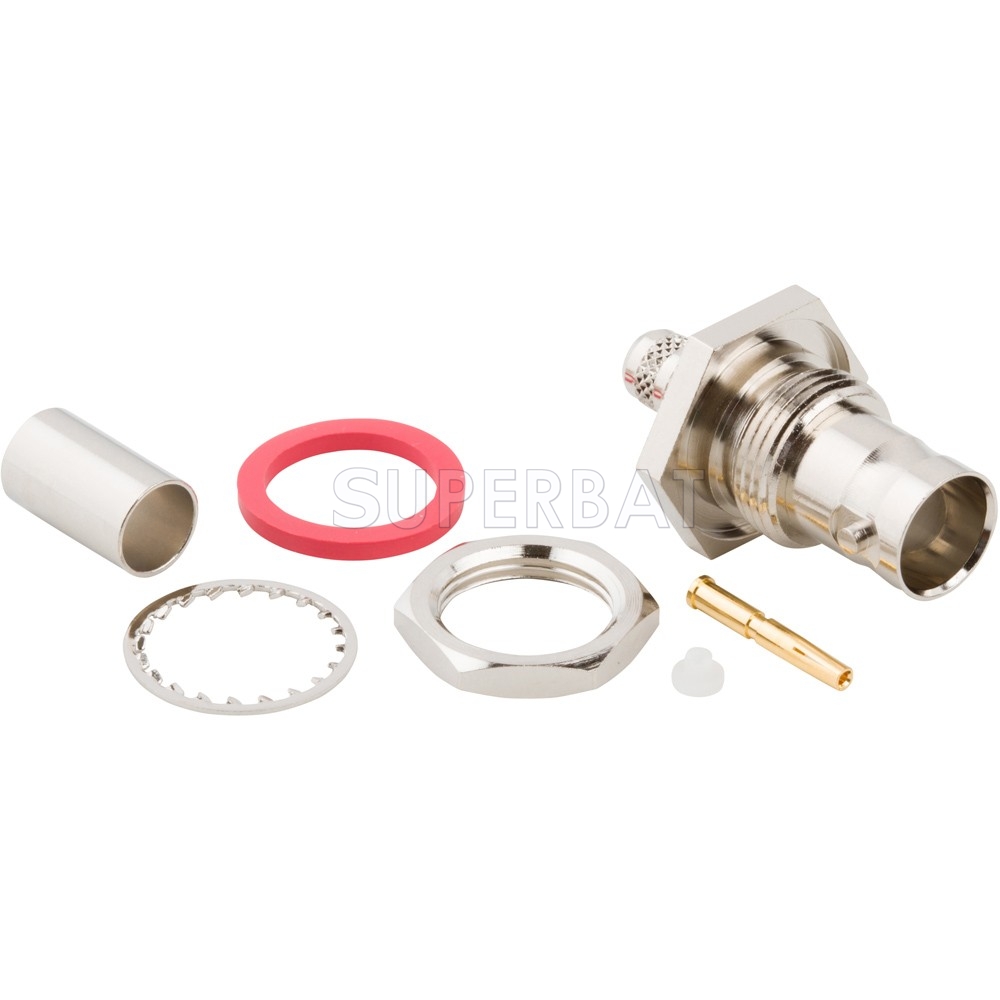

75 Ohm Superbat RF connector BNC Jack Straight Crimp for RG-59 Coaxial Cable
75 Ohm Superbat RF connector BNC Jack Straight Crimp for RG-59 Coaxial Cable
Unit Price: $3.49
sku:B04-BO059-41BS01A
Real Time Availability
Stock: CONTACT US
Quantity: Units

Series: BNC Termination Type: Coaxial Cable Gender: Jack , Female Polarity: Standard Interface Type: RG59 Body Style: Straight Impedance: 75 Attachment Method: Crimp Body Material: Brass Body Plating: Nickel Frequency Range: DC-3GHz

Note: This connector is custom one ,the MOQ is 500 pcs.

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.

Superbat offers a full line of BNCs in a multitude of options. From 50 Ω to 75 Ω Impedance, Commercial to Military grade, BNC connectors are miniature, lightweight and reliable. A full line of printed circuit board receptacles, bulkhead receptacles, reverse-polarity connectors, resistor terminations, and other accessories complement the product offering.

Features and Benefits

Bayonet coupling mechanism provides positive, quick mating and un-mating
50 Ohm and 75 Ohm impedance designs allow customers to match impedance to system requirements
Connectors are available for military, industrial and commercial applications

Applications

Antennas
Broadcast
Telecom
Automotive
Computers/LANs
Medical Equipment
Satcom
Base Stations
Cable Modems
Instrumentation
Mil-Aero
