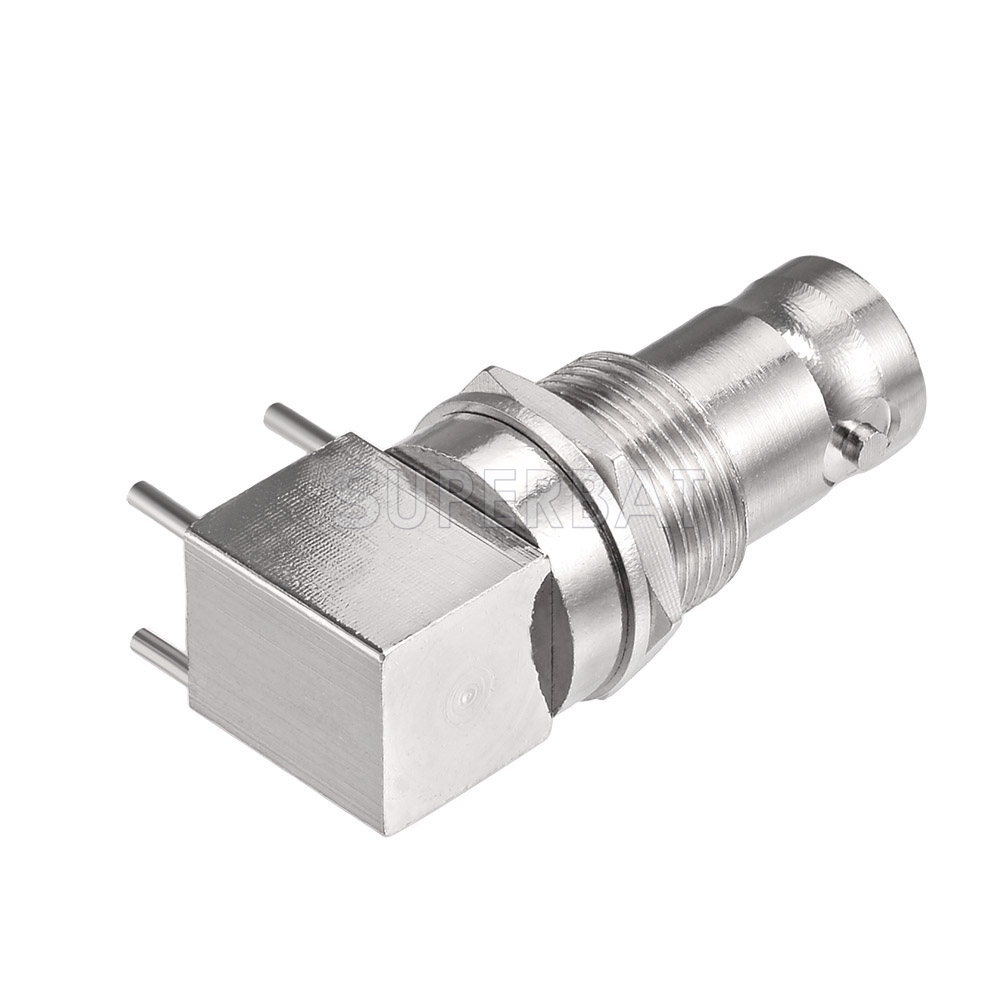

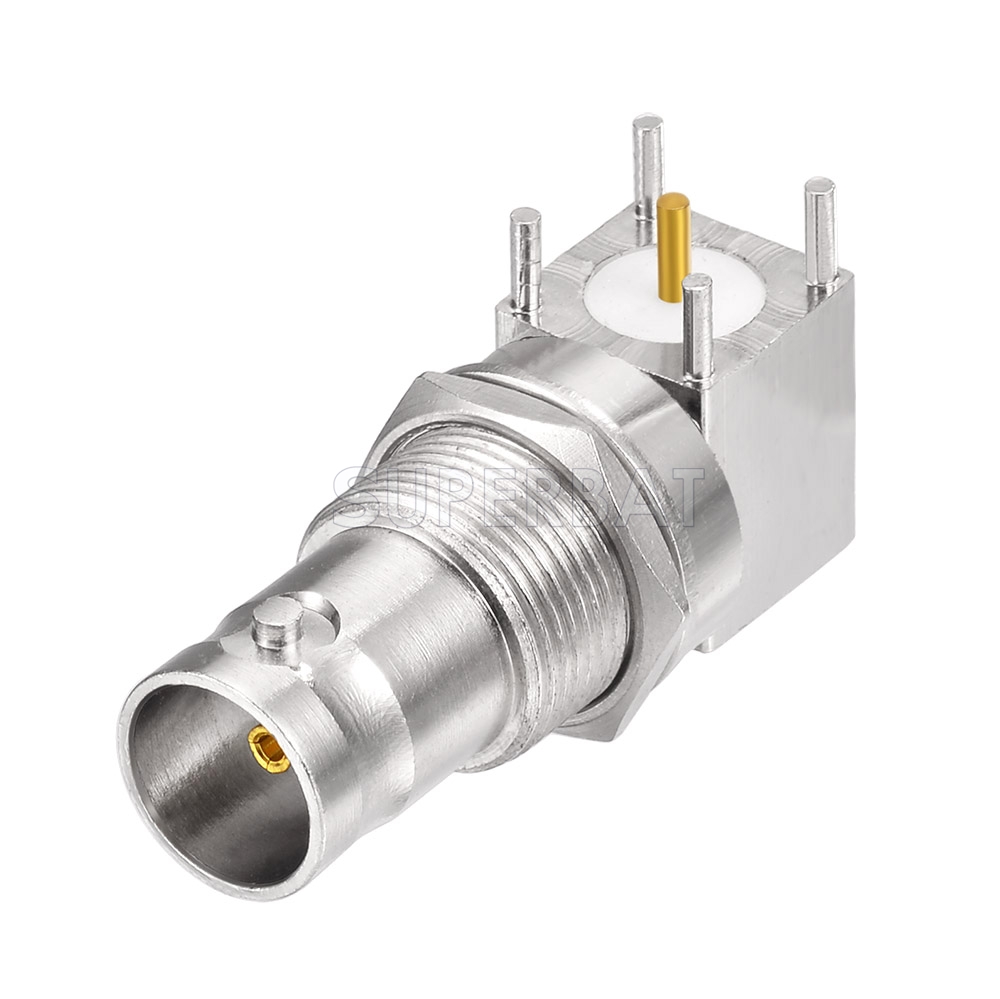

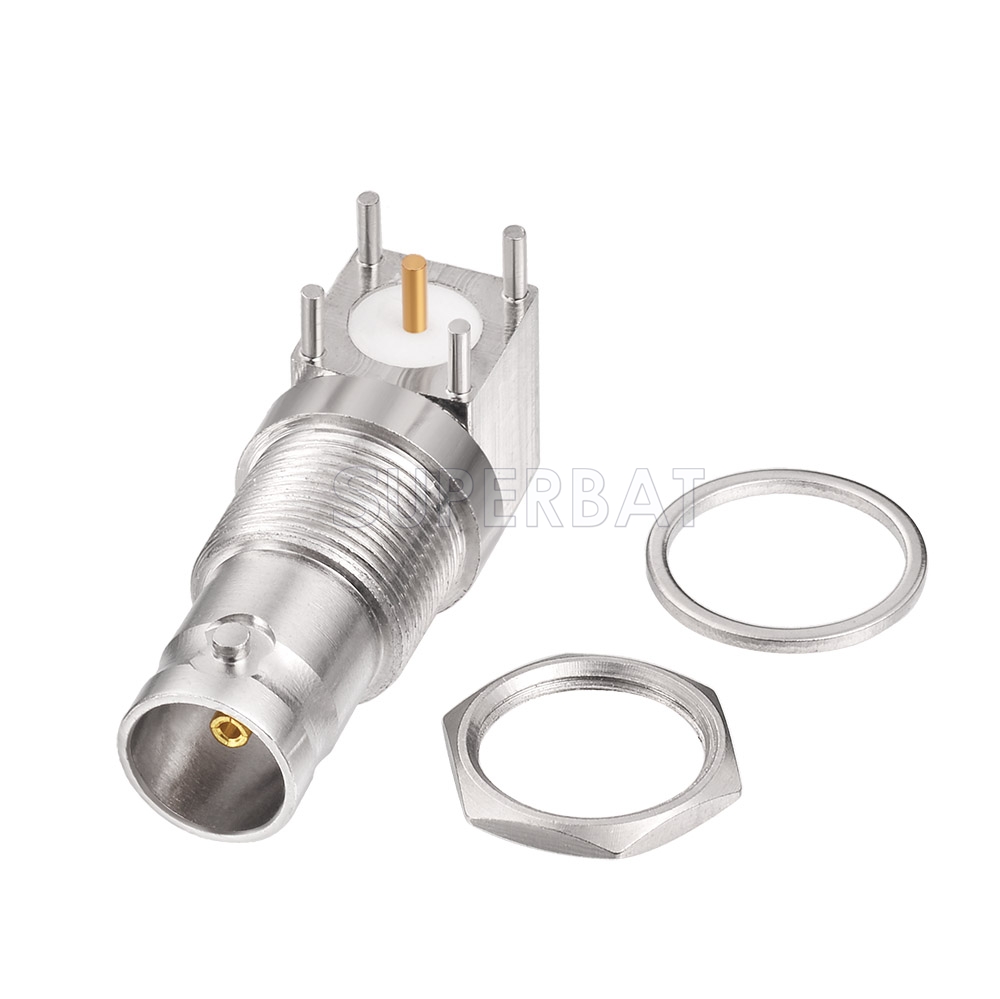

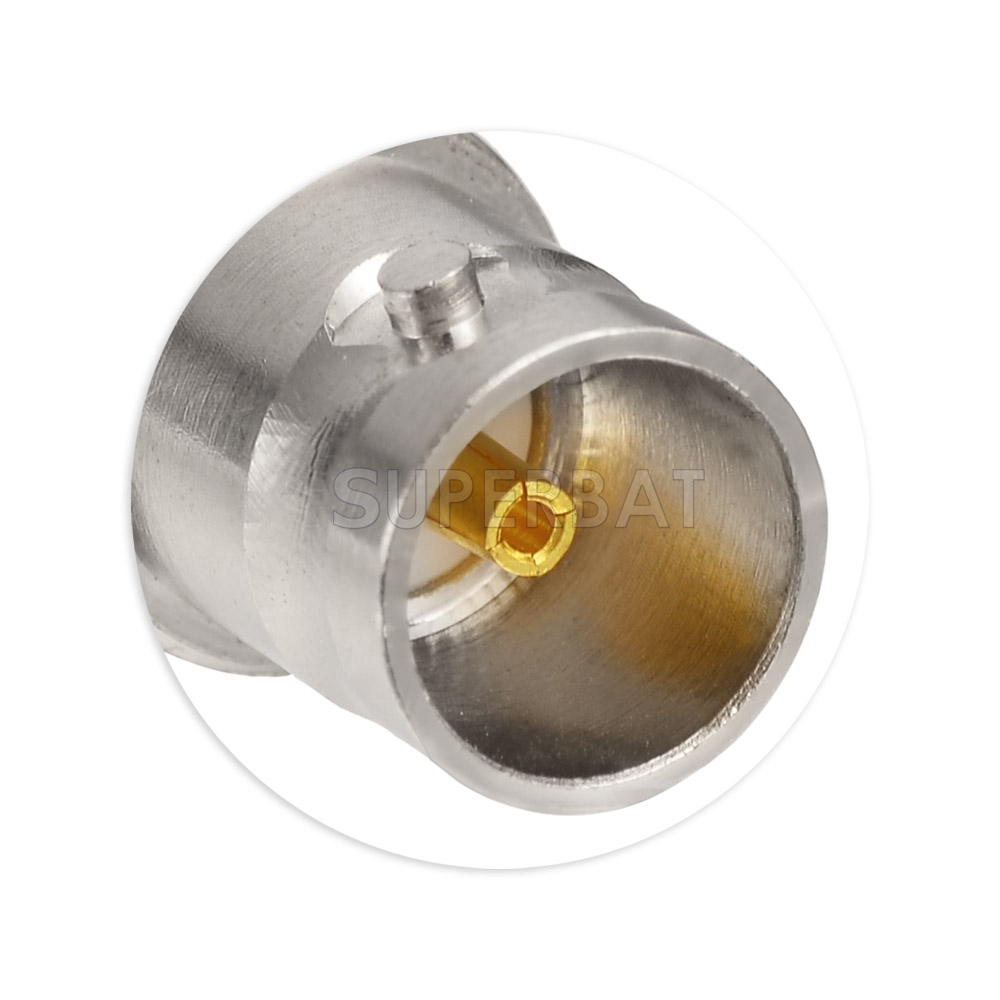

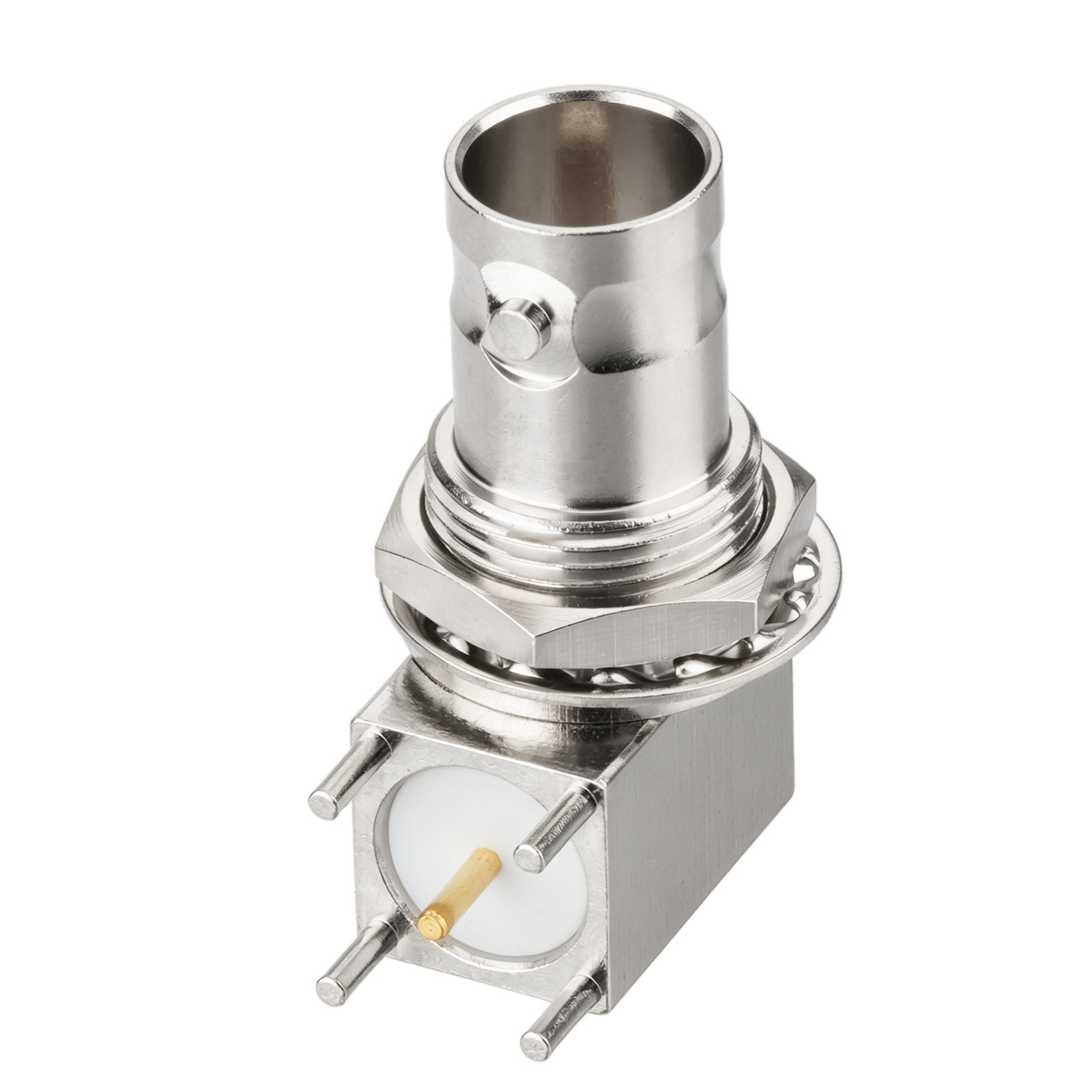

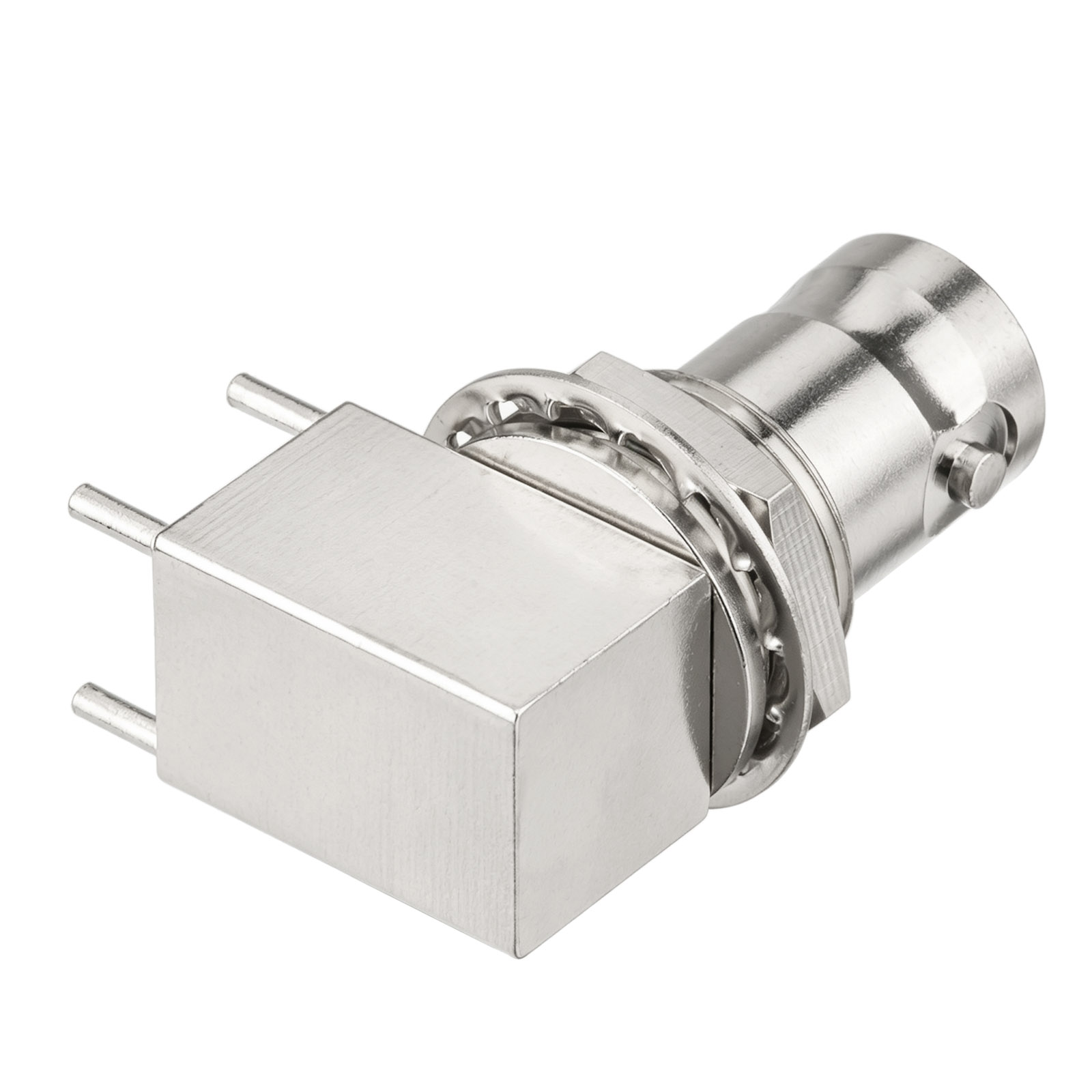

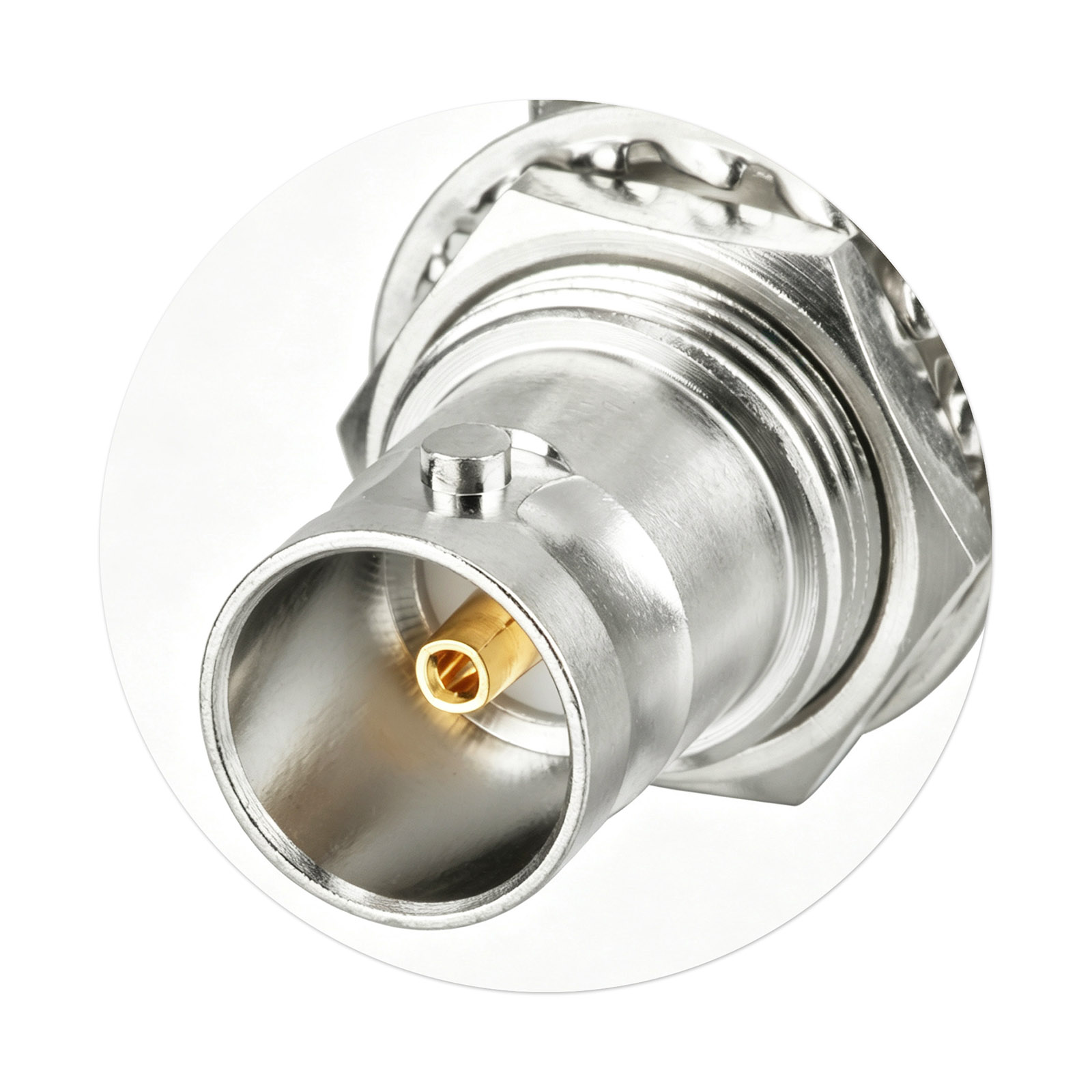

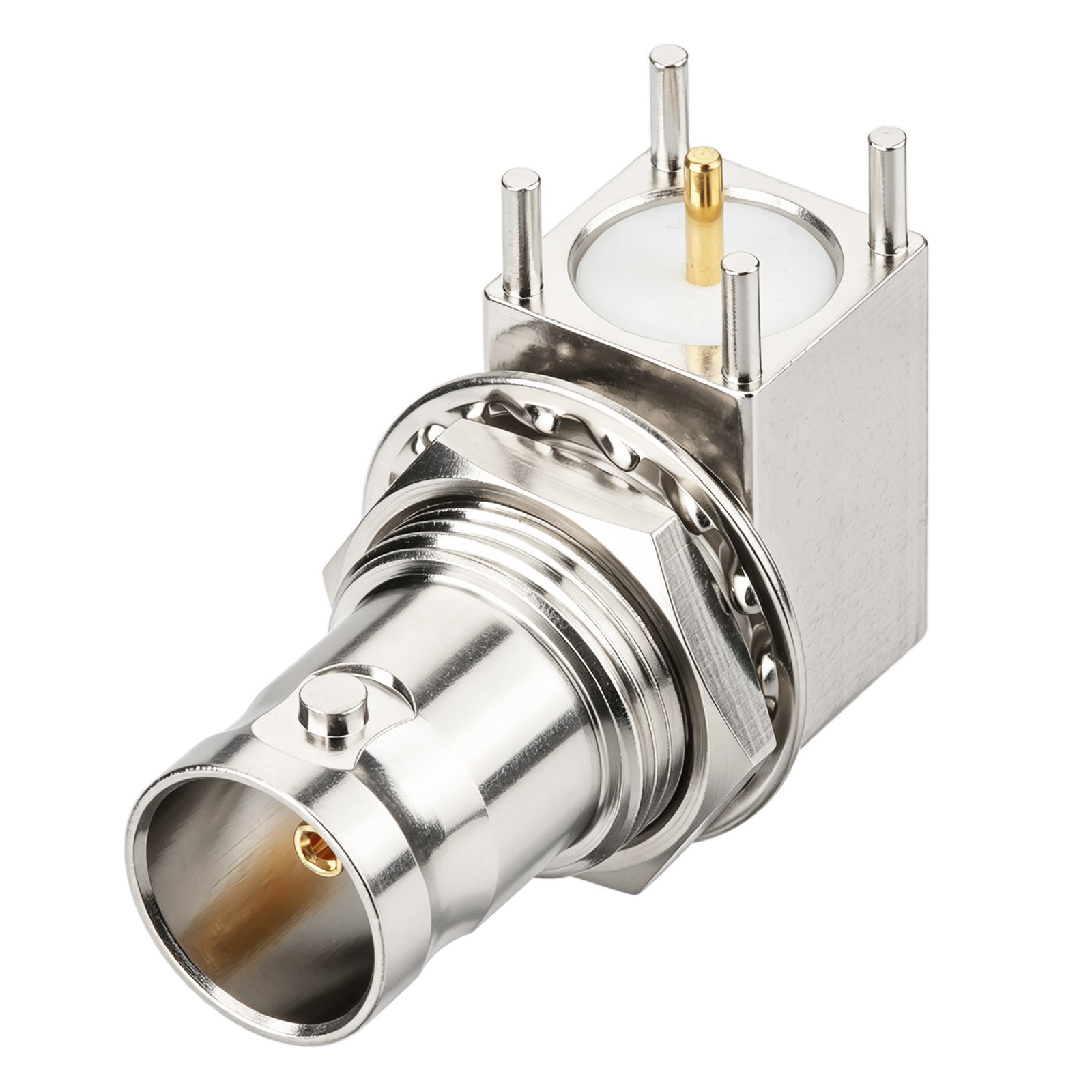

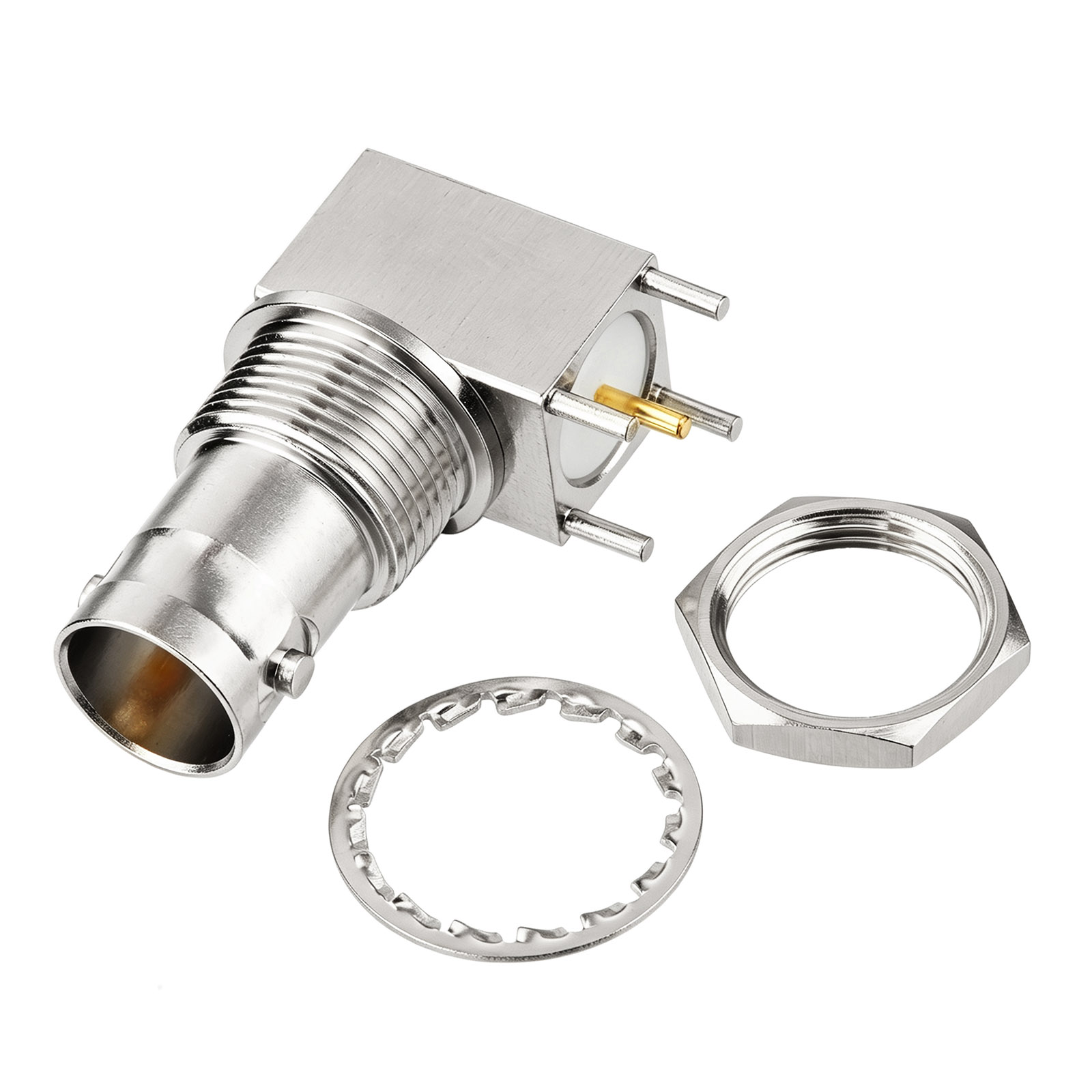

75 Ohm BNC Right Angle Bulkhead PCB Mount Jack Connector
Unit Price: $3.42
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.42 $3.08 $2.77 $2.49 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 10000
Quantity: Units

Series: BNC Termination Type: Terminal Gender: Jack , Female Polarity: Standard Body Style: Straight Mount Method: Bulkhead Impedance: 75 Attachment Method: Solder Body Material: Brass Body Plating: Nickel Frequency Range: DC-3GHz

The BNC is a bayonet style connector allowing for quick connect and disconnect with a positive locking mechanism. Mating is achieved with just a quarter turn of the coupling nut. With a classic, dependable design, BNCs are suited to accommodate a large variety of RG and industry standard cables, in a variety of termination styles.


Impedance: 75 Ohm

Frequency Range: Up to 3 GHz

Gender: Jack Female

Mounting Type: PCB Mount

Termination Method: Through Hole

Body Orientation: Right Angle

Operating Temperature -55 to +155 Deg C

Applications :broadcast, including Ultra High Definition (4K), telecom, instrumentation, security, mil/aero and many others.
