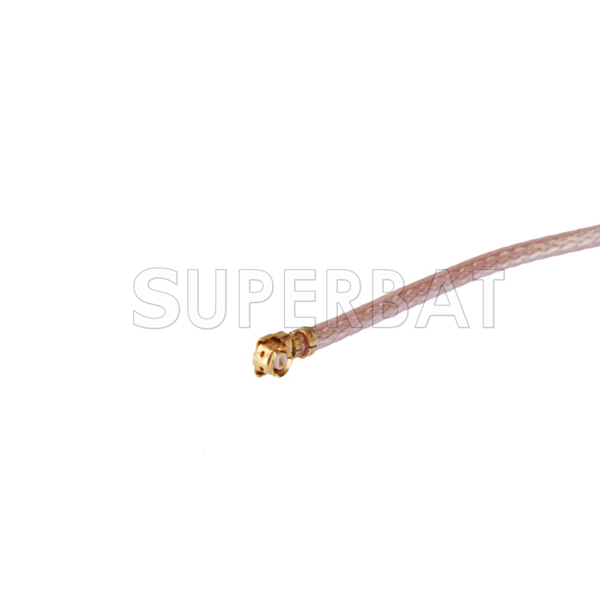

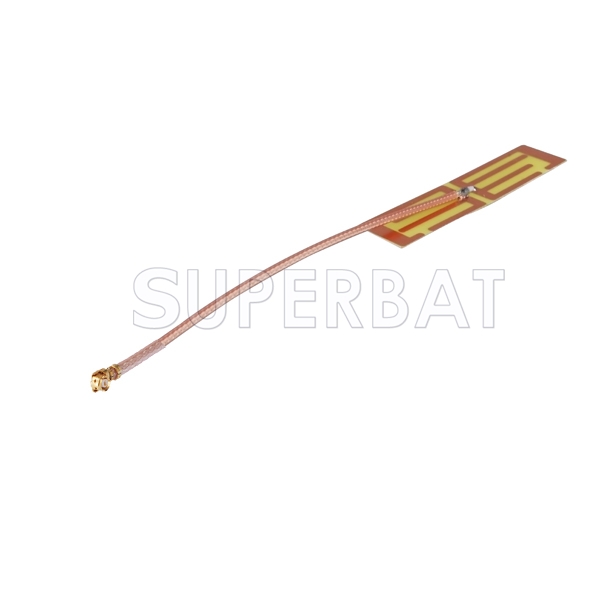

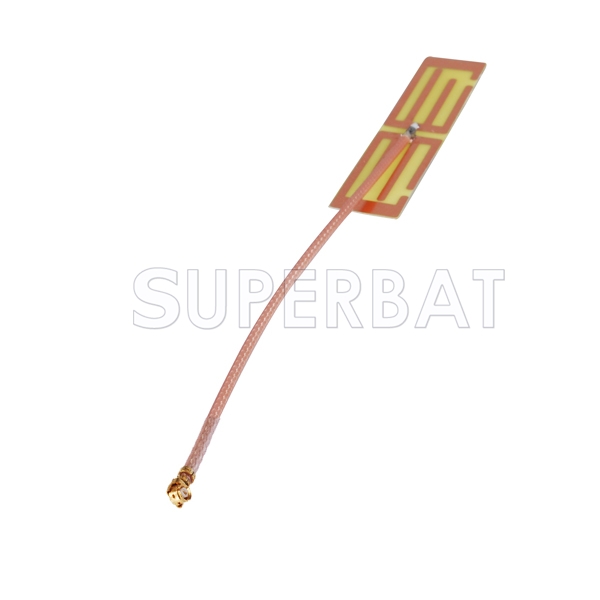

700-2600Mhz 5dbi Multiband PCB Module 3G 4G LTE internal Antenna with U.FL RG178 10cm extended cable
4G Internal Antenna 700-2600Mhz 5dbi with U.FL RF connector RG178 cable 10cm
Unit Price: $4.54
sku:4A3-2711-U04RJ-050-10
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $4.54 $4.09 $3.68 $3.31 ASK
saving% 0% 10% 19% 27.1% -
Real Time Availability
Stock: 9989
Quantity: Units

Antenna Type: Built In Network: 4G/LTE Antenna Frequency: 700-2600Mhz Connector Series: IPX/U.fl Connector Polarity: Standard Connector Gender: Plug Gain: 5dbi Radiation: Omnidirectional V.S.W.R: ≤1.5 Cable Type: RG178 Cable Length: 10cm Weight: 3g

Frequency(MHz): 700-2600Mhz
VSWR ≤ 2.0
Gain(dBi): 5dbi
Max Input power(W):50
Input Impedance(Ω):50
Polarization:Vertical
Cable Length: 100mm
Cable Type: RG178

Antenna dimension (L*W)=89.5*18mm

Net Weight:3g
Connector: U.FL (default),

Optional conector: SMA/SSMB/SMB/N/TS9/CRC9/MS147/MCX/MMCX/FME/BNC/TNC/MC-Card..and so on.,please give us notes if you need other connectors!

Storage Temperature:-30°C to+75°C
Operating Temperature:-30°C to+75°C
