Wide band 5G&4G LTE antenna; Frequency Range:600-960MHz/1710-2700MHz/3400-3600MHz/4800-4900MHz; Antenna Connector: SMA Male

Plug-and-Play Installation:3 metre extension cable, Wall Mount Waterproof Antenna; Easy mounting on rooftops, poles, or router exteriors without additional tuning.Operates in extreme temperatures for outdoor or industrial environments.

Application: most 5g 4g cellular devices that have SMA female connectors including 5g 4g lte router, wireless home phone hotspot modem, cellular IoT industrial gateway, trail camera, security camera, GSM alarm system, vehicle 4g lte tracker, etc

Compatible with 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector

Compatible Network Carriers: Verizon, AT&T, Sprint, T-Mobile, US wireless, Bell, Rogers, Telus, Telcel, Movistar, Digicel, etc

Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz,3400-3600MHz,4800-4900MHz

Gain: 8dBi

VSWR: ≤2.0

Impedance: 50Ω

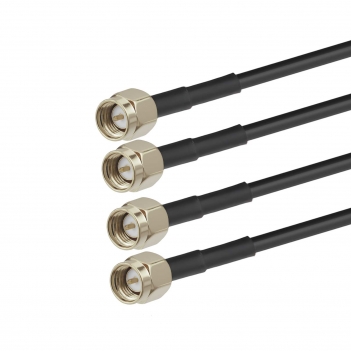

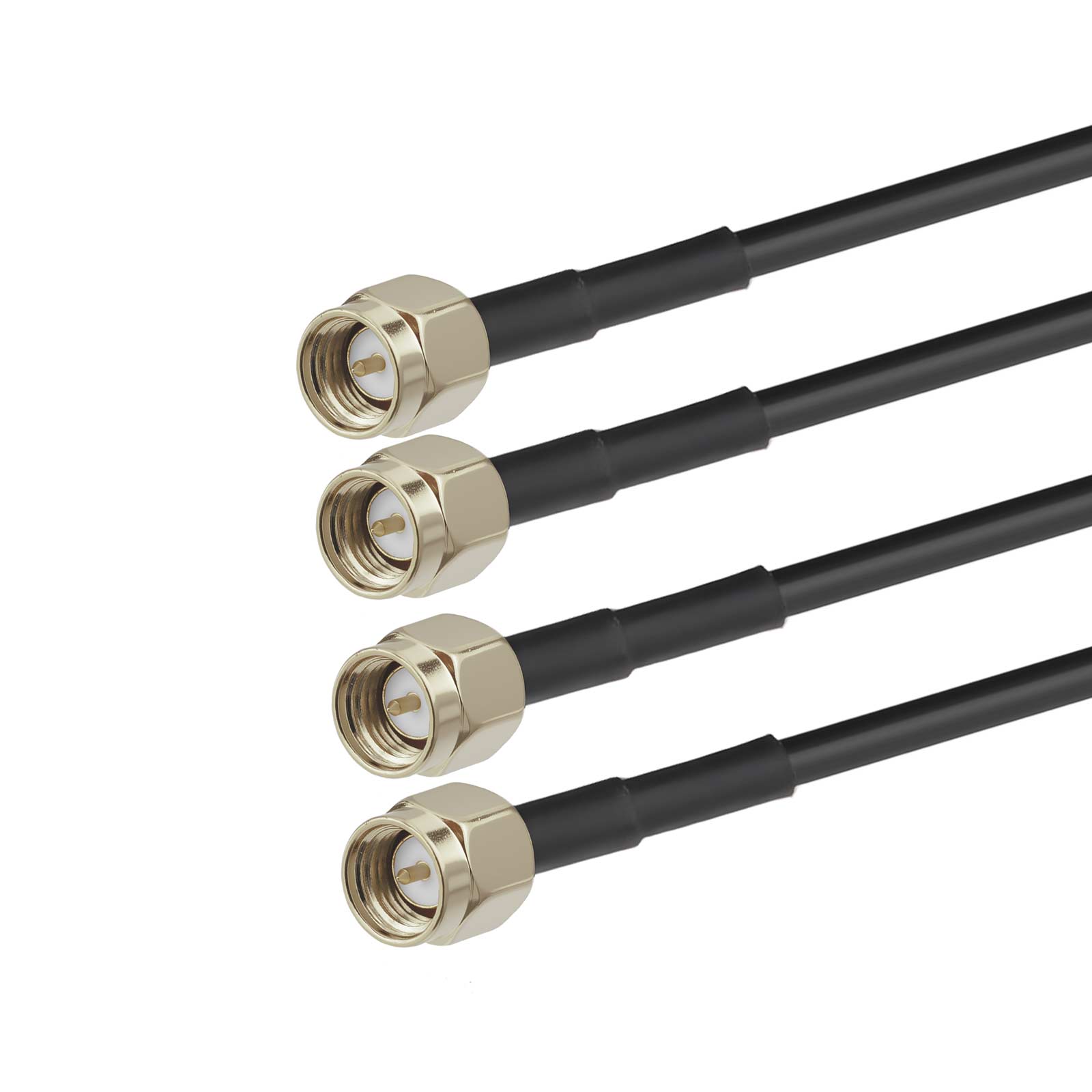

Connector: SMA-Male

Polarization: Linear Vertical

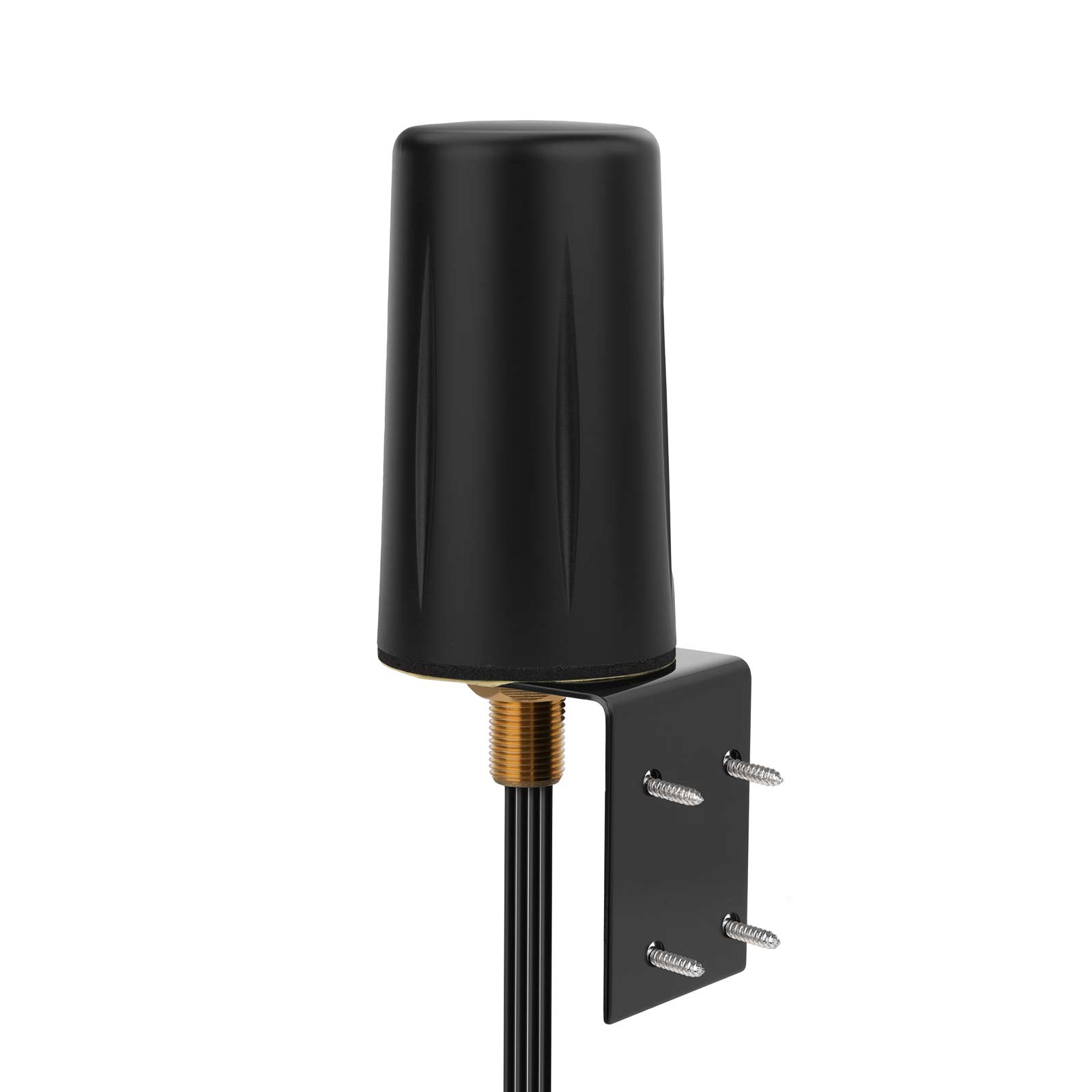

Feature: Fixed Wall Mount; Thru Hole Mount;

Direction: Omni-directional;

Cable Type: RG174

Cable Length: 3M

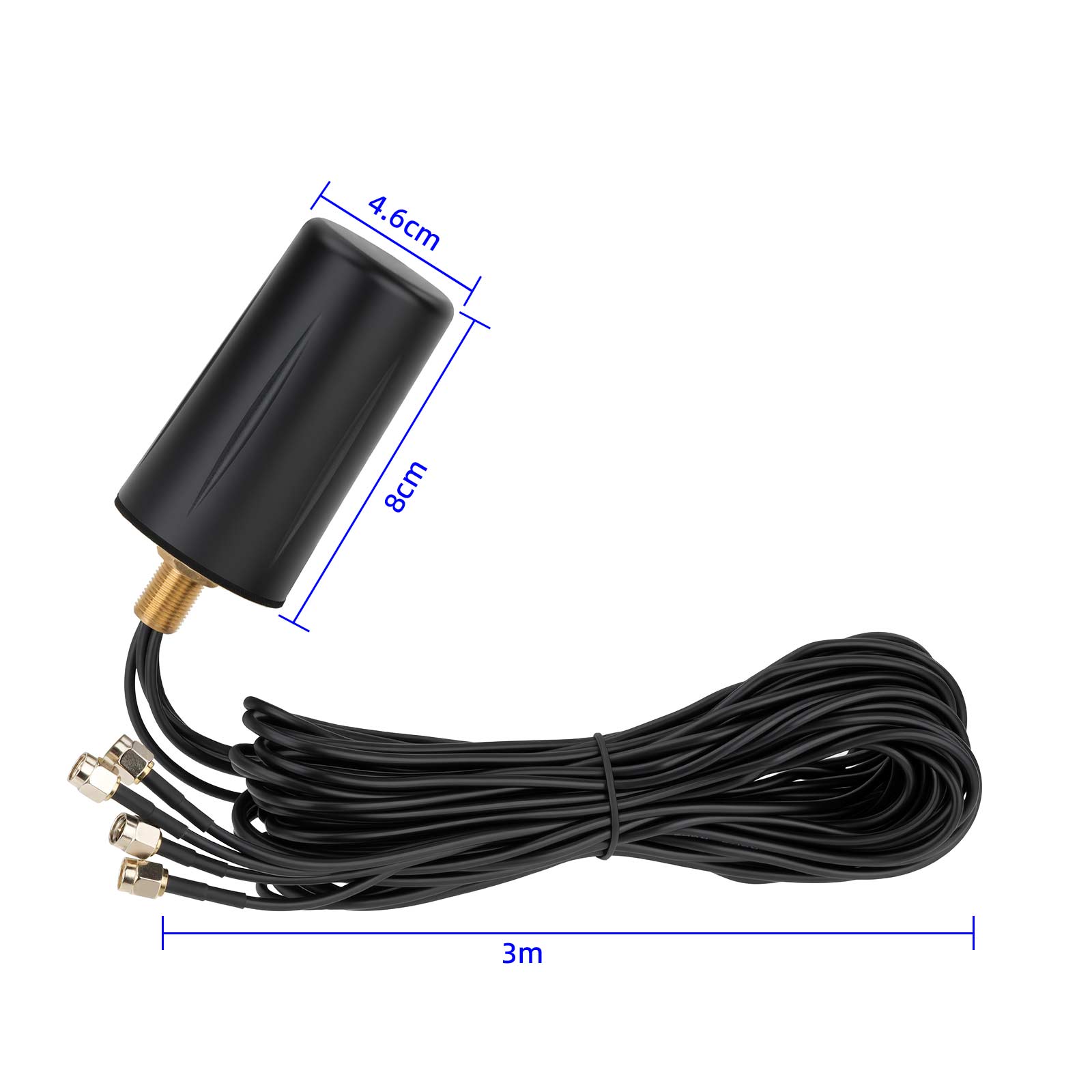

Antenna Size: 80*46mm

RoHS/REACH compliant

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Humidity: 0% to 95% (non-condensing)

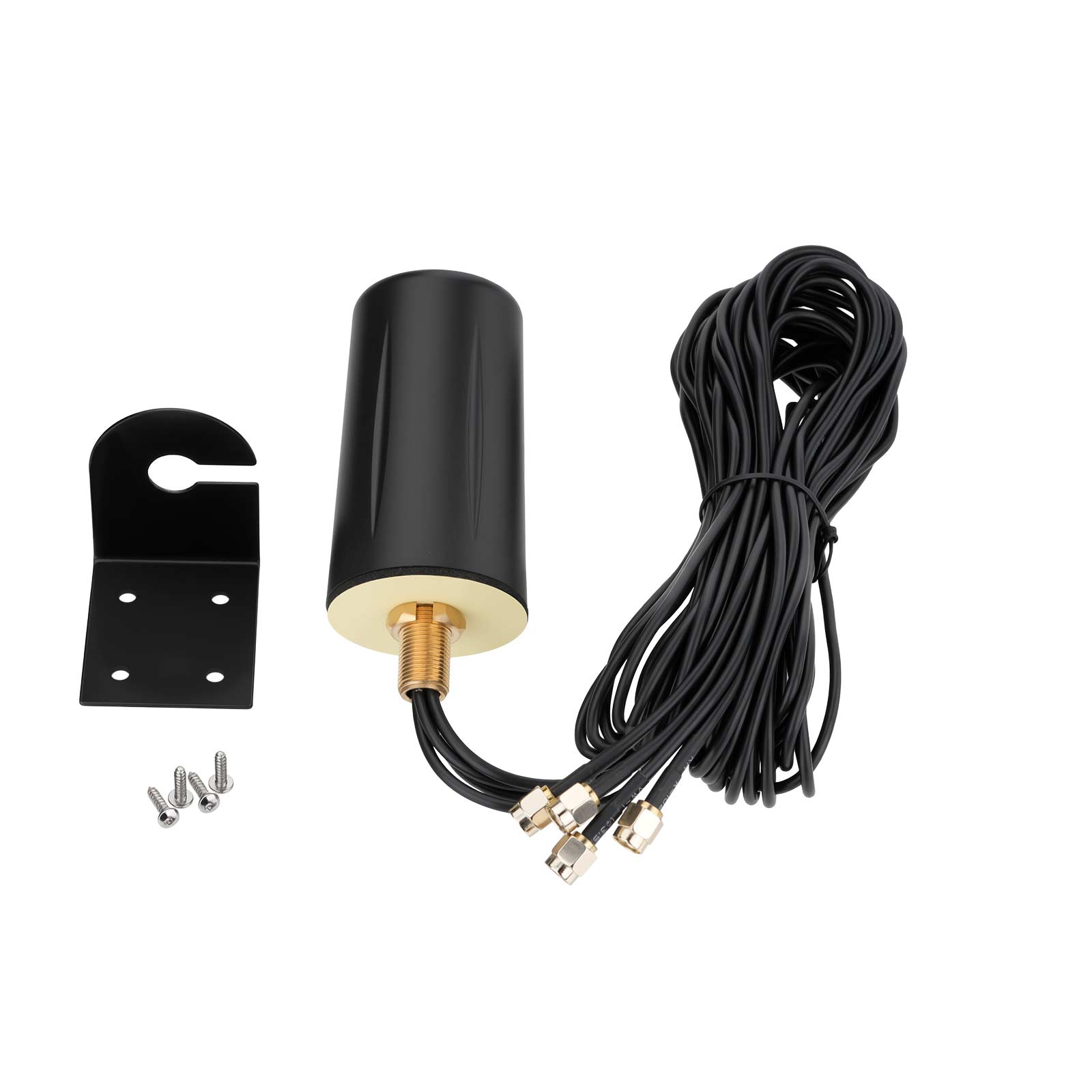

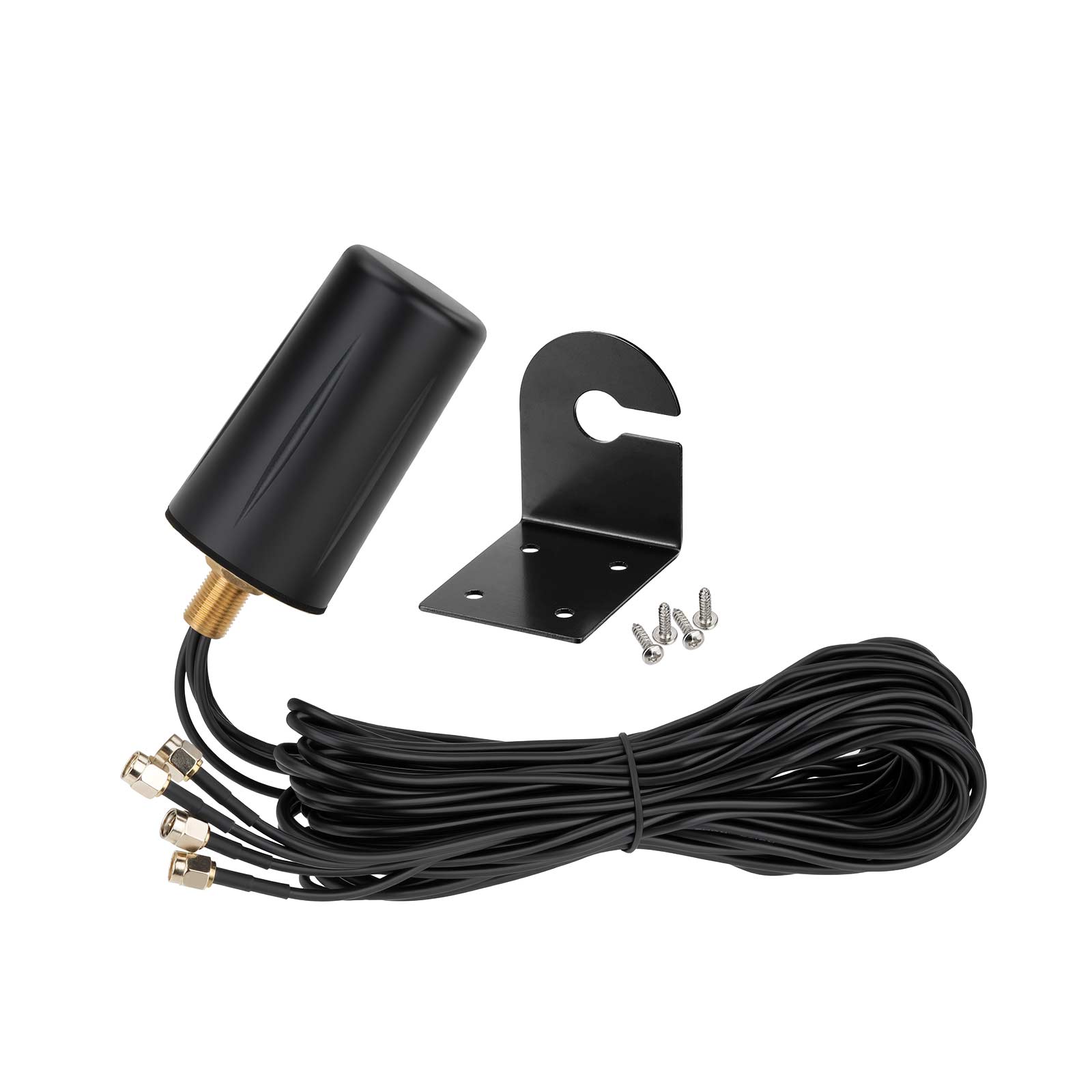

Package List：1 x Antenna, 1 x Wall Mount Fixed Bracket, 4 x Screws

Compatible with 4G LTE M2M RTU DTU Terminal, Cellular Embedded Module, Remote Metering and SMS Alarm, Remote SCADA DAQ Module, Remote Relay Gate Opener Switch, Vending Machine, Digital Signage, Delivery Locker, Cellular Temperature Humidity Sensor Monitoring System, GSM Alarm System, Wireless Security Sensor Motion Detector

Compatible Network Carriers: Verizon, AT&T, Sprint, T-Mobile, US wireless, Bell, Rogers, Telus, Telcel, Movistar, Digicel, etc
