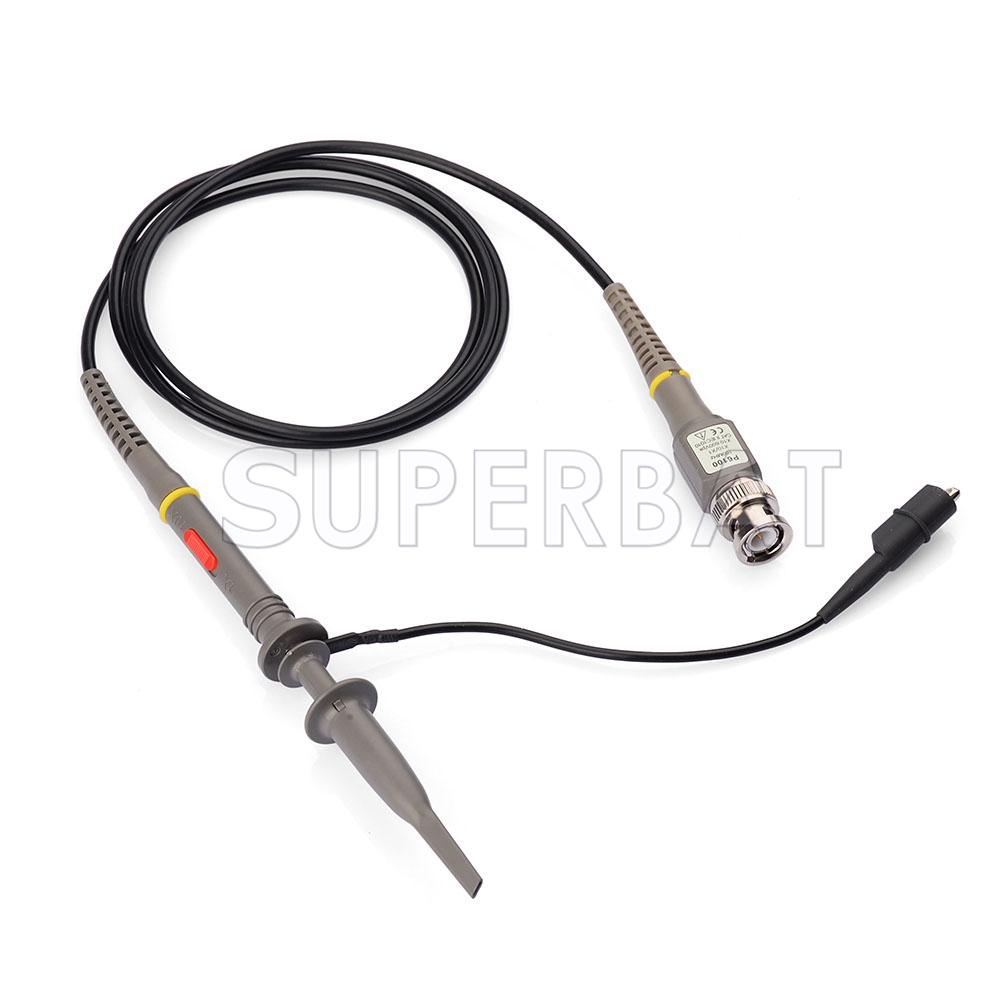

4pcs 100MHz Oscilloscope Scope analyzer Clip Probe test leads kit for HP Tektronix
4pcs 100MHz Oscilloscope Scope analyzer Clip Probe test leads kit for HP Tektronix
Unit Price: $21.99
sku:RF32074
Real Time Availability
Stock: 10000
Quantity: Units

Specifications:

 Usable with scopes having Bandwidth up to 100 MHz

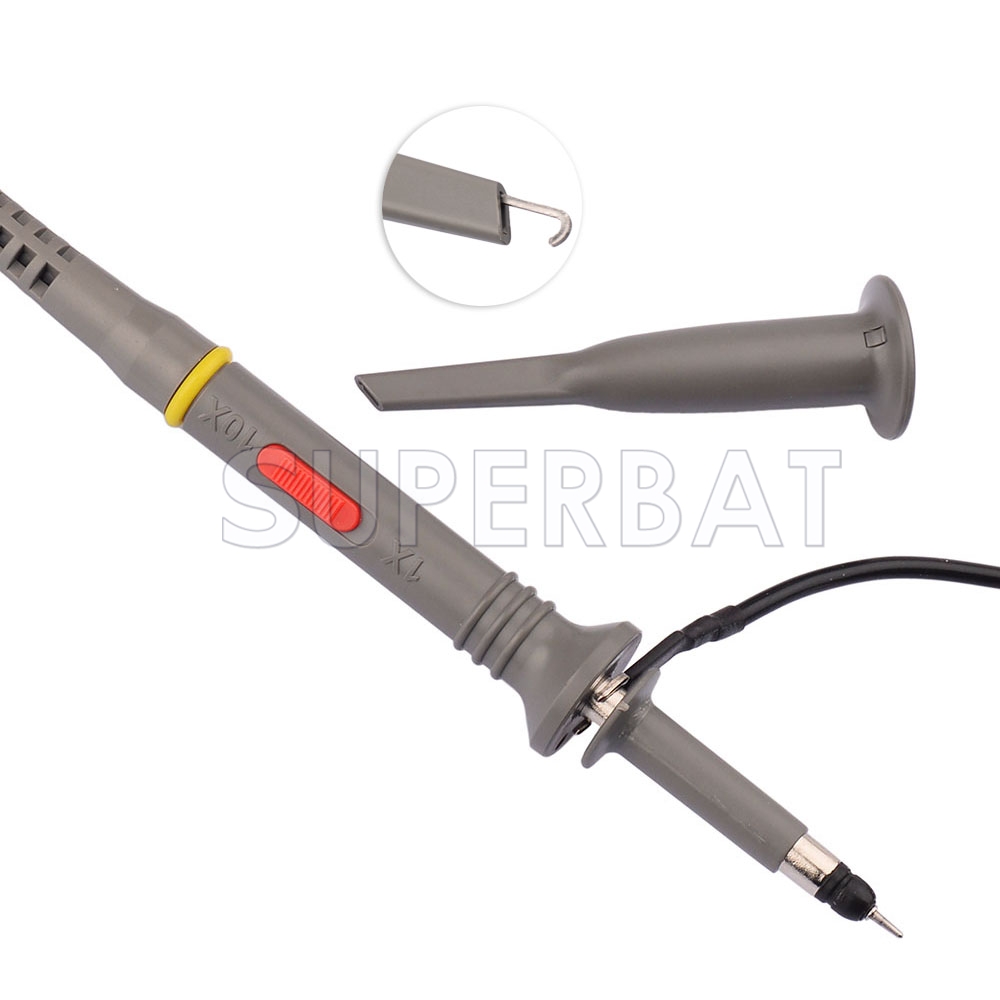

 Interchangeable Probe Tip

 Coaxial Reed Switch

 Modular Construction

 Compensation range: 10 to 35 pF

 Input Capacitance: 1X: 85pF-135pF; 10X: 16pF-20pF

 Input Resistance: 1X: 1Mohm; 10X: 10Mohm;

 Bandwidth: 1X: DC-6MHZ, 10X: 100MHz

 Attenuation Ration: 1:10

 Net Weight: 55g

 Cable Length: 120cm

 Operating Temp: -10C-+50C

 Operating Humidity: <=85%

 Maximum Input Voltage: 1X: 300 VDC+Peak AC, 10X: 600 VDC+Peak AC

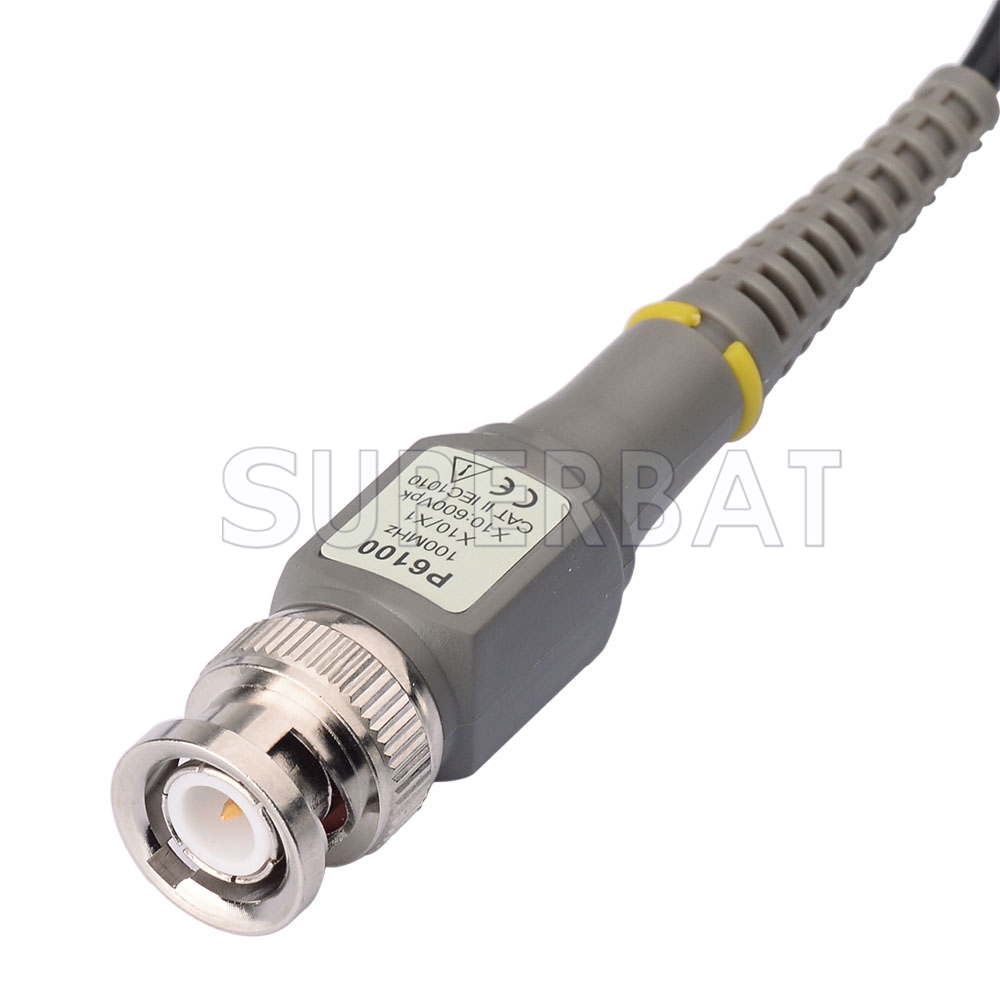

P6100 Series Probes

 General Purpose, Bench or Field

 Economical, Yet High Quality

 High Input Impedance (X10 range)

 Compensation (X10 range)


package includes:

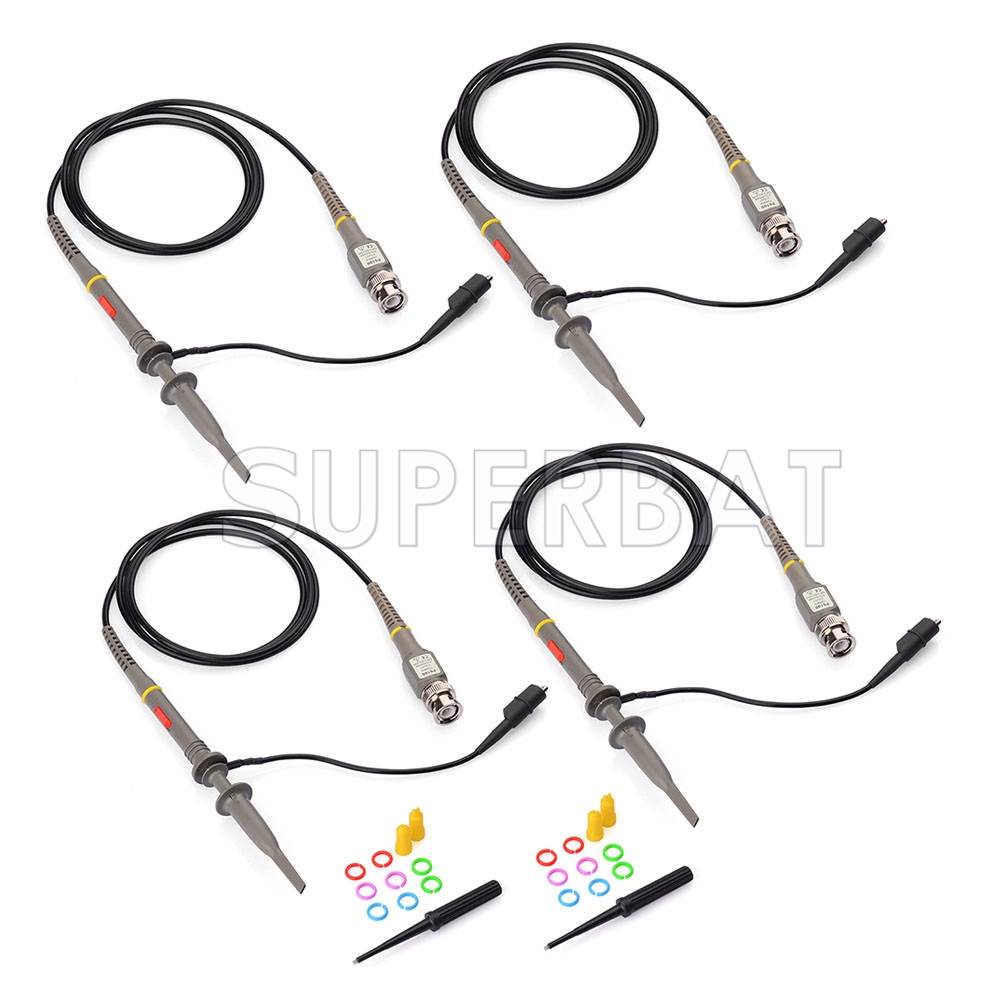

 1) 4 100MHZ Oscilloscope probes with Mini Alligator Clip and ground lead;

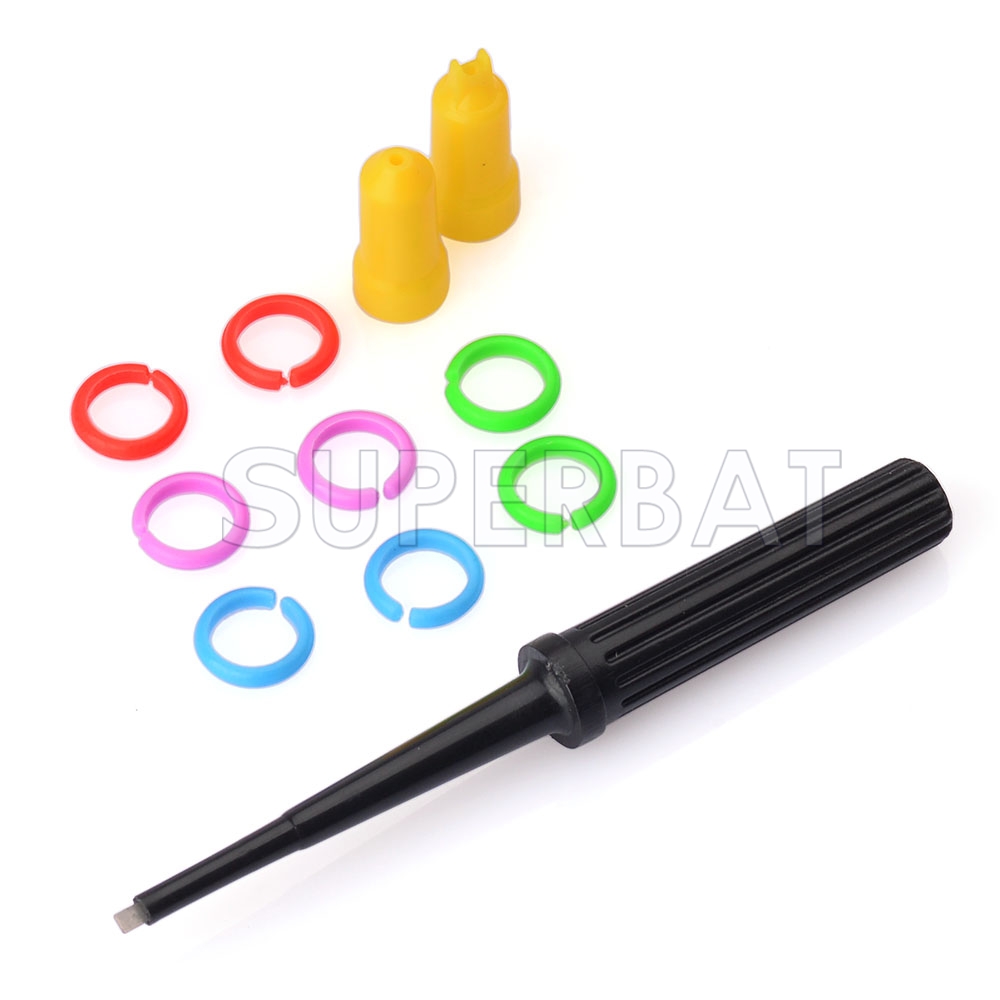

 2) 2 Screwdrivers;

 3) 12 marker bands;

 4) 4 tip locating sleeves.

 5) 2 Manuals
