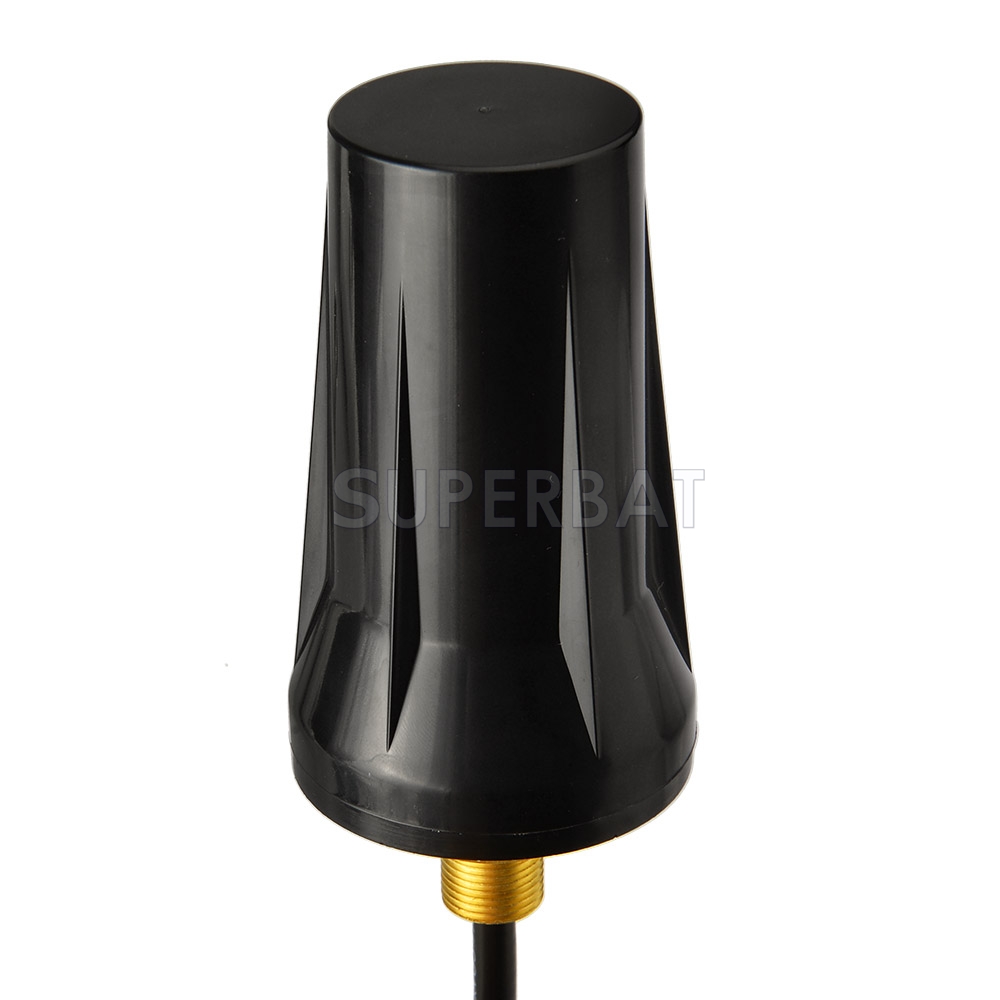

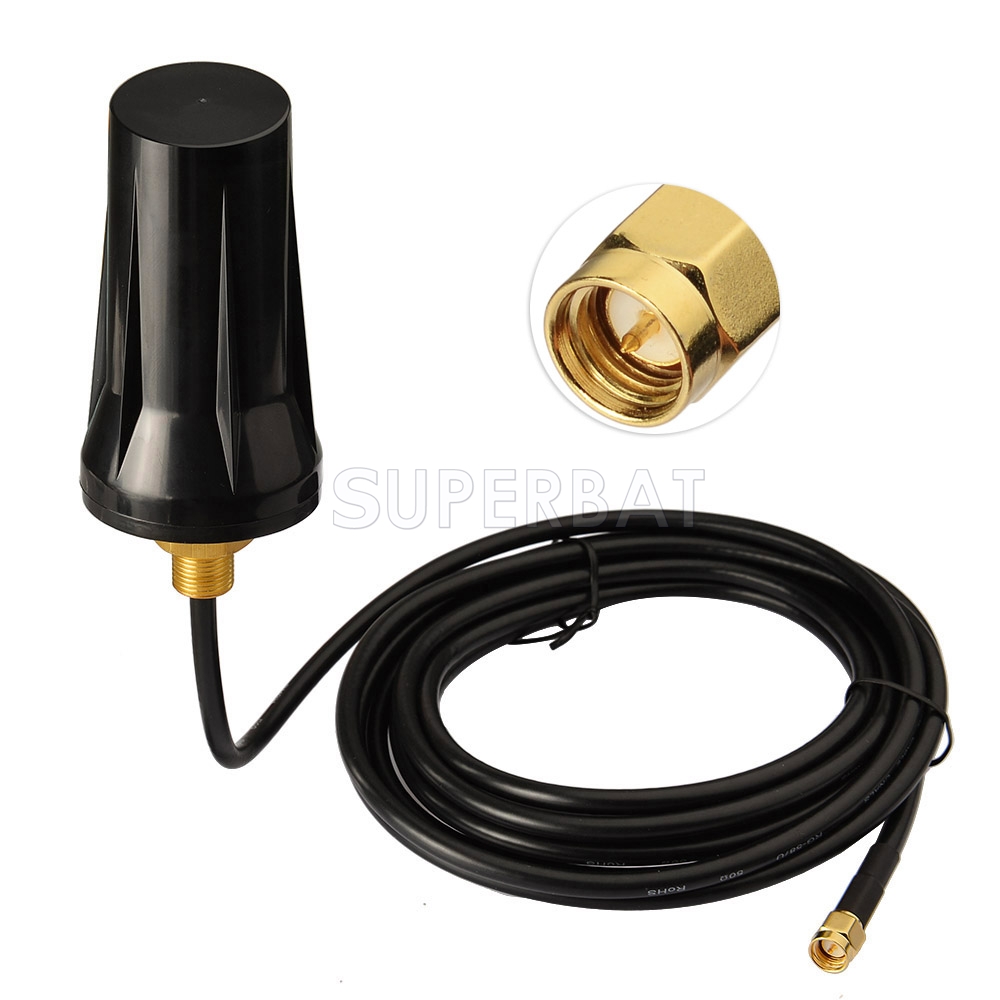

4G LTE Fixed Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Mobile Cell Phone Booster System
4G LTE Fixed Screw Mount Omni-directional SMA Male Antenna for 4G LTE Router Vehicle Truck RV Motorhome Marine Boat Mobile Cell Phone Booster System
Unit Price: $12.95
sku:4A3-0154-S01SP-020-300-JCG023L-L19
quantity 1 - 9 10 - 99 100 - 500 501+
Price Each $12.95 $11.65 $10.49 ASK
saving% 0% 10% 19% -
Real Time Availability
Stock: 492
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 4G/LTE Antenna Frequency: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Gain: 5dB Radiation: Omnidirectional V.S.W.R: <2.0 Cable Type: KSR195 Cable Length: 3M Weight: 192g

Outdoor omni directional antenna for 2G, 3G and 4G cellular networks.Weatherproof cabinet/roof antenna for indoor and outdoor use.It has the following characteristics:

Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz

Gain: 5dBi

VSWR: < 2.0;

Polarization: Linear Vertical;

Impedance: 50 ohm;

Direction: Omni-directional;

Feature: Fixed Wall Mount; Thru Hole Mount;

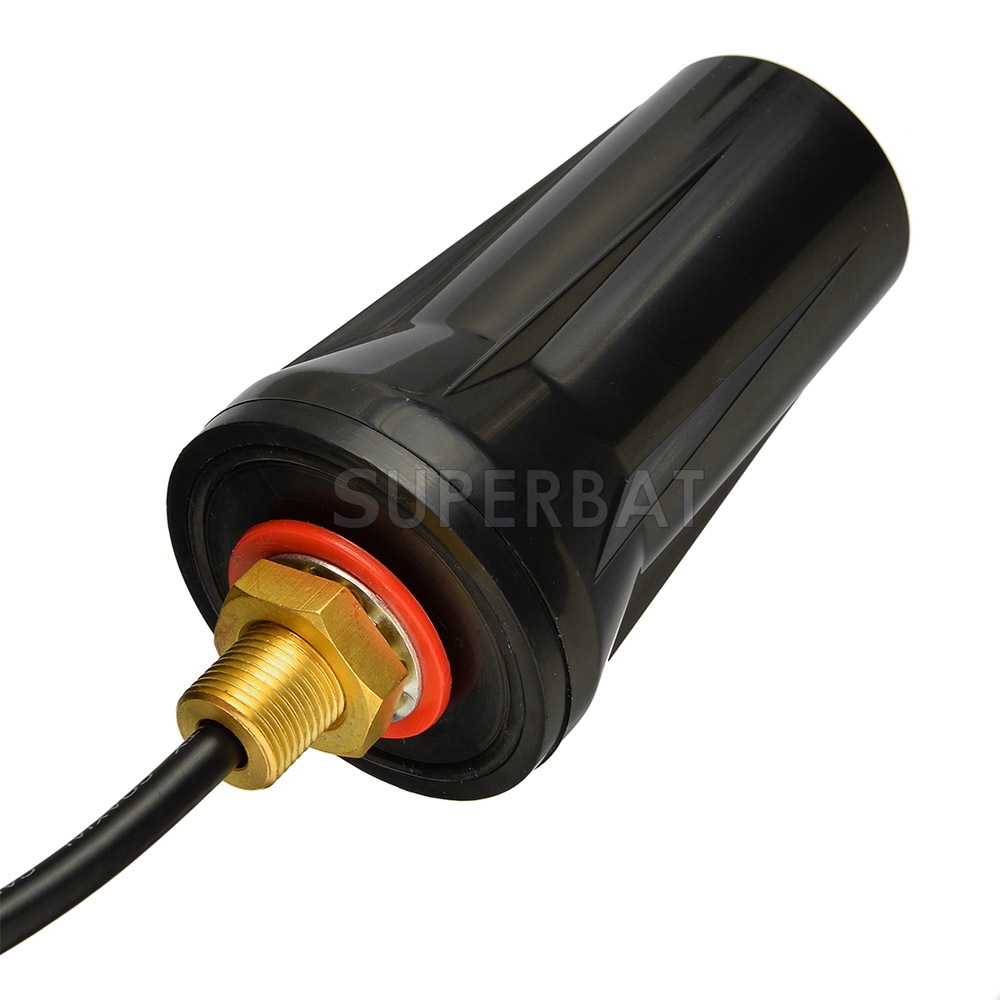

Antenna Mounting Screws Diameter: M12 11.76mm-11.95mm;

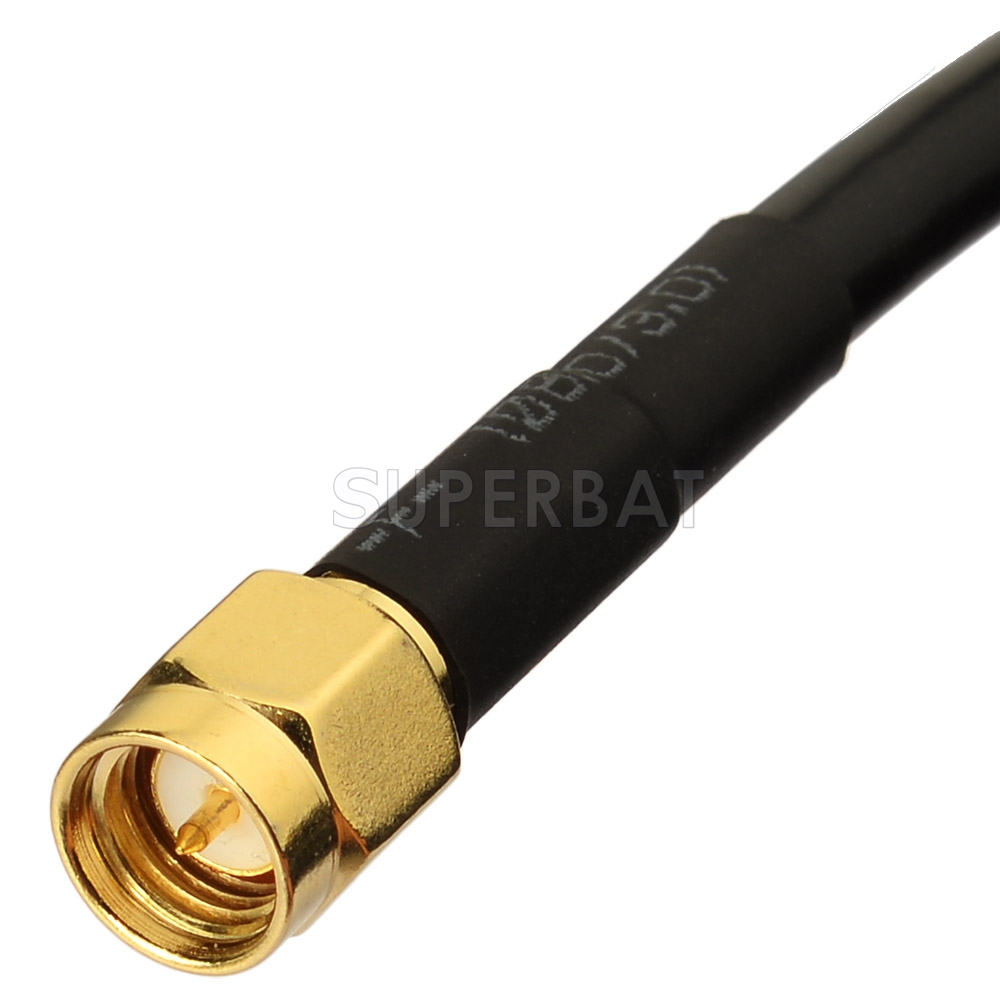

Connector: SMA Male Connector;

Cable Length: 3m/10 feet;

Package Weight: 192g;

Waterproof: Rainning Proof;

Operating Temperature: -20°С ~ +80°С

Storage Temperature: -30°С ~ +85°С

Package List: 1 x Antenna

Compatible with: 4G LTE Wireless Mobile Router Hub; Wireless Home Phone Hotspot Router Modem; Cellular Wildlife Camera Trail Camera ; 4G LTE Industrial Gateway Router Modem Terminal; Vehicle Car Truck RV Bus Van ;Mobile Cell Phone Signal Booster Repeater, Building Indoor Cellular Amplifier;
