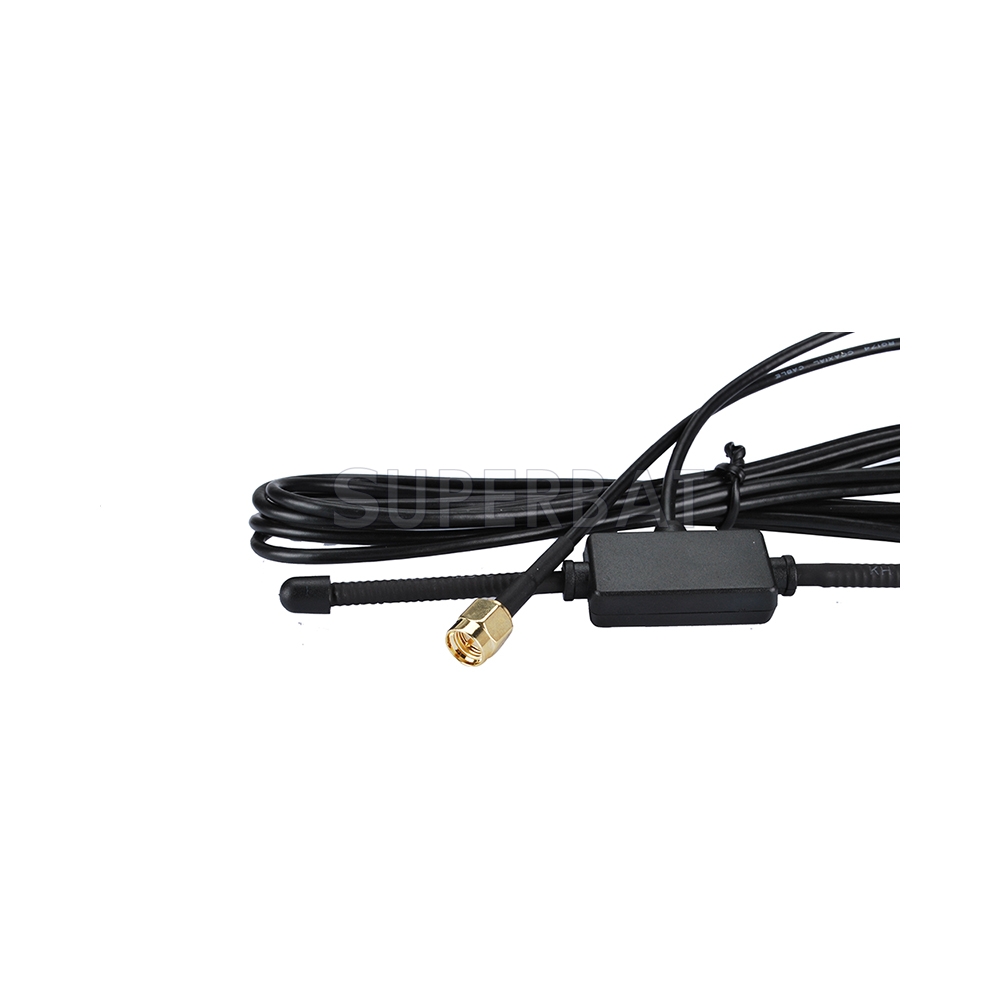

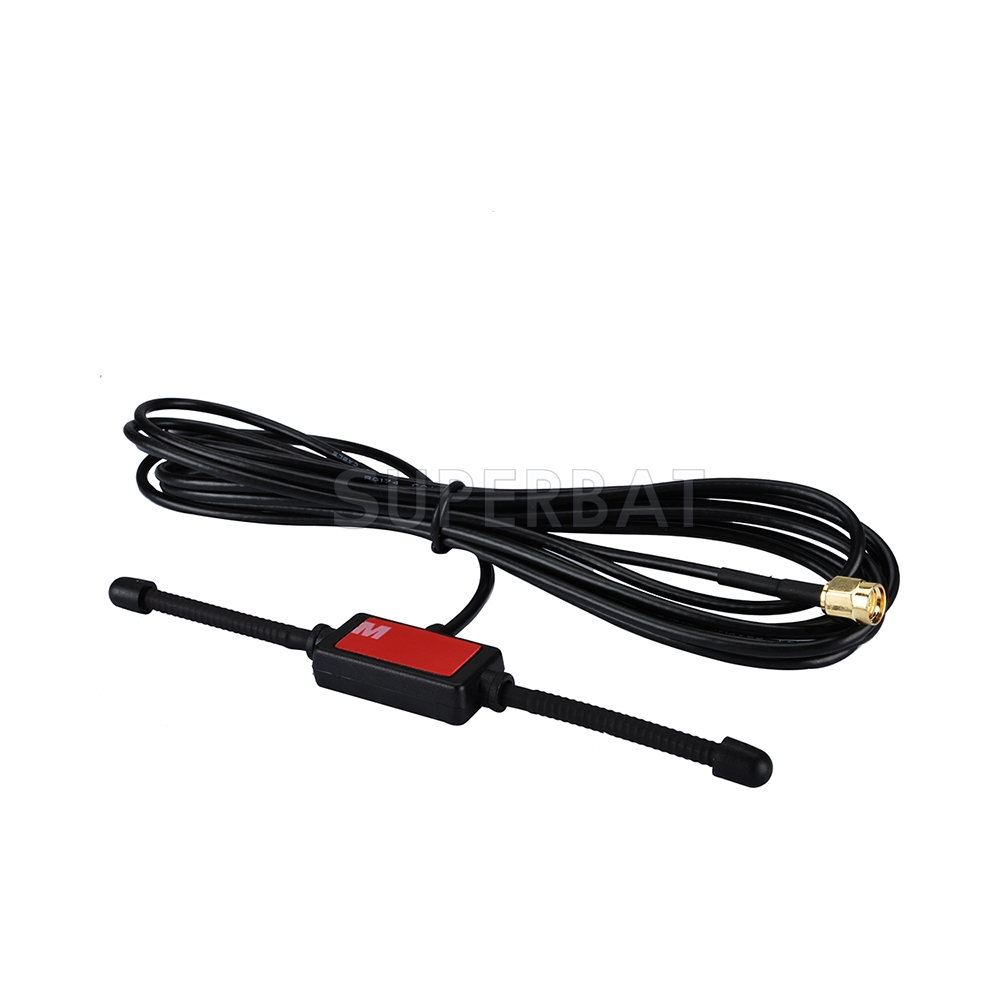

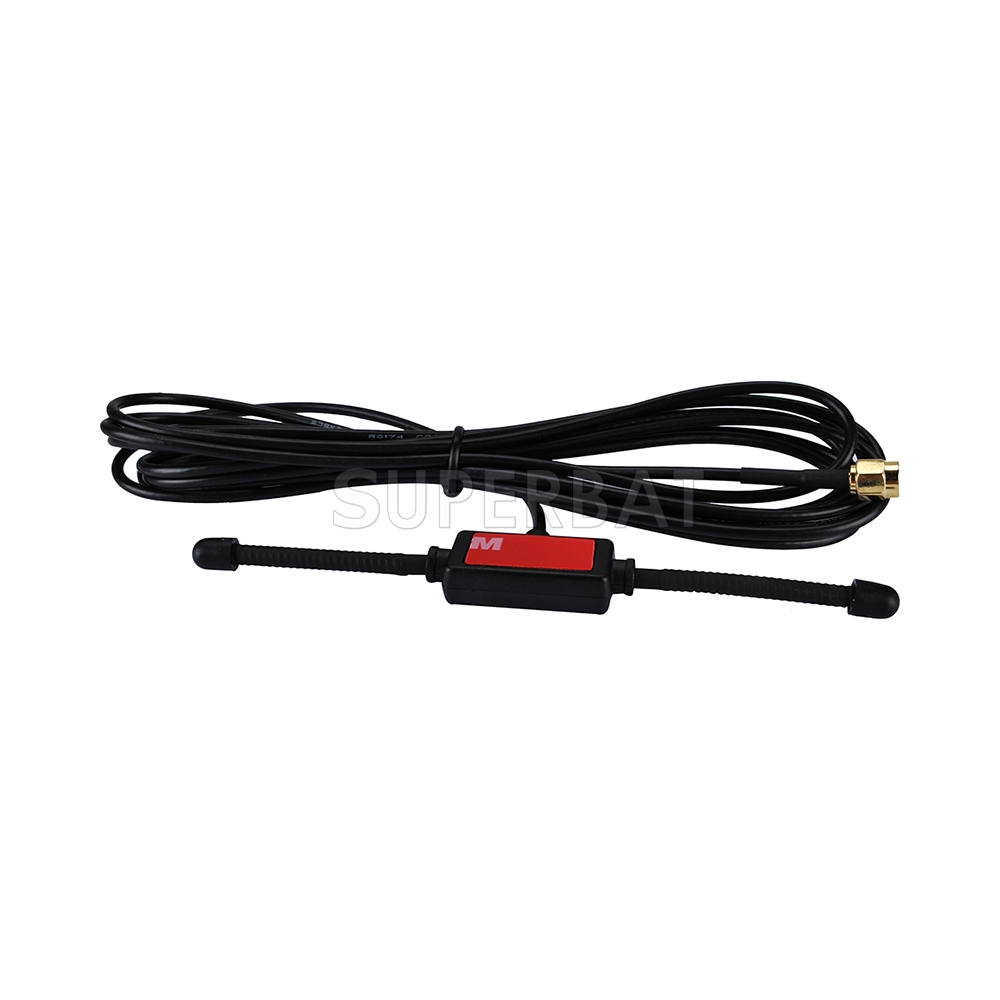

433Mhz 2dbi SMA plug male connector 3m cable with horn Patch Antenna Adhesive
433Mhz 2dbi SMA plug male connector 3m cable with horn Patch Antenna Adhesive
Unit Price: $3.69
sku:EA3-2376-S01SP-020-300
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $3.69 $3.51 $3.17 $2.84 ASK
saving% 0% 5% 14% 23% -
Real Time Availability
Stock: 9897
Quantity: Units

Type: 433Mhz Antenna Center Frequency: 433Mhz Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Straight Impedance: 50 Ohm Nominal Gain: 2 dBi V.S.W.R: ≤1.5 Cable Length: 3M

Electrical characteristics
1.GSM antenna
 Frequency: 433 Mhz
 V.S.W.R(5m): ≤1.5:1
 Gain(Zenith): 2dBi
 weight: 47g
 Power Capacity: 50W
 Polarization: Vertical
 Operating Temperature: -40 to 60 ℃
 Storage temperature: -20 to 40 ℃
 Impedance: 50 Ohm
2.Mechanical
 Cable: RG174 3m
 Connector: SMA male straight (default)
 Optional: SMB/MCX/MMCX/BNC/TNC…
 Plastic housing: Black
 Mounting: Adhesive
