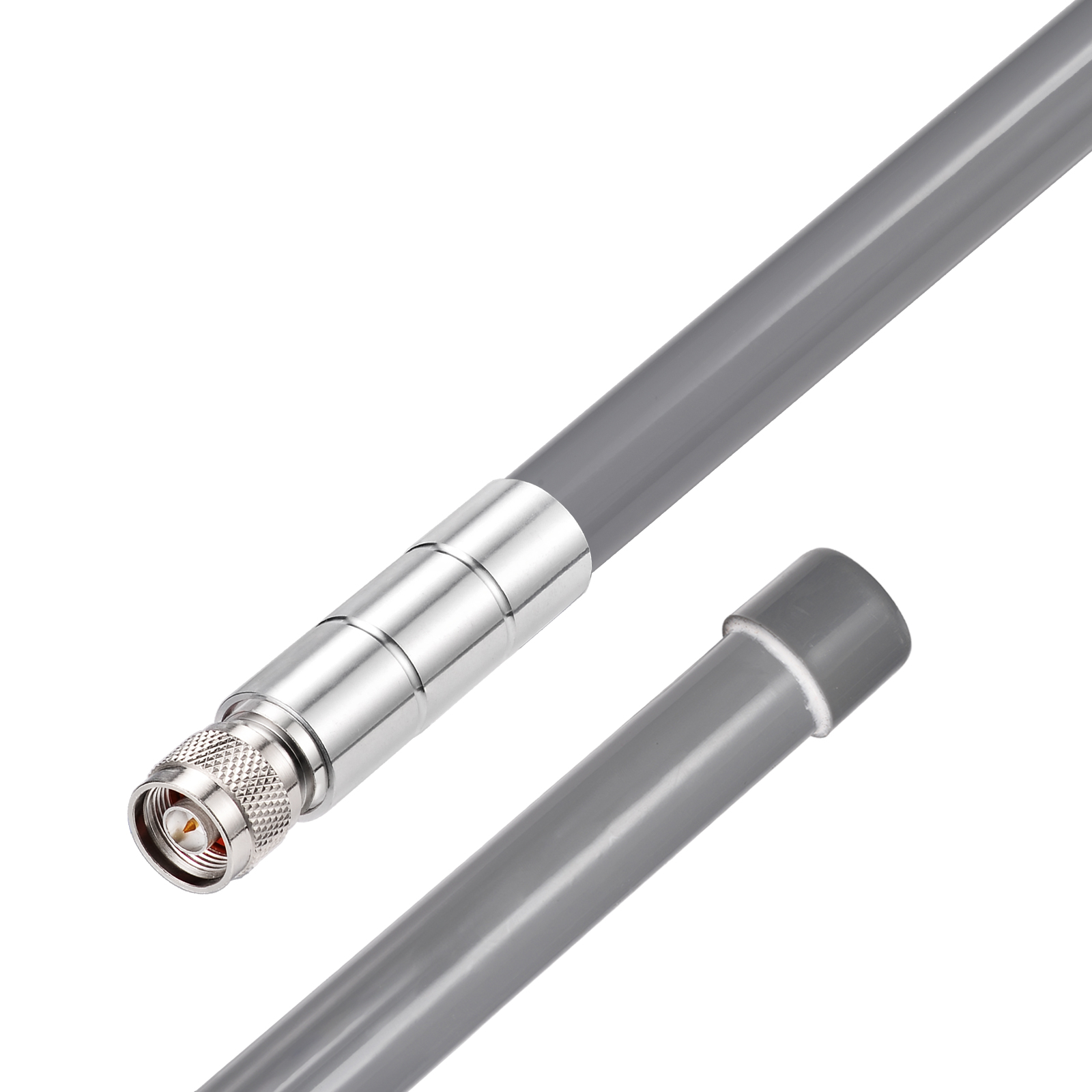

43.3inch 8dBi 868MHz 915MHz Lora Antenna
Unit Price: $44.76
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $44.76 $42.52 $40.28 $38.05 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 1000
Quantity: Units

43.3 inch】 - Antenna height:43.3inch; Higher dbi rating antenna is great for long range in suburban area. [please select proper antenna gain(dbi) according to your surrounding location, if you live in an urban area or high hotspot density areas, you may consider to select a lower gain antenna (such as 2/3/4dbi antenna)]

Built in Pure copper】 - Built in inner copper oscillator, 8dBi Gain at 915mhz, Omnidirectional, Long Range, Lower VSWR

Application】 - Compatible with Nebra HNT Outdoor Hotspot Miner, designed for LoRa Helium miner, Low power radio: Sigfox, LPWA, LoRa, mesh networks, IoT

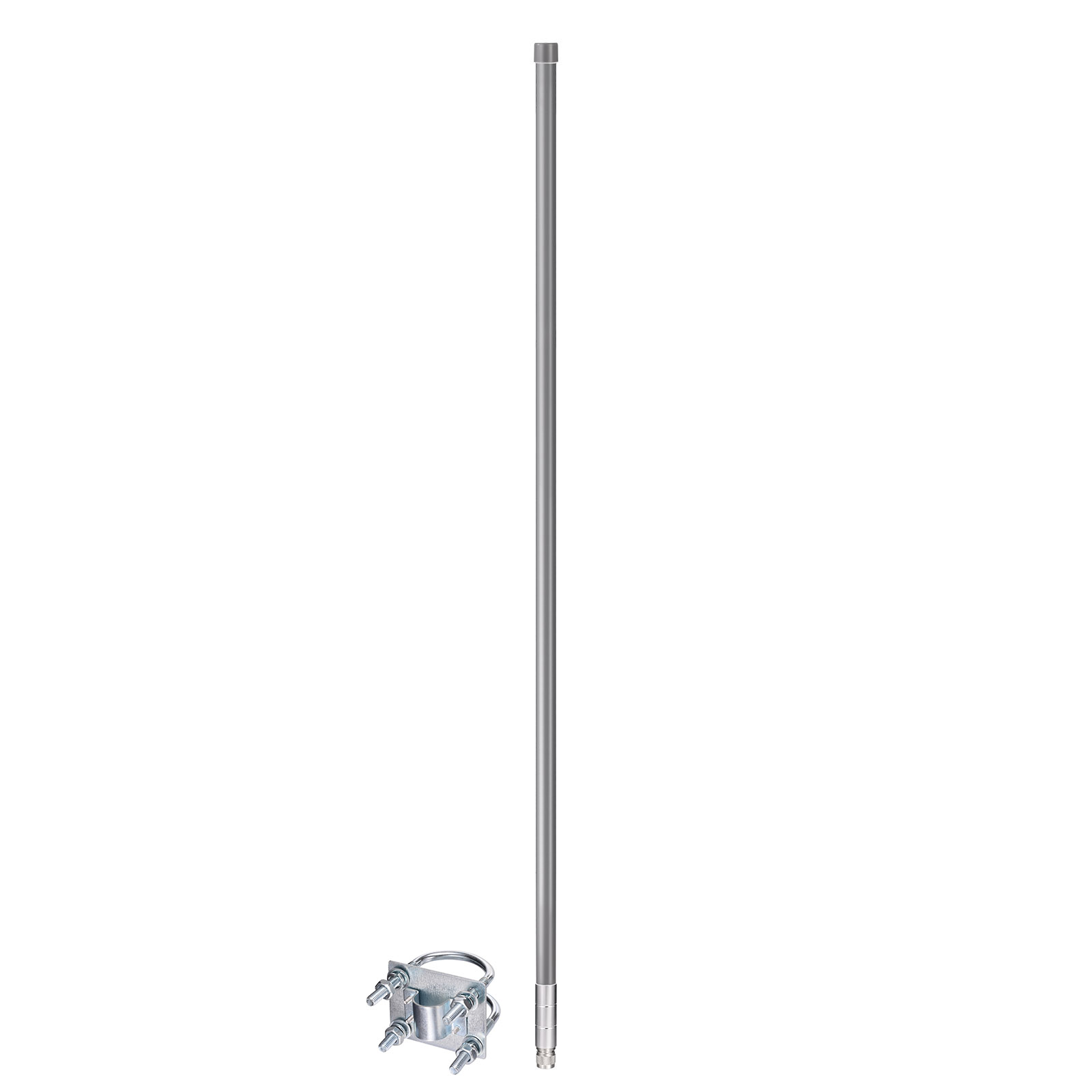

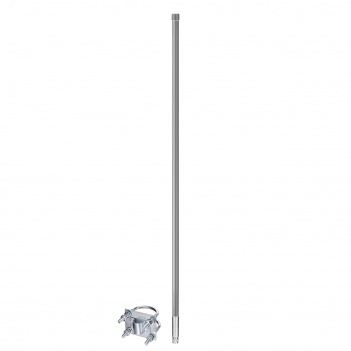

Packing List】 - 1 x helium antenna(N Male Connector); 1 x U-bolt (Package do not include pole and extention cable)

Frequency: 860MHz - 930MHz
Gain: 8 dBi Omnidirectional

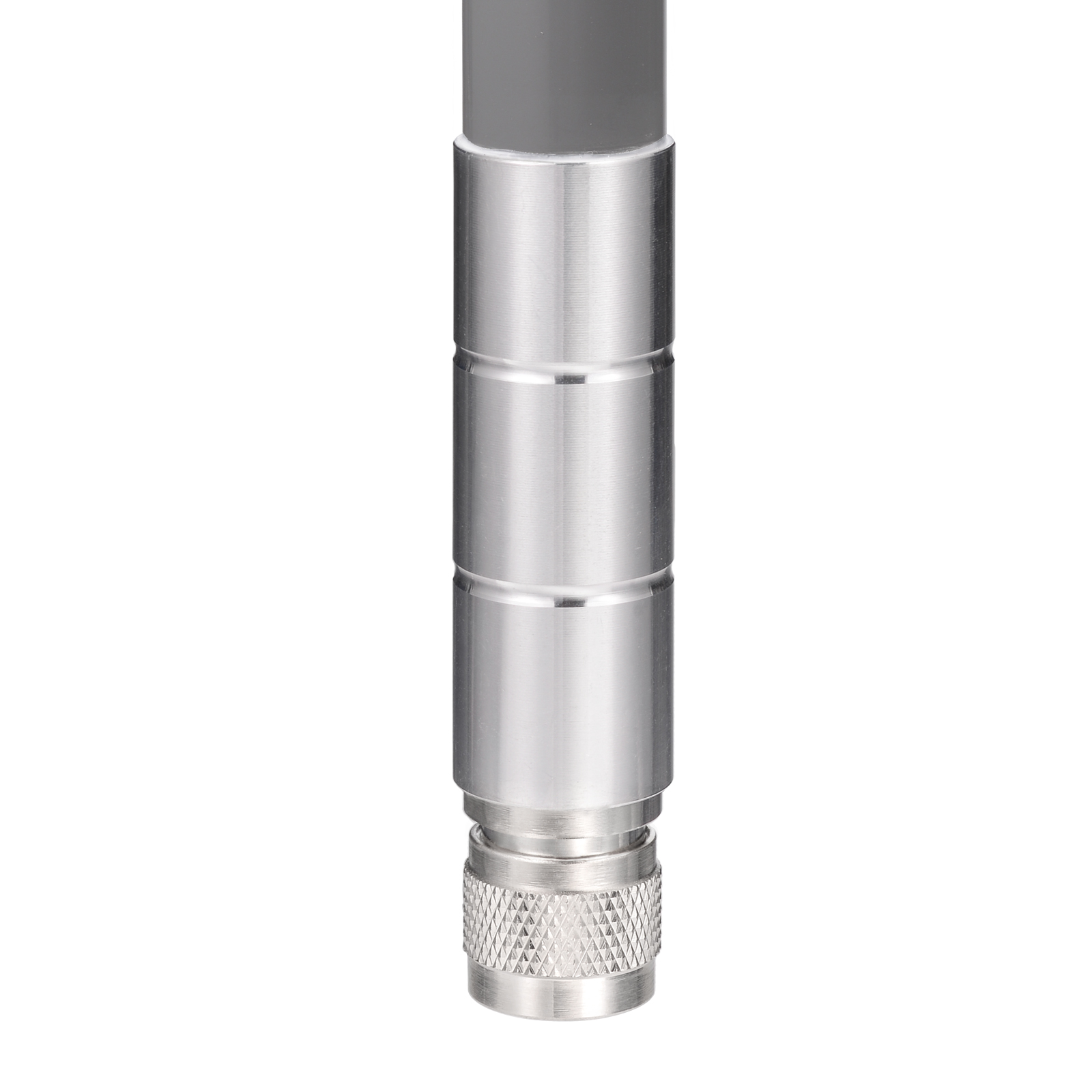

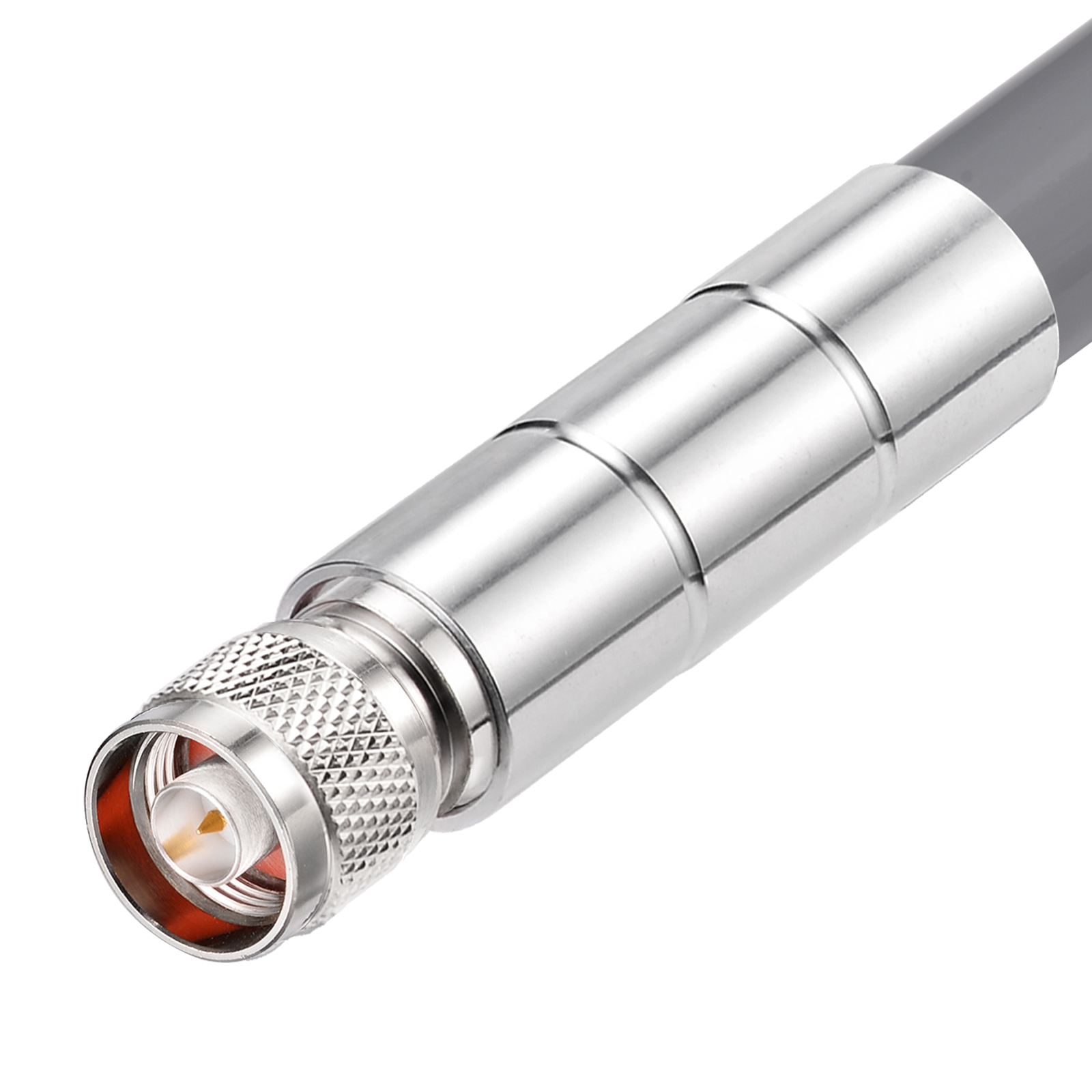

Antenna Connector: N Male

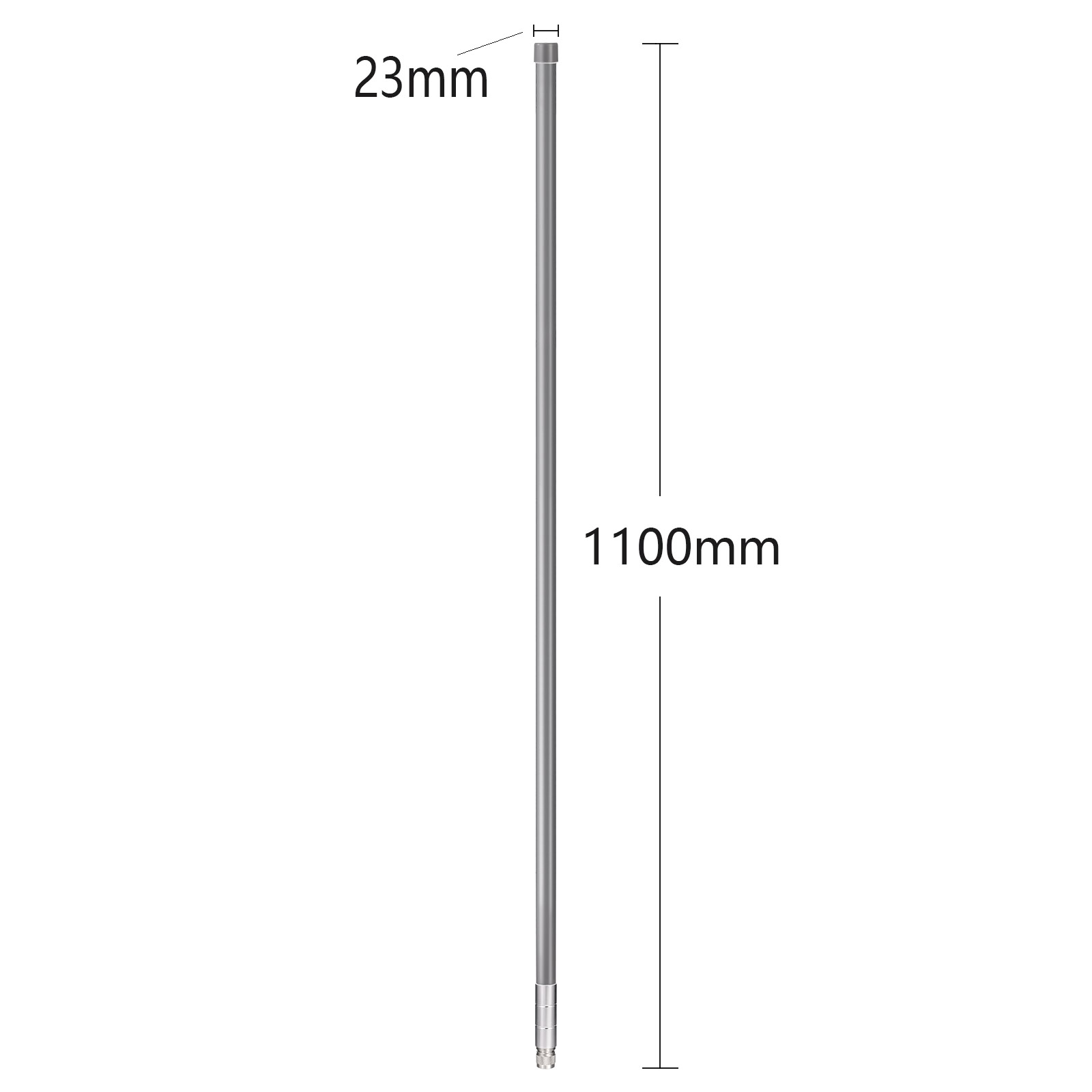

Antenna Length: 43.3inch/2750px
VSWR: <2.5
Polarization: vertical
Impedance: 50 Ohm
Aluminum alloy base: 21.8mm
Middle: 20mm
Top: 23.2mm
Installation method: Pole-holding (Pole is not included)
Hoop size: small 17-22 mm; large 22-52 mm

Operating Temperature: -20°С ~ +80°С

Storage Temperature: -30°С ~ +85°С
Package List:
1 x 915mhz helium antenna(N Male)
1 x Antenna U-bolt Bracket (Pole is not included)

The higher the dBi of the antenna, the higher the gain, but less of a broad field pattern, meaning that the
signal strength will go further but in a narrower direction, for better performance, please select proper dbi
according to your surrounding location.
Lower dBi is great for urban area, or high hotspot density areas.
And higher dBi is great for long range in suburban area or high area without obstacles.
