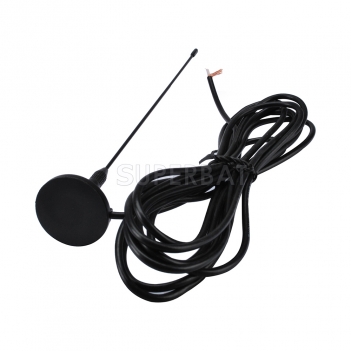

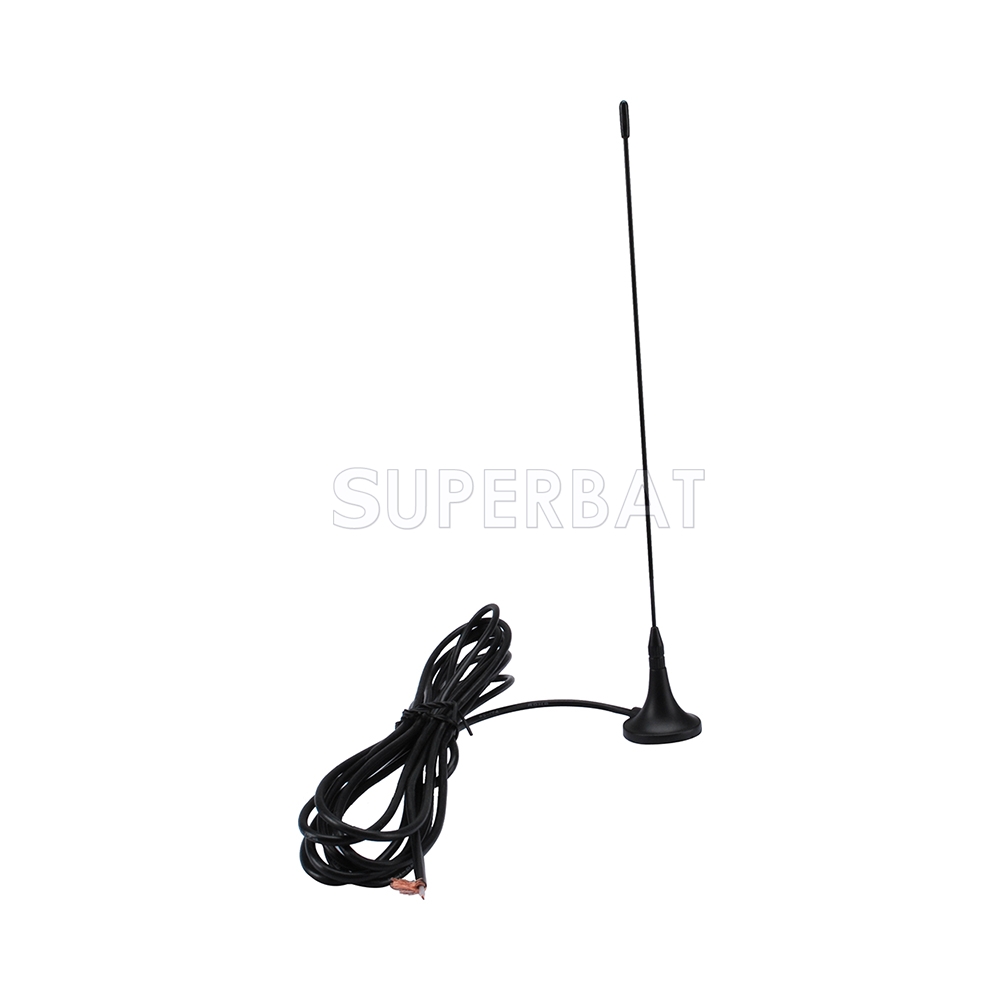

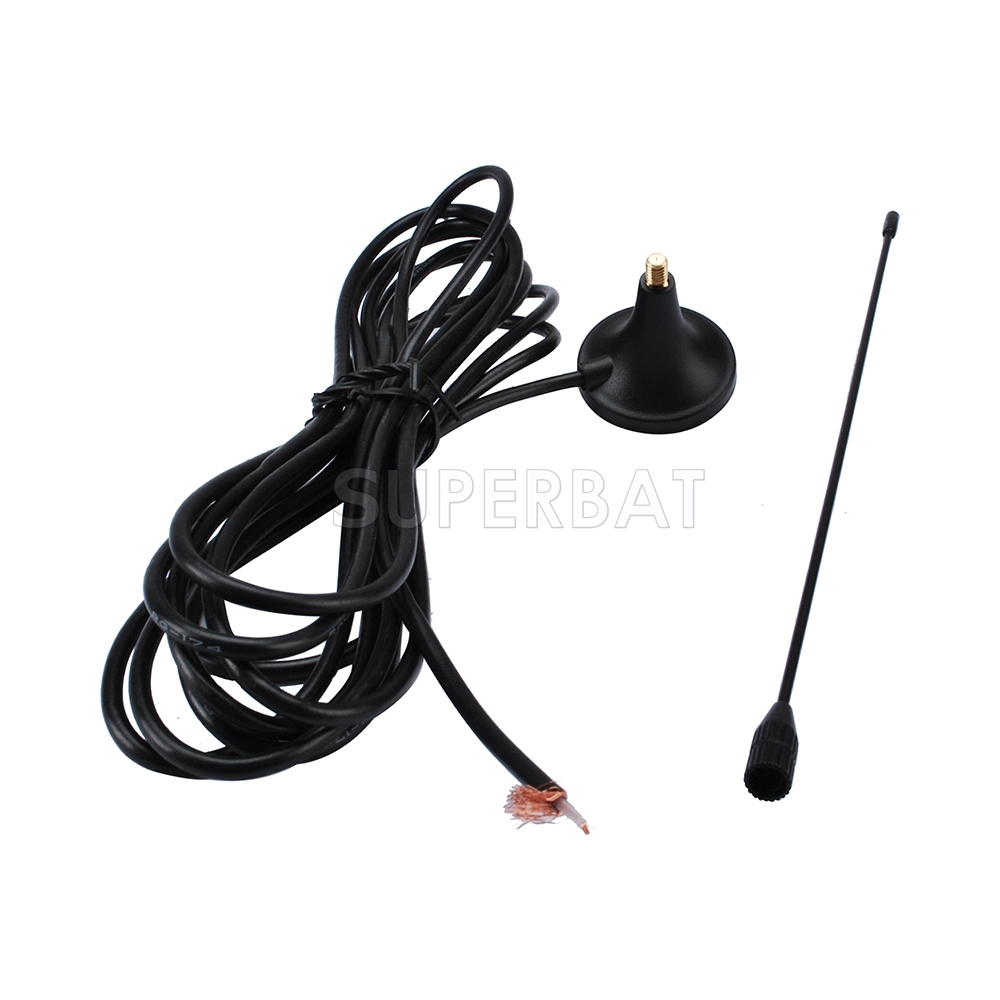

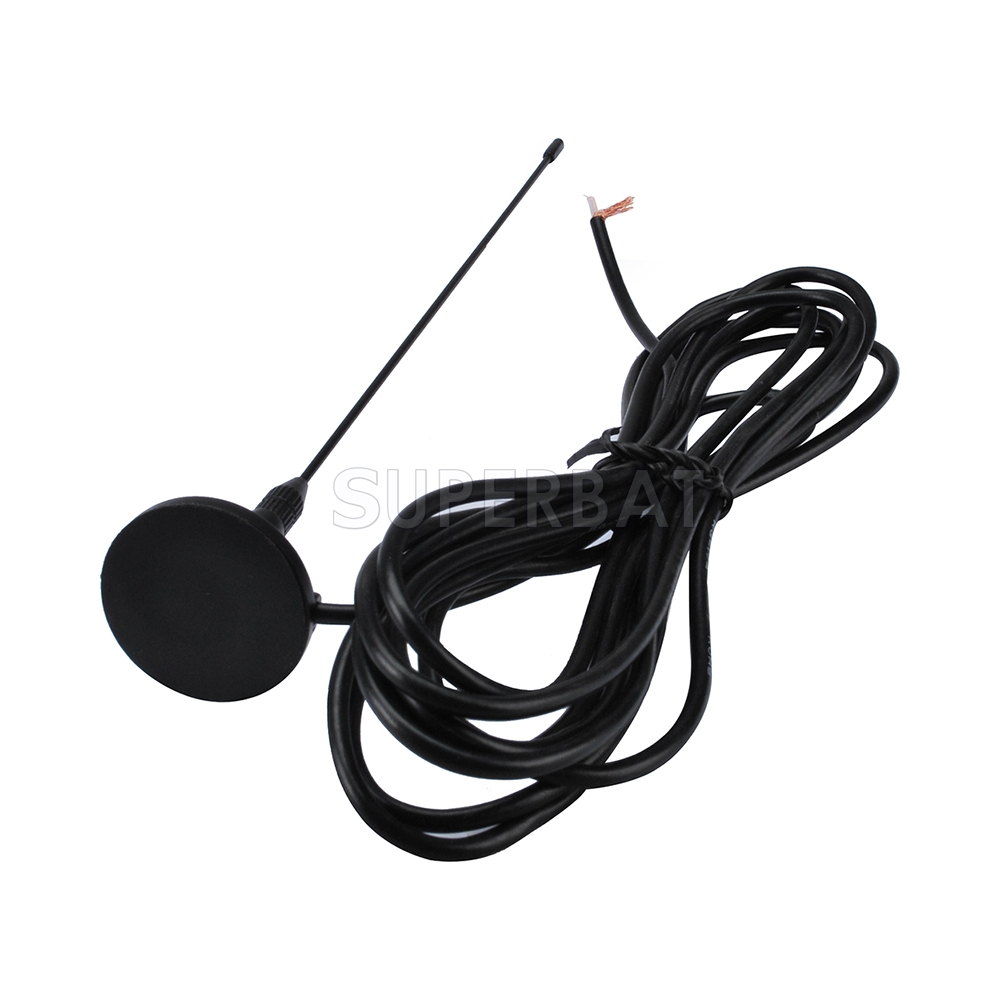

315Mhz,3dbi SMA Plug straight with Magnetic base Antenna
Unit Price: $6.14
sku:EA1-2585-S01SP-030-500
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $6.14 $5.83 $5.53 $5.22 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Type: other Antenna Center Frequency: 315+/-15MHz Connector Series: SMA Connector Gender: Straight plug Impedance: 50 Nominal Gain: 3dbi V.S.W.R: ≤1.5 Cable Length: 5M

Features:
Frequency Range(MHz) 315+/-15
Bandwidth(MHz) 30
VSWR ≤1.5
Gain(dBi) 3dbi
Max Input power(W)50
Input Impedance(Ω) 50
Polarization Type :Vertica
Antenna High(mm) 230
Cable Length﹙mm﹚ 5000 or other
Cable Type RG174
Connector Type SMA Plug connector (Default )/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other
Mounting Magnetic
Radiation :Omni-direction
Max Diameter :30mm
Min Diameter :1.5mm
Max wind speed :200km/h
