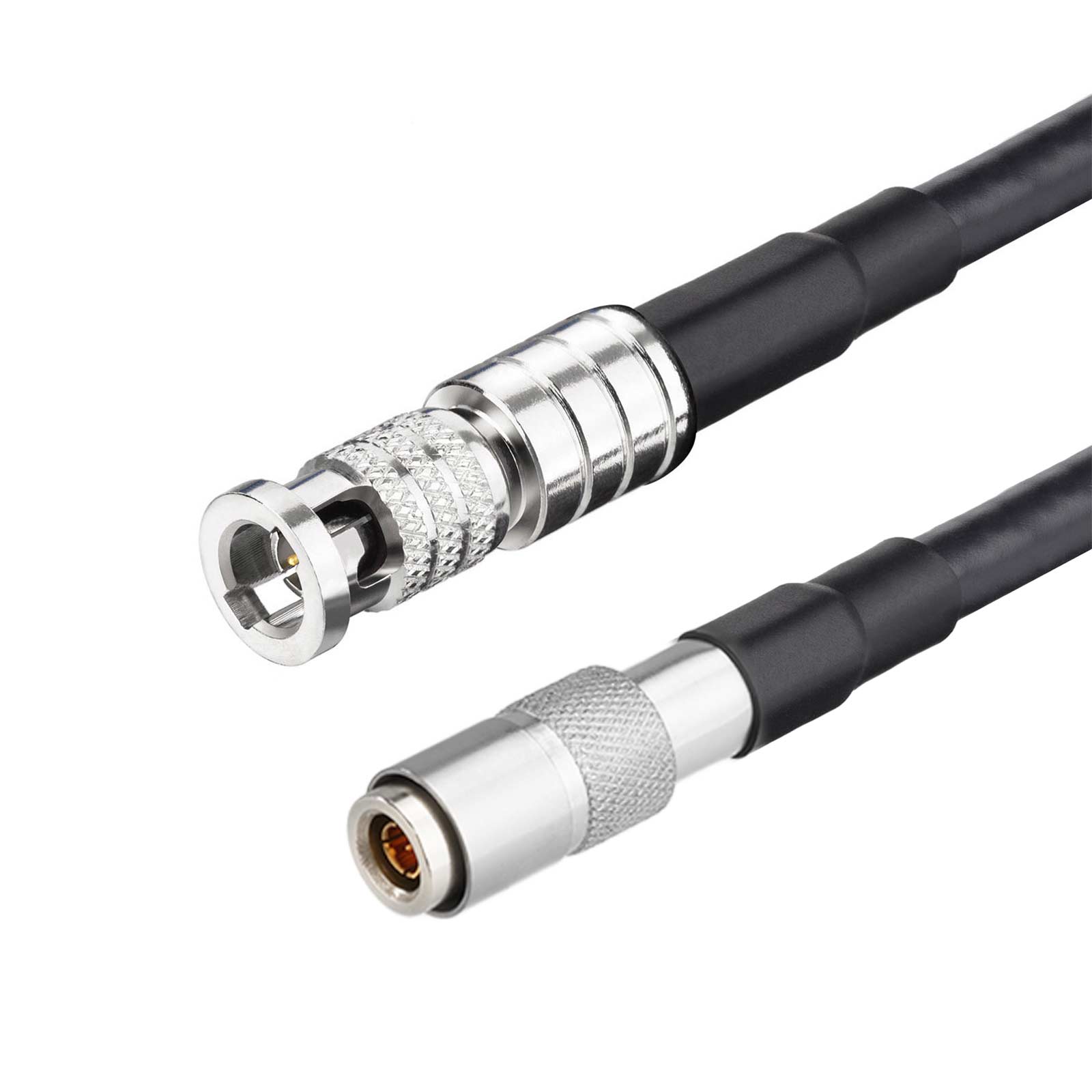

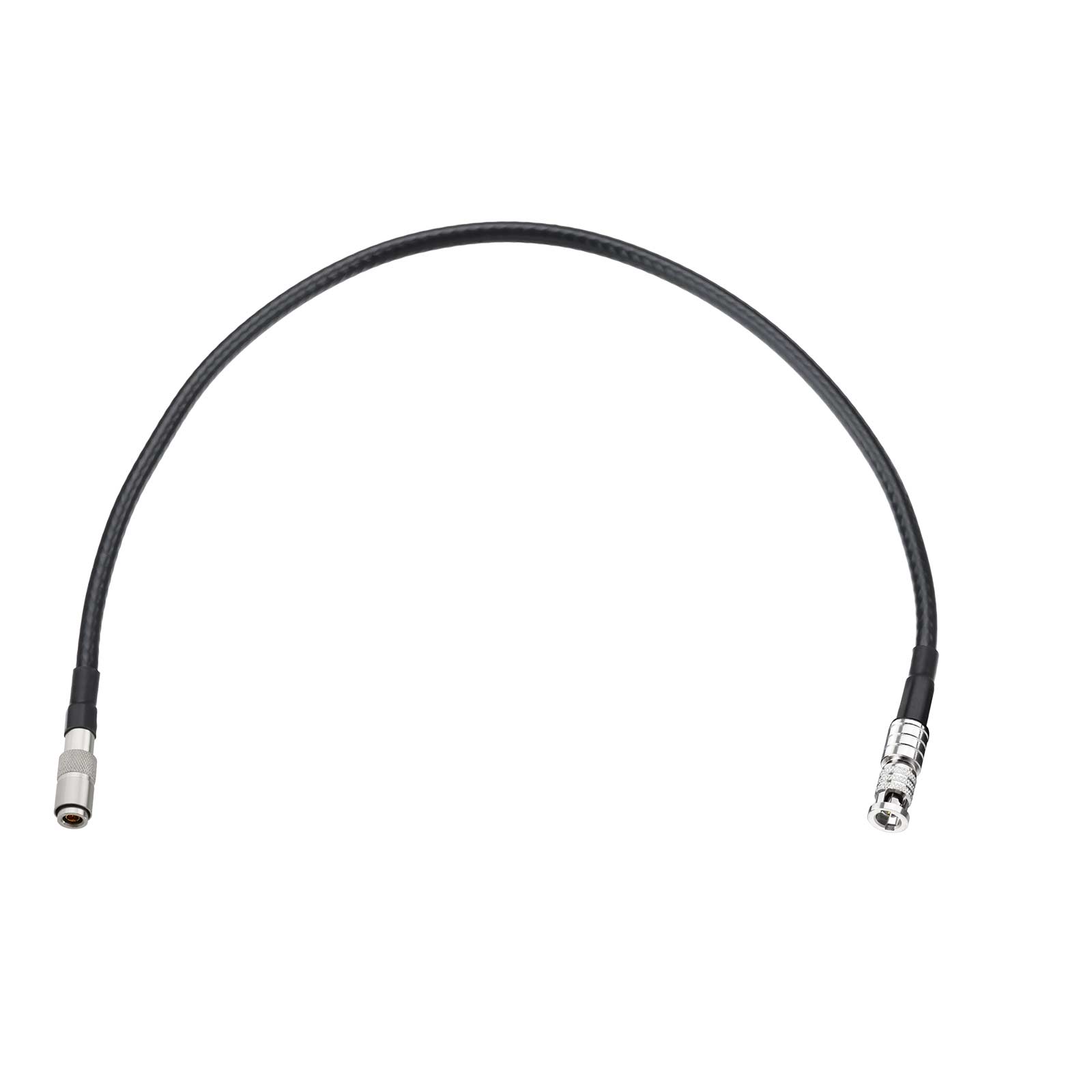

Connector Type: HD BNC Male to DIN 1.0/2.3 Male;  Impedance (Ohms): 75; Cable:Belden 1855A; Data rate: up to 6.25Gbps.

Cable:75 ohm Belden 1855A HD SDI Cable - Sub-Miniature Precision Broadcast Video Coax Cable 23 AWG solid .023" bare copper conductor, gas-injected foam HDPE insulation, Duofoil+ tinned copper braid shield (95% coverage), PVC jacket｜the cable which is not only superb in high impedance stability and low return loss but is physically robust and stable and will endure frequent handling and flexing.

HD-BNC and DIN 1.0/2.3 Connectors – Compact design with high-frequency support, making them suitable for applications with limited space,Support CoaXPress 1.1 and 2.0,3G/6G/HD-SDI video signals.

Supports CoaXPress CXP-6 (6.25 Gbps) & Multi-Rate SDI: Transmits ultra-high-speed data up to 6.25 Gbps per channel; fully compatible with 3G/6G/HD-SDI video signals—ideal for real-time 4K/8K imaging, high-frame-rate machine vision, medical diagnostics,Industrial Automation,Machine Vision,Industrial Cameras,Broadcast,Medical Imaging,Measurement,Inspection Systems,HD Video Surveillance.

Robust Build for Industrial Reliability: Gold-plated contacts, flexible yet durable jacket, and secure push-pull HD-BNC/DIN locking mechanisms withstand repeated mating cycles

Impedance: 75Ω

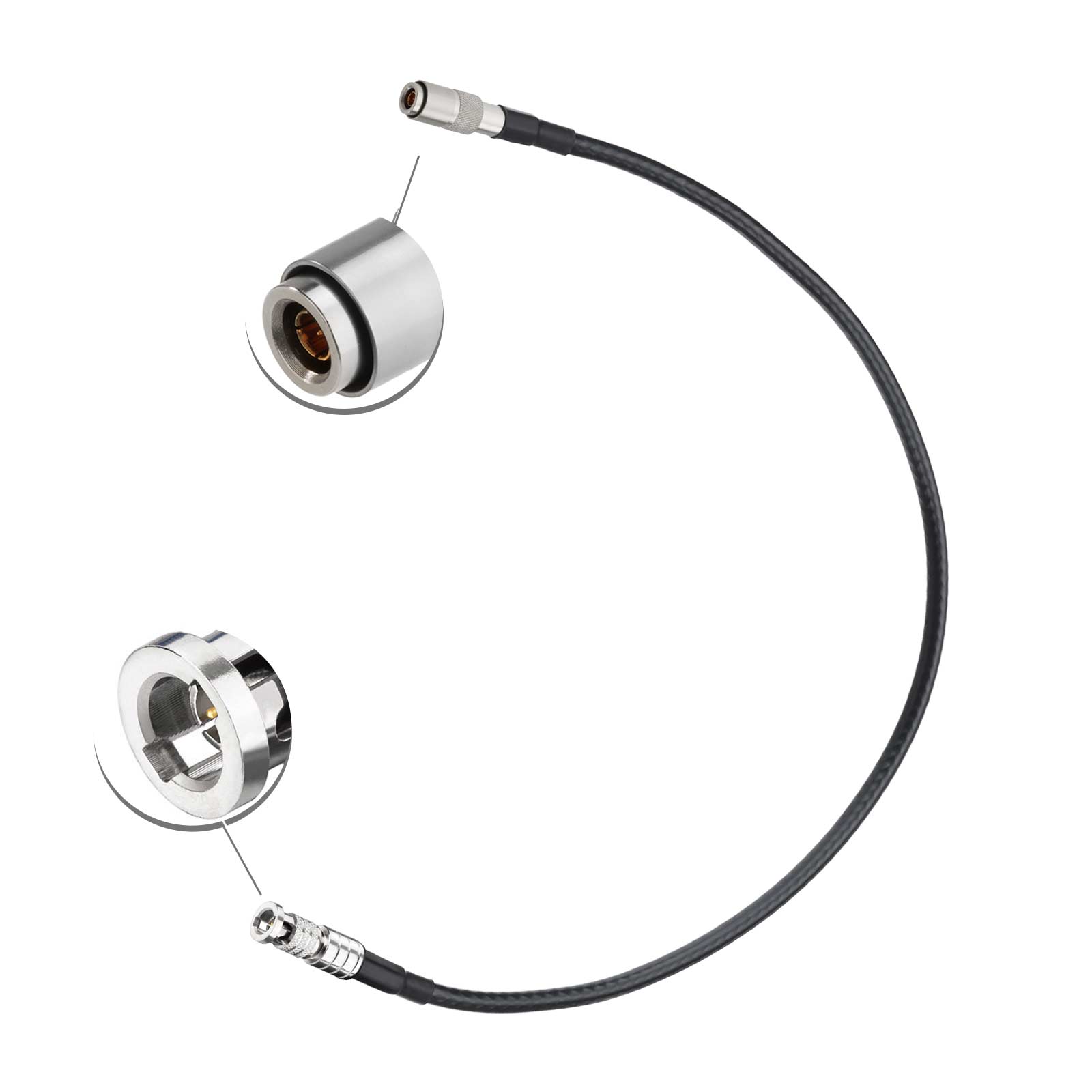

Connector 1: HD-BNC Male Connector

Connector 2: DIN 1.0/2.3 Male Connector

Cable: Belden 1855A

Mechanical & Environmental:

Operating Temperature: -40°C to +85°C

Storage Temperature: -40°C to +90°C

Package: 1 × SDI Cable

Compatible with real-time 4K/8K imaging, high-frame-rate machine vision, medical diagnostics,Industrial Automation,Machine Vision,Industrial Cameras,Broadcast,Medical Imaging,Measurement,Inspection Systems,HD Video Surveillance.

AWG: 23

Stranding: Solid

Conductor Material: BC - Bare Copper

Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene

Outer Shield Material: Dual Shield - Duofoil/TC - Tinned Copper

Outer Jacket Material: PVC - Polyvinyl Chloride

Overall Diameter: 0.159"

Cables meet SMPTE 259M, 292M,424M Standards

Tinned copper braid, and Duofoil shields, for excellent shielding

Hand assembly and testing in-house

Applications Include:

High-Density HD Video Routing

HD-Serial Digital Video

Best for Fixed HD Applications

HDTV Upgrades

Broadband Facilities

SMPTE 259M, 292M, 424M

Compatible with Blackmagic DeckLink Quad capture cards

Package List: 1 x HD BNC Cable
