High-Gain Wide-Band Technical

Delivers excellent signal amplification across bands. Features an impressive 6 dBi high gain for 4G LTE channels (LTE Band: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz ) and a stable 3 dBi gain for Wi-Fi channels (2.4/5.8GHz), ensuring reliable data speeds even in fringe signal areas.

Features specific connectors: SMA Male for the 4G port and RP-SMA Male for the WiFi port. Includes a flexible 3-meter (9.8ft) RG174 low-loss coaxial cable for clean and easy routing

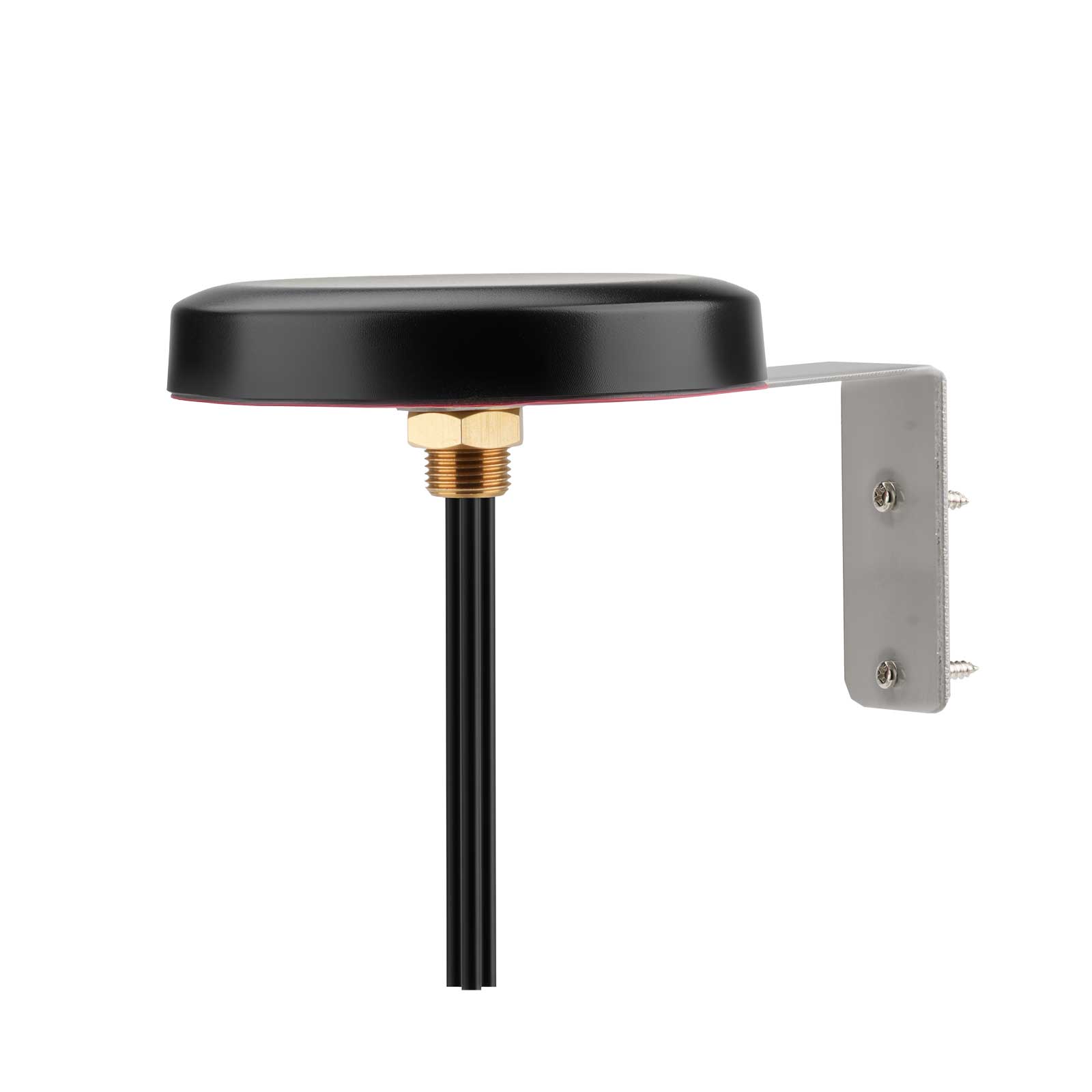

Comes with a durable L-bracket mounting kit including screws, allowing secure and stable installation on masts, poles, walls, or outdoor enclosures to withstand harsh environmental conditions

Ideal for industrial routers, cellular gateways, vehicles, boats, and wireless access points that require reliable dual 4G and WiFi signal reception in a compact and robust housing

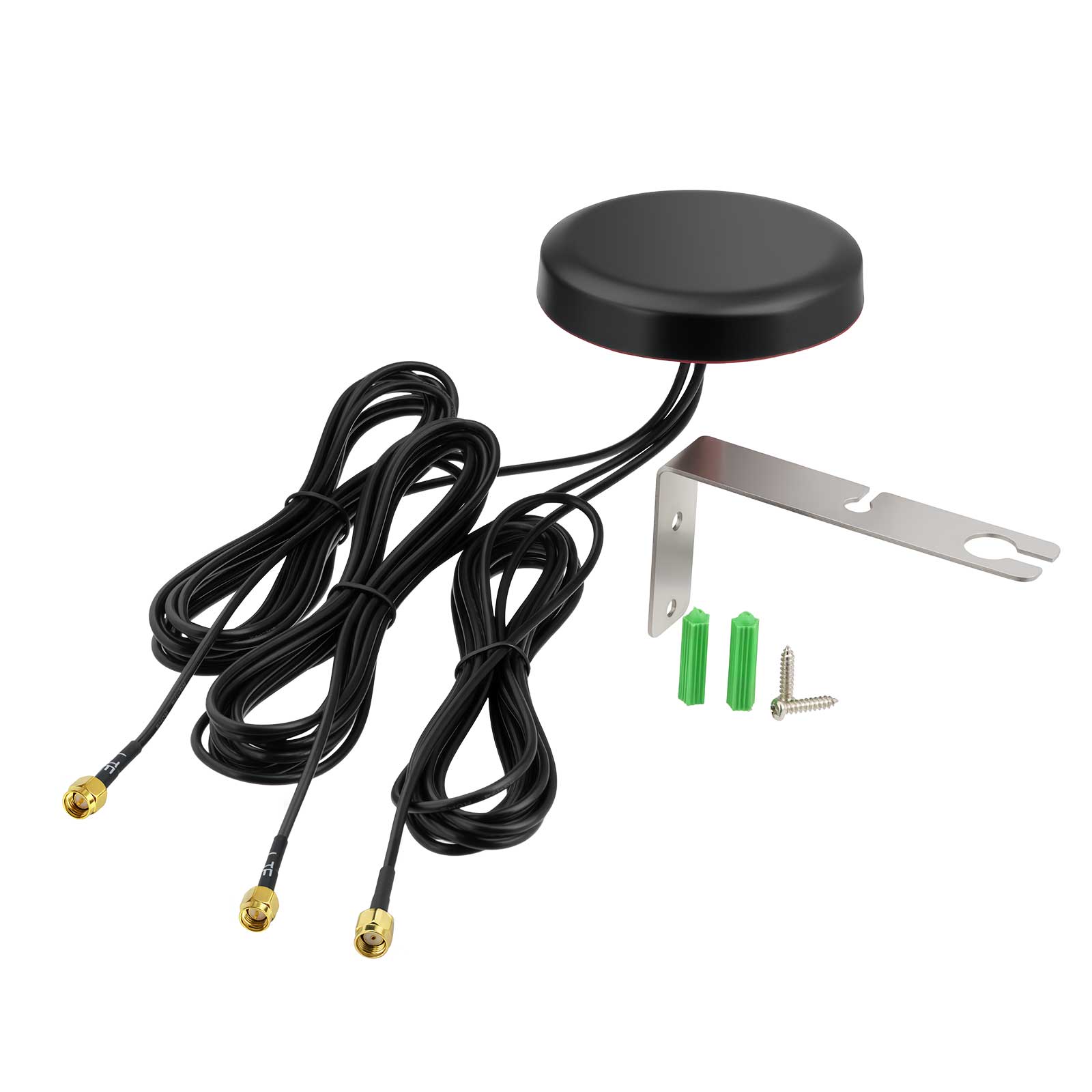

Package Contents: 3-in-1 Combination WiFi & Dual 4G  Antenna,, 1 x Wall-mount bracket, 2 x Screws

Specification

Frequency Range:LTE Band: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz;

WiFi Band : 2.4 GHz /5.8GHz

Impedance: 50 Ω

VSWR:≤ 2.0

Gain: 4G: 6 dBi; WiFi: 3 dBi

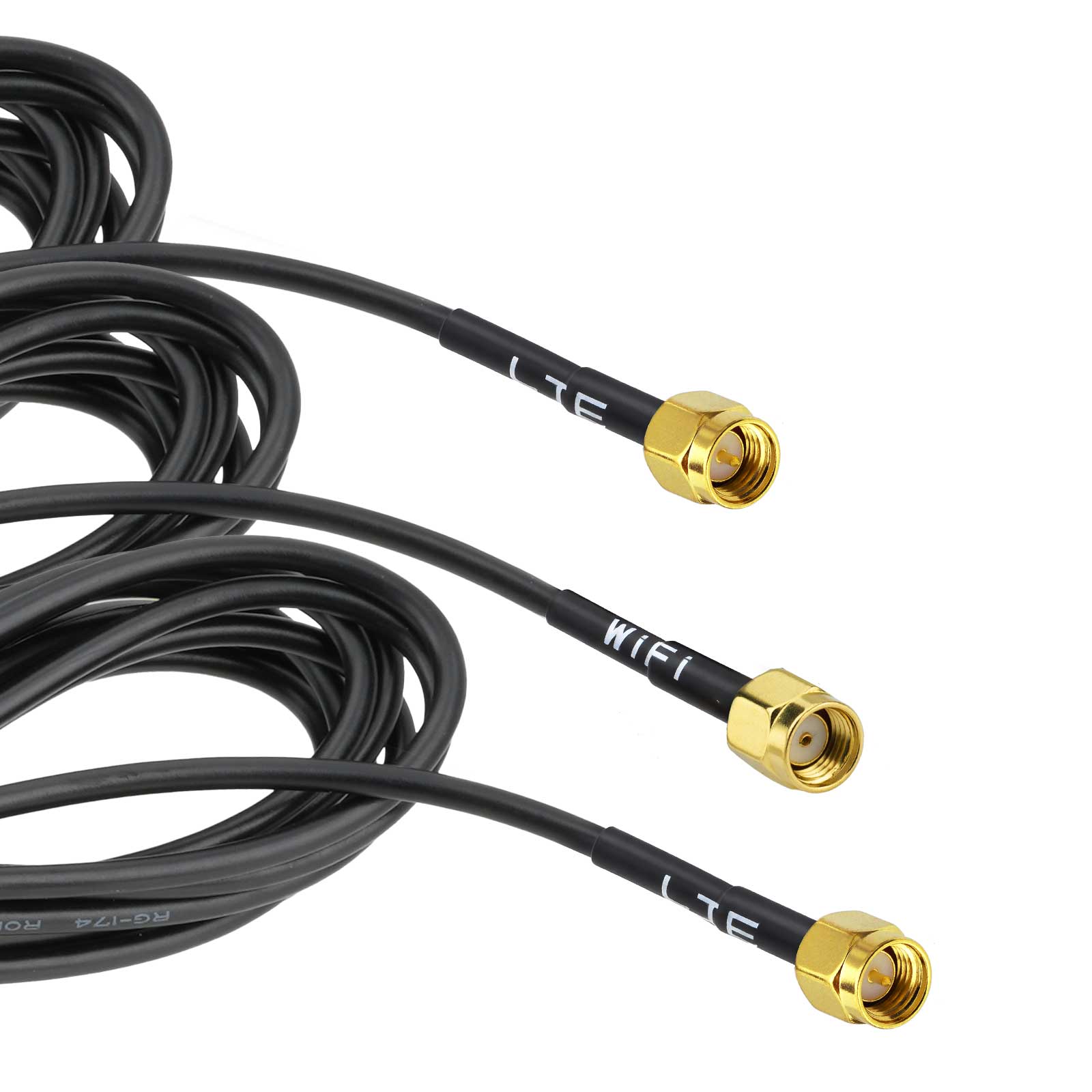

4G/LTE Connector: SMA Male Connector

WiFi Connector:RP-SMA Male Connector

Cable Length: RG174 10ft / 3m

Polarization:Vertical

Radiation Pattern:Omni-directional

Maximum Power:50 W

Polarization: Linear Vertical

Feature: Fixed Wall Mount Thru Hole Mount

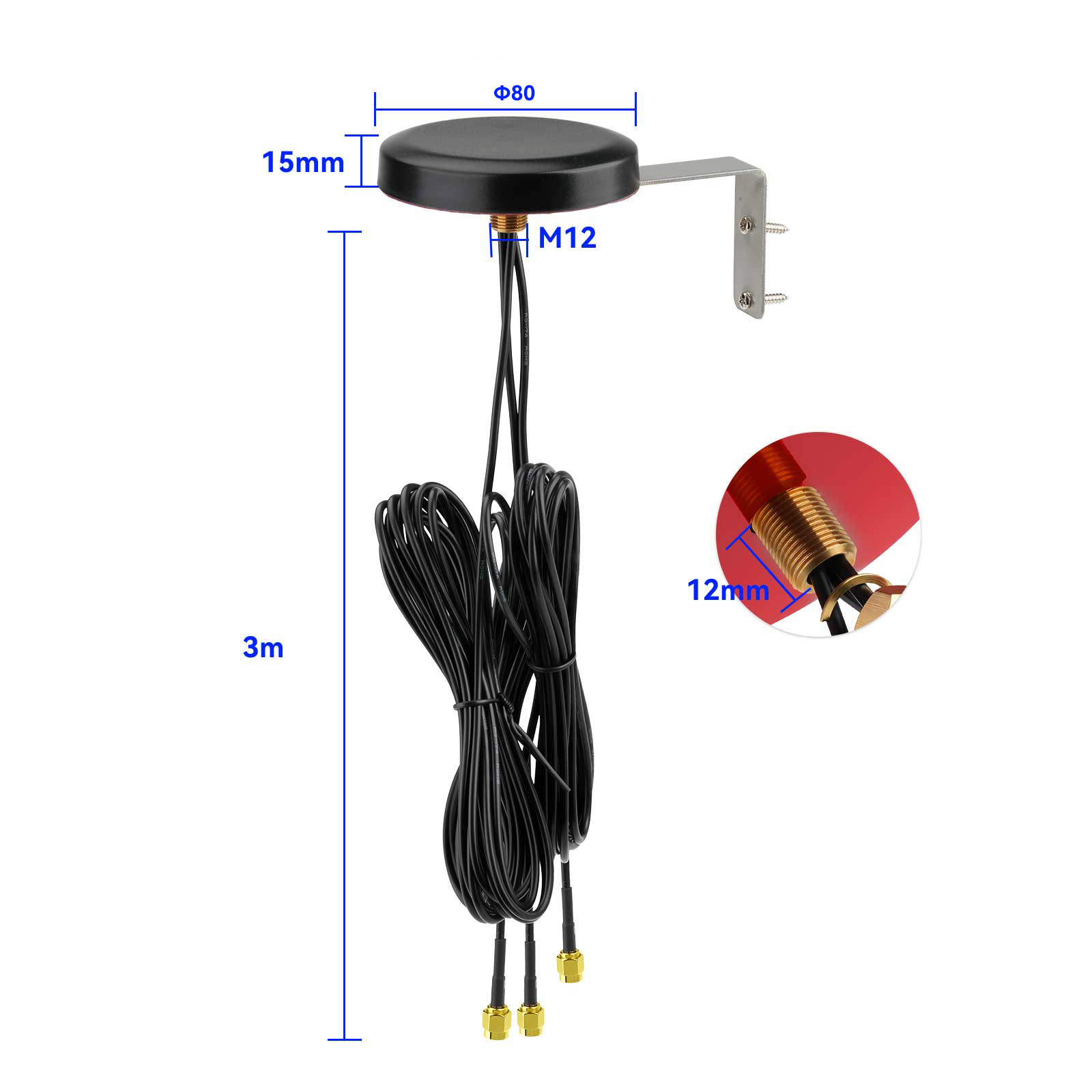

Mounting Screws Diameter: M12

Shell material: ABS

Shell size: 80*15mm

Lightning Protection：Grounding

Waterproof: IP67 Rainning Proof

Package List: 1 x Antenna,  1 x Wall Mount Fixed Bracket, 2 x Screws
