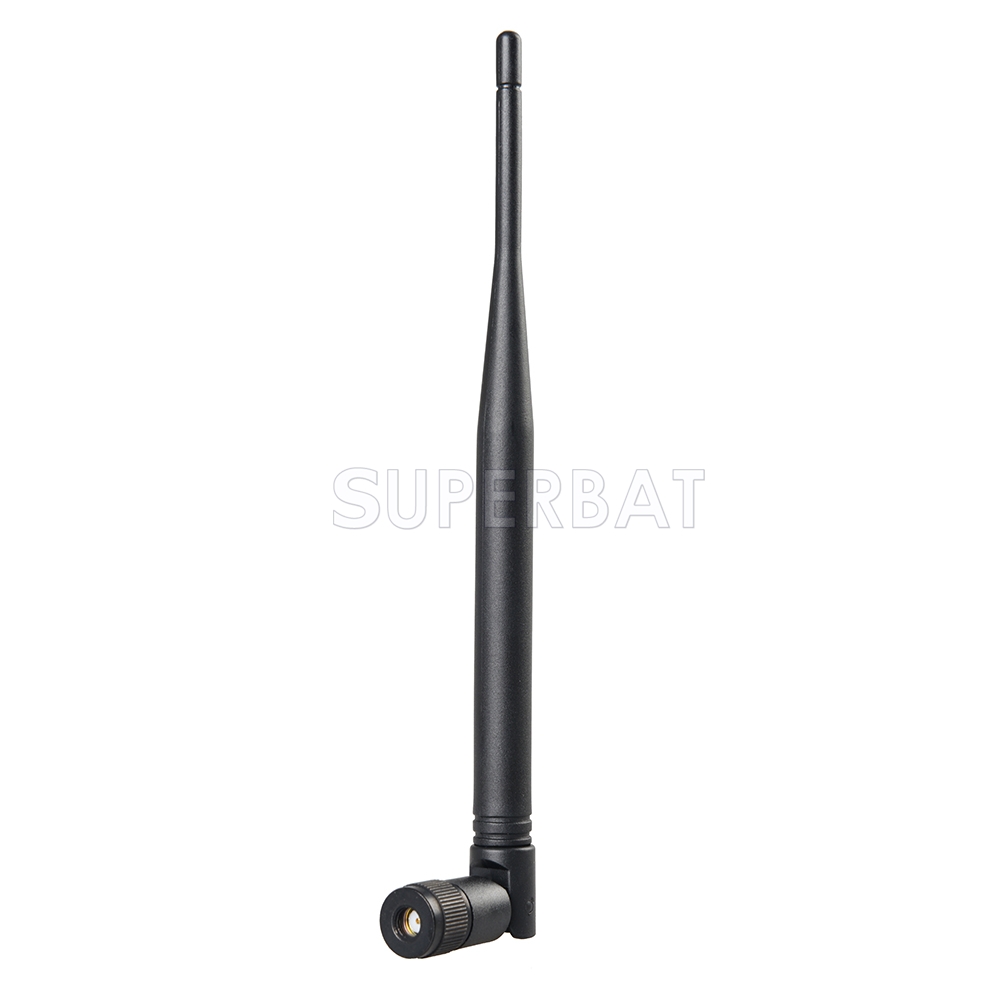

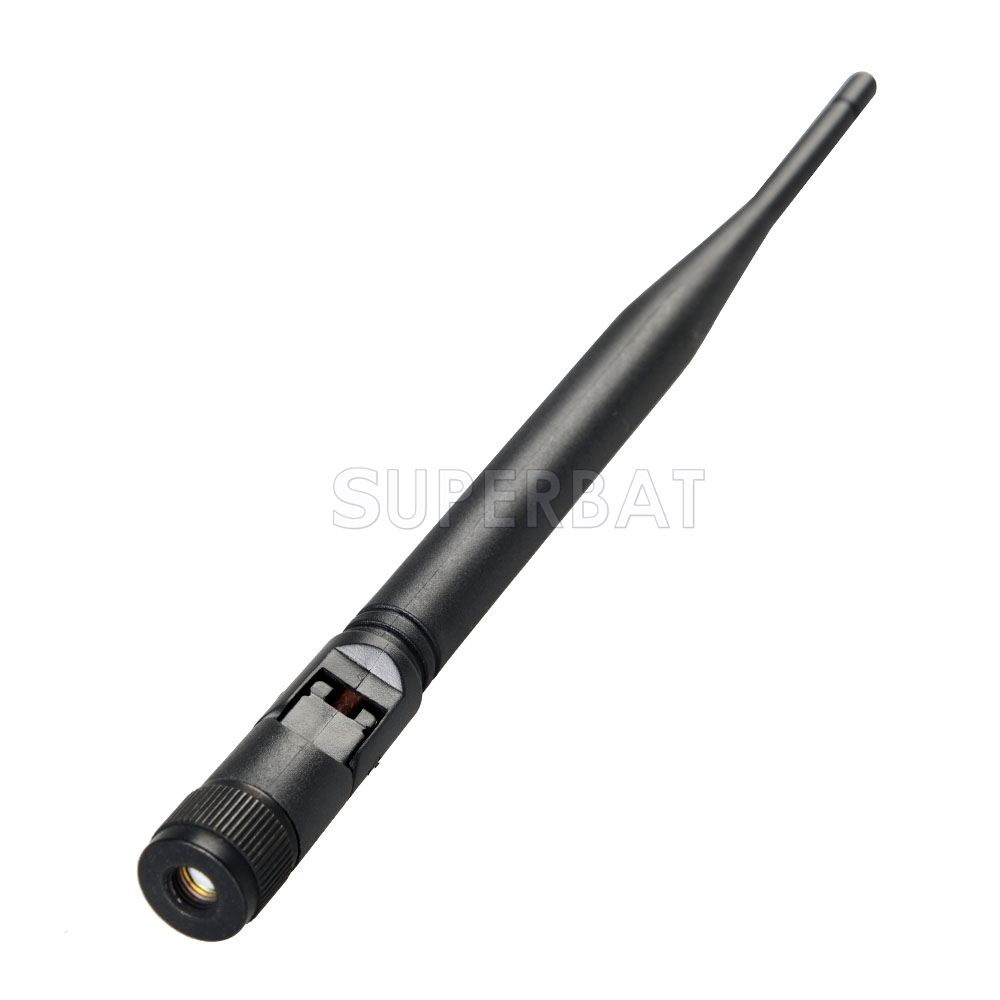

2.4GHz/5GHz 6dBi double frequency Omni WIFI Antenna RP-SMA for wireless router
Unit Price: $6.42
sku:WA2-2712-S02SP-060
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $6.42 $6.10 $5.39 $5.07 ASK
saving% 0% 5% 16% 21% -
Real Time Availability
Stock: 9990
Quantity: Units

Type: WIFI Antenna Center Frequency: 2.4GHz/5GHz Connector Series: SMA Connector Gender: RP Plug Impedance: 50Ω Nominal Gain: 6dBi V.S.W.R: ≤1.5

This compact 2.4GHz/5GHz double frequency omnidirectional "rubber-duck" WiFi antenna provides broad coverage and 6dBi gain. It is a coaxial sleeve design with an omni-directional pattern. It is ideally suited for IEEE 802.11b and 802.11g wireless LANs

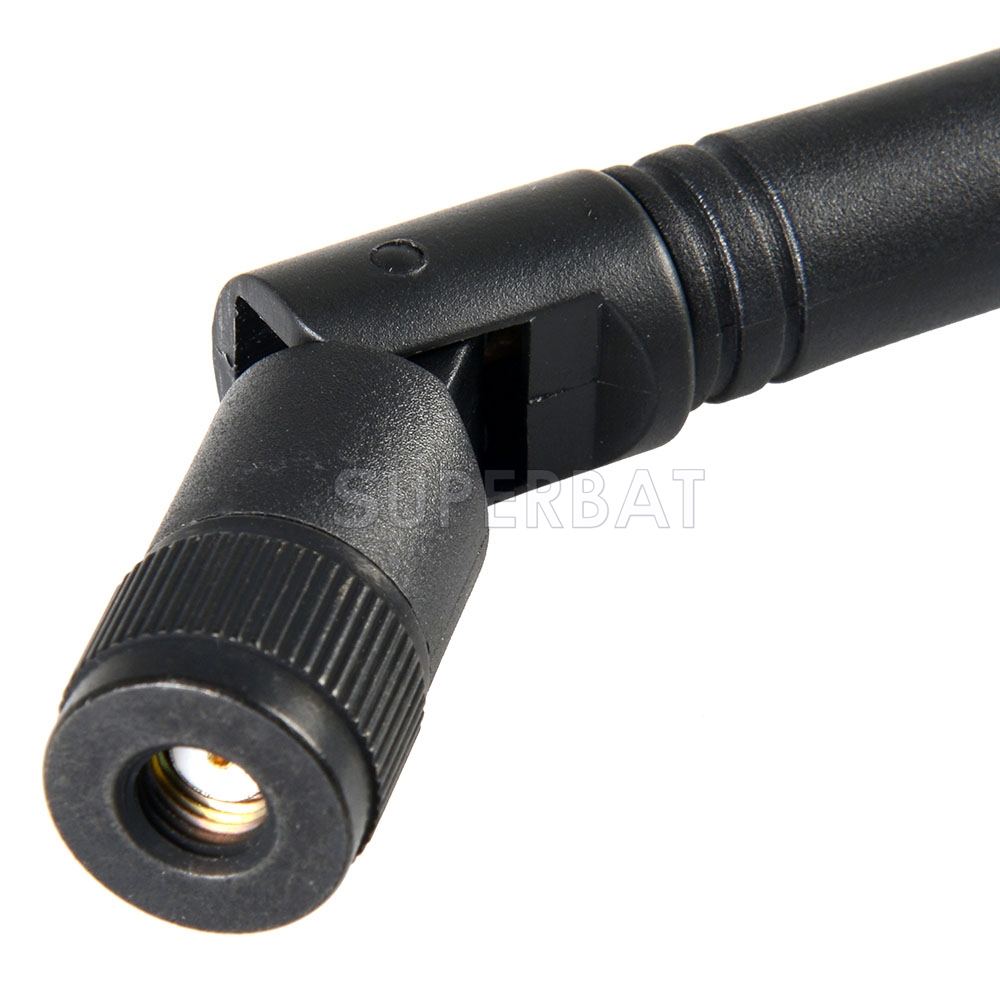

This flexible antenna features a tilt-and-swivel RP-SMA connector, allowing them to be used vertically, at a right angle, or any angle in-between. It is suitable as a replacement RF antenna for many access points and radios that are equipped with RP-SMA connectors including D-Link, Linksys and others.



Applications:
IEEE 802.11b,802.11g,802.11b/g,Wirless Lan
Omni Directional Mulitpoint applictions
Bluetooth ,Point to Mulotpoint
Pubic Wirless Hotspot
WiFi,RFID
Wireless Video Systems


Features:
Superior Performance
The Weight is light
Good appearance designs
Installed for Collinear Vertial Polarization
Multiple options
RoHS Compliant
Specification:
Frequency: 2.4GHz/5GHz
Gain :6dBi
Polarization : Vertical
Impedance : 50 Ohm
Connector : RP-SMA (Male)
Operation Temperature: -20~+60 °C
weight:29g
Diameter: 11.48mm
Flexible WiFi antenna
Tilt and swivel design
Color:Black
