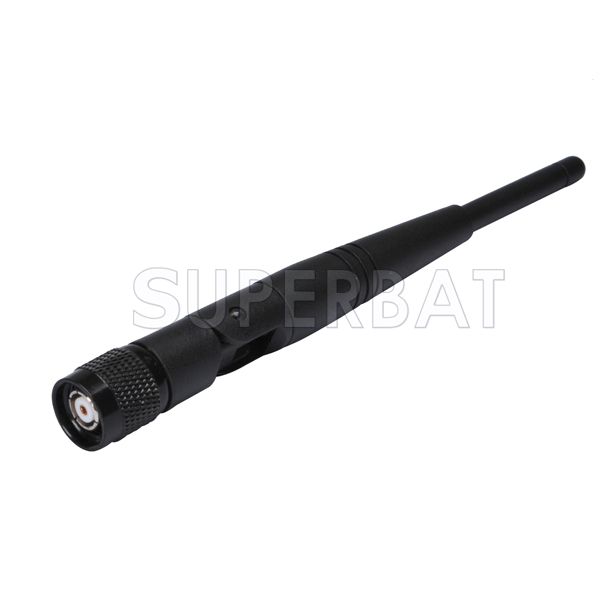

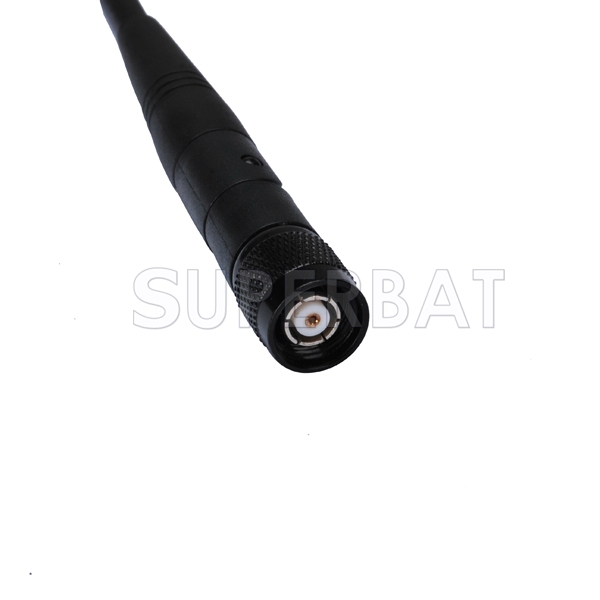

2.4GHz 5dBi Omni WiFi antenna RP-TNC male for wireless router and WLAN PCI card
Unit Price: $4.20
sku:WA2-1025-T02SP-050
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $4.20 $3.99 $3.78 $3.61 ASK
saving% 0% 5% 10% 14% -
Real Time Availability
Stock: 9950
Quantity: Units

Type: WIFI Antenna Center Frequency: 2.4GHz Connector Series: TNC Connector Gender: RP Plug Straight Impedance: 50 Nominal Gain: 5dbi V.S.W.R: ≤1.5 Antenna Size: 14.5cm Length

Description:
This compact 2.4GHz omni directional Wi-Fi antenna provides broad coverage and 5 dBi gain for all IEEE 802.11 b/g devices with a RP-TNC connector.
It is ideally suited for IEEE 802.11b and 802.11g wireless LANs,

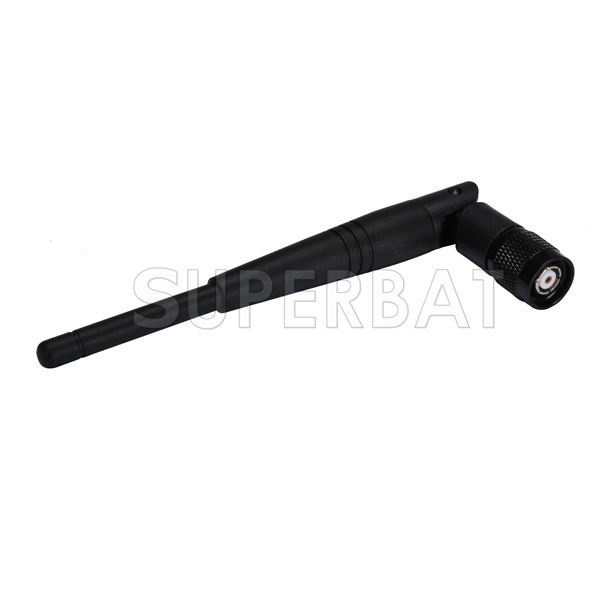

This flexible antenna features a tilt-and-swivel reverse-polarity TNC connector, allowing them to be used vertically, at a right angle, or any angle in-between.
The antenna is compatible for example with the following WLAN Access Points, Routers or  s (which mostly shipped by default with a standard 2 dBi-gained antennas) And, of course, it is also suitable for many other 802.11b/g devices, that are equipped with reverse-polarity TNC connectors.

Specification:
Frequency(MHz ):2.4GHz
VSWR:≤1.5
Gain-dBi:5dbi
Polarization:Vertical
Directionality: omni-directional
Diameter(mm):13.2mm
Antenna Length(mm):145mm
Connector Type:RP-TNC male Connector
Housing :Black
Application:Wireless Router and WLAN PCI Card
( IEEE 802.11b and 802.11g Wireless LANS )
Antenna Weight:25g
