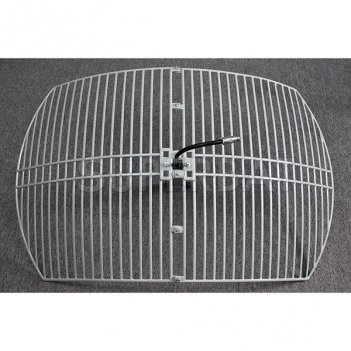

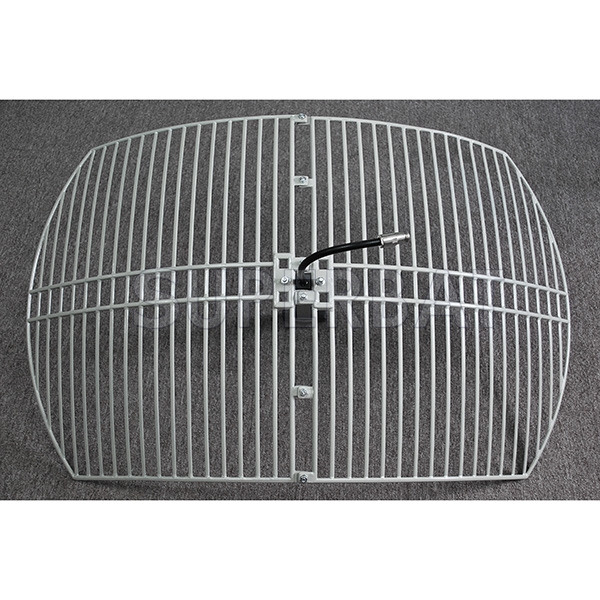

2.4GHz 24dBi WIFI Square Grid Parabolic Antenna outdoor antenna
Unit Price: $133.00
sku:WAE-1165-N01SJ-240-30
Real Time Availability
Stock: 10000
Quantity: Units

Type: WIFI Antenna Center Frequency: 2.4GHz Connector Series: N Connector Gender: Jack Straight Impedance: 50 Nominal Gain: 24dbi V.S.W.R: ≤1.5 Cable Length: 30cm

Frequency Range-MHz: 2400-2483
Bandwidth-MHz: 83
Gain-dBi: 24
Horizontal Beamwidth: 14
Vertical Beamwidth: 10
F/B ratio-dB:≤31
VSWR: ≤1.5
Input Impedance -Ω: 50
Polarization: Vertical or Horizontal
Maximum Power -W: 100

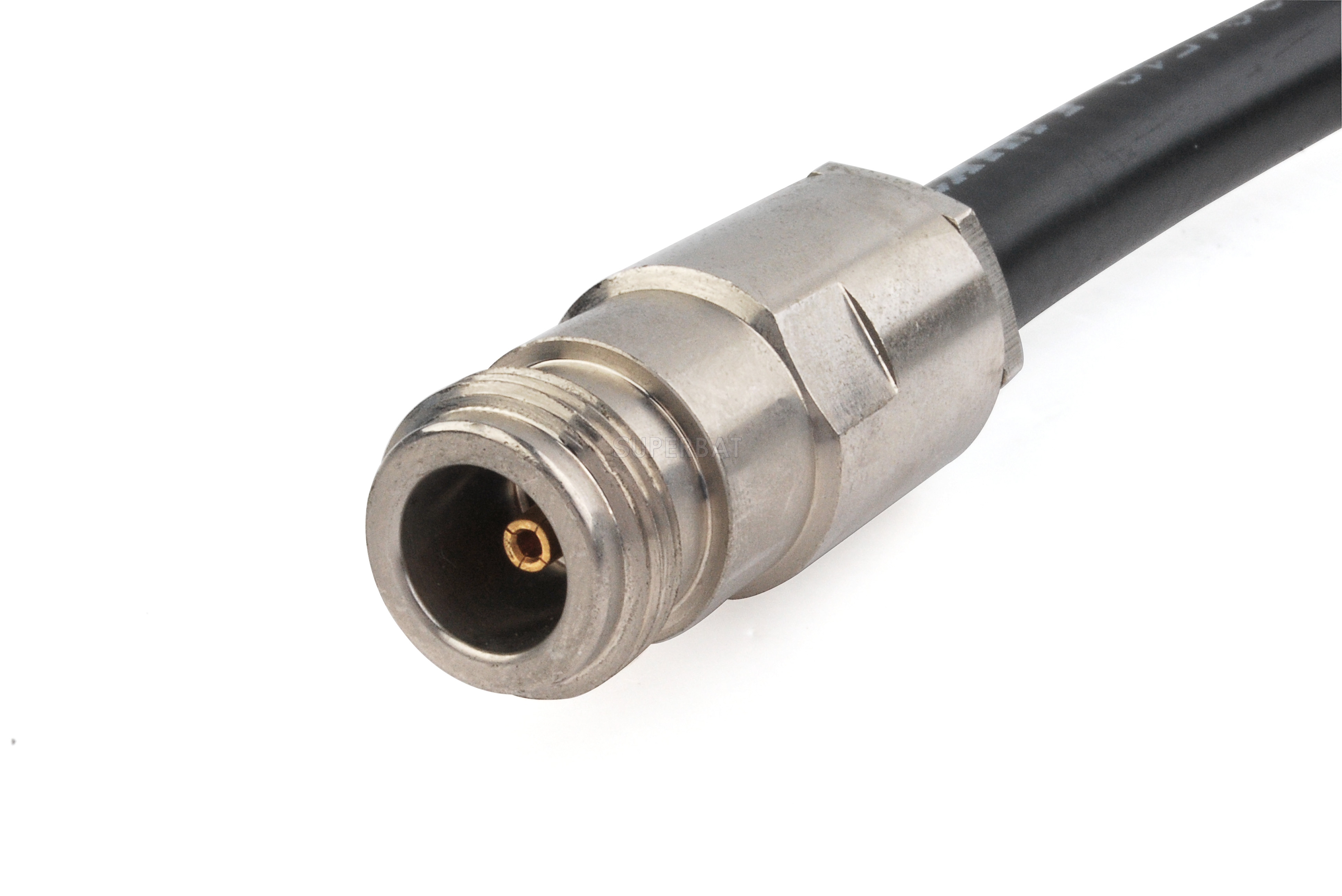

Antenna Connector :N Female Notes:If you choose the RP-SMA/RP-TNC ,the extra adapter or pigtail will be included in the package to fix your devices !If you need other kinds of connectors ,please contact with us at firstly!

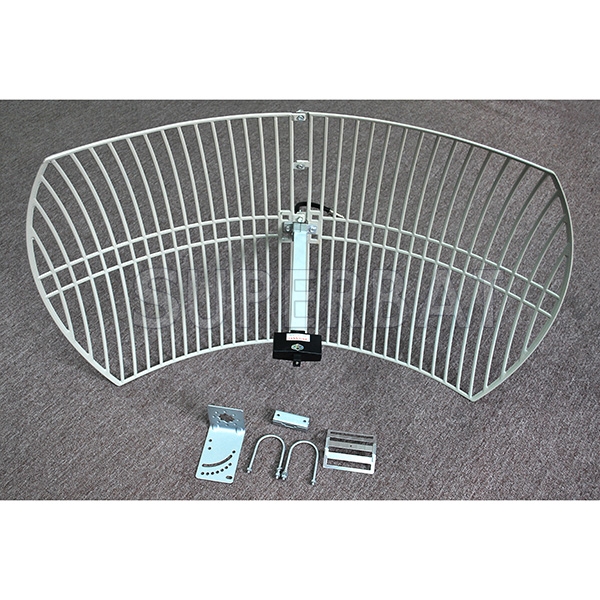

Mechanical Specifications
Dimensions-m: 0.6X0.9
Weight-kg: 2.5
Mounting Mast Diameter-mm: 40~50
