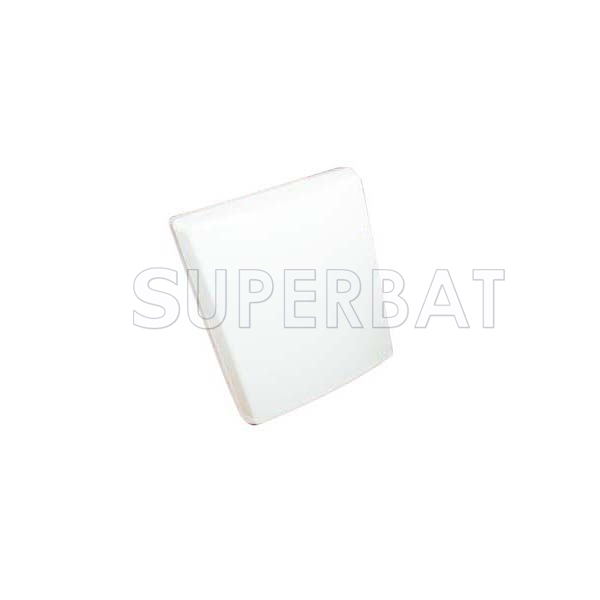

2.4GHz 14dBi Gain WiFi Directional Panel Antenna N female
2.4GHz 14dBi Gain WiFi Directional Panel Antenna N female
Unit Price: $52.00
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $52.00 $49.40 $46.80 $44.72 ASK
saving% 0% 5% 10% 14% -
Real Time Availability
Stock: 10000
Quantity: Units

Type: WIFI Antenna Center Frequency: 2.4GHz Connector Series: N Connector Polarity: Standard Connector Gender: Jack Straight Impedance: 50 Nominal Gain: 14dbi V.S.W.R: ≤1.5 Antenna Size: 176mm* 208mm *20 mm

Technical Specifications
Frequency Range: 2400~2483MHz
Input Impedance:50 Ohm
Gain:14 dBi
Polarization:Vertical, Linear
Max. Input Power:50 W
Connector location:Back
Connector:Standard N Female Connector Notes:If you choose the RP-SMA/RP-TNC ,the extra adapter or pigtail will be included in the package to fix your devices !If you need other kinds of connectors ,please contact with us at firstly!
Mechanical Specifications
Dimension:176mm X 208mm X20 mm
Weight:Approx 560g
Radiating   Material:CuAg
Reflector Material:Electrolysis Board
Radom material:ABS
Horizontal Beamwidth:13 degrees
Vertical Beamwidth:17.5 degrees
