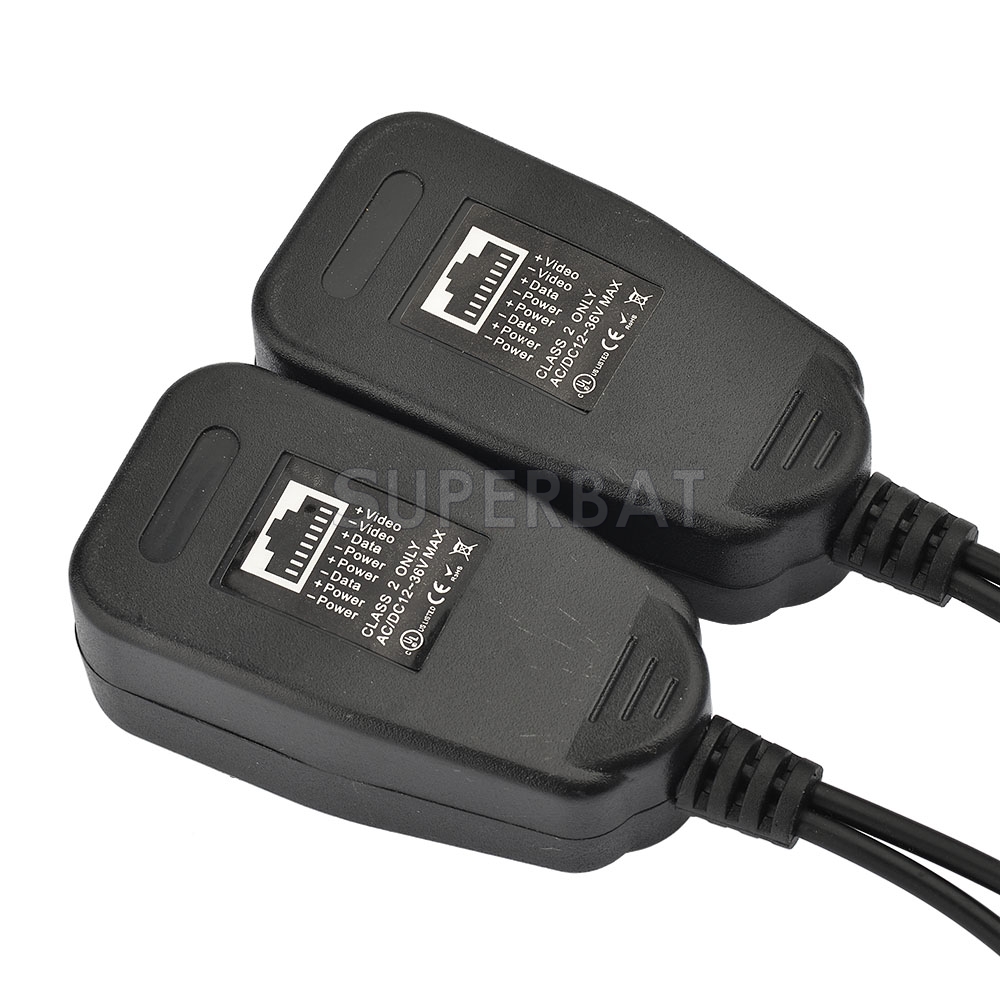

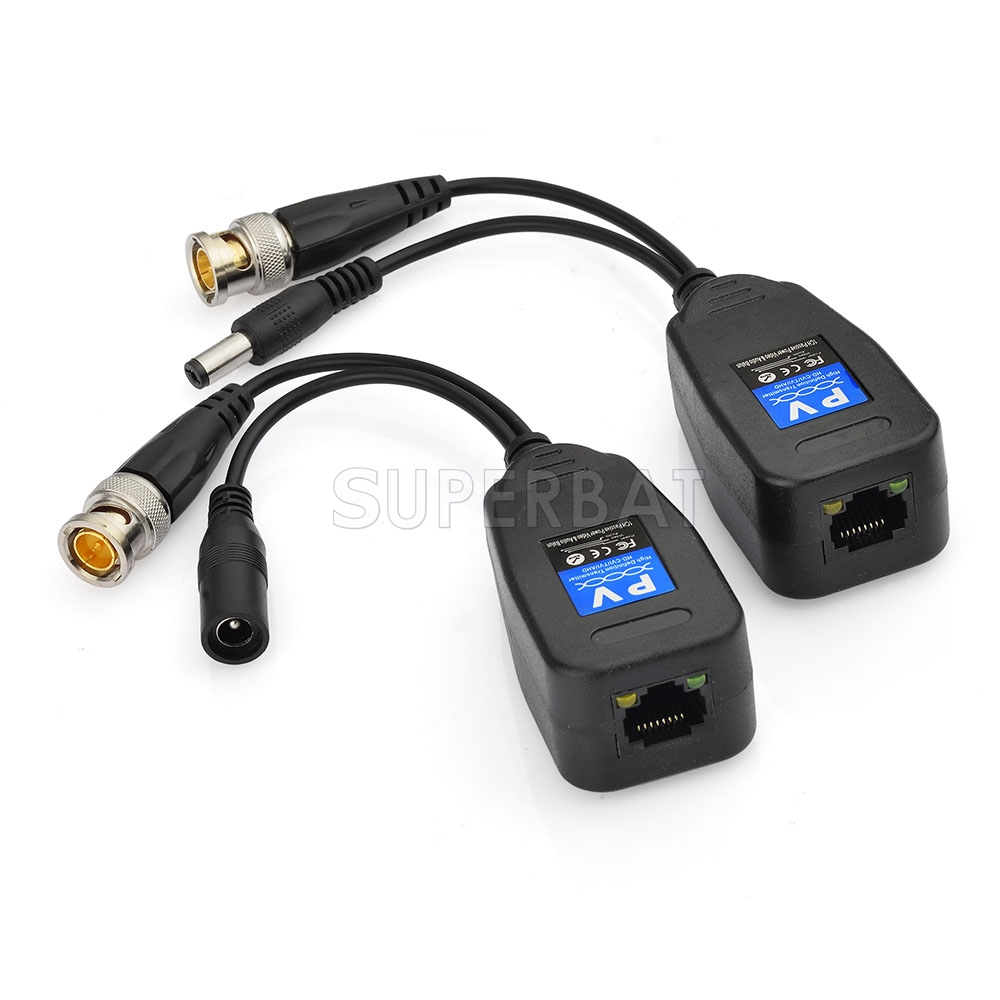

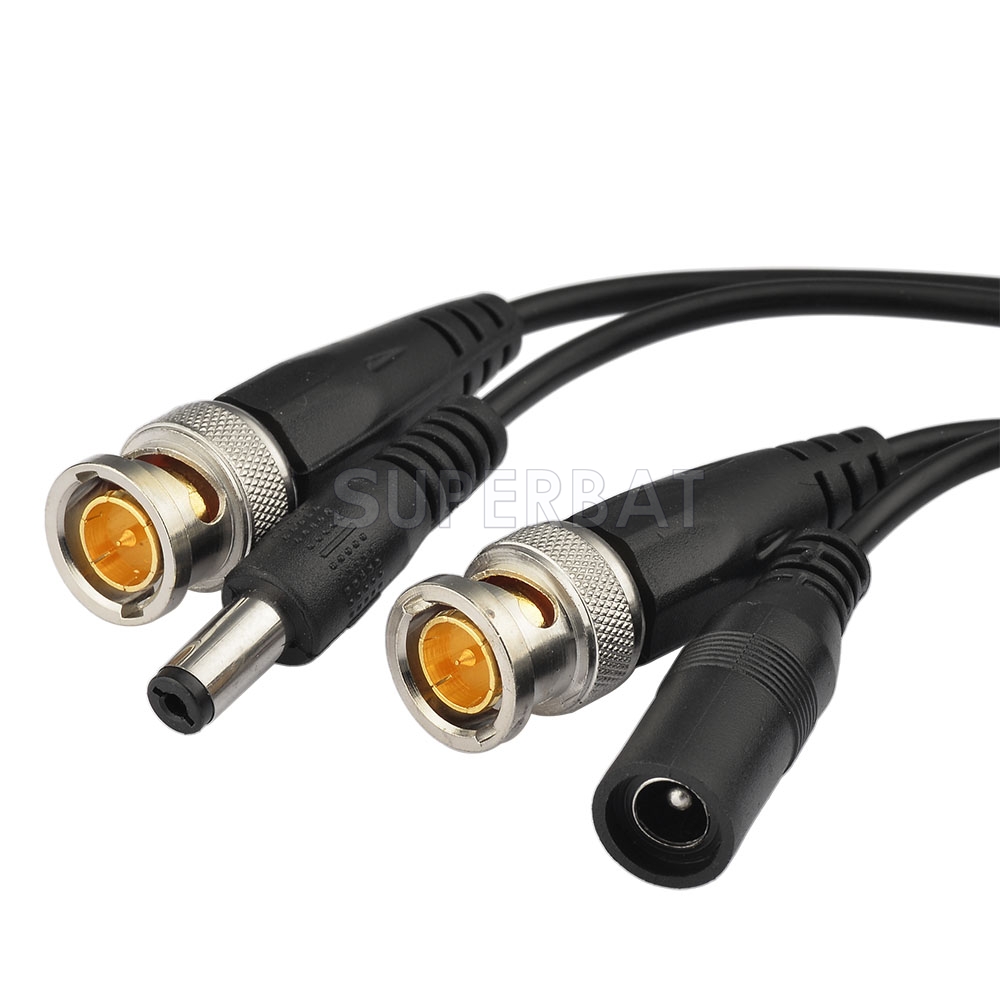

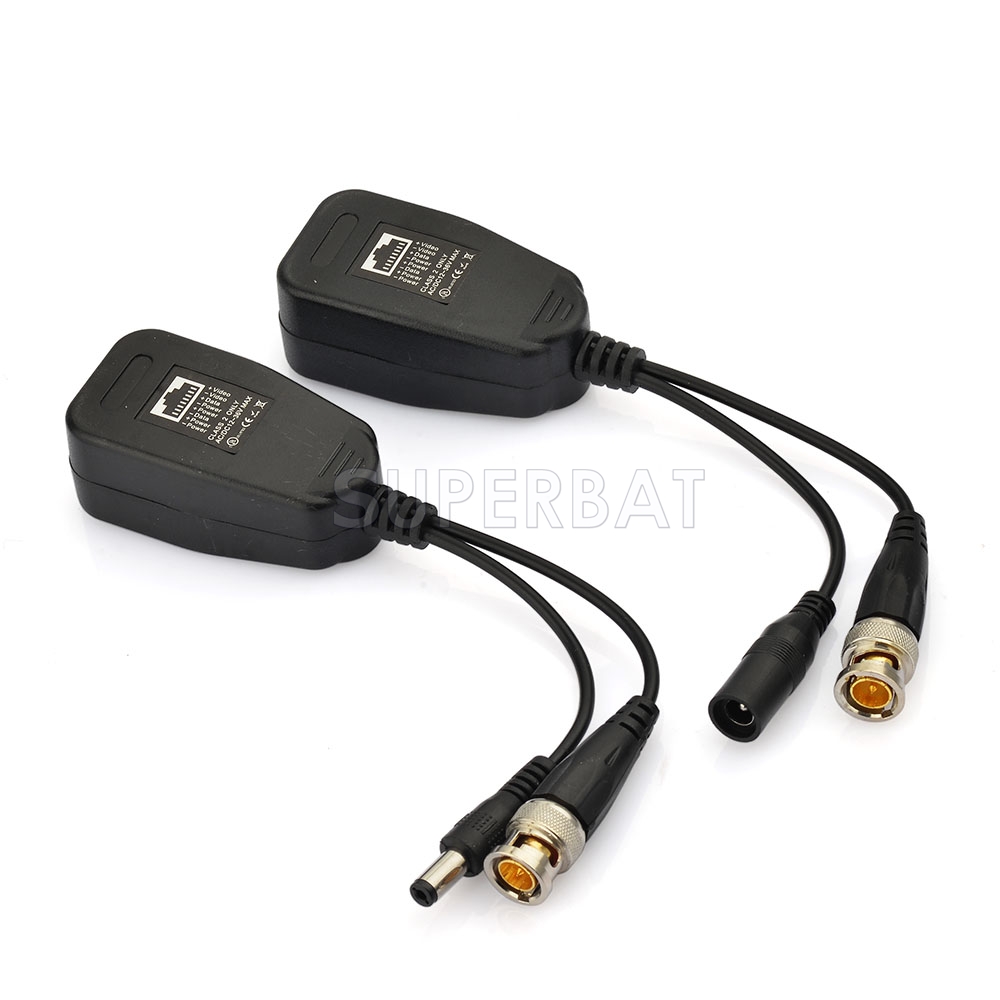

2 Pairs CCTV Coax BNC Video Power Balun Transceiver to CAT5e 6 RJ45 Connector
Unit Price: $14.00
sku:RF32050
Real Time Availability
Stock: 1000
Quantity: Units

Feature:

Power-video-audio/data signals are routed via UTP and RJ45.The unit is a passive(non-amplified) device that allows the transmission of real-time monochrome or color video over unshielded twisted-pair(UTP) telephone wire.

NTC,PAL,and SECAM video formats

60 db crosstalk and noise immunity

Compact size and easy installation

Save cable cost 30%-50%



Up to 450m for 720p CVI cameras (Video)

- Up to 250m for 1080p CVI Cameras (Video)

- Up to 250m for 720/1080p TVI cameras (Video)

- Up to 320m for 720p AHD cameras (Video)

- NTSC, PAL and SECAM video formats

- No Power supply required

- 60dB cross talk and easy installation

- Built-in transient suppression protection

- Innovative combinable design

- Must be used in pair



Technical specifications

Frequency response:DC-8MHZ

Attenuation:0.5bd typ

CMRR(common mode rajection ratio):60bd

Impedance: BNC:75Ω; RJ45:100Ω

Working temperature: -10℃ to + 70℃

Storage temperature: -30℃ to + 70℃

Humidity: 0 to 95%

Dimension: 55x30x25 with 12cm cable





Package include:

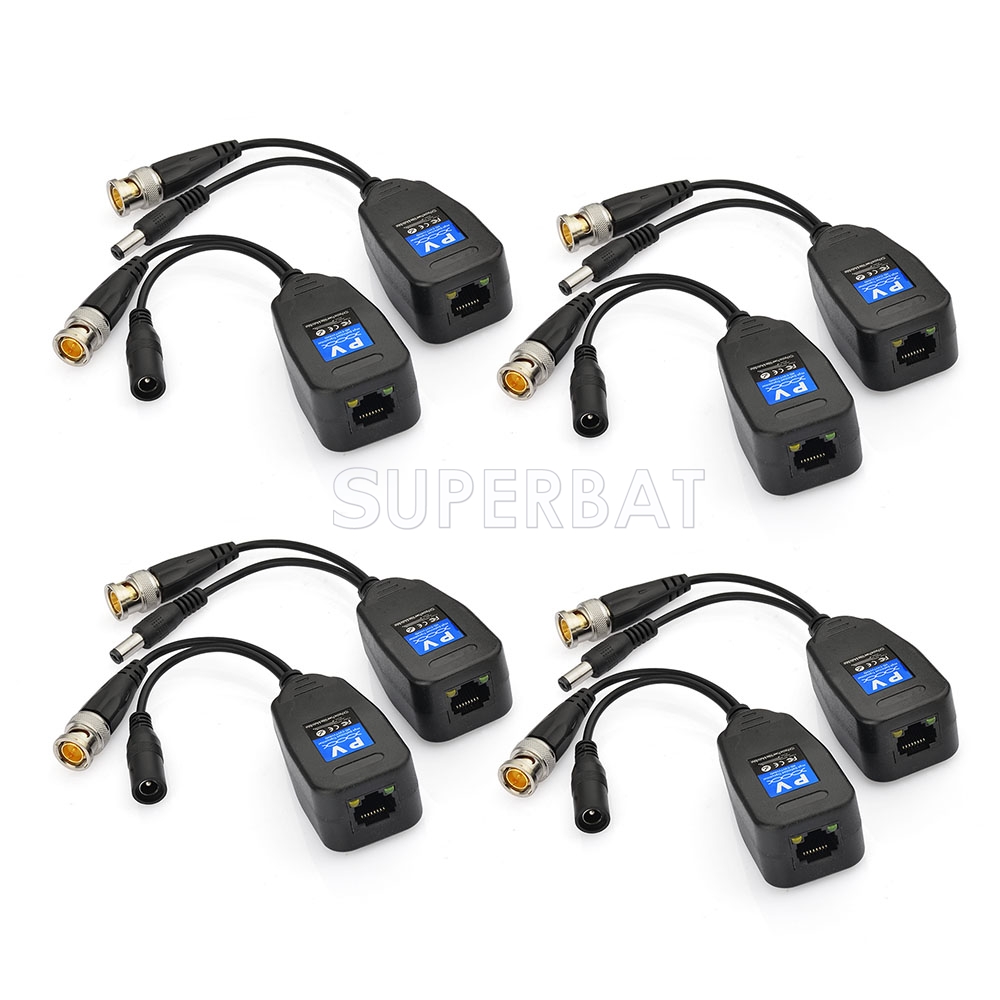

2 Pair (4pcs) BNC Video Power Balun
