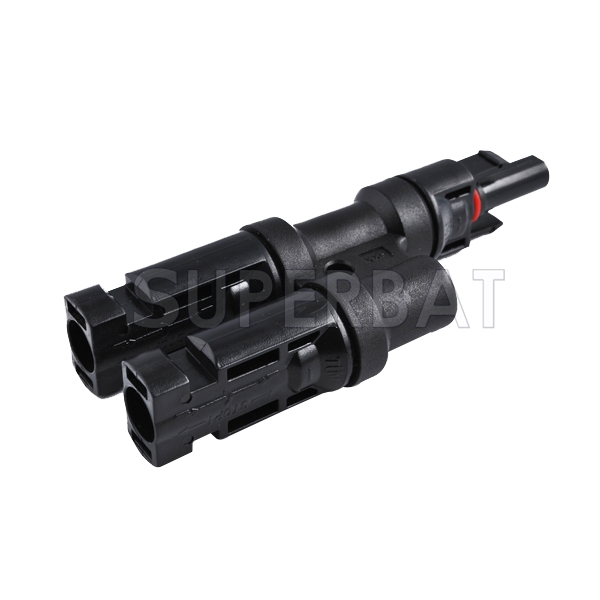

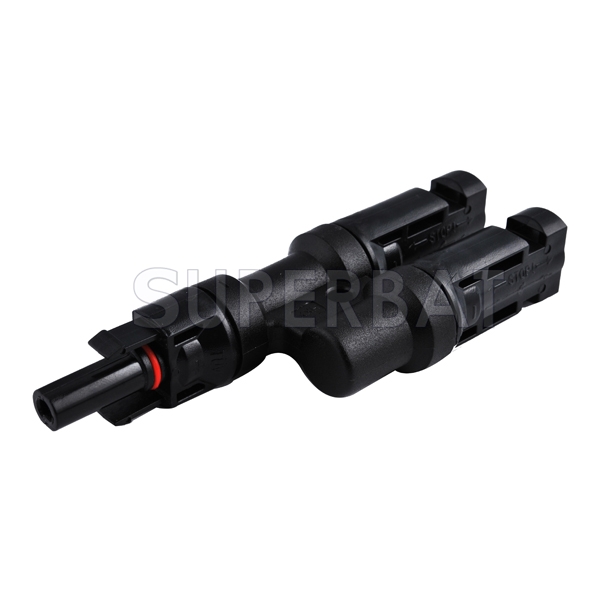

1F2M MC4 Y solar panel connector MC4 female to MC4 male to male
Unit Price: $5.00
sku:MC4-JJK-1954
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $5.00 $4.55 $4.05 $3.65 ASK
saving% 0% 9% 19% 27% -
Real Time Availability
Stock: 10000
Quantity: Units

MC4 connectors 1F2M and 1M2F used for connecting 2 solar panel in parallel/series
UL, TUV certified, brand new, water /weather proof rubber seal that can ensure excellent electrical contact for life time service.



The connector uses within the drum-shaped patch, male and female head and the wiring box and cable used in conjunction with PPO materials, housing has a strong anti-aging, anti-UV capability, found in outdoor use under harsh environmental conditions required, cable connections using self-locking into a fixed structure and connected, of male and female head of fixed self-locking with a stable organization, opening and closing freely with MC4 perfect bonding.



Main Technical Specification:
1.Connector adopts touch and insertion of reed with inner-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation



Technical data:
Maximum working voltage: DC1000V
Rated Current :30A
Flame class: UL94-V0
Pollution degree: 2
Contact resistance:≤5mmΩ
Shell Protection degree: IP67
Specification of Connecting Line: 4mm2
Safety Level: class‖
Insertion force:≤50N
Withdrawal force:≥50N
