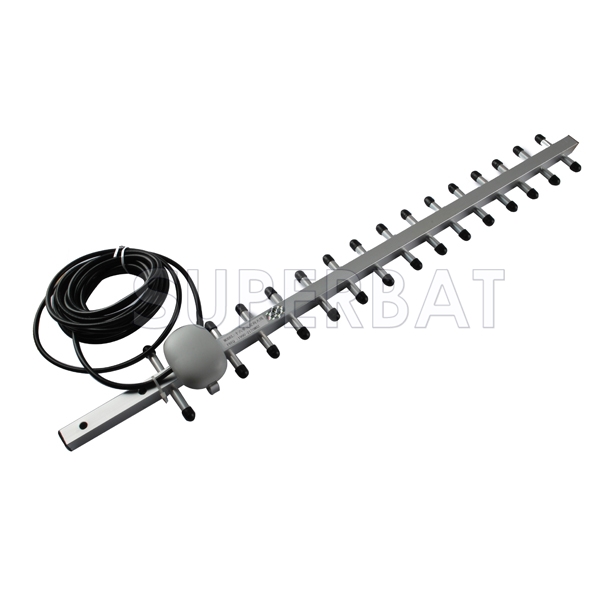

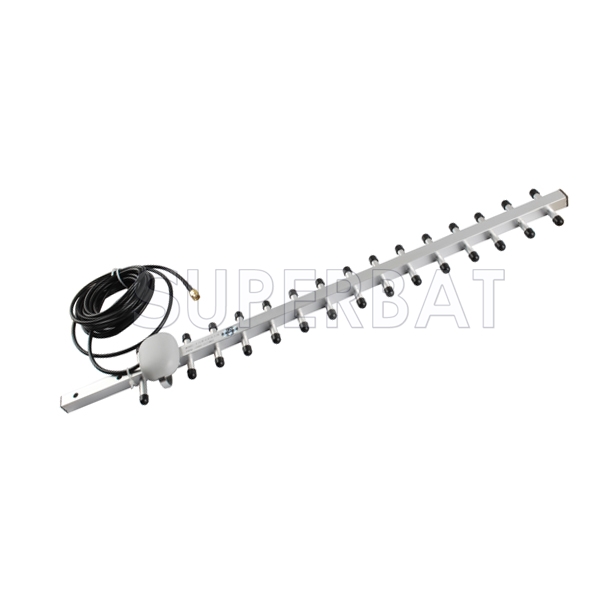

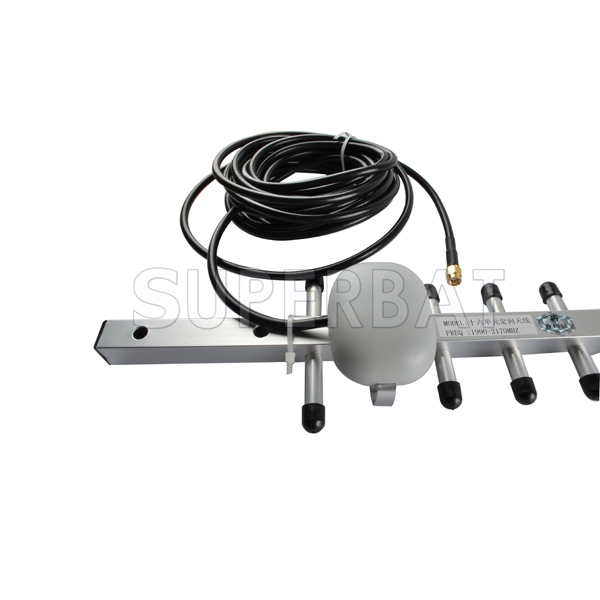

1990-2170MHz 16dbi 3G 2100Mhz Yagi Directional Antenna RP SMA For 3G wireless
Unit Price: $66.00
sku:3AY-2057-S02SP-160-500
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $66.00 $62.70 $59.40 $56.10 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Yagi Network: 3G/UMTS/CDMA2000 Antenna Frequency: 1990-2170MHz Connector Series: SMA Connector Polarity: Reverse Polarity Connector Gender: Plug Gain: 16dbi Radiation: Directional V.S.W.R: ≤1.5 Cable Type: RG58 Cable Length: 5M Weight: 0.357kg

Product Name: Yagi Antennas
Electrical specifications
Frequency Range-MHz: 1990-2170MHz
VSWR: ≤1.5
Input Impedance-Ohm: 50
Gain-dBi: 16dbi
Polarization: Vertical
F/B ratio-dB:
Horizontal Beamwidth -°: 54/48/40/36/30
Vertical Beamwidth -°: 48/40/36/32/30
Maximum Power -W: 50
Bandwidth-MHz: 100

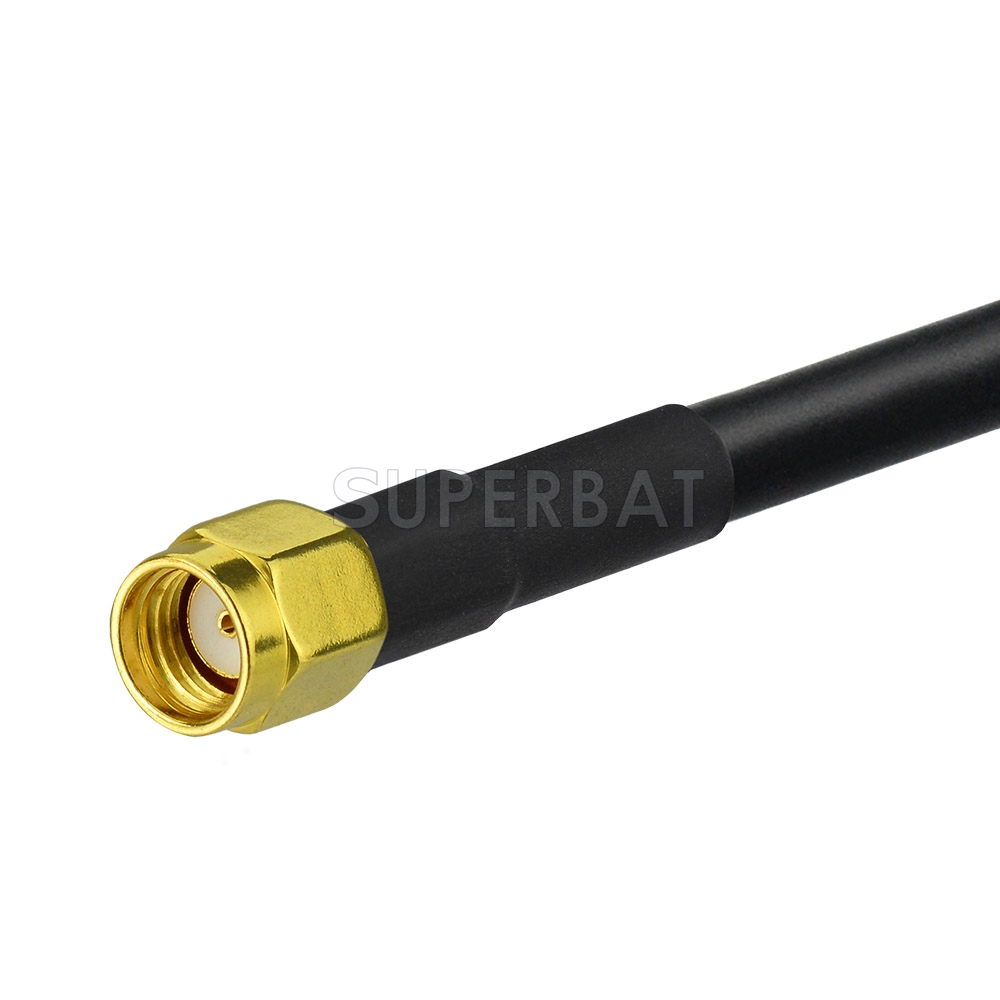

Connector: RP SMA male connector (default) or customized
    SMA/SSMB/TNC/BNC/MCX/MMCX/CRC9/TS9/MS147/FME//MC-Card..and so on., please give us notes if the connector is chosen !


Mechanical Specifications
Weight-kg: 0.357
Length-cm: 500
Mounting Mast Diameter-mm: 50-100
