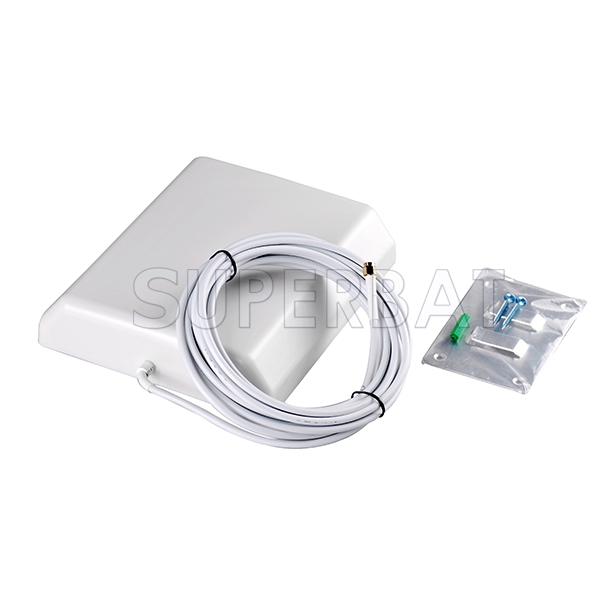

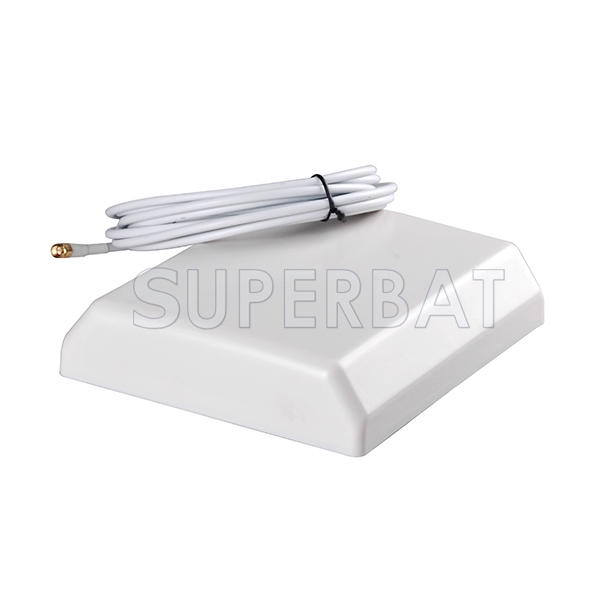

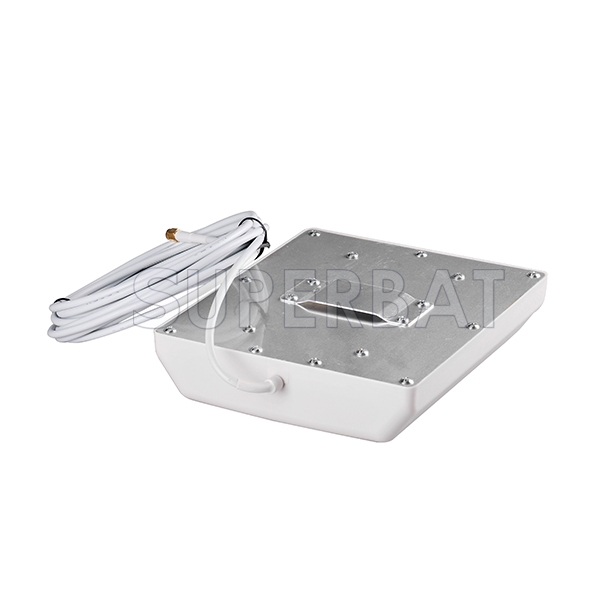

15dBi GSM/3G/UMTS SMA plug male panel antenna with extension cable 5m hot new
Unit Price: $35.00
sku:3AP-1757-S01SP-150-500
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $35.00 $33.60 $30.10 $28.35 ASK
saving% 0% 4% 14% 19% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Hole/Fixed/Wall/Ceiling Mount Network: 3G/UMTS/CDMA2000 Antenna Connector Series: SMA Connector Polarity: Standard Connector Gender: Plug Radiation: Directional

880~960MHz,1900-2170MHz.
GSM 900:880~960MHz
GSM 1900
UMTS 2100: 1900 - 2170 MHz
Gain: 15dbi
Horizontal Beamwidth: 70 degree
Vertical Beamwidth: 58 degree
VSWR: ≤1.5
Max power:: 50 W
Polarization: Vertical
Input Impedance: 50 Ohm
Max power: 100 W
Size: 207x 178 x45 mm
Weight: 569g
Cable: RG58 /50-3 cable with 5M

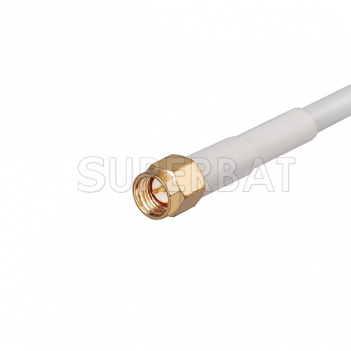

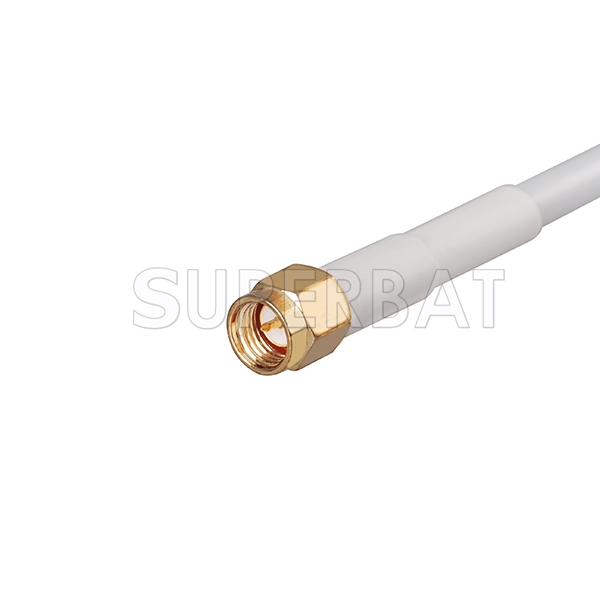

Connector: SMA  default

SMA/SSMB/CRC9/TS9/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card/MS-147..and so on.,please give us notes if the other connector is chosen !
