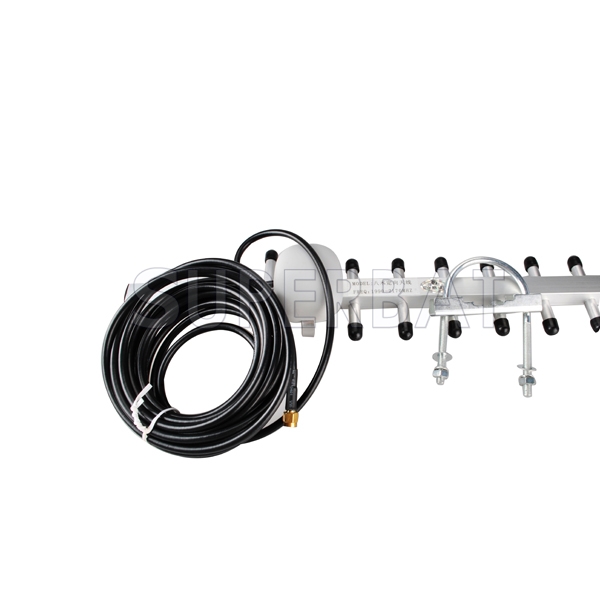

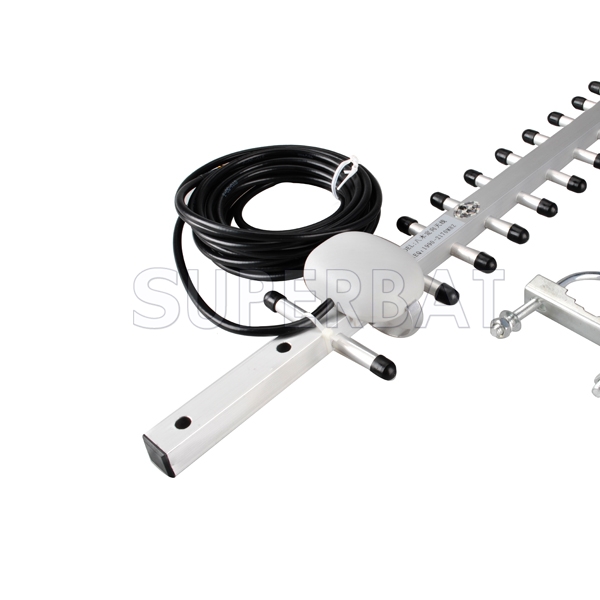

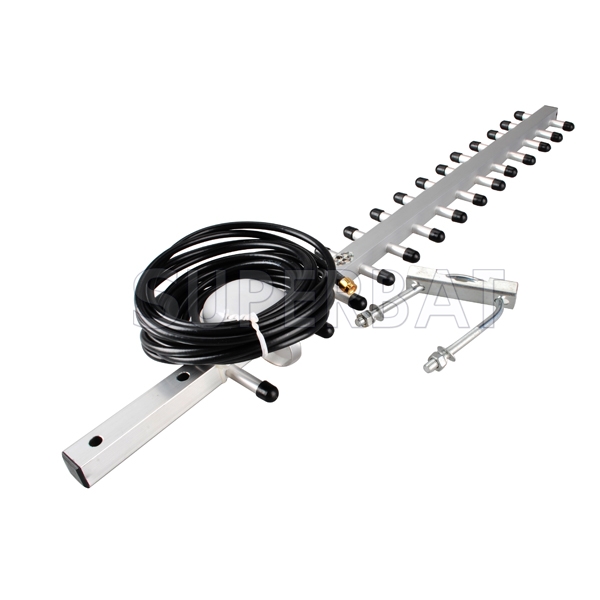

15DBI 1990-2170 MHz 3G Yagi Antenna SMA male For 3G wireless card&routers
15DBI 1990-2170 MHz 3G Yagi Antenna RP SMA male For 3G wireless card&routers
Unit Price: $64.00
sku:3AY-1690-S01SP-150-500
End connector
quantity 1 - 9 10 - 99 100 - 499 500 - 999 1000+
Price Each $64.00 $60.80 $57.60 $54.40 ASK
saving% 0% 5% 10% 15% -
Real Time Availability
Stock: 10000
Quantity: Units

Antenna Type: Yagi Network: 3G/UMTS/CDMA2000 Antenna Frequency: 1990-2170MHz Connector Series: SMA Connector Gender: Plug Gain: 15dbi Radiation: Directional V.S.W.R: ≤1.5 Cable Type: RG58 Cable Length: 5m Weight: 0.326kg

Product Name: Yagi Antennas
Electrical specifications
Frequency Range-MHz: 1990-2170MHz
VSWR: ≤1.5
Input Impedance-Ω: 50
Gain-dBi: 15dbi
Polarization: Vertical
F/B ratio-dB:
Horizontal Beamwidth -°: 54/48/40/36/30
Vertical Beamwidth -°: 48/40/36/32/30
Maximum Power -W: 50
Bandwidth-MHz: 100
Connector: SMA default or others

SMA/SSMB/CRC9/TS9/MCX/MMCX/FME/BNC/TNC/SMB/MC-Card/MS-147..and so on.,please give us notes if the connector is chosen !

Cable Type:RG58
Cable Length: 5m
Power: 50W
Operating Temperature:-45 to +75℃
Storage Temperature:-45 to +75℃
